Introduction
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Carina Power Stretch 2020 sewing machine. Please read this manual carefully before using the machine to ensure safe and efficient operation. Keep this manual for future reference.
The Carina Power Stretch 2020 is designed for ease of use, offering 23 utility and decorative stitches, including various overlock stitches for elastic materials. Its robust metal construction ensures durability and high piercing power for both thick and thin fabrics.
1. Setup
1.1 Unpacking and Checking Contents
Carefully remove the sewing machine from its packaging. Verify that all accessories listed in the 'Delivery Contents' section of the specifications are present. Retain the original packaging for storage or future transport.

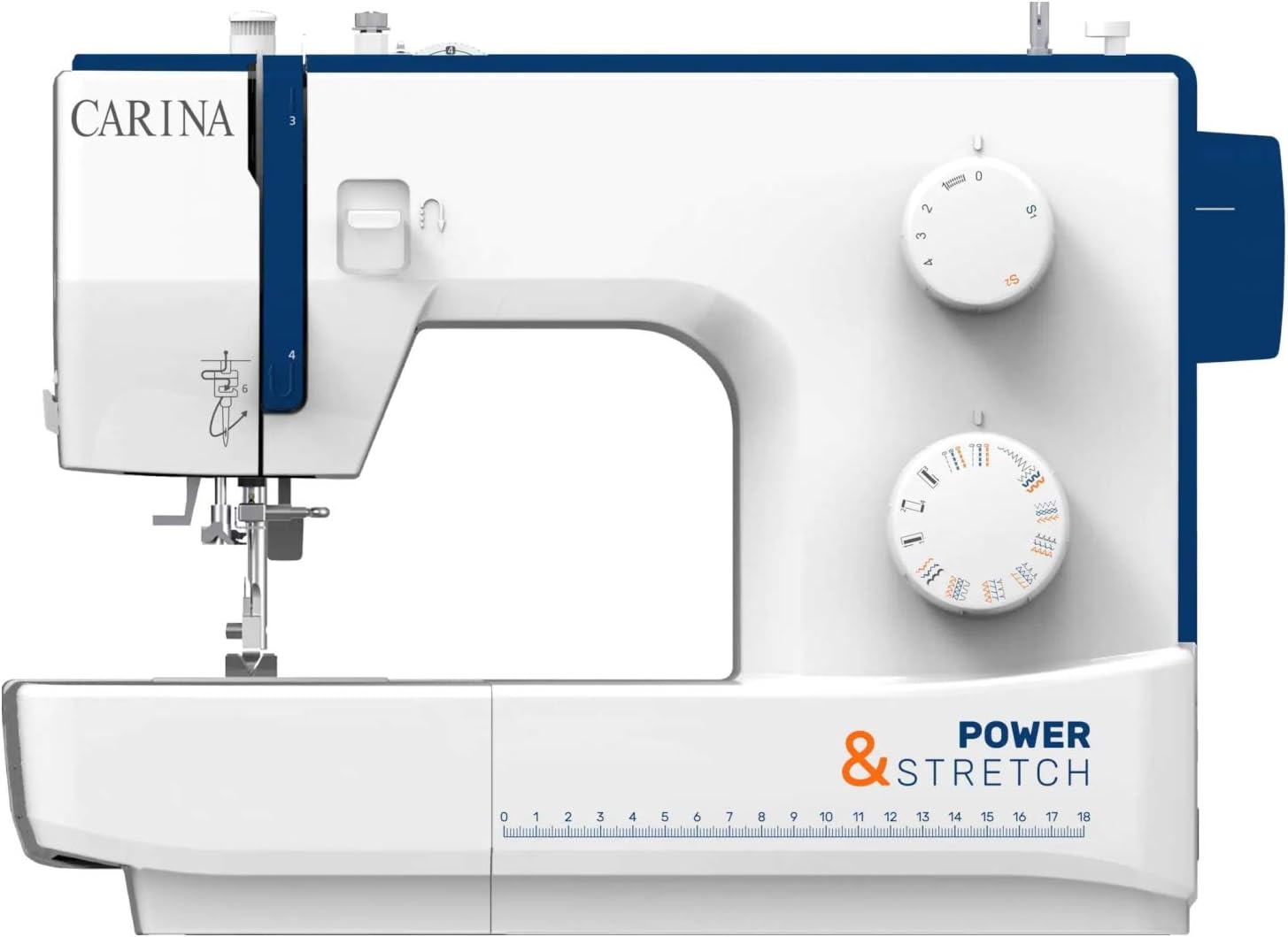

Image: The Carina Power Stretch 2020 sewing machine, showing its overall design with stitch selection dials and the 'Power & Stretch' branding.
1.2 Power Connection
- Ensure the machine's power switch is in the 'OFF' position.
- Connect the power cord to the machine's power input jack.
- Plug the other end of the power cord into a standard electrical outlet (230V, 50Hz).
1.3 Threading the Machine
Proper threading is crucial for good stitch quality.
1.3.1 Bobbin Winding
- Place a spool of thread on the spool pin.
- Guide the thread through the bobbin winding tension disc.
- Wind the thread a few times around an empty bobbin.
- Place the bobbin onto the bobbin winder spindle and push it to the right.
- Start the machine; the bobbin will wind automatically. Stop when full.
1.3.2 Inserting the Bobbin
- Open the bobbin cover plate.
- Insert the wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
- Pull the thread through the tension spring and into the thread guide.
- Close the bobbin cover plate.
1.3.3 Upper Threading
- Raise the presser foot lever.
- Place the thread spool on the spool pin.
- Follow the numbered threading path indicated on the machine, guiding the thread through all guides and the tension discs.
- Pull the thread up through the take-up lever.
- Thread the needle from front to back.

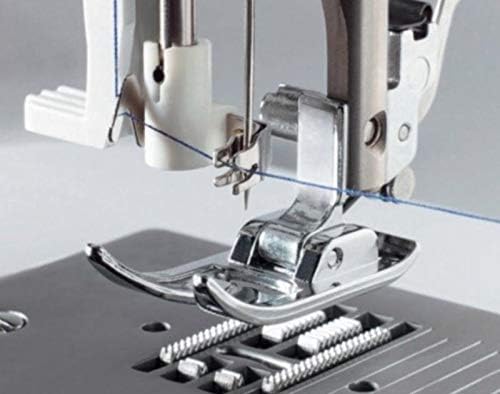

Image: A close-up view of the upper threading path on the sewing machine, showing the thread guided through various points towards the needle.
1.4 Needle Installation
- Turn the handwheel towards you to raise the needle to its highest position.
- Loosen the needle clamp screw.
- Insert a new needle with the flat side facing the back. Push it up as far as it will go.
- Tighten the needle clamp screw securely.
Image: A detailed view of the sewing machine's needle and presser foot, positioned above fabric, illustrating the working area.
1.5 Foot Pedal Connection
Connect the foot pedal cable to the designated jack on the sewing machine. The foot pedal controls the sewing speed.
2. Operating Instructions
2.1 Stitch Selection
The Carina Power Stretch 2020 offers 23 stitch programs. Use the stitch selection dial to choose the desired stitch. Refer to the stitch chart on the machine for visual guidance.
Image: A close-up of the two rotary dials on the sewing machine, one for stitch selection and the other for tension or stitch length adjustment.
2.2 Stitch Length and Width Adjustment
Adjust the stitch length using the dedicated dial. The maximum stitch length is 4.0 mm. The maximum stitch width is 4.6 mm. For optimal results, test on a scrap piece of your fabric.
2.3 Buttonhole Function
The machine features a 1-step automatic buttonhole function. Attach the buttonhole foot and follow the instructions in the stitch chart for precise buttonhole creation.
2.4 Reverse Sewing
To secure stitches at the beginning and end of a seam, press and hold the reverse sewing lever/button. The machine will sew backward as long as the lever/button is engaged.
2.5 Free Arm Usage
Remove the accessory box to reveal the free arm. This feature is ideal for sewing cylindrical items such as pant legs, cuffs, and sleeves.
Image: An open accessory drawer of the sewing machine, revealing various sewing tools and bobbins stored inside.
2.6 Working with Different Fabrics
The machine's high piercing power and 6-point feed dog system allow it to sew through various fabric types, including thick materials, thin fabrics, and problematic elastic fabrics like jersey or stretch. Adjust needle type and thread tension as needed for specific materials.
3. Maintenance
3.1 Cleaning
Regular cleaning is essential for optimal performance. Use the cleaning brush to remove lint and dust from the bobbin area and feed dog teeth. Do not use liquid cleaners or solvents.
3.2 Oiling
Refer to the specific oiling points indicated in the detailed manual (if provided separately) or consult a qualified technician. Use only high-quality sewing machine oil.
3.3 Needle Replacement
Replace the needle regularly, especially if it becomes bent, dull, or if you notice skipped stitches. Always use the correct needle type and size for your fabric.
4. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Skipped Stitches | Incorrect needle, bent needle, improper threading. | Replace needle, re-thread machine correctly. |
| Thread Breaking | Incorrect thread tension, poor quality thread, needle bent/dull. | Adjust tension, use quality thread, replace needle. |
| Fabric Not Feeding | Feed dog lowered, lint accumulation. | Raise feed dog, clean feed dog area. |
| Machine Not Starting | Power cord not connected, power switch off. | Check power connections, turn power switch on. |
For issues not listed here, please contact customer support.
5. Specifications
| Feature | Detail |
|---|---|
| Model | CARINA Power & Stretch II |
| Stitch Programs | 23 (utility, decorative, overlock, special stitches) |
| Buttonhole | 1-step automatic |
| Max. Stitch Length | 4.0 mm |
| Max. Stitch Width | 4.6 mm |
| Thread Tension | Automatic |
| Feed Dog | 6-point, toothed |
| Free Arm | Yes |
| Hook System | Full metal CB-grip system |
| Lighting | Glare-free sewing light |
| Power | 85 Watt |
| Voltage | 230 Volt, 50 Hz |
| Dimensions (approx.) | W 37 x H 31 x D 15 cm |
| Weight (approx.) | 5.6 kg |
| Included Accessories | Universal/all-purpose foot, zipper foot, buttonhole foot, button sewing foot, blind hem foot, seam ripper/cleaning brush, edge guide, bobbins (3x), L-screwdriver, needle set, darning plate, spool pin, spool cap, oil bottle, felt pad, second spool pin, dust cover. |
6. Warranty and Support
6.1 Warranty Information
Your Carina Power Stretch 2020 sewing machine comes with a 5-year warranty. This warranty covers manufacturing defects and ensures reliable performance under normal use. Please retain your proof of purchase for warranty claims.
6.2 Customer Support
For technical assistance, spare parts, or warranty service, please contact Carina customer support. Contact details can typically be found on the manufacturer's website or on your purchase documentation.
