Tribesigns L-Shaped Desk with Shelf (Model F1171) Instruction Manual

1. Safety Information

Always assemble the desk in a suitable corner to avoid tipping. Be cautious during assembly to prevent injuries. Do not place heavy objects on the desk to maintain stability. This desk is not designed with specific safety features for children or elderly users.

2. Product Overview

The Tribesigns L-Shaped Desk with Shelf (Model F1171) is designed to provide a spacious and functional workspace for home offices, gaming setups, and study areas. Its L-shaped configuration offers two large desktops, measuring approximately 57 x 51 inches, maximizing your corner space efficiently.

Key features include two raised shelves, ideal for placing multiple monitors to promote ergonomic viewing and reduce neck strain. The desk also incorporates a headphone hook for convenient storage and adjustable feet pads to ensure stability on uneven surfaces. Constructed with strong 20x40 mm metal legs and reinforced metal bars, the desk offers durability and stability. The desktop is made from top-graded MDF, which is waterproof, anti-scratch, and easy to clean.

Figure 2.1: Desk Dimensions. The desk measures approximately 51.18"D x 57.08"W x 35.82"H.

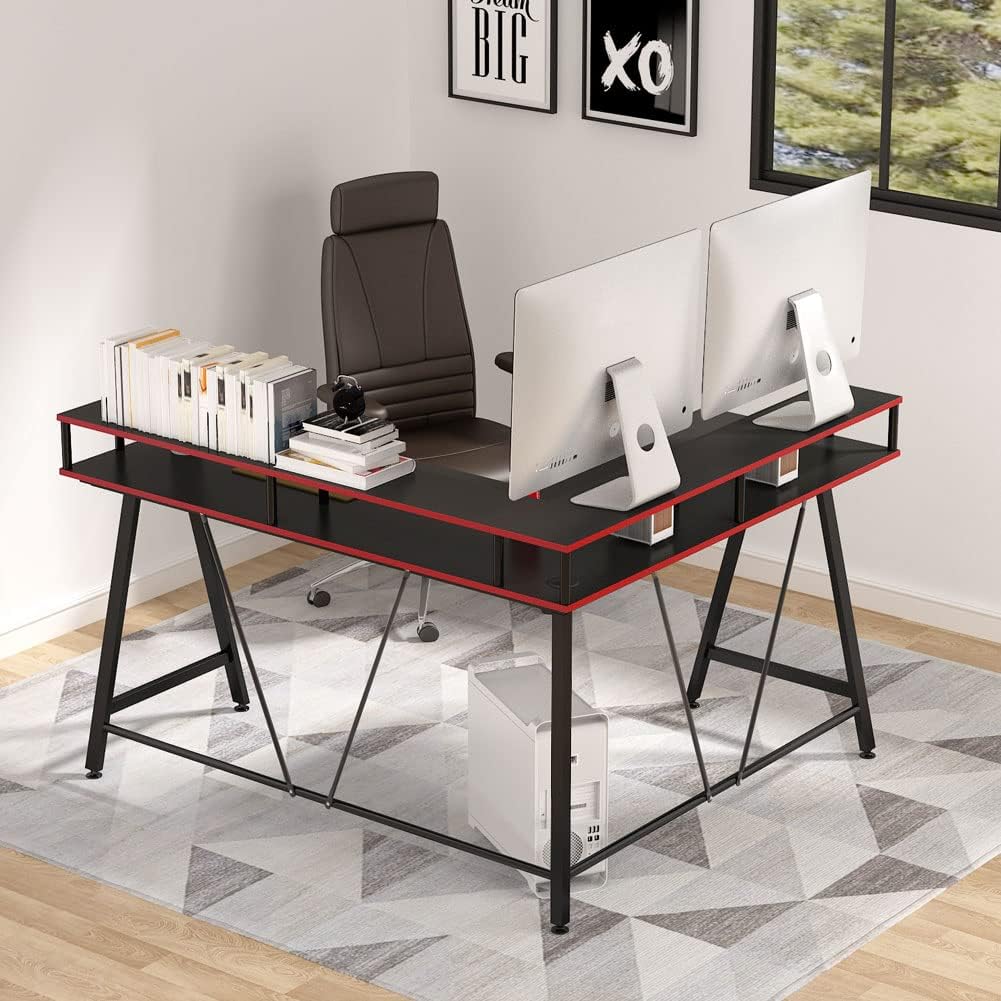

Figure 2.2: Tribesigns L-Shaped Desk in a typical setup, showcasing its spacious design for multiple monitors and accessories.

3. Components List

Before beginning assembly, carefully unpack all components and compare them against the parts list provided in your product packaging. Ensure all hardware and desk sections are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.

4. Assembly Instructions

Assembly of the Tribesigns L-Shaped Desk requires careful attention to detail. It is recommended that two people assemble the desk to ensure stability and ease of construction. Follow the step-by-step graphical instructions included in your product packaging.

1. Unpack and Identify: Lay out all components on a clean, soft surface to prevent scratches. Identify each part using the provided parts list.
2. Assemble Frame: Begin by attaching the metal legs and reinforced metal bars according to the diagrams. Ensure all screws are finger-tightened initially.
3. Attach Desktop Panels: Secure the desktop panels to the assembled frame. Pay attention to the orientation of the L-shape.
4. Install Raised Shelves: Mount the two raised shelves onto the designated areas of the desktop.
5. Attach Headphone Hook: Secure the headphone hook to the underside of the desk as shown in the instructions.
6. Install Adjustable Feet: Screw the adjustable feet pads into the bottom of the desk legs.
7. Final Tightening: Once all components are in place, systematically tighten all screws and fasteners using the provided tools. Do not overtighten.

Figure 4.1: Key features for assembly, including the headphone hook, adjustable feet, and reinforced metal bar for stability.

Figure 4.2: Detail of the monitor riser, which is integrated into the desk design.

5. Operating Instructions

Your Tribesigns L-Shaped Desk is designed for versatile use in various settings. Utilize the expansive L-shaped surface to organize your computer setup, gaming peripherals, or study materials. The dual desktops provide ample space for multitasking.

• Monitor Placement: Place your monitors on the raised shelves for an ergonomic viewing height, which helps reduce neck and eye strain. The shelves can accommodate multiple monitors.
• Headphone Storage: Use the integrated headphone hook to keep your audio or gaming headsets conveniently stored and easily accessible, helping to maintain a tidy workspace.
• Leg Room and Footrest: The desk's design provides spacious leg room. The reinforced metal bars at the bottom can also serve as a comfortable footrest during extended use.

Figure 5.1: The desk configured for a productive workspace, highlighting the use of monitor risers and ample desktop area.

6. Maintenance and Care

Proper maintenance will extend the lifespan and preserve the appearance of your Tribesigns L-Shaped Desk.

• Cleaning: Wipe the desktop and metal frame with a soft, damp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used. Avoid harsh chemicals that may damage the finish.
• Fastener Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary to maintain desk stability.
• Avoid Excessive Weight: Do not exceed the maximum weight recommendation of 200 pounds on the desktop to prevent structural damage.

7. Troubleshooting

• Desk Wobbles: If the desk feels unstable, ensure all assembly screws are fully tightened. Adjust the leveling feet pads on the bottom of each leg to compensate for uneven floor surfaces.
• Missing Parts: If you discover any missing components during assembly, refer to the parts list in your packaging and contact Tribesigns customer support with the specific part number and your model number (F1171).
• Assembly Difficulties: Review the included graphical instruction manual carefully. Ensure that all parts are oriented correctly as depicted in the diagrams. If issues persist, consider seeking assistance from another person.

8. Specifications

9. Warranty and Support

The Tribesigns L-Shaped Desk (Model F1171) comes with an 18-month manufacturer's warranty, covering defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For customer support, technical assistance, or to report missing/damaged parts, please contact Tribesigns customer service through their official channels. Refer to your product packaging or the Tribesigns website for contact information.
