Junkers HYDRONEXT 5600 S WTD12-3 AME Natural Gas Water Heater

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Junkers HYDRONEXT 5600 S WTD12-3 AME Natural Gas Water Heater. Please read all instructions carefully before use and retain this manual for future reference.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always ensure proper ventilation.
• Do not store flammable materials near the water heater.
• Only qualified professionals should perform installation and service.
• Regularly check for gas leaks.
• Keep children away from the appliance.

3. Product Overview

The Junkers HYDRONEXT 5600 S WTD12-3 AME is a sealed natural gas water heater designed for efficient hot water supply. Its compact design and advanced features ensure reliable performance.

3.1 Key Features

• Compact Dimensions: 575 x 335 x 180 mm (H x W x D).
• Energy Efficiency Class A for domestic hot water.
• Maximum vertical evacuation length: 4 meters.
• Digital display for temperature control.

3.2 Components

The water heater consists of the main unit, a control panel, and connections for water and gas. An optional horizontal evacuation kit may be included for exhaust.

Figure 1: Front view of the Junkers HYDRONEXT 5600 S WTD12-3 AME Natural Gas Water Heater, showing the digital display and control knob.

Figure 2: The water heater unit shown with an included horizontal evacuation kit, illustrating the exhaust pipe and elbow.

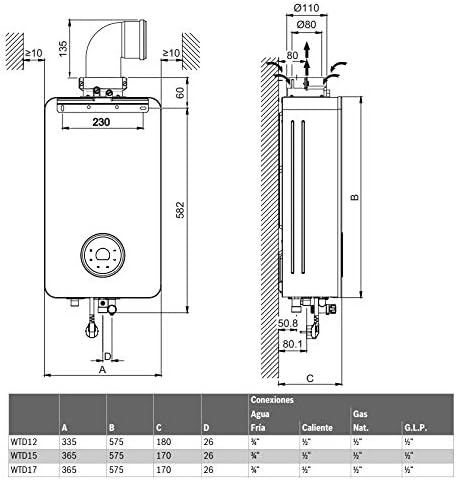

Figure 3: Technical drawing detailing the dimensions and connection points for the WTD12-3 model, including water and gas inlets/outlets.

4. Setup and Installation

Installation of this natural gas water heater must be performed by a certified and qualified professional in accordance with all local and national codes and regulations. Incorrect installation can lead to serious hazards, including gas leaks, carbon monoxide poisoning, fire, or explosion.

4.1 Pre-Installation Checks

• Verify that the appliance is suitable for the available gas type (Natural Gas).
• Ensure adequate ventilation and clearance around the unit.
• Check water pressure and flow rates.

4.2 Mounting the Unit

Mount the water heater securely on a vertical wall using appropriate fasteners. Refer to Figure 3 for mounting dimensions and connection points. Ensure the unit is level.

4.3 Connecting Water and Gas

Connect the cold water inlet, hot water outlet, and natural gas supply lines. All connections must be sealed properly to prevent leaks. A qualified technician will perform these connections and test for integrity.

4.4 Flue Gas Evacuation

Install the flue gas evacuation system according to manufacturer instructions and local codes. The maximum vertical evacuation length is 4 meters. Ensure proper sealing and unobstructed flow of exhaust gases.

5. Operating Instructions

Once installed and checked by a professional, the water heater is ready for operation.

5.1 Initial Startup

1. Ensure the gas supply valve is open.
2. Open a hot water tap to allow water to flow through the unit.
3. The unit should automatically ignite and begin heating water.
4. Check the digital display for operational status and temperature.

5.2 Setting Water Temperature

Use the control knob on the front panel to adjust the desired hot water temperature. The digital display will show the set temperature. Allow a few moments for the unit to adjust to the new setting.

5.3 Shutting Down the Unit

To temporarily shut down the unit, close the gas supply valve. For extended periods of non-use, it is recommended to also drain the water from the unit to prevent freezing, especially in cold climates.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your water heater. All maintenance should be performed by a qualified technician.

6.1 Annual Inspection

• Inspect the burner and heat exchanger for soot or corrosion.
• Check all gas and water connections for leaks.
• Verify proper operation of safety devices.
• Clean the filter (if applicable).
• Inspect the flue gas evacuation system for blockages or damage.

6.2 Cleaning

The exterior of the unit can be cleaned with a soft, damp cloth. Do not use abrasive cleaners or solvents.

7. Troubleshooting

If you experience issues with your water heater, refer to the following common problems and solutions. For complex issues or if problems persist, contact a qualified service technician.

8. Technical Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or service, please contact Junkers customer service or an authorized service center. Keep your proof of purchase for warranty claims.
