FeiyuTech AK2000S Gimbal DSLR Camera Stabilizer Instruction Manual

1. Introduction

The FeiyuTech AK2000S is a versatile 3-axis gimbal stabilizer designed to provide smooth, stable footage for DSLR and mirrorless cameras. This manual provides essential information for the proper setup, operation, and maintenance of your AK2000S gimbal.

2. Product Overview and Features

The AK2000S gimbal is engineered for professional-grade stabilization with user-friendly features.

• Max Payload: Supports cameras up to 4.85 lbs (2.2 kg), compatible with a wide range of DSLR and mirrorless cameras including Sony A9/A7 series, Canon EOS R/M50/M6/80D/90D, Panasonic GH4/GH5/GH5S, Fujifilm X-T3/X-T4/X-T200, and Nikon Z7/Z6.
• Detachable Versatile Handles: Allows for flexible shooting configurations, easily switching between single-handle and underslung positions to adapt to various shooting scenarios.
• Touch Screen Display: An intuitive OLED touch screen provides direct access to gimbal settings and operational information.
• 3-Axis Motor-lock Design: Each axis features physical motor locks, simplifying the balancing process and ensuring secure transport.
• Quick Charging & Long Battery Life: Equipped with a USB-C quick charging port, allowing a full charge in approximately 1.5 hours. Provides up to 7 hours of normal working time and 14 hours in standby mode.

Image: The FeiyuTech AK2000S Gimbal shown in standard and underslung configurations, held by a user.

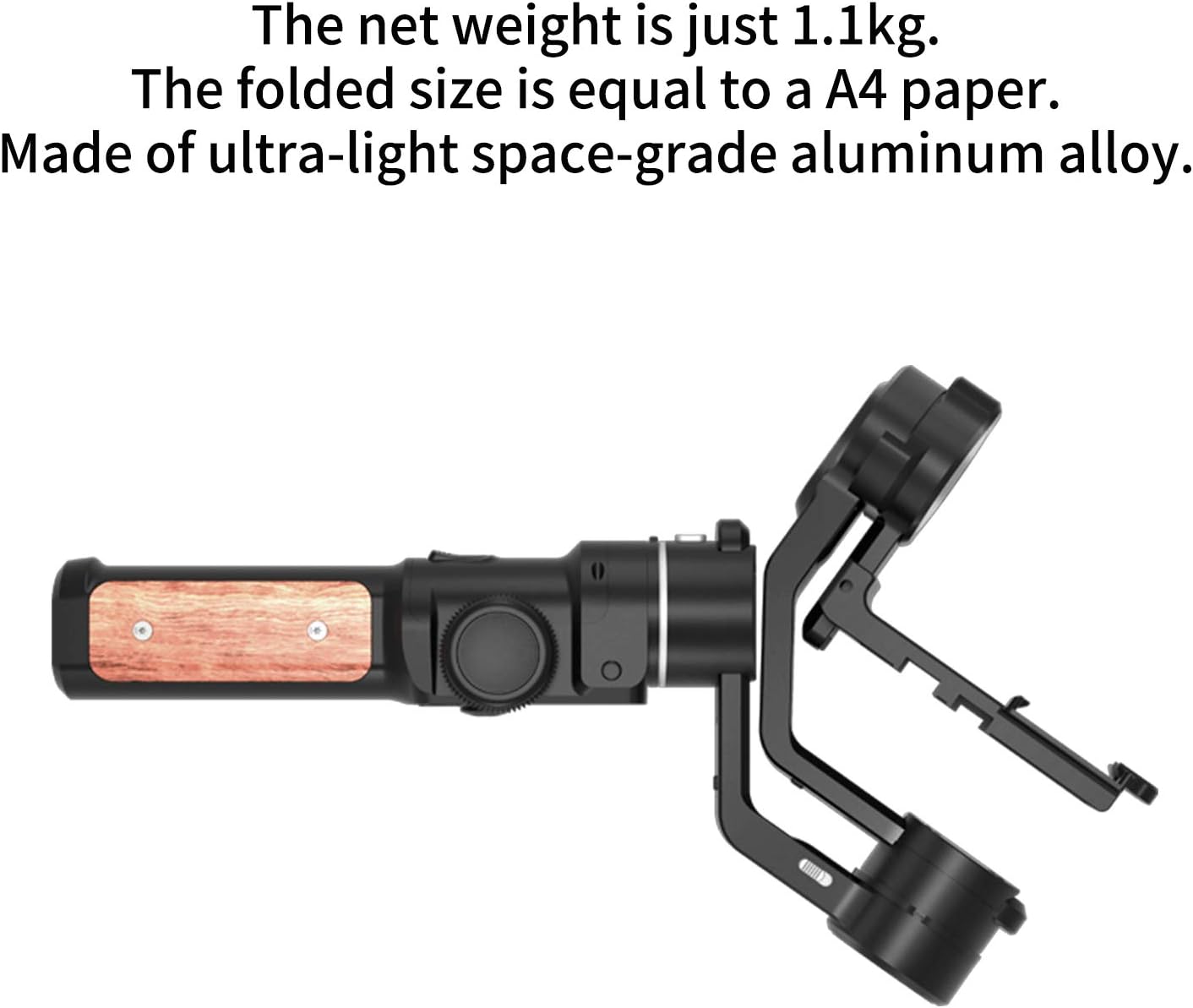

Image: The AK2000S Gimbal folded for compact storage and transport.

3. Setup

3.1 Unboxing and Component Identification

Carefully unpack all components. Ensure the package contains the gimbal body, detachable handle, quick release plate, camera support, and charging cable.

3.2 Mounting the Camera

1. Attach the quick release plate to the bottom of your camera using the provided screw.
2. Slide the camera with the quick release plate onto the gimbal's mounting base until it locks securely.
3. Adjust the camera support to ensure the camera is firmly seated and stable.

Image: A camera securely mounted on the AK2000S Gimbal's quick release plate.

3.3 Balancing the Gimbal

Proper balancing is crucial for optimal performance and to prevent motor strain. Perform balancing before powering on the gimbal.

1. Unlock all three motor axes (Pan, Tilt, Roll) using the physical motor locks.
2. Balance the Tilt Axis: Adjust the camera forward/backward until it remains level when tilted.
3. Balance the Roll Axis: Adjust the camera left/right until it remains level horizontally.
4. Balance the Pan Axis: Adjust the horizontal arm until the gimbal remains stable when rotated.
5. Once balanced, you may re-engage the motor locks for transport or leave them unlocked for immediate use after powering on.

4. Operating Instructions

4.1 Power On/Off

• Power On: Press and hold the power button until the OLED screen illuminates.
• Power Off: Press and hold the power button until the screen turns off.

4.2 Using the Touch Screen Display

The OLED touch screen allows for quick adjustments and mode selection.

Image: Detailed view of the AK2000S OLED touch screen interface.

• Navigation: Swipe left, right, up, or down to access different menus and settings.
• Selection: Tap on icons or options to select them.
• Modes: Access various shooting modes (e.g., Pan Follow, Lock Mode, Tracking Mode) directly from the screen.

4.3 Handle Configuration

The detachable handle allows for two primary configurations:

• Standard Position: The handle is attached vertically for upright shooting.
• Underslung Position: The handle is reconfigured to allow the gimbal to be held in an inverted position, ideal for low-angle shots.

Image: The AK2000S Gimbal configured for underslung operation.

4.4 Charging the Gimbal

Connect the provided USB-C cable to the gimbal's charging port and a compatible USB power adapter. The OLED screen will indicate charging status. A full charge takes approximately 1.5 hours.

4.5 Official Instructional Videos

For visual guidance on setup and operation, refer to the following official videos:

5. Maintenance

5.1 Cleaning

Wipe the gimbal body with a soft, dry cloth. Avoid using liquid cleaners or solvents that may damage the finish or electronic components.

5.2 Storage

When not in use, store the gimbal in its original packaging or a protective case. Ensure all motor locks are engaged to prevent accidental movement. Store in a cool, dry place away from direct sunlight.

5.3 Battery Care

To prolong battery life, avoid fully discharging the gimbal frequently. If storing for extended periods, charge the battery to approximately 50-60% every three months.

6. Troubleshooting

This section addresses common issues you might encounter.

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the official FeiyuTech website or contact your local distributor. Keep your proof of purchase for warranty claims.

You can visit the official FeiyuTech store for more information: FeiyuTech Store
