Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Walfront LCD Battery Monitor. Please read this manual thoroughly before using the product to ensure proper function and safety.
Safety Information
- Ensure the power supply voltage is within the specified range (DC 8V-100V) to prevent damage to the device.
- Do not expose the device to extreme temperatures, humidity, or corrosive environments.
- Avoid physical impact or dropping the device.
- Disconnect power before making any connections or disconnections.
- Do not attempt to disassemble or modify the device. Refer to qualified personnel for repairs.
- Keep out of reach of children.
Product Overview
The Walfront LCD Battery Monitor is a versatile digital capacity tester and voltmeter designed for various battery types, including lead-acid, lithium-ion, lithium iron phosphate, and metal hydride batteries. It features a clear LCD display for real-time voltage and percentage readings.
Figure 1: Front view of the Walfront LCD Battery Monitor with its connecting wires.
Figure 2: Comparison showing the blue display (top) and white display (bottom) variants of the battery monitor, highlighting their voltage measurement range (DC8V-100V), working current (<15MA), and LCD screen display mode.

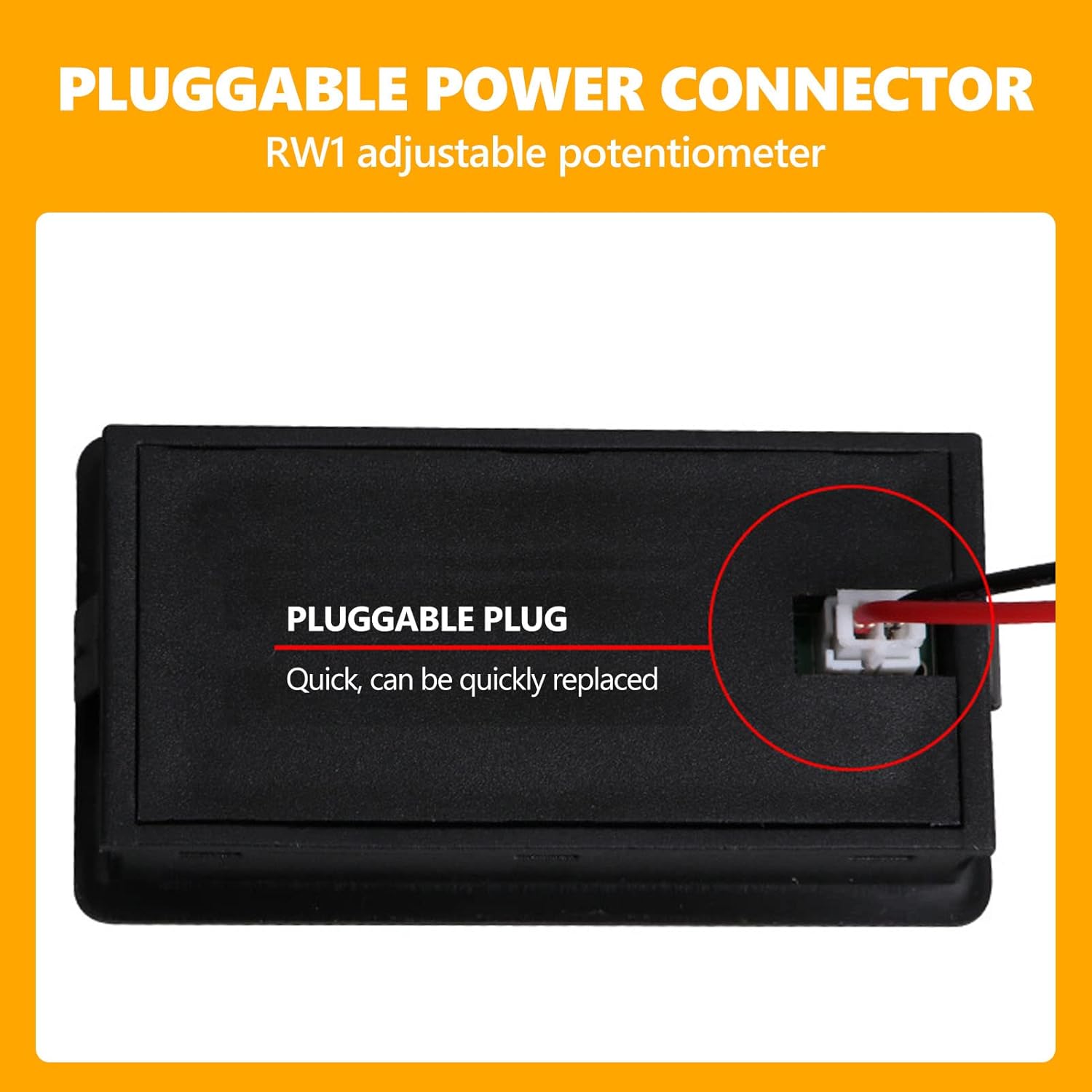

Figure 3: Detail of the pluggable power connector on the back of the unit, indicating quick and replaceable connection. An adjustable potentiometer (RW1) is also noted.

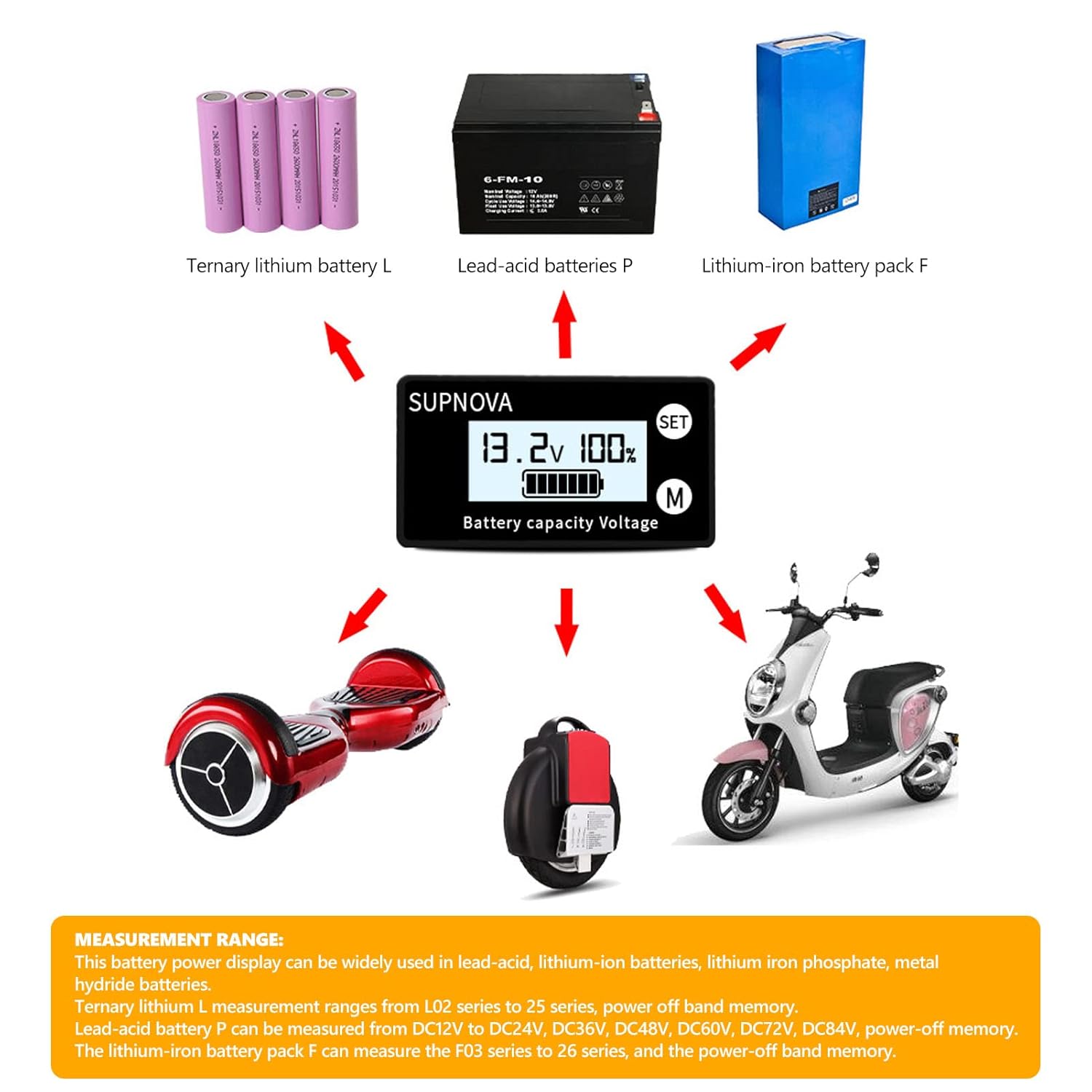

Figure 4: Illustrates the broad measurement range and applications of the battery monitor, including ternary lithium (L), lead-acid (P), and lithium-iron (F) battery packs, and their use in devices like hoverboards and scooters.
Figure 5: Detailed dimensional drawing of the battery monitor, showing its length, width, height, and installation cutout dimensions in millimeters.
Video 1: A short demonstration of the battery monitor's display functionality, showing it submerged in water, indicating potential water resistance or durability in certain conditions.
Setup
Follow these steps for proper installation and connection of your battery monitor:
- Prepare the Installation Location: Ensure there is adequate space for the monitor (refer to dimensions in Figure 5) and that the surface is clean and dry.
- Connect the Supporting Terminal Wire: Insert the provided terminal wire into the product's socket. Pay close attention to the orientation and direction of the buckle to ensure a secure fit.
- Connect to Battery:
- Connect the red wire to the positive (+) electrode of your battery.
- Connect the black wire to the negative (-) electrode of your battery.
- If your model includes a temperature sensor (optional), place it close to the surface of the battery for accurate readings.
- Power On: Once connected, the battery power percentage and voltage will be displayed on the LCD screen.
Figure 6: Wiring diagram illustrating the connection of the red and black wires from the display unit to the positive and negative terminals of a battery.
Operating Instructions
The Walfront LCD Battery Monitor is designed for straightforward operation:
- Display Modes: The LCD screen simultaneously displays the battery's percentage capacity and its current voltage.
- Switching Display (if applicable): If your model supports temperature display, press the button on the unit to switch between voltage/percentage and temperature readings.
- Sleep Mode: The product is designed to enter a sleep state after approximately 10 seconds of inactivity to conserve power.
- Waking Up: To wake the device from sleep mode, simply press any button on the unit.
- Alarm Function: This specific model includes an alarm function. Refer to the product's detailed specifications for alarm thresholds and indicators.
Maintenance
To ensure the longevity and optimal performance of your battery monitor, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to clean the display and casing. Do not use abrasive cleaners, solvents, or immerse the device in water (unless specifically designed for such conditions, as shown in the video, but general cleaning should be dry).
- Storage: When not in use for extended periods, store the monitor in a cool, dry place, away from direct sunlight and extreme temperatures.
- Connection Check: Periodically inspect the wiring and connections for any signs of wear, corrosion, or looseness. Ensure the pluggable connector is securely seated.
Troubleshooting
If you encounter issues with your Walfront LCD Battery Monitor, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No display/Device not turning on | Incorrect wiring; No power to the battery; Loose connection; Battery voltage outside range. | Check red and black wire connections to the battery. Ensure battery has charge. Verify connections are secure. Confirm battery voltage is within DC 8V-100V. |
| Inaccurate readings | Incorrect battery type setting (if adjustable); Faulty connection; Device malfunction. | Ensure the monitor is compatible with your battery type. Re-check all connections. If issues persist, contact support. |
| Display flickering or unstable | Unstable power supply; Loose connection; Electromagnetic interference. | Check the stability of the power source. Secure all connections. Relocate the device away from strong electromagnetic fields. |
| Device enters sleep mode too quickly | Normal operation (10-second inactivity timer). | This is a power-saving feature. Press any button to wake the device. |
Specifications
| Feature | Detail |
|---|---|
| Voltage Measurement Range | DC 8V-100V |
| Working Current | <15mA |
| Display Mode | LCD Screen |
| Display Color | Blue (for this model) |
| Measurement Accuracy | 1% ± 1 Word |
| Measurement Speed | Approx. 2 times per second |
| Working Temperature | -10°C to +70°C |
| Working Humidity | 10-80% (No Condensation) |
| Working Pressure | 80-106kPa |
| Dimensions | Approx. 61x33x14.5mm (2.4x1.3x0.6in) |
| Installation Size | 58.5x28.5mm (2.3x1.1in) |
| Weight | 0.02 Kilograms |
| Power Source | Battery Powered |
| Alarm Function | Included (for this model) |
Warranty and Support
Walfront products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or contact your point of purchase. General warranty terms typically cover manufacturing defects for a limited period from the date of purchase.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Walfront customer service through their official website or the retailer where you purchased the product. Please have your product model number (B07ZXFQ4VK) and purchase details ready when contacting support.
You can visit the Walfront Store for more information: Walfront Official Store
