1. Introduction
This manual provides essential information for the proper use, installation, and maintenance of your POPPSTAR Butyl Double-Sided Adhesive Tape. Please read these instructions carefully before use to ensure optimal performance and safety.
The POPPSTAR Butyl Tape is a versatile, self-adhesive sealing tape designed for various applications, offering excellent waterproofing and durability.
2. Safety Information
- Ensure the application surface is clean, dry, and free of dust, grease, or loose particles.
- Avoid direct contact with skin for prolonged periods. If contact occurs, wash thoroughly with soap and water.
- Keep out of reach of children and pets.
- Store in a cool, dry place, away from direct sunlight and extreme temperatures.
- Do not ingest.
3. Product Features
The POPPSTAR Butyl Double-Sided Adhesive Tape offers the following key features:
- Waterproof and Oil-Resistant: Provides a reliable seal against water and oil.
- Anti-Diffusion: Prevents the spread of substances.
- Permanently Elastic: Maintains flexibility over time.
- Constant Volume: Resists changes in shape or size.
- UV Resistant: Withstands exposure to ultraviolet light without degradation.
- Wide Temperature Range: Effective from -40°C to +80°C.
- Strong Adhesion: Adheres to various surfaces including glass, concrete, metal, plastic, wood, and stone.

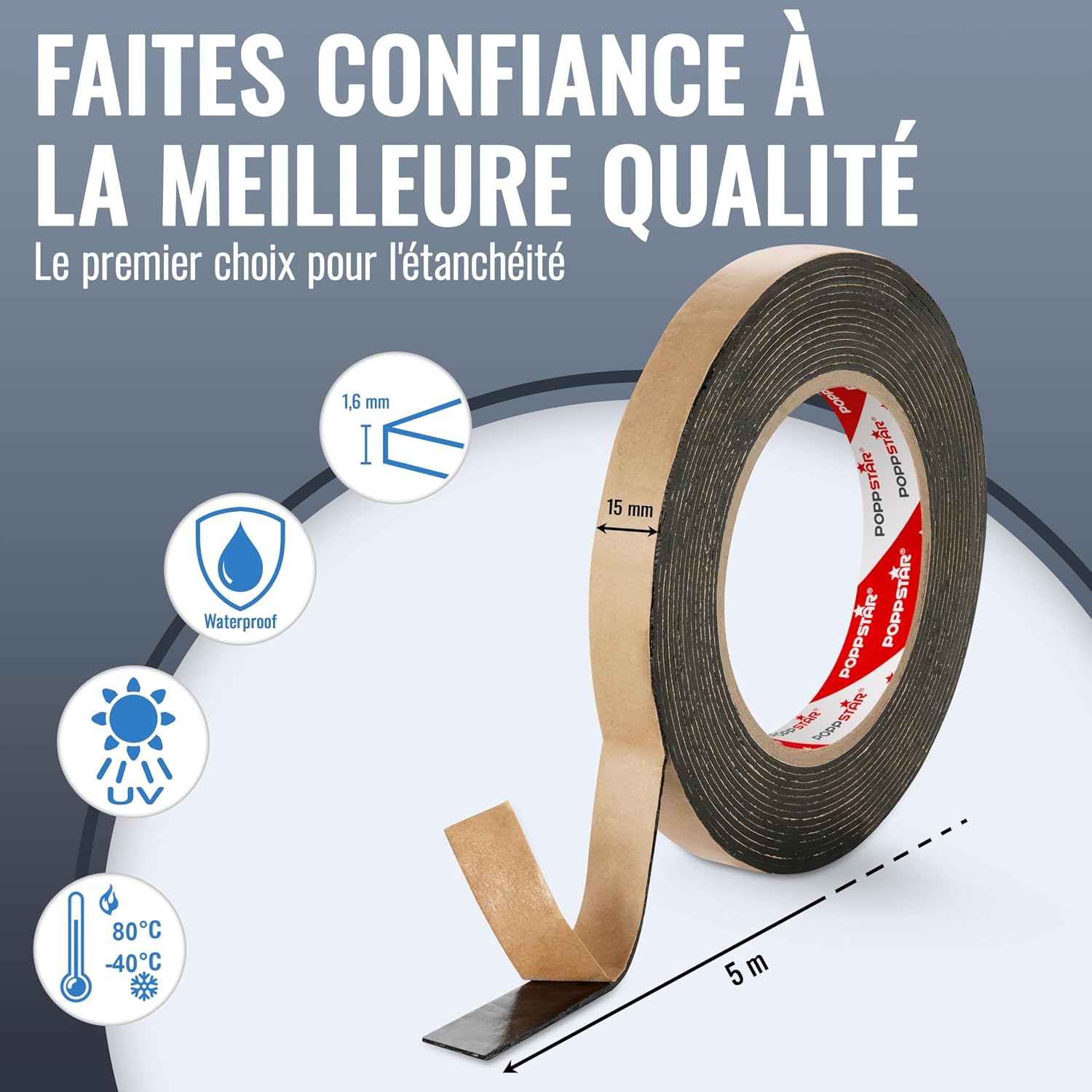

Image: Key features of the POPPSTAR Butyl Tape, highlighting its dimensions, waterproof nature, UV resistance, and temperature tolerance.
Image: A detailed view of the butyl tape, illustrating the protective separation film and the butyl rubber material, emphasizing its robust yet flexible composition.
4. Package Contents
The package includes:
- 1 x POPPSTAR Butyl Double-Sided Adhesive Tape (5 m x 15 mm x 1.6 mm, black)
- 1 x User Manual (this document)
5. Setup and Preparation
- Clean the Surface: Ensure the application surface is thoroughly cleaned. Remove any dust, dirt, grease, oil, or loose particles. The surface must be completely dry before application.
- Optimal Temperature: For best adhesion, apply the tape at temperatures above 15°C (59°F). If applying in colder conditions, consider warming the tape slightly or ensuring the surface is not excessively cold.
- Measure and Cut: Measure the required length of tape for your application.
- Prepare the Tape: Cut the tape to the desired length using scissors or a utility knife.
Image: Cutting the butyl tape to the required length.
6. Operating Instructions (Application)
- Peel the Release Liner: Carefully peel off a small section of the protective release liner from one end of the butyl tape.
- Apply to Surface: Position the exposed adhesive side onto the prepared surface. Begin applying the tape evenly, pressing firmly as you go.
- Continue Peeling and Pressing: Gradually peel off the remaining release liner while continuously pressing the tape onto the surface to ensure full contact and eliminate air bubbles.
- Firmly Press: Once the entire length of tape is applied, press down firmly along the entire length of the tape, especially at the edges, to ensure maximum adhesion and a watertight seal. A roller or a flat tool can be used for this purpose.
Image: Peeling the protective film from the butyl tape.
Image: Applying and pressing the butyl tape onto a surface to ensure a secure seal.
Image: Firmly pressing the butyl tape after application.
Recommended Applications:
- Sealing gutters and facades.
- Sealing windows and caravan components.
- General construction and craft projects.
- Sanitary and domestic installations.
- Metal construction and machine building.
- Automotive and caravan construction.
Image: Examples of common applications for the butyl tape.
7. Maintenance
The POPPSTAR Butyl Tape requires minimal maintenance once properly applied. Periodically inspect the sealed areas for any signs of wear or damage. If any damage is observed, clean the area and apply a new section of tape as needed.
To clean the surface of the tape, use a mild soap solution and a soft cloth. Avoid abrasive cleaners or solvents that could degrade the butyl material.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tape not adhering properly | Surface is dirty, wet, or oily; application temperature is too low; insufficient pressure during application. | Ensure surface is clean, dry, and free of contaminants. Apply at temperatures above 15°C. Apply firm, even pressure across the entire tape surface. |
| Bubbles or uneven application | Tape applied too quickly or unevenly. | Apply slowly and steadily, peeling the liner gradually while pressing firmly to avoid air pockets. |
| Tape peeling off edges | Edges not pressed down sufficiently; surface not adequately prepared. | Ensure all edges are firmly pressed down. Re-clean and re-apply if necessary, paying close attention to edge adhesion. |
9. Specifications
| Brand: | POPPSTAR |
| Model Number: | 1010251 |
| Color: | Black |
| Material: | Butyl Rubber |
| Size: | 5m x 15mm x 1.6mm |
| Item Thickness: | 1.6 mm |
| Adhesive Format: | Double-sided tape |
| Number of Adhesive Sides: | 2 |
| Recommended Uses: | Outdoor, Indoor, versatile on different surfaces |
| Special Features: | UV Resistant, Weather Resistant |
| Water Resistance Level: | Waterproof |
| Max. Tensile Strength: | 45 Pounds per inch |
| Upper Temperature Rating: | 80°C |
| Compatible Material: | Glass, Concrete, Metal, Plastic, Wood, Stone |
| Country of Origin: | China |
10. Warranty and Support
For warranty information and customer support, please refer to the official POPPSTAR website or contact your retailer. Keep your purchase receipt as proof of purchase.
For further assistance, you may visit the POPPSTAR Brand Store on Amazon.
