1. Introduction
This manual provides instructions for the proper assembly, installation, operation, and maintenance of the Maclean MC-855 Universal Adjustable Movable Base. This product is designed to provide a stable, movable, and adjustable platform for various household appliances, such as washing machines, refrigerators, and dryers. Please read this manual thoroughly before use to ensure safe and efficient operation.
Image 1.1: The Maclean MC-855 Universal Adjustable Movable Base, featuring its four corner supports with wheels and leveling feet, connected by adjustable metal bars.
2. Product Features
- Universal Compatibility: Designed to accommodate a wide range of appliances.
- Adjustable Dimensions: The base can be adjusted in length and width from 500mm to 700mm to fit different appliance sizes.
- High Load Capacity: Supports appliances weighing up to 250kg.
- Movable Design: Equipped with durable wheels for easy relocation of appliances.
- Stabilizing Feet: Features adjustable leveling feet to ensure stability and prevent movement during operation.
- Integrated Level Indicators: Small bubble levels on each corner assist in achieving a perfectly level setup.
3. Specifications
| Feature | Detail |
|---|---|
| Model | MC-855 |
| Adjustable Width/Length | 500mm - 700mm |
| Maximum Load Capacity | 250 kg |
| Maximum Height | 140mm (approximate, with leveling feet extended) |
| Material | Plastic and Metal |

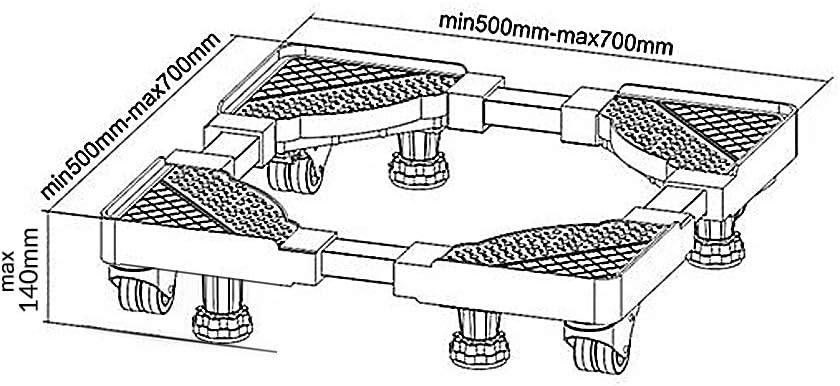

Image 3.1: Technical diagram illustrating the adjustable dimensions of the Maclean MC-855 base, showing minimum and maximum width/length (500-700mm) and maximum height (140mm).
4. Package Contents
The Maclean MC-855 Universal Adjustable Movable Base typically includes:
- 1 x Assembled Adjustable Movable Base (consisting of 4 corner supports, 4 connecting bars, 4 wheels, and 4 leveling feet).
- User Manual (this document).
5. Setup and Installation
Follow these steps to properly set up your adjustable movable base:
- Unpack the Base: Carefully remove the base from its packaging. The unit typically comes pre-assembled.
- Adjust Dimensions: Extend or retract the connecting bars to match the dimensions of your appliance. Ensure the appliance's feet or base will sit securely within the four corner supports. The adjustable range is 500mm to 700mm.
Image 5.1: Close-up view of the adjustable metal bar with clear measurement markings, indicating the 500-700mm adjustment range for the base's dimensions.
- Secure the Adjustment: Once the desired dimensions are set, ensure the locking mechanisms on the connecting bars are tightened to prevent accidental changes.
- Position the Appliance: Carefully lift your appliance and place it onto the four corner supports of the base. Ensure the appliance is centered and stable. It is recommended to have assistance when lifting heavy appliances.
- Engage Leveling Feet: Each corner support has a wheel and an adjustable leveling foot. Rotate the leveling feet clockwise to lower them and lift the wheels off the ground, providing a stable, stationary platform.
Image 5.2: Detailed view of a corner support, showing the blue wheel for mobility and the black adjustable leveling foot for stability, along with a small bubble level.
- Level the Appliance: Use the integrated bubble levels on each corner support to ensure the appliance is perfectly level. Adjust the individual leveling feet as needed until all bubble levels indicate a level surface. This is crucial for the proper functioning of appliances like washing machines.
6. Operation
To move the appliance:
- Retract Leveling Feet: Rotate the leveling feet counter-clockwise to raise them, allowing the wheels to make contact with the floor.
- Move Appliance: Gently push or pull the appliance to its desired new location.
- Re-engage Leveling Feet: Once in the new position, lower the leveling feet again and ensure the appliance is level before use.
7. Maintenance
- Regular Cleaning: Wipe down the base with a damp cloth to remove dust and debris. Avoid harsh chemicals.
- Check Connections: Periodically inspect the connecting bars and locking mechanisms to ensure they remain tight and secure.
- Wheel Inspection: Check the wheels for any obstructions or damage that might hinder smooth movement.
- Leveling Feet: Ensure the leveling feet are free from dirt and can rotate smoothly.
8. Safety Information
- Do not exceed the maximum load capacity of 250kg.
- Always ensure the appliance is centered on the base to prevent tipping.
- When moving heavy appliances, exercise caution and seek assistance to prevent injury.
- Ensure the leveling feet are fully engaged and the appliance is level before operating any appliance, especially washing machines, to prevent excessive vibration and potential damage.
- Keep hands and feet clear of moving parts when adjusting or moving the base.
- Do not use the base on uneven or sloped surfaces.
9. Troubleshooting
- Appliance is unstable/wobbles:
- Ensure all four leveling feet are fully extended and firmly on the ground, lifting the wheels.
- Verify that the base is level using the integrated bubble levels. Adjust individual feet as necessary.
- Confirm the appliance is centered on the base.
- Difficulty moving the base:
- Ensure all leveling feet are fully retracted, allowing the wheels to bear the weight.
- Check for any obstructions around the wheels.
- Base dimensions change unexpectedly:
- Tighten the locking mechanisms on the connecting bars to secure the desired dimensions.
10. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact your retailer. Keep your proof of purchase for any warranty claims.
