CACTUS CAC-109-M01 Kids Digital LCD Watch User Manual

Introduction

Thank you for choosing the CACTUS CAC-109-M01 Kids Digital LCD Watch. This manual provides essential information for setting up, operating, and maintaining your watch. This digital watch features a clear LCD display, stopwatch, alarm, and a backlight for visibility in low light conditions. It is also water resistant up to 10 ATM, making it suitable for various activities.

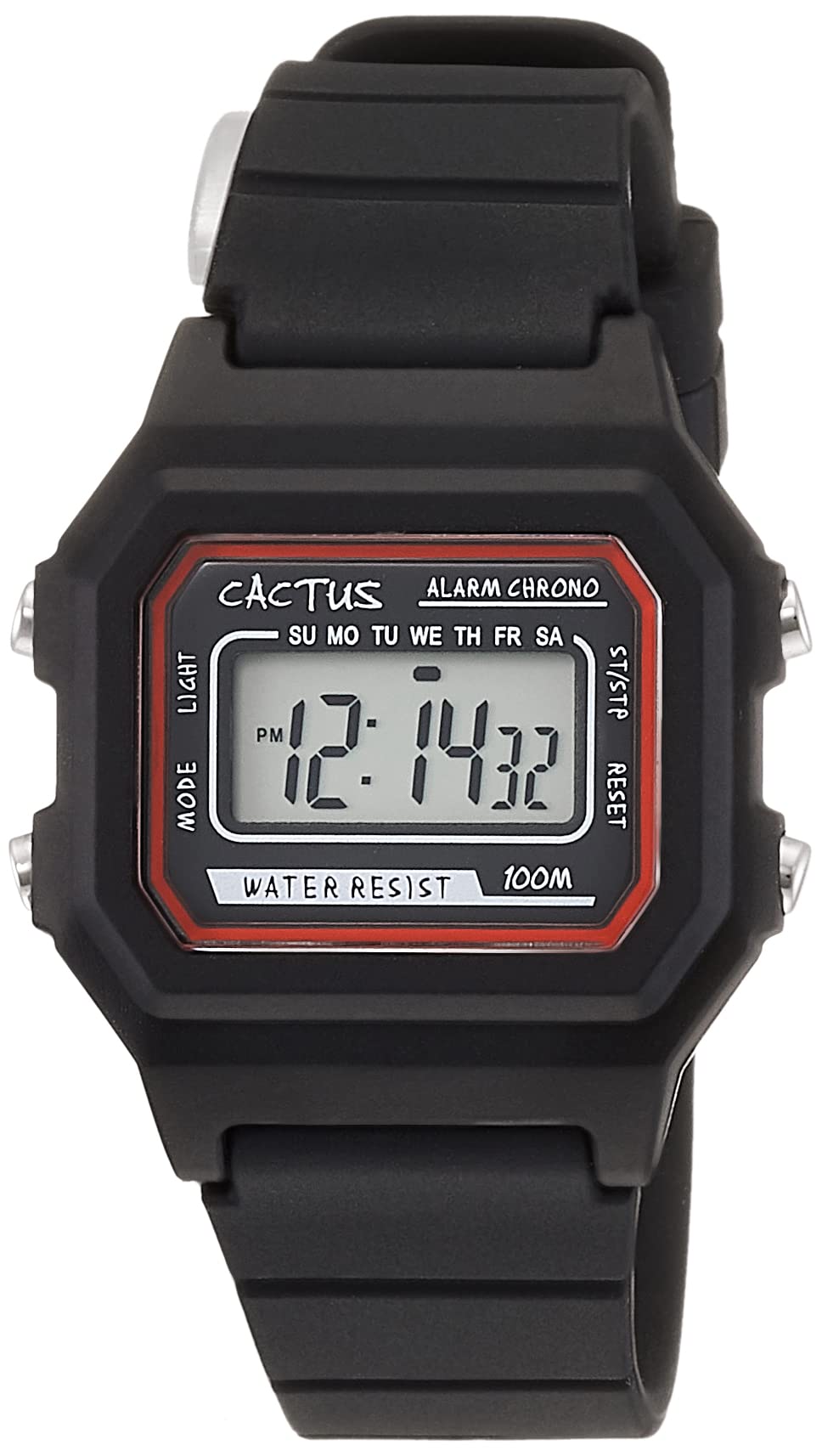

Figure 1: Front angled view of the CACTUS CAC-109-M01 Digital Watch. This image shows the watch face with its digital display, buttons on the side, and the black silicone strap.

Setup

Setting Time and Date

To ensure accurate timekeeping, follow these steps to set the time and date on your watch.

Figure 2: Close-up front view of the watch display and control buttons. The buttons are labeled MODE (top left), LIGHT (bottom left), RESET (top right), and START (bottom right).

1. In normal time display mode, press the MODE button three times to enter the time setting mode. The seconds digits will flash.
2. Press the RESET button to reset the seconds to zero.
3. Press the START button to advance to the next setting (hours, minutes, month, date, day of the week).
4. While a digit is flashing, press the RESET button to adjust the value.
5. Repeat step 3 and 4 until all desired settings (hours, minutes, month, date, day of the week) are adjusted.
6. Press the MODE button once to exit the setting mode and return to normal time display.

Operating Instructions

Button Functions

• MODE Button (Top Left): Cycles through display modes (Time, Alarm, Stopwatch, Time Setting).
• LIGHT Button (Bottom Left): Activates the backlight for a few seconds.
• RESET Button (Top Right): Used to reset values or select items during setting.
• START Button (Bottom Right): Used to start/stop functions or advance through settings.

Alarm Function

Your watch includes an alarm feature.

1. From normal time display, press the MODE button once to enter Alarm mode. The alarm time will be displayed.
2. Press the RESET button to toggle the alarm ON/OFF. An alarm icon will appear when activated.
3. To set the alarm time, press the MODE button twice from normal time display to enter alarm setting mode. The hour digits will flash.
4. Press the RESET button to adjust the hour.
5. Press the START button to switch to minute setting.
6. Press the RESET button to adjust the minutes.
7. Press the MODE button to exit alarm setting mode.

Stopwatch Function

The stopwatch allows you to measure elapsed time.

1. From normal time display, press the MODE button twice to enter Stopwatch mode. The display will show "00:00:00".
2. Press the START button to begin timing.
3. Press the START button again to pause timing.
4. Press the RESET button while paused to reset the stopwatch to "00:00:00".
5. Press the MODE button to exit Stopwatch mode.

Light Function

To illuminate the display in dark conditions, press the LIGHT button (bottom left). The backlight will activate for a few seconds.

Water Resistance

This watch is water resistant up to 10 ATM (100 meters). This means it is suitable for swimming, showering, and snorkeling. However, it is not recommended for diving. Avoid pressing buttons underwater, as this can compromise the water resistance seal.

Figure 3: The CACTUS CAC-109-M01 watch displayed on a wrist, showing its size and fit.

Care and Maintenance

Cleaning

To clean your watch, wipe it gently with a soft, damp cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch's finish or internal components. For the silicone strap, mild soap and water can be used, ensuring it is thoroughly rinsed and dried.

Battery Replacement

When the display becomes dim or the watch stops functioning, the battery may need replacement. Battery replacement should ideally be performed by a qualified watch technician to ensure the water resistance seal is maintained. Attempting to replace the battery yourself may void the warranty and compromise the watch's water resistance.

Storage

Store your watch in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields.

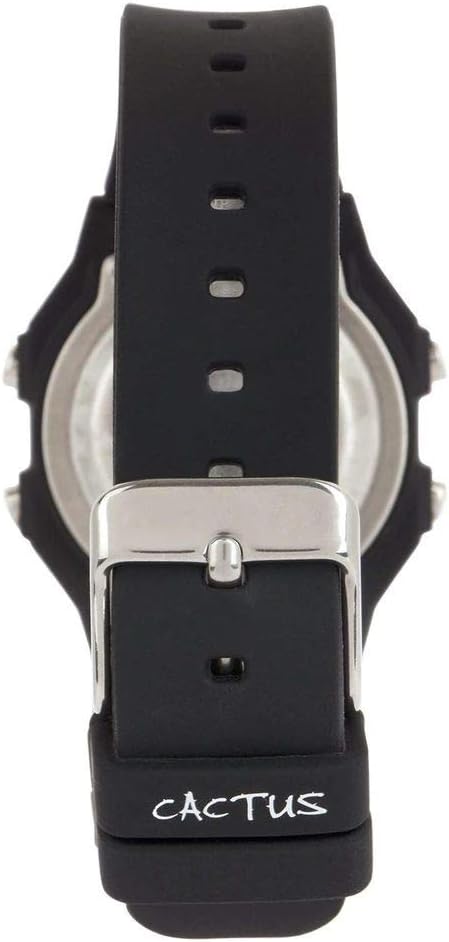

Figure 4: Back view of the watch, illustrating the stainless steel case back and the buckle mechanism of the silicone strap.

Troubleshooting

If you encounter any issues with your watch, please refer to the following common problems and solutions:

• Watch display is blank or dim: This usually indicates a low battery. Refer to the "Battery Replacement" section.
• Buttons are unresponsive: Ensure the watch is not in a locked mode (if applicable, though this model typically does not have one). If the issue persists, a battery replacement might be needed, or a soft reset by removing and reinserting the battery (recommended to be done by a professional).
• Time is incorrect: Re-set the time and date following the "Setting Time and Date" instructions. Ensure you are in the correct time zone.
• Water inside the watch: If water appears inside the watch, immediately stop using it and take it to a professional watch repair service. This indicates a compromised water resistance seal.

Product Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the retailer where the watch was acquired. Keep your proof of purchase for warranty claims.
