1. Overview
The Molekule Air Mini is an FDA-cleared 510(k) Class II medical device designed to destroy viruses and bacteria, and trap 95% of particles 0.3-1 micron in size. It utilizes Photo Electrochemical Oxidation (PECO) nanotechnology to address various airborne pollutants. This device is suitable for smaller spaces up to 250 sq. ft., such as studio apartments, bedrooms, and home offices.
Key Features:
- FDA-Cleared: Destroys viruses and bacteria, traps 95% of particles 0.3-1 micron.
- PECO Technology: Utilizes Photo Electrochemical Oxidation nanotechnology to destroy viruses, allergens, bacteria, mold, and chemicals.
- Compact Design: Ideal for smaller spaces up to 250 sq. ft.
- Adjustable Fan Speeds: Five fan speeds, from whisper quiet to boost.
- PECO-Filter Status Indicator: Easily track filter replacement schedule.
- Portable: Features a vegan-leather handle for easy relocation.
- App-Enabled: Monitor filter status and adjust fan speed remotely via the app.
2. Setup Instructions
Follow these steps to set up your Molekule Air Mini for optimal performance.
- Ensure the device is plugged into a working electrical outlet.
- Remove all plastic wrap from the PECO-Filter before installation.
- Turn the device lid clockwise until it fully clicks into place.
- Place your Molekule Air Mini on a flat, stable surface.
- If the lid is difficult to close, try placing the device on the floor and using your feet to stabilize it while turning the lid. It may require several attempts to lock into place.
Figure 2.1: The Molekule Air Mini air purifier, ready for use.
Video 2.1: Official unboxing and initial setup guide for the Molekule Air Mini.
3. Operating Instructions
Fan Speeds:
The Molekule Air Mini offers five fan speeds to customize your purification needs. These can be adjusted directly on the device or via the mobile application.
- Silent Mode: Operates at 39 decibels for quiet purification.
- Standard Modes: Multiple settings for general use.
- Boost Mode: Provides maximum air purification.
- For home or commercial healthcare use, it is recommended to operate the Mini on fan speed 3 or higher.
App Control:
Manage your Molekule Air Mini conveniently from your smartphone. The dedicated app allows you to check filter status and change fan speeds from any location.
Figure 3.1: The Molekule mobile application for remote control and monitoring.

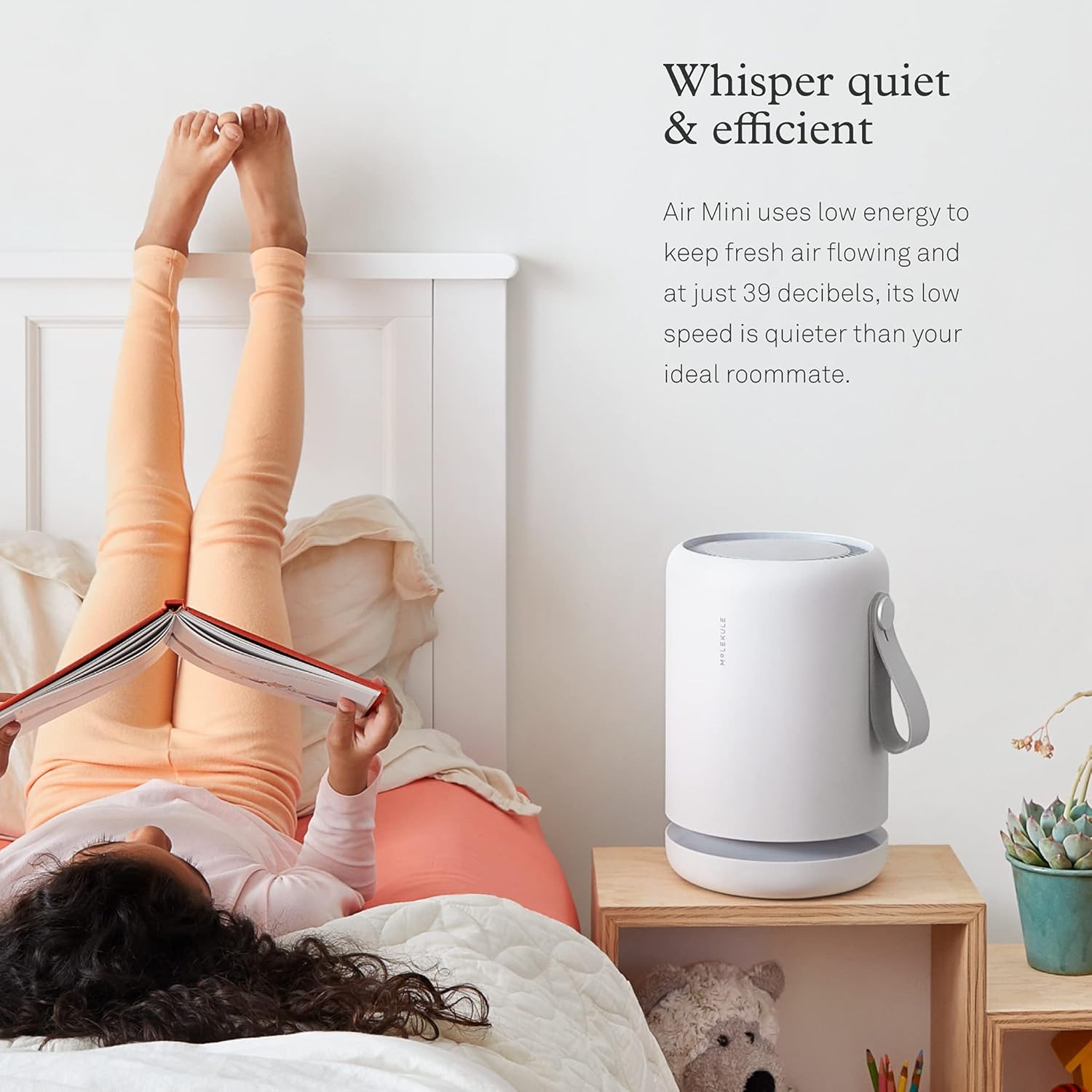

Figure 3.2: The Molekule Air Mini is designed for quiet and efficient operation.
4. Maintenance
Filter Replacement:
The Molekule Air Mini uses a PECO-Filter with a recommended lifespan of 6 months. The device features a status indicator to help you track when a replacement is needed. Only Molekule-branded filters are warrantied for use with Molekule air purifiers.
Video 4.1: Official guide on how to change the filter in your Molekule Air Mini.
Figure 4.1: The PECO filter is easily accessible for replacement.
5. Understanding PECO Technology
Molekule's patented Photo Electrochemical Oxidation (PECO) technology is designed to destroy airborne pollutants at a molecular level, rather than just capturing them. This process targets viruses, bacteria, allergens, and other harmful substances.
Video 5.1: An animated explanation of how Molekule's PECO technology functions.
Figure 5.1: The Path to Clean Air: A visual breakdown of the PECO purification process.
Figure 5.2: Comparison of Molekule's PECO technology with conventional purifier technologies.
6. Troubleshooting
Device Not Powering On:
If your Molekule Air Mini is not powering on, please follow these steps:
- Unplug the device from the electrical outlet.
- Place your finger on the center button located on the lid.
- While keeping your finger on the button, plug the device back into the outlet and continue holding the button for 5 seconds.
7. Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Molekule |
| Model Number | MN1BX-US |
| Color | White |
| Product Dimensions | 8.26"D x 8.26"W x 12"H |
| Item Weight | 11.77 pounds |
| Noise Level | 39 Decibels (Silent Mode) |
| Particle Retention Size | 1 Micron |
| Controller Type | Android, iOS (App) |
| Wattage | 55 watts (Highest speed) |
| Contaminant Filtration Capability | Odors, Pet Dander, Pollen, Viruses, Bacteria, Mold, Chemicals |
| Filter Class | PECO |
| Power Source | Corded Electric |
| Included Components | Molekule Air Mini Air Purifier, PECO Filter (recommended 6 month life) |
8. Warranty and Support
For warranty information and customer support, please refer to the official Molekule website or contact their customer service directly. Please note that only Molekule-branded filters are covered under warranty for use with Molekule air purifiers.
