1. Introduction and Overview
This manual provides essential information for the safe and efficient operation of your Vestel NFF310EX Upright Freezer. This appliance is designed to provide reliable freezing and storage for various food items, featuring a 307-liter net volume, No Frost cooling system, and an A+ energy efficiency rating. Please read these instructions carefully before installation and use, and retain them for future reference.
Image 1.1: The Vestel NFF310EX Upright Freezer, showcasing its interior compartments and sleek exterior design with an A+ energy label.
2. Safety Information
To prevent personal injury or damage to your appliance, always observe the following safety precautions:
- Electrical Safety: Ensure the appliance is connected to a grounded power outlet with the correct voltage (240 Volts). Do not use extension cords or adapters. Disconnect power before cleaning or maintenance.
- Ventilation: Maintain adequate ventilation around the appliance to prevent overheating. Do not block air vents.
- Flammable Materials: Do not store explosive substances or highly flammable materials inside or near the freezer.
- Child Safety: Keep packaging materials out of reach of children. Supervise children to ensure they do not play with the appliance. Old freezers must be disposed of safely to prevent child entrapment.
- Handling: The appliance is heavy (50 kg). Use appropriate lifting techniques and assistance during installation to avoid injury.
- Damage: Do not operate the appliance if the power cord or plug is damaged. Contact qualified service personnel for repairs.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including protective films and tapes. Inspect the appliance for any signs of damage during transit. Report any damage to your retailer immediately.
3.2 Placement
- Place the freezer on a firm, level surface to ensure stability and proper operation.
- Ensure sufficient space around the appliance for air circulation (minimum 10 cm at the back and sides). Avoid placing it in direct sunlight or near heat sources.
- The appliance is designed for a Tropical/Subnormal climate class, suitable for a wide range of ambient temperatures.
3.3 Electrical Connection
Connect the power cord to a dedicated, grounded 240 Volt AC outlet. Do not share the outlet with other high-power appliances.
3.4 Initial Startup
After placement and connection, allow the freezer to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, allow the freezer to operate empty for 4-6 hours to reach its stable operating temperature before loading food.
3.5 Door Reversal
The freezer features 'Flip Doors', indicating the door hinge can be reversed to open from either the left or right side. Refer to the detailed diagram in the separate installation guide (if provided) or contact customer support for instructions on reversing the door.
4. Operating Instructions
Your Vestel NFF310EX freezer is equipped with an electronic display and touch controls for easy management of its functions.
Image 4.1: The front panel of the Vestel NFF310EX Upright Freezer, highlighting the integrated digital display and electronic touch controls.
4.1 Electronic Display and Controls
The digital screen allows you to monitor and adjust various settings. Use the touch controls to navigate through the options.
- Temperature Setting: Adjust the internal temperature. The freezer offers a wide temperature range from -24°C to +8°C, allowing it to function as a freezer or a cooler/refrigerator.
- Fast Freezing Feature: Activates rapid freezing to quickly preserve fresh food items. Use this function when adding a large quantity of unfrozen food.
- Fast Cooling Feature (Fridge Mode): If operating in the warmer temperature range (+8°C), this feature can rapidly cool items.
- Eco Mode: Optimizes energy consumption for efficient operation.
- Holiday Mode: Sets the appliance to an energy-saving mode when you are away for an extended period.
- Screen Lock: Prevents unintended changes to settings, especially useful for households with children.
4.2 Storage Compartments
The freezer is equipped with 7 freezing compartments, providing organized storage for various food types.

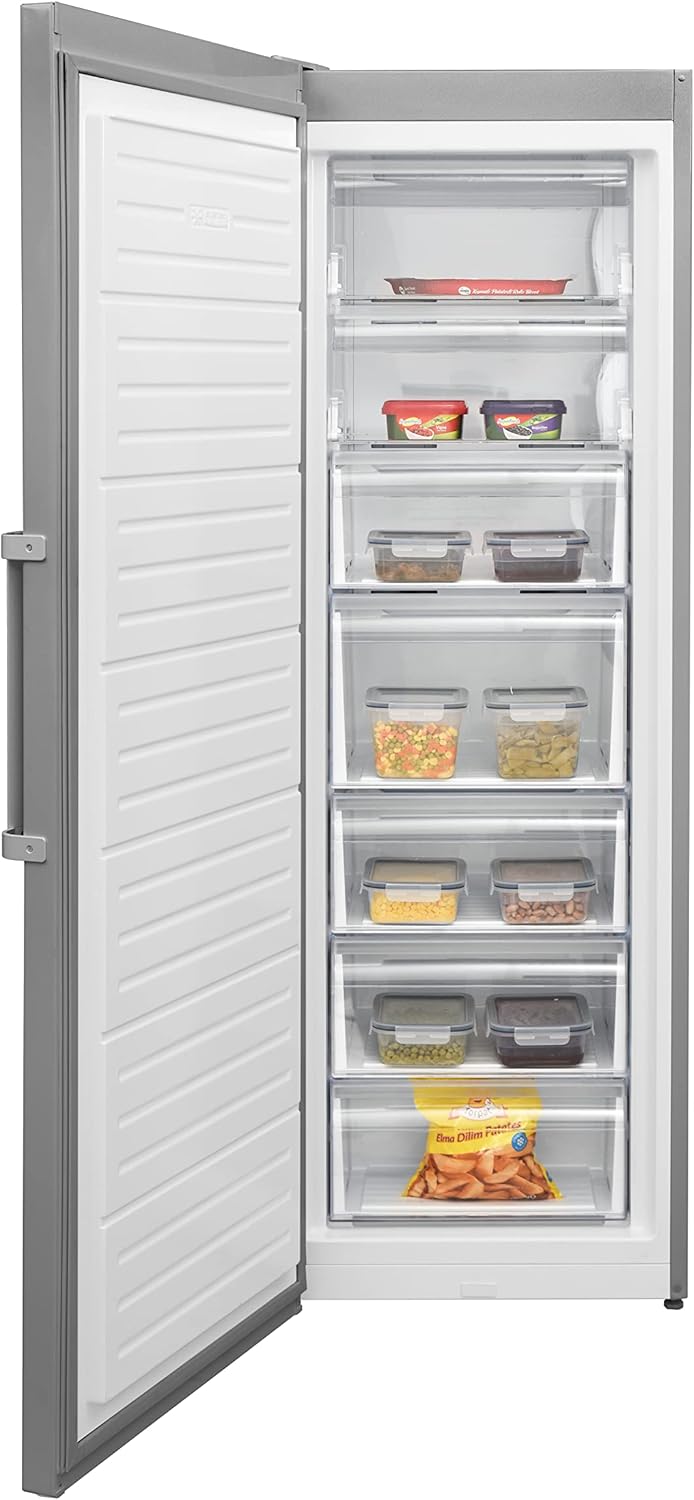

Image 4.2: The interior of the Vestel NFF310EX Upright Freezer, showing the seven transparent storage drawers for organized food preservation.
Image 4.3: A detailed view of the freezer drawers, demonstrating how various food containers can be neatly stored.
- Utilize the different compartments to separate food types and prevent odor transfer.
- Ensure food is properly sealed in airtight containers or freezer bags before placing it in the freezer.
- Avoid overloading compartments to allow for proper air circulation and efficient freezing.
5. Maintenance and Cleaning
Regular cleaning and maintenance ensure optimal performance and longevity of your freezer.
5.1 Cleaning the Interior
- Before cleaning, unplug the appliance from the power outlet.
- Remove all food items and store them in another freezer or cooler.
- Wash the interior surfaces, shelves, and drawers with a solution of mild detergent and warm water. Rinse thoroughly and dry with a soft cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surfaces.
5.2 Cleaning the Exterior
- Wipe the exterior surfaces with a soft cloth dampened with mild detergent and water. Dry thoroughly.
- Clean the door gasket regularly to ensure a tight seal.
- Periodically vacuum the condenser coils at the back of the appliance (if accessible) to remove dust and debris, which can improve efficiency.
5.3 No Frost System
Your Vestel NFF310EX features a No Frost cooling system, which automatically prevents ice buildup. This eliminates the need for manual defrosting.
6. Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer not operating | No power supply; power cord unplugged; circuit breaker tripped. | Check power connection; reset circuit breaker. |
| Temperature is not cold enough | Door not closed properly; excessive door openings; large amount of warm food added; temperature setting too high. | Ensure door is sealed; reduce door openings; use Fast Freezing; adjust temperature setting lower. |
| Unusual noise | Appliance not level; objects touching the back; normal operating sounds. | Adjust leveling feet; move objects away; gurgling/hissing sounds are normal for refrigerant. (Noise level is 42 dBa). |
| Water on floor | Drain hose blocked or dislodged. | Check and clear the drain hose. |
7. Specifications
Detailed technical specifications for the Vestel NFF310EX Upright Freezer:
- Brand: Vestel
- Model: NFF310EX
- Product Type: Upright Freezer, Single Door
- Total Volume (Net): 307 Liters
- Gross Volume: 440 Liters
- Cooling System: No Frost (Air Cooling)
- Energy Class: A+
- Dimensions (W x D x H): 59.5 x 65 x 186 cm
- Item Weight: 50 kg
- Freezer Compartments: 7
- Control Type: Electronic Touch Control, Digital Screen
- Climate Class: Tropical/Subnormal
- Voltage: 240 Volts
- Wattage: 257 kWh
- Noise Level: 42 dBa
- Temperature Range: -24°C to +8°C
- Door Material Type: Stainless Steel
- Installation Method: Freestanding
- Included Components: Upright Freezer, Ice Tray
- Color: Inox (Silver)
- Origin: Made In Turkey
Image 7.1: The Emirates Quality Mark, indicating compliance with quality standards.
8. Warranty and Support
Your Vestel NFF310EX Upright Freezer comes with a comprehensive warranty:
- Full Warranty: 2 Years
- Compressor Warranty: 10 Years
For warranty claims, technical support, or service inquiries, please contact your authorized Vestel service center or retailer. Ensure you have your proof of purchase and the appliance model number (NFF310EX) available when contacting support.
