Introduction
This manual provides essential instructions for the safe and effective use of your Stanley BDS7496 Fatmax 8-Pattern Heavy Duty Hose Nozzle. Please read this manual thoroughly before initial use and retain it for future reference.
Product Features
- 8 Spray Patterns: Offers versatile watering options including jet, shower, fan, flat, cone, center, mist, and soaker.
- Ergonomic Grip: Designed for comfort and ease of use, reducing hand stress during prolonged operation.
- Durable Construction: Features a lightweight plastic body with a zinc alloy inner core for enhanced durability.
- Rear-Trigger Control: Allows for instant on/off control of water flow, conserving water.
- Standard Connection: Compatible with all standard outdoor garden hoses.
Image 1: Overview of the Stanley Fatmax 8-Pattern Heavy Duty Hose Nozzle, highlighting its durable body, multi-pattern head, and comfort grip.
Setup
- Unpack the Nozzle: Carefully remove the hose nozzle from its packaging.
- Inspect for Damage: Before connecting, visually inspect the nozzle for any signs of damage.
- Connect to Hose: Screw the nozzle onto the end of a standard garden hose. Ensure a tight connection to prevent leaks. Hand-tighten only.
Image 2: The ergonomic grip of the Stanley Fatmax hose nozzle, designed for comfortable handling.
Operating Instructions
Selecting a Spray Pattern
The Stanley BDS7496 nozzle features 8 distinct spray patterns. To select a pattern, rotate the nozzle head clockwise or counter-clockwise until the desired pattern aligns with the indicator. The available patterns are: Jet, Shower, Fan, Flat, Cone, Center, Mist, and Soaker.

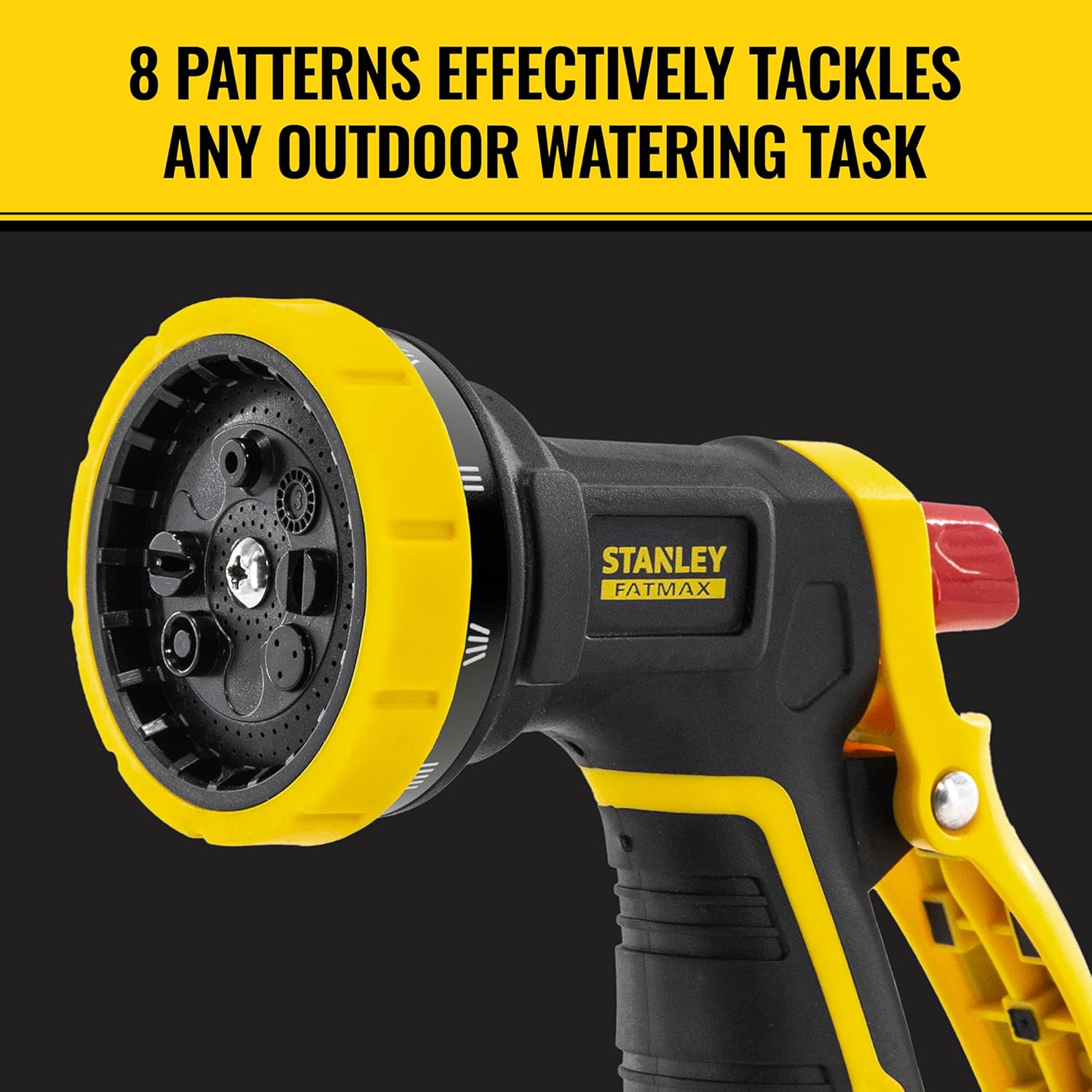

Image 3: The multi-pattern head of the nozzle, illustrating the various spray options.
Water Flow Control
To activate water flow, squeeze the rear trigger. The flow will stop when the trigger is released. For continuous watering without holding the trigger, engage the red lock mechanism located above the trigger. Twist the red lock to hold the trigger in the 'on' position. To disengage, twist the red lock back to its original position.
Image 4: Demonstrating the rear trigger control of the Stanley Fatmax hose nozzle during use.
Maintenance
- Cleaning: Periodically clean the nozzle head to remove any mineral deposits or debris that may affect spray patterns. Use a soft brush and mild soap if necessary.
- Storage: During freezing temperatures, disconnect the nozzle from the hose and store it indoors to prevent damage from ice expansion.
- Gasket Inspection: Regularly check the rubber gasket inside the hose connection for wear or damage. Replace if necessary to prevent leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from hose connection | Loose connection or worn gasket. | Ensure the nozzle is tightly screwed onto the hose. Check and replace the rubber gasket if it is worn or damaged. |
| Irregular or weak spray pattern | Debris or mineral buildup in the nozzle head. | Clean the nozzle head to remove any obstructions. Ensure adequate water pressure from the source. |
| Trigger not returning to off position | Red lock mechanism engaged or internal spring issue. | Disengage the red lock mechanism. If the issue persists, contact customer support. |
Specifications
- Model Number: BDS7496
- Brand: STANLEY
- Material: Plastic, Zinc Alloy (inner core)
- Dimensions (L x W x H): 6.69 x 5.12 x 2.56 inches
- Weight: 12.6 ounces
- Spray Patterns: 8 (Jet, Shower, Fan, Flat, Cone, Center, Mist, Soaker)
- Connection Type: Standard garden hose connection
Warranty Information
This Stanley product is covered by a Limited Lifetime Warranty. For detailed information regarding warranty terms, conditions, and claims, please refer to the official STANLEY website or contact customer support.
Support
For further assistance, technical support, or to inquire about replacement parts, please visit the official STANLEY website or contact their customer service department. Contact information can typically be found on the product packaging or the official brand website.
