KYOHRITSU KC EC-60/BK Effector Case Instruction Manual

1. Introduction

This manual provides essential instructions for the proper setup, operation, and maintenance of your KYOHRITSU KC EC-60/BK Effector Case. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

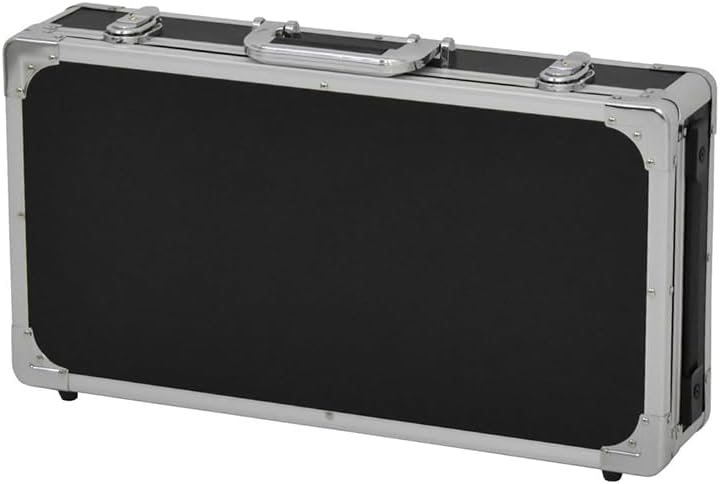

Figure 1: KYOHRITSU KC EC-60/BK Effector Case (Closed)

The KC EC-60/BK is a durable, hard-shell case designed to protect and transport compact effectors, multi-effectors, MTRs, and similar equipment. Its robust construction safeguards your gear from impacts, making it ideal for musicians on the go.

2. Product Features

• Durable Construction: Hard material resists impact and protects stored equipment.
• Compact Design: Accommodates 3 to 4 compact effectors, multi-effectors, or MTRs.
• Secure Closure: Equipped with latches for secure transport.
• Interior Protection: Lid features urethane padding to prevent scratches and damage to pedals.
• Effector Mounting: Includes hook-and-loop fasteners for securing effectors to the internal board.

Figure 2: Secure Latch Mechanism

The case features robust latches to keep the lid firmly closed during transport, preventing accidental opening.

Figure 3: Protective Interior Padding

The inside of the case lid is lined with soft urethane material, providing cushioning and protecting your valuable equipment from scratches and minor impacts.

3. Setup

1. Open the Case: Release the latches and open the lid of the effector case.
2. Prepare Effectors: Ensure your effectors are clean and ready for placement.
3. Apply Fasteners: Attach the provided hook-and-loop (velcro) fasteners to the bottom of your effectors and the internal board of the case. Ensure a firm attachment.
4. Arrange Effectors: Carefully place and arrange your effectors on the internal board. Consider cable routing and power supply placement for optimal organization.
5. Secure Effectors: Press down firmly on each effector to ensure the hook-and-loop fasteners create a strong bond with the board, preventing movement during transport.

Figure 4: Case Interior for Effector Placement

The spacious interior allows for flexible arrangement of your compact effectors. The internal board is designed for easy attachment of hook-and-loop fasteners.

4. Operation

1. Closing the Case: Once all effectors are securely placed and cables are managed, gently close the lid. Ensure no cables are pinched.
2. Securing Latches: Engage both latches firmly until they click into place. Verify that the lid is completely secured and does not wobble.
3. Transport: Use the integrated handle for carrying. Always ensure the latches are fully engaged before lifting or moving the case.

5. Maintenance

• Cleaning: Wipe the exterior of the case with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Interior Care: Periodically inspect the interior padding and hook-and-loop fasteners for wear. Clean any dust or debris from the internal board.
• Latch Inspection: Check the latches and hinges regularly for proper function and signs of damage. Lubricate hinges if they become stiff.
• Storage: Store the case in a cool, dry place away from direct sunlight and extreme temperatures when not in use.

6. Troubleshooting

• Effectors Not Fitting: Verify the dimensions of your effectors against the case's internal dimensions. Ensure proper arrangement to maximize space.
• Lid Not Closing Properly: Check for any obstructions (e.g., cables, tall effectors) preventing the lid from seating correctly. Ensure latches are aligned.
• Effectors Moving Inside: Re-apply or replace hook-and-loop fasteners if they lose their adhesive strength. Ensure sufficient contact area between the effector and the board.
• Latches Sticking/Loose: Clean latches of any debris. If loose, inspect for damage. Do not force stiff latches.

7. Specifications

Figure 5: EC-60/BK Detailed Dimensions

This diagram illustrates the precise width, depth, and height measurements of the case, including the lid and board sections.

8. Warranty and Support

This product is manufactured to high-quality standards. For information regarding warranty coverage, please refer to the terms and conditions provided at the point of purchase or contact your retailer. For technical support or inquiries, please reach out to KYOHRITSU customer service through their official channels.

Please note that product design, color, and specifications are subject to change without prior notice due to manufacturer updates.
