1. Introduction
The Revell Control RC Stunt Storm Monster Car, Model 24649, is an innovative remote-controlled vehicle designed for versatile play. This amphibious hybrid car can operate on both land and water, offering dynamic driving experiences. It features robust profiled tracks for various terrains and a unique 360-degree spin function. The car is approximately 22.5 cm long and can transform its shape with a dedicated button on the remote control. Equipped with 2.4 GHz radio control technology, it allows for interference-free indoor and outdoor play with multiple vehicles.
Image 1.1: The Revell Control RC Stunt Storm Monster Car, Model 24649, shown in its retail packaging.
2. Safety Information
Please read all safety instructions before operating the vehicle. Failure to follow these instructions may result in injury or damage to the product.
- Age Recommendation: This product is suitable for ages 8 years and older.
- Choking Hazard: Not suitable for children under 3 years due to small parts.
- Battery Safety:
- Use only the specified rechargeable battery and charger.
- Do not attempt to charge non-rechargeable batteries.
- Do not short-circuit battery terminals.
- Dispose of batteries properly according to local regulations.
- Adult supervision is recommended during battery charging and replacement.
- Water Use: While the vehicle is designed for water use, ensure all battery compartments are securely sealed before placing it in water. Avoid saltwater.
- Operating Environment: Operate the vehicle in open areas, away from people, pets, and obstacles. Do not operate near electrical wires or in hazardous conditions.
- Cleaning: Always disconnect the battery before cleaning. Use a damp cloth; do not immerse the remote control in water.
3. Package Contents
Verify that all items listed below are included in your package:
- Revell Control RC Stunt Storm Monster Car (Model 24649)
- 2.4 GHz Remote Control
- Rechargeable Lithium-Polymer Battery (for car)
- USB Charging Cable (for car battery)
- Instruction Manual
4. Setup
4.1. Battery Installation and Charging
The RC Stunt Storm Monster Car requires one rechargeable Lithium-Polymer battery. The remote control typically requires 2x AA batteries (not included).
- Car Battery:
- Locate the battery compartment on the underside of the car.
- Open the battery compartment cover using a screwdriver if necessary.
- Connect the rechargeable Lithium-Polymer battery to the car's connector.
- Place the battery inside the compartment and securely close the cover.
- To charge the car battery, connect the included USB charging cable to the battery and a USB power source (e.g., computer, USB wall adapter). The charging indicator will show the charging status. Allow sufficient time for a full charge before first use.
- Remote Control Batteries:
- Locate the battery compartment on the back of the remote control.
- Open the cover and insert 2x AA batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover securely.
Image 4.1: The 2.4 GHz remote control for the Stunt Storm Monster Car.
4.2. Pairing the Remote Control
The car and remote control are typically pre-paired. If pairing is required:
- Ensure both the car and remote control have fresh or fully charged batteries.
- Turn on the car's power switch.
- Turn on the remote control's power switch.
- The indicator light on the remote control will flash and then become solid once a connection is established. If it continues to flash, turn both devices off and repeat the process.
5. Operating Instructions
The Revell Control RC Stunt Storm Monster Car offers versatile operation across different environments.
5.1. Basic Controls
- Left Joystick: Controls forward and backward movement.
- Right Joystick: Controls turning left and right.
- Transformation Button: Located on the remote control, this button allows the car to switch between its land and water modes, altering its physical shape.
5.2. Driving Modes
The Stunt Storm Monster Car is an amphibious vehicle with two primary driving modes:
- Land Mode: The car operates on its profiled tracks, suitable for various terrains including dirt, snow, and uneven surfaces.
Image 5.1: The car operating in land mode on a muddy terrain.
Image 5.2: The car demonstrating its capability in snow conditions.
- Water Mode: By pressing the transformation button, the car morphs into a boat-like configuration, allowing it to navigate on water surfaces. Ensure the car is fully transformed before entering water.
Image 5.3: The car in its amphibious mode, navigating through water.
Image 5.4: A closer view of the car transformed and operating in water.

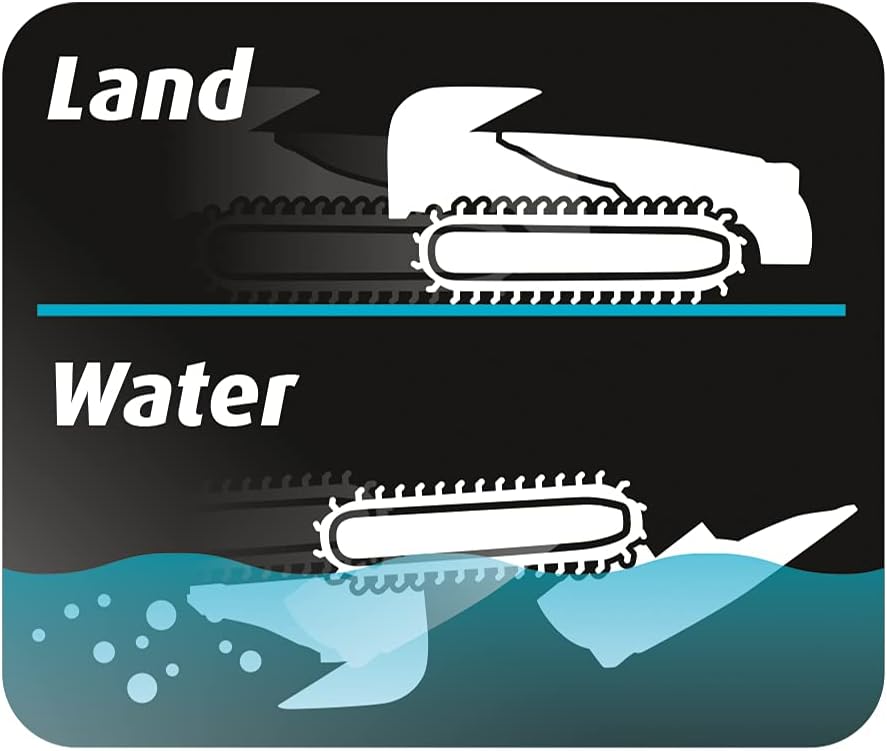

Image 5.5: Diagram showing the difference in track operation between land and water modes.
Image 5.6: Visual representation of key features: 2 Driving Modes, Waterproof design, Super Spin, and Amphibious Morph.
5.3. Special Functions
- 360° Spin Function: The car can perform a 360-degree spin in place, adding to its stunt capabilities. This is typically achieved by pushing both joysticks in opposite directions or a specific button combination (refer to remote control markings if available).
- Amphibious Morph: The car's body transforms to optimize performance for land or water. This transformation is activated via a button on the remote control.
6. Maintenance
6.1. Cleaning
- After use, especially in water, mud, or snow, clean the vehicle thoroughly.
- Use a damp cloth to wipe down the exterior. Avoid harsh chemicals.
- For tracks, remove any debris (mud, sand, grass) to ensure smooth operation.
- Ensure the car is completely dry before storing or recharging the battery.
6.2. Battery Care and Storage
- Always remove batteries from both the car and remote control if not in use for an extended period.
- Store the car and batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
- Do not overcharge or completely discharge the Lithium-Polymer battery. Follow charging instructions carefully.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Car does not respond to remote control. |
|
|
| Car's movement is erratic or weak. |
|
|
| Car does not transform properly. |
|
|
| Water ingress/Malfunction after water use. |
|
|
8. Specifications
- Model Number: 24649
- Brand: Revell Control
- Dimensions (L x W x H): 22.5 x 12.5 x 10 cm (8.86 x 4.92 x 3.94 inches)
- Weight: 780 Grams (1.72 lbs)
- Material: Plastic
- Power Source (Car): 1x Lithium-Polymer rechargeable battery (included)
- Power Source (Remote Control): 2x AA batteries (not included)
- Radio Frequency: 2.4 GHz
- Recommended Age: 8 years and up
- Features: Amphibious, Waterproof, 2 Driving Modes (Land/Water), 360° Spin Function, Transformable
9. Warranty and Support
Specific warranty details for the Revell Control RC Stunt Storm Monster Car, Model 24649, are not provided in this manual. Please refer to the product packaging or the official Revell Control website for the most up-to-date warranty information.
For technical support, spare parts, or further assistance, please contact Revell Control customer service through their official channels. Contact information can typically be found on the product packaging or their official website.
