1. Introduction
This manual provides comprehensive instructions for the XTRONS 9-Inch Android 12 Car Stereo, Model IQP9246B. Please read this manual thoroughly before installation and operation to ensure proper use and to maximize your experience with the device.
The XTRONS IQP9246B is an advanced car stereo system featuring Android 12, a Qualcomm Snapdragon 665 Octa-core processor, 6GB RAM, 128GB ROM, and a 9-inch high-definition display. It supports Wireless CarPlay, Android Auto, GPS navigation, Bluetooth 5.0, and dual-band Wi-Fi, designed to enhance your in-car entertainment and connectivity.
Vehicle Compatibility:
- For BMW E46: 4-door Sedan (1998-2005), 2-door Coupe (1999-2006), 2-door Convertible (1999-2006), 5-door Touring (1999-2005), 3-door Hatchback (2000-2004), M3 (2000-2006)
- For Rover 75: (1999-2005)
- For MG ZT: (2001-2005)
Note: The 4G function is not supported in the Americas (US, Canada, etc.), despite the presence of a SIM slot.
2. Safety Information
- Always ensure the vehicle is parked safely before operating the stereo's advanced features.
- Do not attempt to install or repair the unit if you are not qualified. Refer to a professional installer.
- Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
- Keep the volume at a safe level to remain aware of traffic and emergency vehicles.
- Ensure all wiring is correctly connected to prevent electrical shorts or damage.
3. Package Contents
Verify that all items listed below are included in your package:
- 2 × ISO Wiring Harness
- 2 × USB Cable
- 1 × GPS Antenna
- 1 × RCA Cable
- 1 × Camera Cable
- 1 × Radio Antenna Adapter
- 1 × 4G Antenna
- 1 × WiFi Antenna
- 1 × CANbus Box
- 1 × User Manual
4. Installation Guide
Professional installation is recommended. Incorrect installation may damage the unit or your vehicle. Ensure the vehicle's power is disconnected before beginning installation.
4.1 Pre-Installation Checks
- Confirm vehicle compatibility with the XTRONS IQP9246B.
- Gather all necessary tools and components.
- Disconnect the vehicle's battery to prevent electrical shorts.
4.2 Wiring Connections

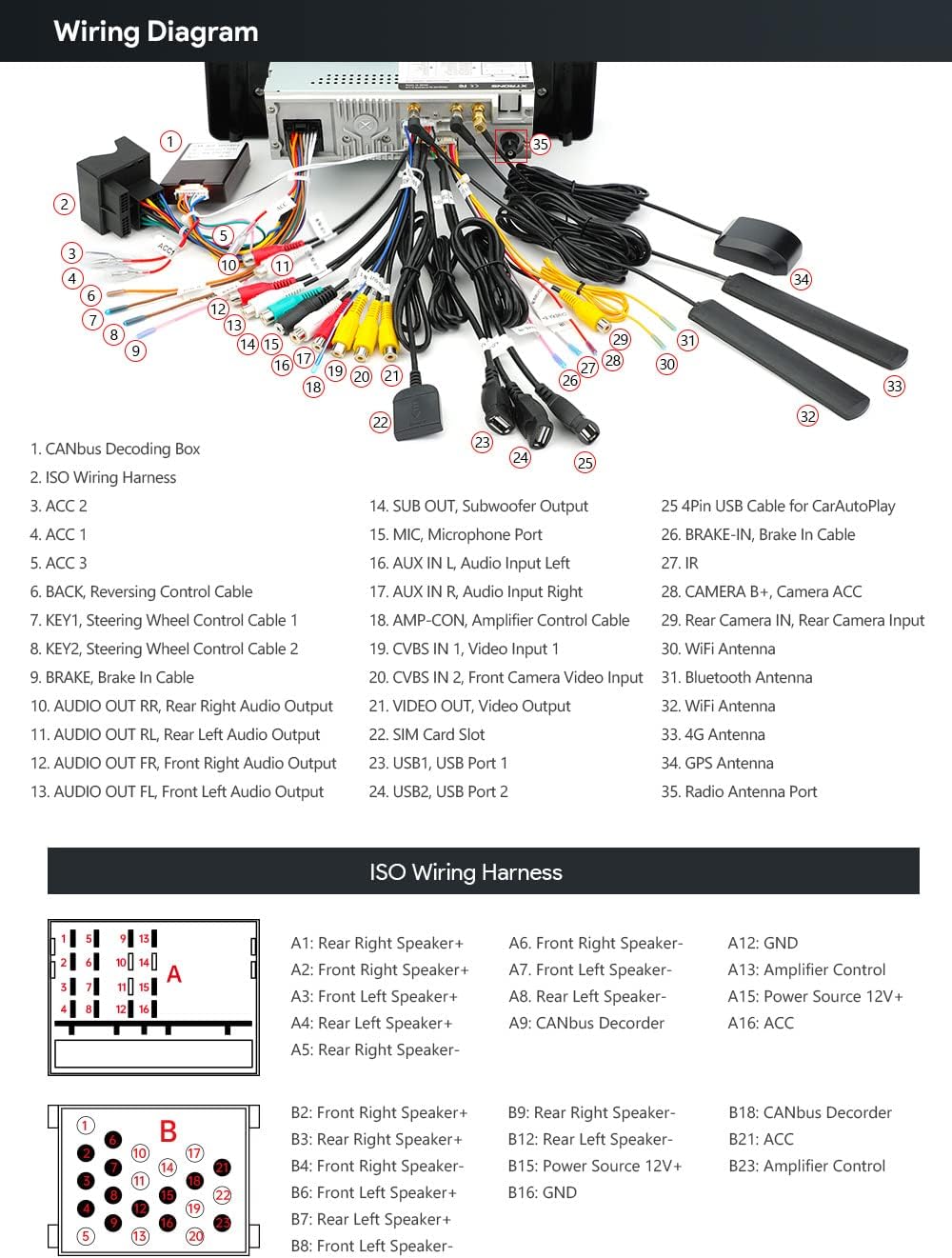

Refer to the wiring diagram for correct connections. Ensure all cables are securely attached.
- ISO Wiring Harness: Connects to the vehicle's main power and speaker wiring.
- USB Cables: For connecting external devices or USB tethering.
- GPS Antenna: Mount in a location with a clear view of the sky for optimal signal reception.
- RCA Cable: For audio/video input/output connections.
- Camera Cable: For connecting a reversing camera.
- Radio Antenna Adapter: Ensures compatibility with your vehicle's radio antenna.
- 4G Antenna: For 4G network connectivity (where supported).
- WiFi Antenna: For Wi-Fi connectivity.
- CANbus Box: Integrates with the vehicle's CANbus system to retain original functions like steering wheel controls.
4.3 Specific Compatibility Notes:
- If your car's radio antenna port differs, an adapter cable (XTRONS ISOFIZ or F2MF) may be required.
- For vehicles with a 4.3" or 7" screen or navigation drive, an extension cable (EXL005 or EXL007) might be needed.
- If your vehicle has a DSP (Digital Sound Processing) button or Harman Kardon system, an EXL007 adapter is compatible.
- For vehicles with a fiber optic amplifier system, an extra ISO wiring harness (XTRONS FOBB05) may be required.
- For Rover 75 (1999-2005) and MG ZT (2001-2005) vehicles, trimming of the unit and an extra ISO wiring harness may be necessary.
5. Operating Instructions
The XTRONS IQP9246B runs on Android 12, offering a user-friendly interface and a wide range of features.
5.1 Basic Navigation
- Power Button: Press and hold to power on/off. Short press to toggle screen on/off.
- Home Button: Returns to the main home screen.
- Back Button: Navigates back to the previous screen.
- Volume Controls: Adjust audio output level.
- RST (Reset) Button: Use a thin object to press for a system reset if needed.
5.2 Key Features
5.2.1 Android 12 Operating System
Experience a stable and responsive interface with Android 12. The Qualcomm Snapdragon 665 Octa-core processor, 6GB LPDDR4 RAM, and 128GB Solid State ROM ensure smooth performance for all applications.
5.2.2 Wireless CarPlay & Android Auto
Connect your iPhone (iOS 8 and above) wirelessly via Bluetooth for CarPlay, or your Android phone (Android 4.3 and above) wirelessly or via USB for Android Auto. Access navigation, calls, music, and voice assistants (Siri/Google Assistant) directly from the stereo's display.
5.2.3 GPS Navigation
The unit supports various Android-compatible navigation software such as Google Maps, Sygic, and Waze, providing reliable guidance for your journeys.
5.2.4 Bluetooth 5.0
Connect your mobile phone via Bluetooth 5.0 for hands-free calls, access to your phone book, call logs, and seamless audio streaming.
5.2.5 Built-in DSP (Digital Sound Processor)
Enhance your audio experience with the built-in DSP, offering advanced sound customization options to fine-tune your music playback.
5.2.6 Dual Band Wi-Fi
Supports both 2.4GHz and 5GHz Wi-Fi bands for faster speeds and improved connectivity, reducing interference.
5.2.7 USB Tethering
Connect your smartphone via USB and enable "USB Tethering" (Android) or "Allow Others to Join" (iPhone) to access online content on the stereo.
5.2.8 Multi-window View (PIP)
The Picture-in-Picture (PIP) mode allows you to watch videos while multitasking, and the multi-window view enables running two applications side-by-side, such as navigation and music.
5.2.9 Official Product Video
Watch this video for a detailed overview of the XTRONS IQP9246B features and functionality:
6. Maintenance
- Screen Cleaning: Use a soft, lint-free cloth to gently wipe the screen. Avoid abrasive cleaners or solvents.
- Software Updates: Periodically check for software updates through the system settings to ensure optimal performance and access to new features.
- General Care: Keep the unit free from dust and debris. Avoid spilling liquids on the device.
7. Troubleshooting
- No Power: Check all power connections. Ensure the vehicle's battery is connected and charged. Verify fuses.
- No Sound: Check speaker connections. Ensure volume is not muted or set too low. Verify audio settings.
- GPS Signal Loss: Ensure the GPS antenna is correctly installed and has a clear view of the sky.
- Bluetooth Connectivity Issues: Ensure Bluetooth is enabled on both the stereo and your mobile device. Try unpairing and re-pairing the devices.
- Touchscreen Unresponsive: Try restarting the unit. If the issue persists, perform a system reset using the RST button.
- Unit Freezes/Crashes: Perform a system reset. If frequent, check for software updates or consult customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Item Weight | 4.54 pounds |
| Package Dimensions | 13.35 x 9.25 x 6.25 inches |
| Item Model Number | IQP9246B |
| Display Size | 9 Inches |
| Voice Command | Microphone, Touchscreen |
| Brand | XTRONS |
| Model Name | XTRONS Single Din Car Stereo |
| Vehicle Service Type | Car |
| Special Feature | Bluetooth, Touchscreen |
| Connectivity Technology | Cellular, USB, Wi-Fi |
| Map Type | North America |
| Audio Output Mode | Stereo |
| Mounting Type | Panel Mount |
9. Warranty and Support
For warranty information and technical support, please refer to the official XTRONS website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
For additional accessories or further assistance, please visit the XTRONS Store on Amazon.
