Easytry123 Replacement Remote Control User Manual

1. Introduction

This manual provides instructions for the setup, operation, and basic maintenance of your Easytry123 replacement remote control. This remote is designed to be compatible with specific Mitsubishi air conditioner models, including MSH-07RV, MSH-09RV, MS-09TW, MS-12TN, MS-15TN, MSY-GC71VA, MSY-GC25VA, MSY-GC35VA, and MSZ-GC71VA.

Please note that while this remote is a functional replacement, some advanced or specific functions of your original air conditioner remote may not be supported. Refer to your air conditioner's original manual for detailed information on its specific features.

2. Setup

2.1 Battery Installation

The remote control requires two (2) AAA batteries for operation. Batteries are not included with the remote control.

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards or press the latch (if present) to open the compartment.
3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery compartment cover back into place until it clicks securely.

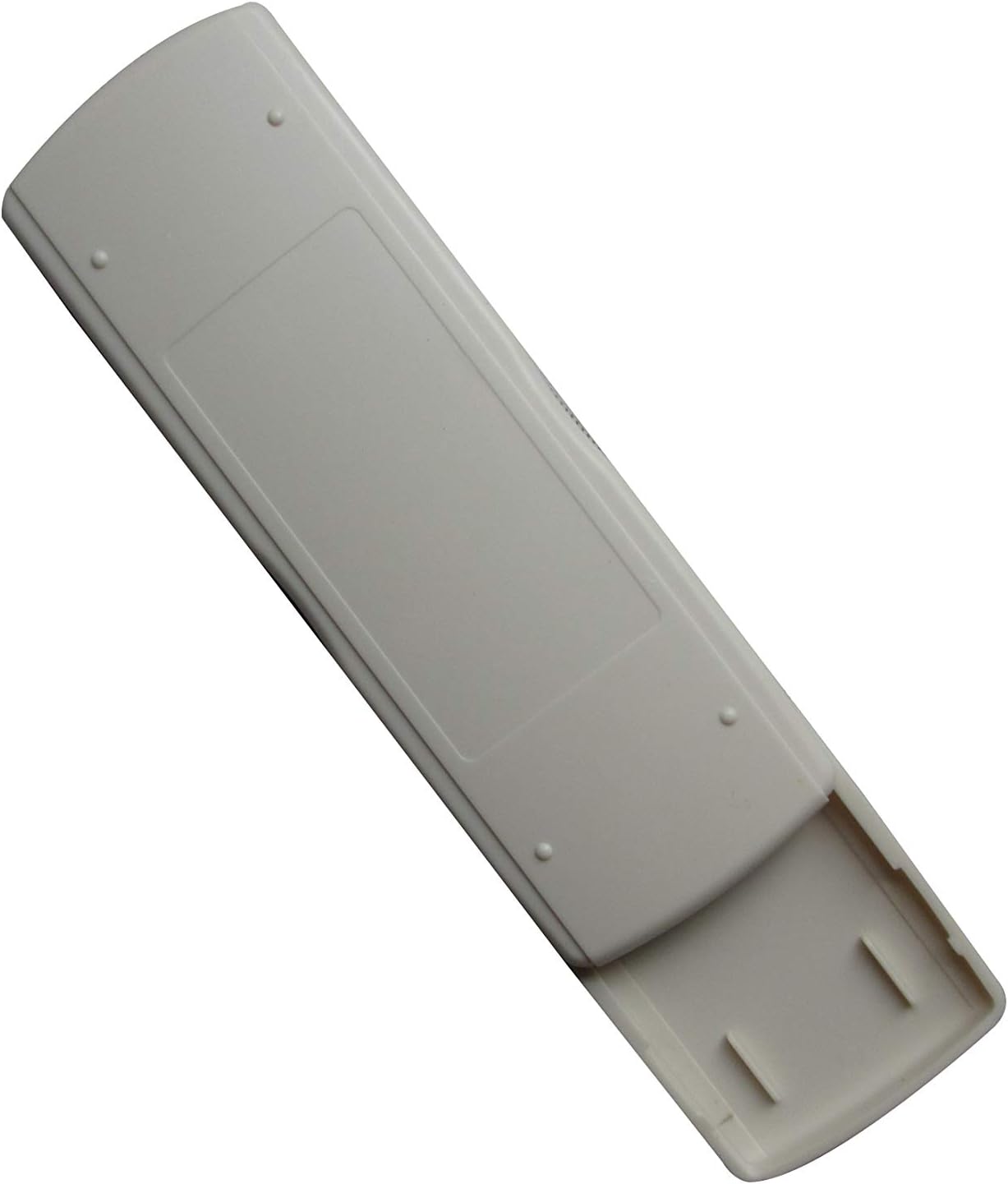

Image: Back of the remote control with the battery compartment. This view illustrates where to insert the AAA batteries.

2.2 Initial Use

After installing the batteries, the remote control is generally ready for immediate use. No complex pairing or programming is typically required. Point the remote control towards your Mitsubishi air conditioner unit and press the ON/OFF button to test functionality.

3. Operating Instructions

This section describes the primary functions of the remote control buttons.

Image: Front view of the remote control. This image displays the layout of the buttons and the LCD screen.

• ON/OFF Button (): Press this button to turn the air conditioner unit ON or OFF.
• TEMP Buttons (▲ / ▼): Use these buttons to increase or decrease the desired temperature setting.
• MODE Button (MODE): Press this button to cycle through the available operating modes of your air conditioner (e.g., Cool, Heat, Fan, Dry, Auto). The active mode will typically be displayed on the remote's LCD screen.
• Other Buttons: Depending on the specific model of the remote, there may be additional buttons for fan speed, swing, timer, etc. Refer to the remote's display and your air conditioner's manual for their specific functions.

4. Maintenance

4.1 Battery Replacement

Replace batteries when the remote control's range decreases, or if the display becomes dim or unresponsive. Always replace both AAA batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries.

4.2 Cleaning

To clean the remote control, wipe it gently with a soft, dry cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the remote's surface or internal components.

4.3 Storage

If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage to the device.

5. Troubleshooting

If you experience issues with your remote control, refer to the following common problems and solutions:

• Remote is unresponsive or has limited range:
  • Check if the batteries are inserted correctly with the correct polarity.
  • Replace the batteries with new AAA batteries.
  • Ensure there are no obstructions between the remote control and the air conditioner unit's infrared receiver.
  • Confirm you are within the effective operating range of the air conditioner's receiver.
• Certain functions do not work:
  • As a replacement remote, some advanced or specific functions present on your original air conditioner remote may not be fully supported. This is a common characteristic of universal or replacement remotes.
  • Verify that the function you are trying to use is available on your specific air conditioner model.
• Air conditioner does not respond to any commands:
  • Ensure the air conditioner unit is powered on and receiving electricity.
  • Try manually operating the air conditioner from its control panel to confirm it is functioning.

6. Specifications

7. Warranty and Support

Information regarding product warranty is not provided in this manual. For warranty details, technical support, or further assistance, please contact the seller or manufacturer directly through your purchase platform.
