HXSJ V100 35 Keys Gaming Keyboard User Manual
Model: V100
1. Introduction
Thank you for choosing the HXSJ V100 35 Keys Gaming Keyboard. This compact, single-hand membrane keyboard is designed to enhance your gaming experience with its ergonomic design, programmable features, and vibrant LED backlighting. This manual provides detailed instructions on how to set up, operate, and maintain your keyboard to ensure optimal performance.

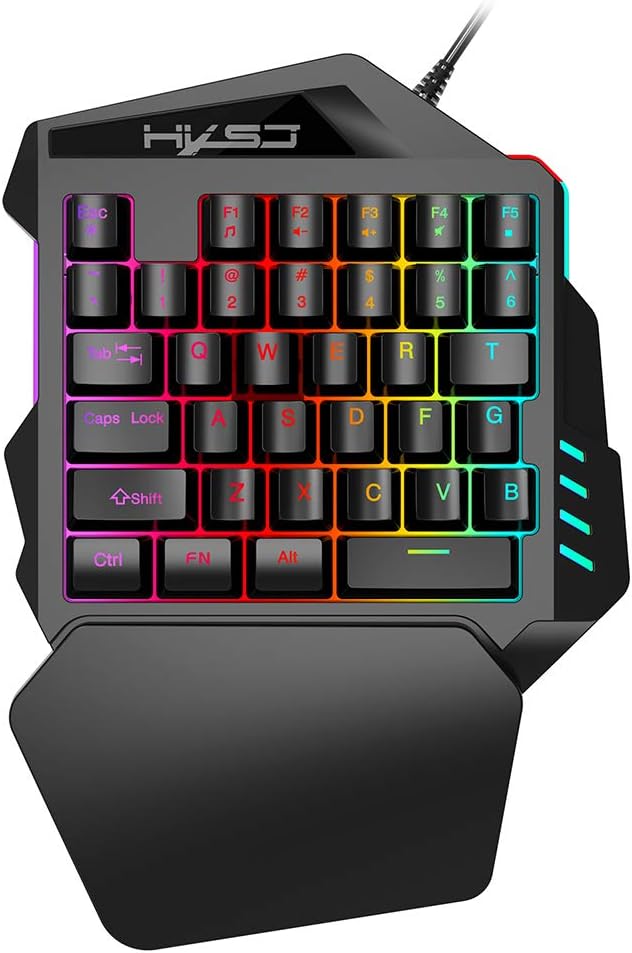

Figure 1: HXSJ V100 35 Keys Gaming Keyboard Overview
The HXSJ V100 is engineered for precision and comfort, making it an ideal companion for games like PUBG, LOL, and CS. Its mini design allows for easy single-hand operation, while the integrated wrist rest provides support during extended gaming sessions.
2. Key Features
- Luminous LED Backlight: Features vibrant LED color backlighting for an immersive gaming atmosphere, especially in low-light conditions.
- Programmable Advanced Control: Offers customizable lighting and key functions for a personalized gaming setup.
- Mini Portable Design: Compact 35-key layout provides a super easy single-hand operating experience, optimizing desk space.
- Ergonomic Wrist Rest: Designed to fit your hand and wrist comfortably, simplifying complex operations and reducing fatigue.
- Wide Compatibility: Supports various operating systems including Win 2000, Win XP, Win ME, Vista, Win7, Win8, Android, Linux, and Apple.
Figure 2: Ergonomic Hand Rest for Enhanced Comfort
3. Package Contents
Please check the package contents upon unboxing to ensure all items are present:
- 1 x HXSJ V100 35 Keys Gaming Keyboard
- 1 x User Manual
4. Setup Guide
Setting up your HXSJ V100 Gaming Keyboard is straightforward. Follow these steps to get started:
- Connect to Device: Locate an available USB 2.0 port on your computer, laptop, or compatible gaming device.
- Plug In: Insert the USB connector of the keyboard into the USB port.
- Automatic Installation: Your operating system should automatically detect and install the necessary drivers. This process may take a few moments.
- Ready for Use: Once the drivers are installed, the keyboard's LED backlight will illuminate, indicating it is ready for use.
Figure 3: Connecting the HXSJ V100 Keyboard to a Device
5. Operating Instructions
The HXSJ V100 keyboard is designed for intuitive use. Here are the primary functions and special key combinations:
5.1 Standard Key Functions
The keyboard features 35 standard keys, including alphanumeric keys, function keys (F1-F5), and modifier keys (Ctrl, Shift, Alt, FN). These keys operate as standard input devices for your computer or gaming system.
Figure 4: HXSJ V100 Keyboard Key Layout
5.2 FN Combination Functions
The FN key allows access to multimedia functions. Press and hold the FN key, then press the corresponding function key:
- FN + F1: Music Player
- FN + F2: Volume Decrement
- FN + F3: Volume Increment
- FN + F4: Mute
- FN + F5: Pause/Play
Note: This keyboard features a single backlight color mode as depicted in the product images. The backlight is not customizable to different colors, but provides a consistent, vibrant illumination.
6. Maintenance and Care
To ensure the longevity and optimal performance of your HXSJ V100 Gaming Keyboard, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe down the keyboard surface. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid excessive moisture.
- Dust Removal: Use compressed air to remove dust and debris from between the keys.
- Avoid Liquids: Do not spill liquids on the keyboard. If a spill occurs, immediately unplug the keyboard and allow it to dry completely before reconnecting.
- Storage: Store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
- Handle with Care: Avoid dropping the keyboard or subjecting it to strong impacts, which can damage internal components.
7. Troubleshooting
If you encounter issues with your HXSJ V100 Gaming Keyboard, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|
| Keyboard not responding | Loose USB connection, faulty USB port, driver issue. | Ensure USB cable is securely plugged in. Try a different USB port. Restart your computer. Check Device Manager for driver issues. |
| Backlight not working | Keyboard not powered, backlight setting. | Ensure keyboard is properly connected and receiving power. The backlight is always on when powered. If not, try reconnecting. |
| Keys not registering | Dust/debris under keys, software conflict. | Use compressed air to clean around and under the affected keys. Test the keyboard on another computer to rule out software issues. |
| FN multimedia keys not working | Incorrect key combination, software conflict. | Ensure you are pressing and holding the FN key before pressing the desired F key. Check if other multimedia software is interfering. |
8. Product Specifications
Detailed technical specifications for the HXSJ V100 Gaming Keyboard:
| Parameter | Value |
|---|
| Product Name | One-handed Gaming Keyboard |
| Product Model | V100 |
| Product Interface | USB 2.0 |
| Keyboard Standard | Mini Keyboard |
| Operation Style | Membrane |
| Number of Keys | 35 keys |
| Product Line Length | 1.6 meters |
| Working Current | 100mA |
| Product Net Weight | 350g |
| Product Size (L*W*H) | 26 x 18 x 4 cm |
| Package Weight | 415g |
| Package Size | 26 x 19 x 4 cm |
| Compatible OS | Win 2000, Win XP, Win ME, Vista, Win7, Win8, Android, Linux, Apple |
| Backlight Color | RGB (fixed mode) |
Figure 5: Product Label on the Bottom of the Keyboard
9. Warranty and Support
HXSJ products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official HXSJ website. Please retain your proof of purchase for any warranty claims.
