ALEKO ABM16X10SAND31 16x10 ft Caribbean Style Electric Awning Instruction Manual

1. Safety Information

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in injury or damage to the product.

• Assembly Required: This product requires assembly. Ensure all components are correctly installed according to the instructions.
• Electrical Connection: A 120V AC connection is required for the motor. Ensure proper electrical safety procedures are followed during installation. If unsure, consult a qualified electrician.
• Weather Precautions: Partially or fully retract the awning during heavy winds, storms, or other severe weather conditions to prevent damage to the awning and property.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

2. Product Overview

The ALEKO ABM16X10SAND31 Caribbean Style Electric Awning provides shade and weather protection for your outdoor space. It features both motorized and manual crank operation for convenience and reliability.

Key Features:

• Dual-Control System: Motorized operation via remote control and manual crank for backup during power outages.
• Durable Construction: Features a powder-coated steel frame and aluminum components for rust and chip resistance.
• UV-Resistant Fabric: Polyester fabric designed to maintain color and strength, blocking harmful UV rays.
• Climate Control: Promotes airflow and reduces heat buildup, potentially lowering patio temperatures by up to 15 degrees.
• Weather Protection: Water-resistant canopy shields from sun and light rain. Retractable design allows quick securing in severe weather.

Figure 2.1: The ALEKO 16x10 ft Caribbean Style Electric Awning in Desert Sand color, fully extended over a patio area.

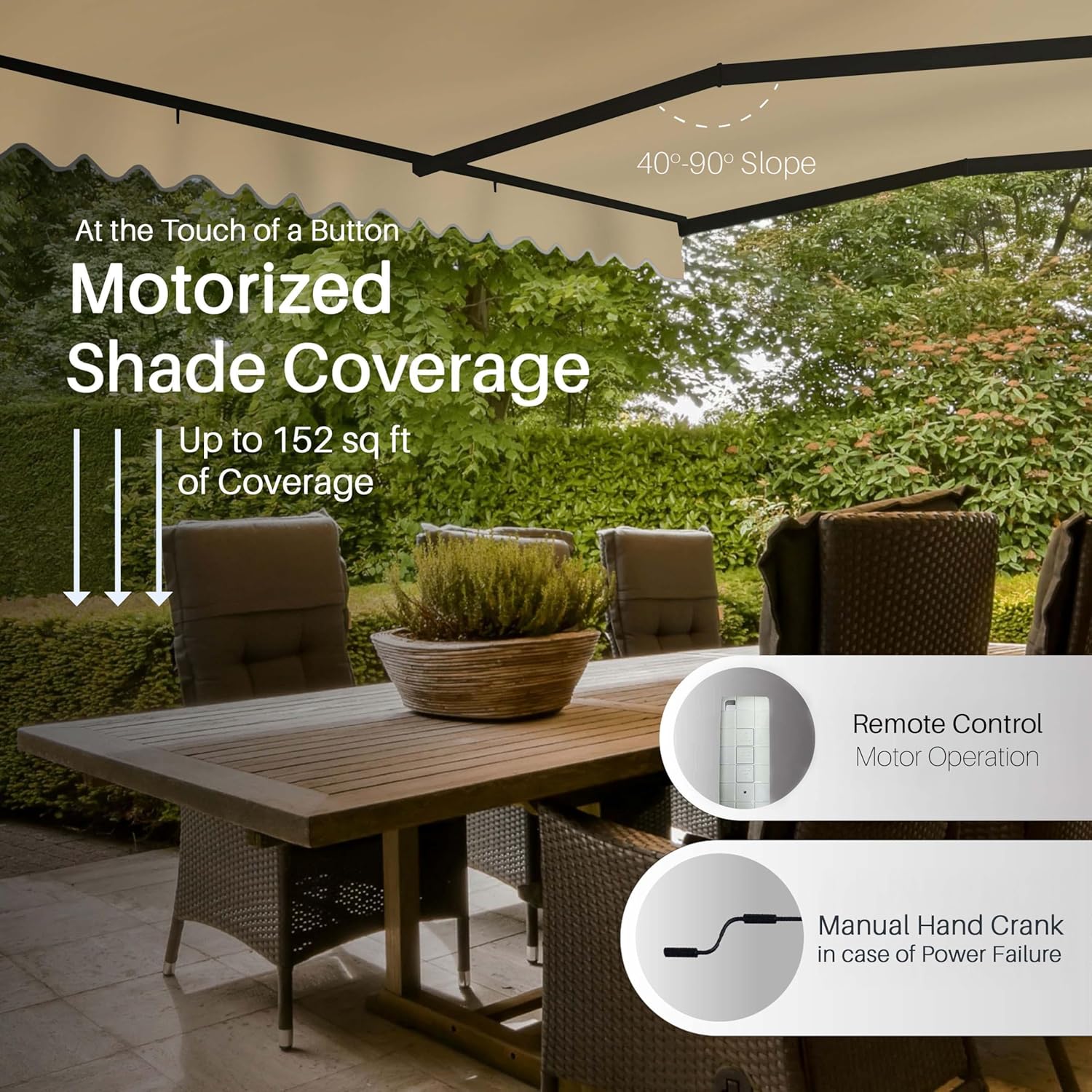

Figure 2.2: Detail showing the motorized shade coverage, indicating up to 152 sq ft of coverage, with options for remote control motor operation and manual hand crank.

Figure 2.3: Illustration of the awning's durable construction, highlighting scratch-resistant powder-paint and heavy-duty 6063-T5 Aluminum and Zinc Coated Steel Frame.

Figure 2.4: Close-up of the strong and sturdy awning arms, featuring a dual spring system and 3.5MM PVC-Coated Stainless Steel Duo-Cable for smooth operation.

Figure 2.5: Detail of the weather and tear-resistant fabric, showing tightly woven 280 g/sqm polyester with UV shielding properties.

3. Setup and Installation

This section provides general guidance for setting up your ALEKO electric awning. For detailed, step-by-step instructions, please refer to the official installation manual provided with your product or download it from the link below.

Included Components:

• (1) Pre-assembled Frame
• (1) Awning Fabric
• (1) Motor
• (1) Remote
• (1) Handle Crank
• (1) Wall-mounted Remote Holder
• (1) Installation Manual (physical copy)
• (1) Full Set of Mounting Hardware

3.1. Mounting Height and Dimensions

Ensure the mounting surface is structurally sound and capable of supporting the awning's weight. Refer to the diagram for recommended mounting height and dimensions.

Figure 3.1: Diagram illustrating the awning's dimensions and recommended mounting height (8' - 12') with a 2' drop at a 15° slope. A QR code is present for scanning the manual.

For a detailed installation manual, please refer to this PDF manual.

3.2. Remote Control Programming

The remote control needs to be programmed to operate the awning motor. Follow these steps:

1. Slide the back cover off the remote control to access the battery compartment and the P2 button.
2. Insert the 27A 12V battery with the positive (+) side facing the bottom of the remote.
3. Unplug the awning motor from its power outlet, wait 10 seconds, then plug it back in.
4. For Right-Facing Motor: Push the P2 button twice. Immediately turn the remote over and push the top button twice. Then push the bottom button once to engage the awning.
5. For Left-Facing Motor: Push the P2 button twice. Immediately turn the remote over and push the bottom button twice. Then push the bottom button a third time to engage the awning.
6. Replace the battery cover on the remote.

Figure 3.2: Overview of optional awning accessories, including Wind & Sun Sensors for automatic retraction/opening based on weather, and a Wi-Fi Smart Hub for connecting to virtual assistants like Amazon Alexa and Google Assistant.

4. Operating Instructions

Your ALEKO electric awning offers both motorized and manual operation.

4.1. Motorized Operation (Remote Control)

• Use the remote control to extend or retract the awning. The specific buttons for extension and retraction will be indicated on your remote.
• Ensure there are no obstructions in the awning's path during operation.
• Do not operate the awning in strong winds or heavy rain.

4.2. Manual Operation (Hand Crank)

In case of a power outage or motor malfunction, the awning can be operated manually:

• Locate the hand crank provided with your awning.
• Insert the hook of the hand crank into the loop on the awning's gearbox.
• Turn the crank clockwise to retract the awning and counter-clockwise to extend it.
• Remove the hand crank when not in use.

5. Maintenance

Regular maintenance helps prolong the life and performance of your awning.

• Cleaning the Fabric: Clean the awning fabric periodically with mild soap and water. Avoid harsh chemicals or abrasive brushes that could damage the UV-resistant coating. Allow the fabric to dry completely before retracting to prevent mildew.
• Frame Inspection: Periodically inspect the frame, arms, and mounting hardware for any signs of wear, corrosion, or loose connections. Tighten any loose bolts or screws.
• Motor and Remote: Ensure the motor area is kept clear of debris. Check the remote control battery regularly and replace it when needed.
• Winter Storage: In areas with heavy snow or ice, it is recommended to fully retract the awning during winter months to prevent damage.

6. Troubleshooting

If you encounter issues with your awning, consider the following common solutions:

• Awning Not Responding to Remote:
  • Check the remote control battery and replace if necessary.
  • Ensure the motor is plugged into a working power outlet.
  • Re-program the remote control following the steps in Section 3.2.
• Awning Not Extending/Retracting Fully:
  • Check for any physical obstructions.
  • Ensure the power supply to the motor is stable.
  • If the issue persists, contact customer support.
• Unusual Noises During Operation:
  • Inspect the arms and frame for any loose parts or debris.
  • If the noise is from the motor, discontinue use and contact customer support.

For further assistance, please refer to the Warranty & Support section.

7. Specifications

8. Warranty & Support

Manufacturer Warranty: This product comes with a One-Year Limited Warranty from ALEKO.

For warranty claims, technical support, or any questions regarding your ALEKO awning, please contact ALEKO Products customer support. Contact information can typically be found on the manufacturer's website or through your purchase platform.

You can also visit the ALEKO Store on Amazon for more information and support resources.
