1. Introduction
This manual provides essential information for the safe and efficient use of your Candy Brava CELDIMN 4D622PBE built-in dishwasher. Designed for modern kitchens, this appliance offers a capacity of 16 place settings, smart connectivity via Wi-Fi and Bluetooth, and a range of wash programs for optimal cleaning performance. Please read these instructions carefully before installation and operation.
Note: Your dishwasher is tested at the factory before packaging and may contain residual water droplets. This is normal and does not indicate a defect.
2. Safety Information
- Ensure the dishwasher is properly earthed.
- Do not allow children to operate or play with the dishwasher.
- Keep detergents and rinse aid out of reach of children.
- Only use detergents and rinse aid specifically designed for automatic dishwashers.
- Do not open the door during operation, especially during the hot wash cycle.
- Sharp items should be loaded with points down to prevent injury.
- In case of malfunction, disconnect the appliance from the power supply before attempting any inspection or repair.
3. Setup and Installation
The Candy Brava CELDIMN 4D622PBE is a built-in dishwasher designed for integration into your kitchen cabinetry. Professional installation is recommended.
3.1 Dimensions
- Width: 59.8 cm
- Depth: 55 cm
- Height: 82 cm
- Weight: 37.2 kg
3.2 Water and Electrical Connections
Ensure that water inlet and outlet hoses are correctly connected and that the electrical supply meets the appliance's requirements (230 Volts). Refer to the detailed installation guide provided with the appliance for specific instructions.
4. Operating Instructions
4.1 Loading the Dishwasher
Proper loading ensures optimal cleaning and drying. The dishwasher features flexible baskets to accommodate various dish sizes. Load larger items in the lower basket and delicate items in the upper basket. Utensils should be placed in the dedicated cutlery basket or tray.
Image: Dishwasher interior fully loaded with dishes, demonstrating efficient use of space for plates, glasses, and cutlery in organized racks.
Image: Dishwasher interior with upper and lower racks pulled out, highlighting the flexible loading options and adjustable baskets.
4.2 Adding Detergent and Rinse Aid
Fill the detergent dispenser with the appropriate amount of dishwasher detergent. Check the rinse aid indicator and refill the rinse aid dispenser when necessary for streak-free drying.
4.3 Program Selection
The dishwasher offers 9 wash programs. Select the program best suited for your load's soil level and type of dishes. One notable program is the Zoom 39', which washes and dries dishes in just 39 minutes.
4.4 Smart Connectivity (Wi-Fi + Bluetooth)
Connect your dishwasher to the Candy hOn app via Wi-Fi or Bluetooth to manage it remotely. This allows for program selection, monitoring, and voice control from your smartphone or smart device.
4.5 Add-Dish Function
The hOn app allows you to add forgotten dishes even after a wash cycle has started, depending on the program phase.
4.6 Delayed Start
You can program the dishwasher to start at a later time (e.g., 3, 6, or 9 hours delay) to suit your schedule or take advantage of off-peak electricity rates.
4.7 Automatic Door Opening
The automatic door opening feature at the end of certain cycles helps to maximize drying performance by allowing steam to escape.
5. Maintenance
Regular maintenance ensures the longevity and efficiency of your dishwasher.
- Cleaning Filters: Regularly clean the filter system located at the bottom of the wash tub to prevent blockages and ensure effective cleaning.
- Checking Spray Arms: Ensure the spray arm nozzles are not blocked by food particles. Clean them if necessary.
- Salt Level: If your dishwasher uses dishwasher salt, check the indicator and refill as needed to soften water and prevent limescale buildup.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners.
6. Troubleshooting
Before contacting service, consult the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | No power; Door not closed properly; Program not selected. | Check power supply; Ensure door is latched; Select a program and press start. |
| Dishes are not clean | Improper loading; Clogged spray arms; Insufficient detergent; Clogged filters. | Reload dishes correctly; Clean spray arm nozzles; Add more detergent; Clean filters. |
| Water not draining | Clogged drain hose; Clogged filters; Drain pump malfunction. | Check and clear drain hose; Clean filters; Contact service if pump is faulty. |
| Excessive noise | Dishes rattling; Foreign object in pump; Improper installation. | Rearrange dishes; Check for foreign objects; Verify proper installation. |
7. Specifications
Detailed technical specifications for the Candy Brava CELDIMN 4D622PBE dishwasher:
| Feature | Value |
|---|---|
| Model Number | CELDIMN 4D622PBE (32901335) |
| Installation Type | Built-in |
| Capacity | 16 Place Settings |
| Dimensions (W x D x H) | 59.8 x 55 x 82 cm |
| Weight | 37.2 kg |
| Voltage | 230 Volts |
| Noise Level | 43 dB |
| Energy Efficiency Class | C |
| Connectivity | Wi-Fi, Bluetooth |
7.1 Energy Label and Product Information Sheet
For detailed energy consumption and product information, refer to the official energy label and product information sheet.
Image: EU Energy Label for the Candy CELDIMN 4D622PBE Dishwasher, indicating Energy Class C, 76 kWh per 100 cycles, capacity of 16 place settings, 10.9 liters of water per cycle, 43 dB noise level, and a program duration of 3 hours and 52 minutes.

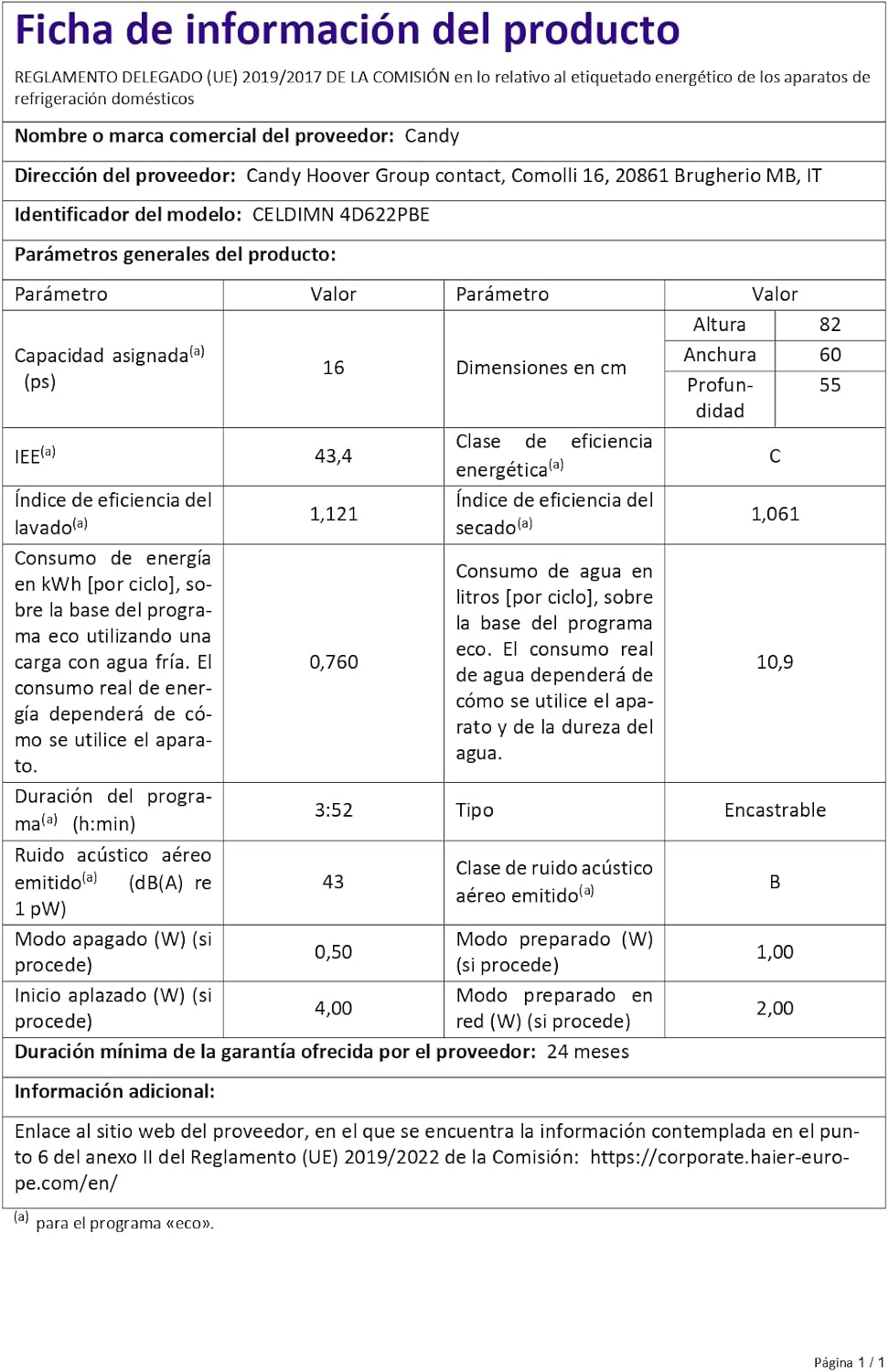

Image: Product Information Sheet for the Candy CELDIMN 4D622PBE Dishwasher, providing detailed specifications such as assigned capacity (16), dimensions (82x60x55 cm), energy efficiency class (C), noise level (43 dB), and minimum warranty duration (24 months). For more information, visit the EPREL database.
8. Warranty and Support
This product comes with a minimum warranty duration of 24 months provided by the supplier. For warranty claims or technical support, please refer to the contact information provided in your purchase documentation or visit the official Candy website.
