1. Introduction
The Maypole Smart Logic MP3877B is a 12V 7-way bypass relay designed to manage the electrical connection between your vehicle and a trailer or caravan. This unit ensures that the trailer's lighting system operates correctly without placing additional electrical load on the vehicle's existing wiring circuits.
It features an integrated audible buzzer that monitors trailer and caravan indicators, providing an essential safety confirmation. The relay can be powered directly from the vehicle's battery or fuse box. It is compatible with vehicles using multiplexed (shared signal) wiring systems for position/brake and position/fog lights, provided these signals are present as physical wires on the rear light clusters. Please note, it will not function with vehicles that utilize entirely digital or network-based systems (such as CANBUS control) without direct rear signal wiring. If you are uncertain about your vehicle's wiring configuration, it is highly recommended to consult a qualified automotive electrician prior to purchase and installation.
2. Product Features
- 7-Way Bypass Relay: Specifically designed for trailer and caravan towing electrics, managing up to 7 distinct lighting functions.
- Vehicle System Protection: Prevents additional electrical load on the vehicle's lighting system, protecting sensitive vehicle electronics.
- Integrated Audible Buzzer: Provides an audible confirmation when trailer/caravan indicators are active, enhancing safety.
- Flexible Power Options: Can be powered directly from the vehicle's battery or an appropriate fuse box connection.
- Quality Construction: A high-quality product from Maypole Ltd (UK), ensuring reliability and durability.

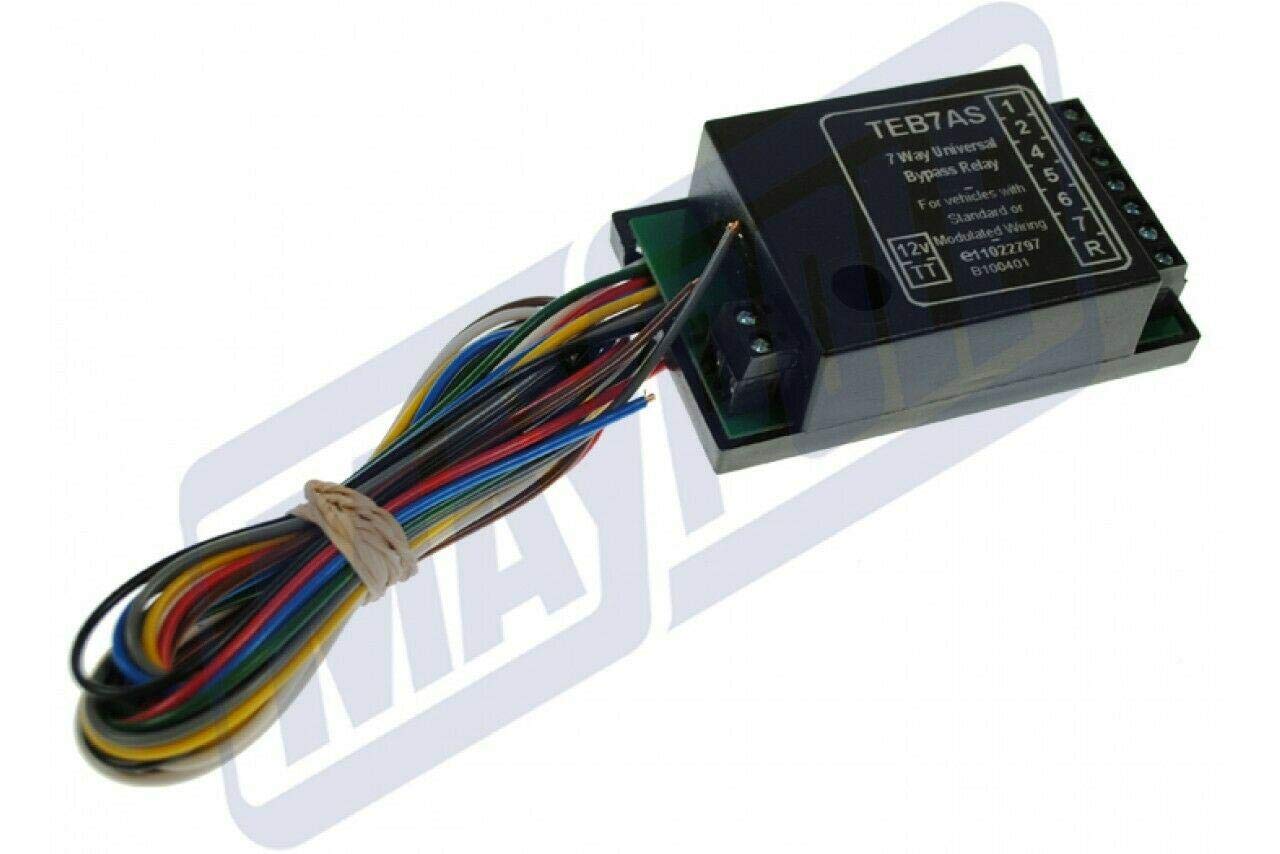

Figure 2.1: The Maypole Smart Logic MP3877B 7-Way Bypass Relay. This image displays the compact design of the relay unit with its multi-colored wiring harness, ready for installation.
3. Setup and Installation
Proper installation of the MP3877B bypass relay is critical for safe and reliable operation of your trailer or caravan lighting. Always ensure the vehicle's battery is disconnected before beginning any electrical work. If you are uncertain about any step, consult a qualified automotive electrician.
3.1. Pre-Installation Check
- Verify your vehicle's wiring system is compatible (physical signal wires for lights).
- Gather all necessary tools: wire strippers, crimpers, electrical tape, multimeter, and appropriate connectors.
- Identify a suitable, dry, and protected mounting location for the relay within the vehicle.
3.2. Wiring Connections
The relay connects directly to the vehicle's lighting circuits. Refer to the diagram on the relay unit and your vehicle's specific wiring diagram for precise connection points. Ensure each wire from the relay is connected to its corresponding function on the vehicle's rear light cluster.
- Power Supply: Connect the main power wire (typically red) to a fused 12V supply, either directly from the battery (with an inline fuse) or a suitable fuse box terminal.
- Ground: Connect the ground wire (typically black) to a solid chassis ground point on the vehicle.
- Lighting Inputs: Connect the remaining wires to the vehicle's respective lighting signals (e.g., brake lights, tail lights, left indicator, right indicator, fog light, reverse light). For turn signals, ensure separate signal wires are used for each side.
- Trailer Output: The relay's output wires will connect to the trailer's wiring harness.
Figure 3.1: A detailed view of the MP3877B relay's 7-way terminal block. Each terminal is clearly numbered, facilitating accurate wiring connections according to the provided instructions.
3.3. Mounting the Relay
Once all wiring connections are made and verified, securely mount the relay in the chosen location using appropriate fasteners. Ensure the mounting surface is stable and the relay is protected from physical damage and environmental elements.
4. Operation
After successful installation, the MP3877B bypass relay operates automatically when a trailer or caravan is connected to your vehicle and its lighting system is activated.
- Automatic Light Control: When the vehicle's lights (e.g., brake, tail, indicators) are activated, the relay senses these signals and independently powers the corresponding trailer/caravan lights from its dedicated power supply. This ensures consistent and bright lighting for the towed unit.
- Indicator Monitoring: The integrated audible buzzer will sound in sync with the trailer/caravan indicators, confirming that the turn signals are functioning correctly on the towed unit. This provides immediate feedback to the driver.
5. Maintenance
The Maypole MP3877B bypass relay is designed for reliable, long-term operation with minimal maintenance. However, periodic checks can help ensure its continued performance and safety.
- Wiring and Connections: Annually inspect all wiring connections for signs of corrosion, fraying, or looseness. Ensure all terminals are clean and securely fastened.
- Mounting Security: Periodically check that the relay unit remains firmly mounted and has not become loose due to vehicle vibrations or impacts.
- Fuse Check: If the trailer/caravan lights or buzzer stop functioning, first check the fuse on the relay's power supply line. Replace with a fuse of the correct amperage if blown.
- Environmental Protection: Ensure the relay remains in a dry environment, protected from water ingress, extreme temperatures, and direct sunlight.
6. Troubleshooting
If you encounter issues with your MP3877B bypass relay, refer to the table below for common problems and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trailer/Caravan lights not working. | No power to the relay; Blown fuse; Loose wiring connection; Incorrect wiring; Faulty trailer lights. | Check power supply to the relay; Inspect and replace fuse if necessary; Secure all wiring connections; Verify wiring against vehicle and relay diagrams; Test trailer lights directly. |
| Audible buzzer not sounding. | Indicator signal not reaching the relay; Faulty buzzer; Incorrect wiring for indicator input. | Check indicator wiring to the relay; Ensure correct input signal; If wiring is correct, the buzzer may be faulty (contact support). |
| Vehicle lights flickering or malfunctioning after installation. | Incorrect installation; Relay malfunction; Vehicle system incompatibility. | Immediately disconnect the relay and re-check all wiring connections; Ensure compatibility with your vehicle's specific wiring system; Consult a qualified automotive electrician. |
| Relay gets excessively hot. | Overload on the circuit; Short circuit in trailer wiring; Insufficient gauge power wire. | Check trailer wiring for shorts; Ensure total current draw does not exceed relay's rating; Verify power wire gauge is adequate for the load. |
7. Specifications
- Product Dimensions (L x W x H): 4 x 4.5 x 11 cm (1.57 x 1.77 x 4.33 inches)
- Weight: 110 grams (0.24 lbs)
- Manufacturer: Maypole UK Ltd
- Item Model Number: MP3877B
- Connector Type: Screw Terminals
- Contact Material: Alloy Steel
- Contact Type: Normally Open
- Current Rating: 15 A
- Mounting Type: Surface Mount
- Brand: Maypole
- Operating Mode: Manual (referring to the vehicle's manual light activation)
- Power: 5 Watts
- Compliant Specifications: CE
Figure 7.1: Side view of the MP3877B relay, showing a measured thickness of approximately 24.9mm.
Figure 7.2: Top view of the MP3877B relay, showing a measured width of approximately 47.0mm.
Figure 7.3: Top view of the MP3877B relay, showing a measured length of approximately 78.9mm.
8. Warranty and Support
For detailed warranty information, technical assistance, or to inquire about spare parts for your Maypole Smart Logic MP3877B 7-Way Bypass Relay, please refer to the official Maypole website or contact their customer service department directly. Warranty terms and conditions may vary based on your region and the retailer from whom the product was purchased.
Manufacturer: Maypole UK Ltd
Official Website: www.maypole.ltd.uk
Please retain your proof of purchase for any warranty claims.
