Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your SEAFLO 12V Electric Marine Toilet. Please read these instructions thoroughly before installation and use to ensure safe and efficient performance. Retain this manual for future reference.
Figure 1: SEAFLO 12V Electric Marine Toilet (Lid Closed)
This image shows the SEAFLO 12V Electric Marine Toilet from a front-side angle with the lid closed, highlighting its compact and clean design suitable for marine environments.
Safety Information
Always observe the following safety precautions:
- Ensure the power supply is disconnected before performing any installation or maintenance.
- Verify that the voltage of the power supply matches the toilet's requirements (12V DC).
- Do not dispose of foreign objects (e.g., paper towels, sanitary products, chemicals) into the toilet as this can cause blockages or damage.
- Ensure proper ventilation in the installation area.
- All electrical connections must be waterproof and comply with marine electrical standards.
Setup and Installation
Follow these steps for proper installation:
- Mounting Location: Choose a stable, level surface for mounting. Ensure adequate space for maintenance and plumbing connections. The toilet supports both left and right-handed installations.
- Water Inlet Connection: Connect a 3/4" water supply hose to the inlet port. The self-priming pump can use raw or fresh water.
- Discharge Connection: Connect a 1" discharge hose to the outlet port. Ensure the discharge hose has a continuous downward slope to prevent standing water. The built-in backflow preventer helps maintain hygiene.
- Electrical Wiring: Connect the toilet to a 12V DC power source. The maximum current draw is 20A at 12V. Ensure connections are secure and protected from moisture.
- Testing: After installation, perform a test flush with clean water to check for leaks and proper operation of the flush mechanism.
Figure 2: Product Dimensions
This diagram illustrates the key dimensions of the SEAFLO 12V Electric Marine Toilet, including height (350.5mm / 13.8"), width (330.2mm / 13.0"), and depth (467.4mm / 18.4"), crucial for planning installation space.

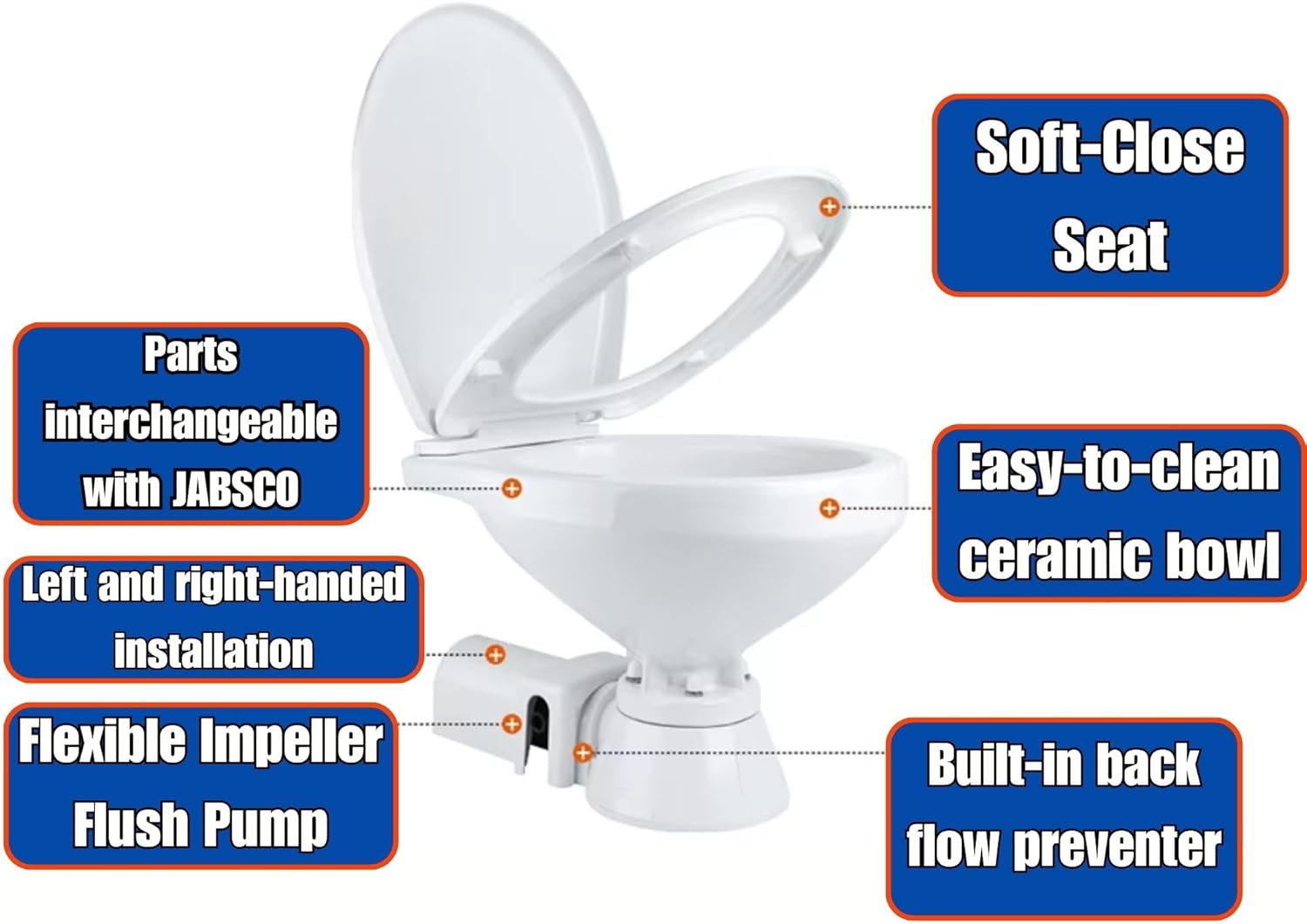

Figure 3: Key Features for Installation and Use
This image highlights several features of the toilet, including the soft-close seat, easy-to-clean ceramic bowl, built-in backflow preventer, flexible impeller flush pump, and the capability for left and right-handed installation, along with parts interchangeable with JABSCO.
Operating Instructions
The SEAFLO Electric Marine Toilet is operated via a push-button activated control panel.
- Flushing: Press and hold the flush button. The flexible impeller flush pump will activate, drawing water into the bowl and macerating waste for discharge. Release the button when flushing is complete.
- Water Conservation: For liquid waste, a shorter press of the button is sufficient. For solid waste, a longer press ensures thorough maceration and discharge.
- Winterization: Before winter storage, ensure all water is drained from the system to prevent freezing damage. Flush with non-toxic antifreeze solution.
Figure 4: Flushing Mechanism Overview
This image illustrates the high-flow flush capability and the self-priming macerator system of the toilet, emphasizing its efficient waste processing. It also shows the ceramic bowl with enamel finish and highlights the ease of installation.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your marine toilet.
- Cleaning: Use mild, non-abrasive cleaners for the ceramic bowl and exterior surfaces. Avoid harsh chemicals that can damage seals or internal components. The ceramic bowl with enamel finish is designed for easy cleaning.
- Impeller Inspection: Periodically inspect the flexible impeller flush pump for wear. Replace if signs of damage or reduced performance are observed.
- Hose Connections: Check all hose clamps and connections regularly for tightness and signs of leaks.
- Electrical Connections: Ensure electrical connections remain clean, dry, and free of corrosion.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Toilet not flushing or weak flush | Low voltage; Clogged inlet/outlet; Worn impeller; Electrical issue. | Check battery voltage; Clear blockages; Inspect and replace impeller; Check wiring and fuse. |
| Leaks | Loose hose clamps; Damaged seals; Cracked bowl. | Tighten clamps; Replace seals; Inspect bowl for damage. |
| Unusual noise during operation | Foreign object in macerator; Worn motor bearings. | Disconnect power and inspect macerator for obstructions; Contact qualified technician if motor issue persists. |
Specifications
| Attribute | Value |
|---|---|
| Model Number | SFMTE1-01 |
| Brand | SEAFLO |
| Voltage | 12 Volts (DC) |
| Max Current Draw | 20A @ 12V |
| Material | Stainless Steel, Ceramic bowl with baked enamel finish |
| Color | White |
| Item Weight | 30.5 Pounds (approx. 13.83 kg) |
| Maximum Lifting Height | 3.28 Feet (approx. 1 meter) |
| Inlet Hose Size | 3/4" |
| Discharge Hose Size | 1" |
| Product Dimensions (L x W x H) | 19.29" x 17.52" x 16.93" (approx. 49cm x 44.5cm x 43cm) |
| UPC | 793945656561 |

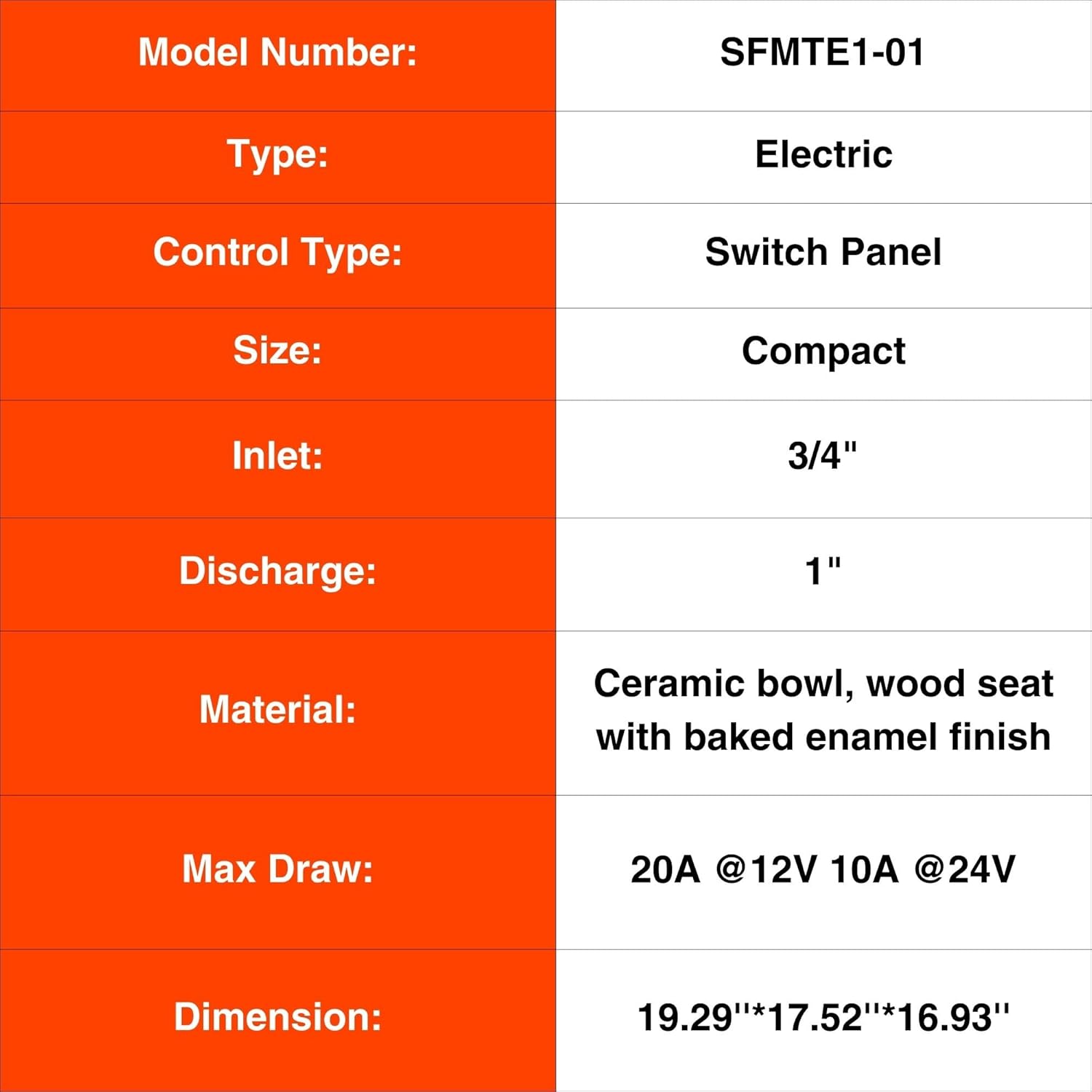

Figure 5: Detailed Product Specifications
This image presents a table summarizing the key specifications of the SEAFLO Electric Marine Toilet, including model number, type, control type, size, inlet/discharge sizes, material, max draw, and overall dimensions.
Warranty and Support
For information regarding product warranty, technical support, or replacement parts, please refer to the documentation included with your product packaging or visit the official SEAFLO website. Contact details for customer service are typically provided there.
