SHARDOR Drip Coffee Maker US-CM515B Instruction Manual

Introduction

Thank you for purchasing the SHARDOR Drip Coffee Maker. This manual provides important information for the safe and efficient operation of your new coffee machine. Please read these instructions thoroughly before first use and retain them for future reference.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The carafe is designed for use with this appliance. It must never be used on a range top.
• Do not place a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.

Product Overview

Familiarize yourself with the components of your SHARDOR Drip Coffee Maker.

Image: The SHARDOR Drip Coffee Maker in black, showing its main body, glass carafe, and a hand pouring coffee into a white cup. This image illustrates the product's capacity to brew 12-15 cups.

Components:

• Water Reservoir: For filling with water.
• Control Panel: Features digital display, PROG, STRONG, ON/OFF AUTO, HOUR, and MIN buttons.
• Brew Basket: Holds the filter and ground coffee.
• Reusable Mesh Filter: Eliminates the need for paper filters.
• Glass Carafe: 60oz capacity for 12-15 cups of coffee.
• Warming Plate: Keeps coffee hot after brewing.
• Drip Stop Mechanism: Allows for pouring coffee mid-brew.

Image: An exploded view of the coffee maker showing its removable parts: the reusable mesh filter, smart drip tank, programmable panel, and coffee pot (carafe). This illustrates the ease of cleaning.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials and inspect the coffee maker for any damage.
2. Initial Cleaning: Before first use, clean all removable parts (carafe, brew basket, reusable filter) in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the coffee maker with a damp cloth.
3. First Brew Cycle (Cleaning):
   • Fill the water reservoir with clean water up to the 12-cup mark.
   • Place the empty reusable filter or a paper filter (if preferred) into the brew basket, then insert the brew basket into its position.
   • Place the empty carafe on the warming plate.
   • Plug the coffee maker into a standard electrical outlet.
   • Press the "ON/OFF AUTO" button to start a brew cycle without coffee grounds.
   • Allow the cycle to complete. Discard the water from the carafe. This process cleans the internal components and removes any manufacturing residues.

Operating Instructions

1. Setting the Clock

Image: A close-up of the coffee maker's control panel, featuring a digital display showing "AM 12:00" and buttons for PROG, STRONG, ON/OFF AUTO, HOUR, and MIN. This highlights the programmable and strong brew features.

1. Plug in the coffee maker. The display will flash "12:00".
2. Press the "HOUR" button to set the hour. Pay attention to the AM/PM indicator.
3. Press the "MIN" button to set the minutes.
4. The clock will set automatically after a few seconds of inactivity.

2. Brewing Coffee

1. Fill Water Reservoir: Open the lid and fill the water reservoir with fresh, cold water to the desired level, indicated by the cup markings. Do not exceed the "MAX" fill line.
2. Add Coffee Grounds: Place the reusable filter into the brew basket. Add the desired amount of ground coffee. A general guideline is one tablespoon of ground coffee per cup. Adjust to your taste.
3. Position Carafe: Ensure the glass carafe is placed correctly on the warming plate.
4. Select Brew Strength (Optional): Press the "STRONG" button once for a bolder coffee flavor. The "STRONG" indicator light will illuminate. Press again to deactivate.
5. Start Brewing: Press the "ON/OFF AUTO" button. The indicator light will illuminate, and brewing will begin.
6. Keep Warm Function: After brewing is complete, the warming plate will keep the coffee hot for approximately 2 hours before automatically shutting off.

Image: A close-up of the coffee maker's warming plate, glowing orange, indicating it is active and keeping coffee warm. This feature maintains coffee temperature for up to 2 hours.

3. Programmable Brewing (Auto Brew)

You can set the coffee maker to start brewing automatically at a preset time.

1. Prepare the coffee maker as described in "Brewing Coffee" (fill water, add grounds, place carafe).
2. Press the "PROG" button. The display will flash "12:00".
3. Use the "HOUR" and "MIN" buttons to set your desired auto-brew time.
4. Press the "PROG" button again to confirm the setting. The "AUTO" indicator light will illuminate.
5. At the set time, the coffee maker will automatically begin brewing.

4. Pause and Serve Feature

The drip stop mechanism allows you to pour a cup of coffee before the entire brewing cycle is complete.

Image: A diagram illustrating the internal mechanism of the coffee maker that automatically pauses the brewing cycle when the carafe is removed, preventing drips. This highlights the anti-drip valve system.

• During brewing, you can temporarily remove the carafe to pour a cup. The coffee flow will automatically stop.
• Return the carafe to the warming plate within 20 seconds to prevent overflow from the brew basket.
• Brewing will resume once the carafe is back in place.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your coffee maker.

Daily Cleaning:

1. Always unplug the coffee maker before cleaning.
2. Wash the carafe, brew basket, and reusable filter in warm, soapy water. Rinse thoroughly and dry. These parts are top-rack dishwasher safe.
3. Wipe the exterior of the coffee maker and the warming plate with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
4. Do not immerse the coffee maker's main body, cord, or plug in water or any other liquid.

Descaling (Mineral Deposit Removal):

Mineral deposits (calcium) can build up in your coffee maker over time, affecting performance. Descale every 2-3 months, or more frequently if you have hard water.

1. Fill the water reservoir with a mixture of white vinegar and water (1 part vinegar to 2 parts water). For example, 2 cups vinegar and 4 cups water.
2. Place the empty reusable filter or a paper filter into the brew basket.
3. Place the empty carafe on the warming plate.
4. Press the "ON/OFF AUTO" button to start a brew cycle. Allow half of the mixture to brew through.
5. Turn off the coffee maker and let it stand for at least 15 minutes to allow the vinegar solution to clean the internal components.
6. Turn the coffee maker back on and allow the remaining mixture to brew through.
7. Discard the vinegar solution from the carafe.
8. Run 2-3 full cycles with fresh, clean water to rinse out any remaining vinegar taste or odor.

Troubleshooting

Specifications

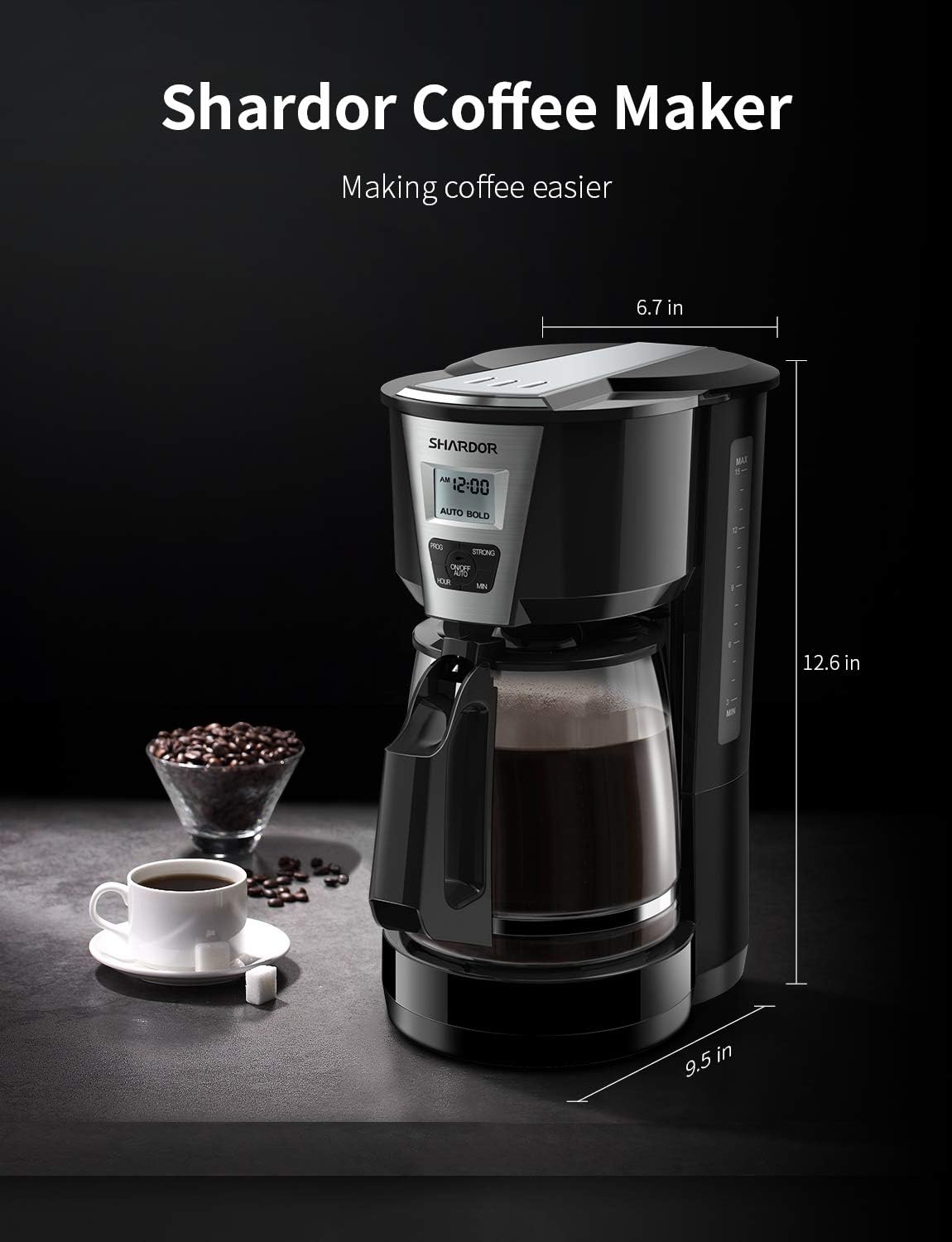

Image: The SHARDOR Drip Coffee Maker shown with its key dimensions: 12.6 inches height, 9.5 inches width, and 6.7 inches depth. This provides a visual reference for product size.

Warranty and Support

For warranty information or product support, please refer to the warranty card included with your purchase or contact SHARDOR customer service. Contact details can typically be found on the manufacturer's official website or on the product packaging.
