BuTure BR200 Jump Starter User Manual

Introduction

The BuTure BR200 is a versatile 6-in-1 device designed for automotive emergencies and portable power needs. It functions as a powerful car jump starter, a portable power bank, a car battery charger, an LED emergency light, and includes a safety hammer and compass. This manual provides essential instructions for safe and effective use of your BR200 device.

Product Overview and Package Contents

Before using your BuTure BR200, please ensure all components listed below are present in the package.

1 x BuTure BR200 Jump Starter Power Bank
1 x Smart Jumper Cable with Clamps
1 x AC Power Adapter (for charging the jump starter)
1 x Car Cigarette Lighter Charging Cable (for charging the jump starter or car battery)
1 x DC Output Cable with Cigarette Lighter Adapter (for powering 12V devices)
1 x USB Charging Cable
1 x User Manual
1 x Storage Box

BuTure BR200 Jump Starter and accessories in a storage case — Image: All components of the BuTure BR200 Jump Starter kit, neatly arranged in its protective storage case.

Specifications

The following are the technical specifications for the BuTure BR200 Jump Starter:

Peak Current: 2000 A
Starting Current: 1000 A
Battery Capacity: 22000 mAh
Applicable Vehicle: 12 V vehicles with up to 8.0 L gasoline or 8.0 L diesel engines
USB Output 1/2: 5V/1A, 5V/2.1A
DC Output: 12 V / 16 V / 19 V at 10 A
Charging Time: Approximately 4-5 hours
Operating Temperature: -20 ℃ to +60 ℃ (-4 ℉ to +140 ℉)
Storage Temperature: -10 ℃ to +80 ℃ (14 ℉ to +176 ℉)
Protection Features: Short-circuit protection, reverse polarity protection, over-temperature protection, over-voltage protection, overload protection, deep discharge protection, over-current protection.

BuTure BR200 Jump Starter with specifications for 8.0L gasoline and diesel engines — Image: The BuTure BR200 Jump Starter highlighting its 2000A power, capable of starting 8.0L gasoline and 8.0L diesel engines, and suitable for various vehicles including cars, trucks, yachts, and motorcycles.

Setup

Before first use, fully charge the BuTure BR200 Jump Starter. Connect the AC power adapter to the jump starter's input port and plug it into a wall outlet. The display will indicate the charging status. A full charge typically takes 4-5 hours.

Ensure the jump starter is adequately charged (preferably above 50%) before attempting to jump start a vehicle.

Operating Instructions

1. Using as a Car Jump Starter

Follow these steps to safely jump start a vehicle with a dead battery:

Ensure the jump starter is sufficiently charged.
Fully insert the Smart Battery Clamp plug into the jump starter's dedicated port.
Connect the red clamp to the positive terminal (+) of the car battery.
Connect the black clamp to the negative terminal (-) of the car battery.
Once the smart clamp indicator shows a solid green light (indicating a safe connection), start the car's engine.
After the car starts, immediately remove the clamps from the car battery within 30 seconds, then disconnect the smart clamp from the jump starter.

BuTure BR200 Jump Starter connected to a car battery with red and black clamps — Image: The BuTure BR200 Jump Starter with its smart clamps, ready for connection to a vehicle battery. The display shows battery percentage.

2. Using as a Portable Power Bank

The BR200 can charge various electronic devices and power 12V accessories.

Charging USB Devices: Connect your smartphone, tablet, camera, or other USB-powered devices to the USB output ports (5V/1A or 5V/2.1A) using a compatible USB cable. The BR200 can charge two devices simultaneously.
Powering DC Devices: Use the DC output port (12V/16V/19V) with the included DC output cable and cigarette lighter adapter to power car accessories such as car air pumps, portable refrigerators, or car vacuum cleaners. It can also power compatible laptops.

BuTure BR200 Jump Starter charging a smartphone and tablet — Image: The BuTure BR200 Jump Starter functioning as a 22000mAh power bank, simultaneously charging a smartphone and a tablet via its USB output ports.

BuTure BR200 Jump Starter powering various car accessories — Image: The BuTure BR200 Jump Starter demonstrating its capability to power a laptop, car air pump, car vacuum cleaner, and car refrigerator using its DC output and included adapters.

3. Charging Car Battery via Cigarette Lighter

In situations where you cannot access the car battery terminals, the BR200 can charge your car battery through the cigarette lighter socket.

Connect the included car cigarette lighter charging cable to the BR200's input port.
Insert the other end of the cable into your car's cigarette lighter socket.
Allow approximately 15 minutes for the car battery to receive sufficient charge to attempt starting the vehicle. This method is a convenient alternative to direct battery connection.

BuTure BR200 Jump Starter charging a car battery through the cigarette lighter socket — Image: The BuTure BR200 Jump Starter connected to a car's cigarette lighter socket, illustrating how to charge the car battery without opening the hood.

4. LED Light Modes, Safety Hammer, and Compass

The BR200 includes integrated emergency tools:

LED Light: The built-in LED flashlight offers four modes: normal illumination, SOS signal, strobe light, and red warning lights. Press the light button to cycle through modes.
Safety Hammer: A safety hammer is integrated for emergency window breaking.
Compass: A small compass is included for navigation during outdoor activities.

BuTure BR200 Jump Starter demonstrating its four LED light modes — Image: The BuTure BR200 Jump Starter showcasing its four emergency LED light modes: normal illumination, SOS, strobe, and red warning lights.

Safety Features and Protections

The BuTure BR200 is equipped with an intelligent protection system to ensure safe operation for both the device and the user. The smart jumper cable provides multiple layers of protection:

Short-Circuit Protection: Prevents damage from accidental short circuits.
Reverse Polarity Protection: Warns and prevents operation if clamps are connected incorrectly to battery terminals.
Over-Temperature Protection: Shuts down the device if it overheats.
Over-Voltage Protection: Protects against excessive voltage input.
Overload Protection: Prevents damage from drawing too much current.
Deep Discharge Protection: Protects the internal battery from being overly discharged.
Over-Current Protection: Safeguards against excessive current flow.

The smart clamp provides audible beeps and flashing warning signals to indicate connection issues or protection activation, ensuring safe usage.

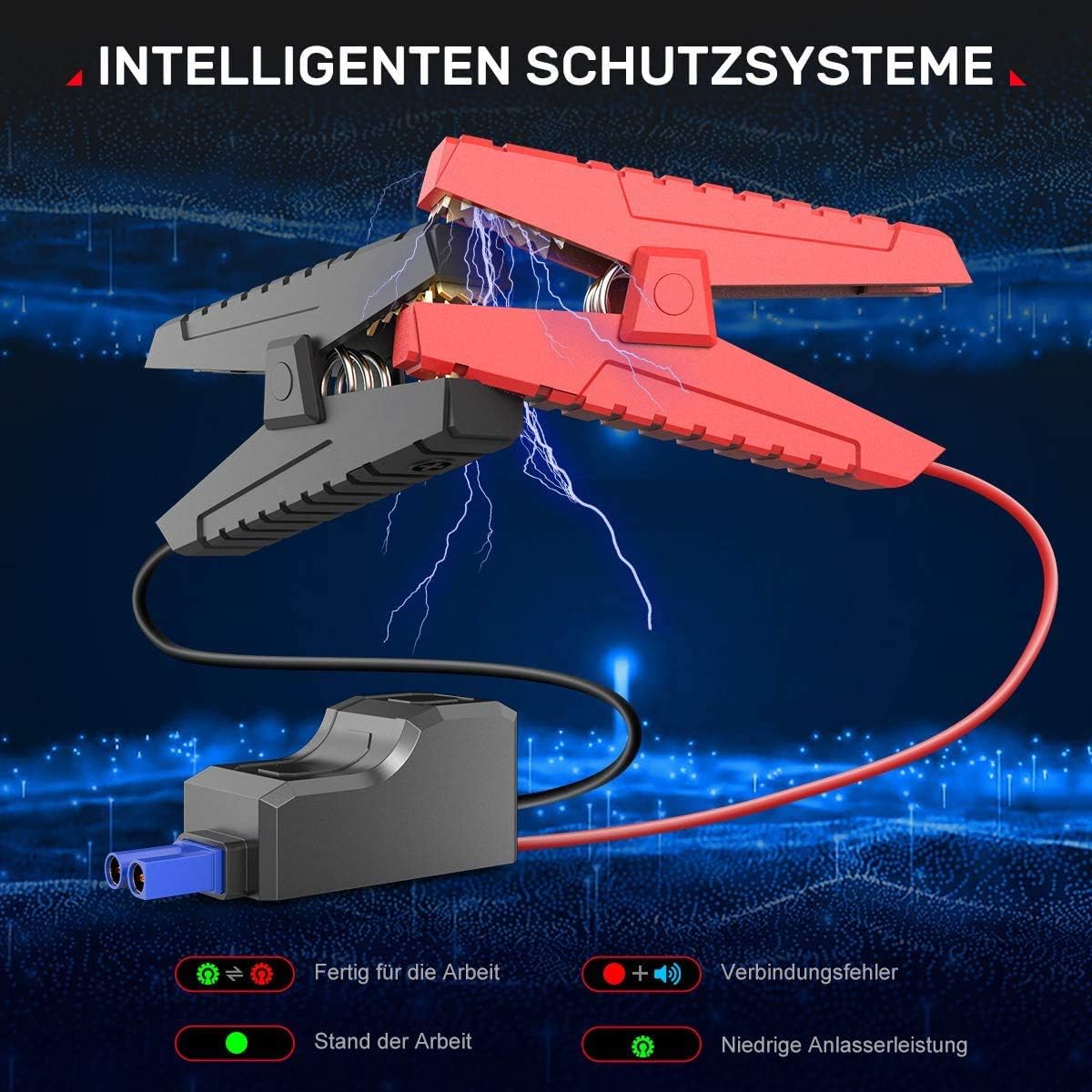

BuTure BR200 Smart Jumper Clamps with indicators for protection systems — Image: The intelligent protection system of the BuTure BR200, showing the smart clamps with indicators for correct connection ('Ready for work') and error conditions like 'Connection error' or 'Low starter power'.

Maintenance

To ensure the longevity and optimal performance of your BuTure BR200 Jump Starter, follow these maintenance guidelines:

Storage: Store the device in its protective case in a cool, dry place, away from direct sunlight and extreme temperatures. The recommended storage temperature is -10 ℃ to +80 ℃.
Charging: Recharge the jump starter every 3-6 months, even if not in use, to maintain battery health.
Cleaning: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
Inspection: Periodically check the cables and clamps for any signs of damage or wear. Replace damaged components immediately.

Troubleshooting

If you encounter issues with your BuTure BR200, consider the following:

Device Not Turning On: Ensure the device is charged. If the battery is completely depleted, it may take a few minutes of charging before the display activates.
Vehicle Not Starting:
- Check the jump starter's charge level. It should be above 50%.
- Verify that the smart clamp is fully inserted into the jump starter.
- Ensure the clamps are correctly connected to the car battery terminals (red to positive, black to negative). The smart clamp should show a solid green light. If it beeps or shows a red light, check connections for reverse polarity or short circuit.
- If the car battery is severely discharged, allow a few minutes for the jump starter to provide some charge before attempting to start.
Device Overheating: The BR200 has over-temperature protection. If it feels excessively hot, disconnect it and allow it to cool down before further use.
Charging Issues: Ensure the charging adapter and cables are securely connected and that the power outlet is functional.

For persistent issues, refer to the warranty section for support contact information.

Warranty and Support

The BuTure BR200 Jump Starter comes with a 24-month warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.

For warranty claims, technical support, or any questions regarding your product, please contact BuTure Pro customer service. Keep your proof of purchase for warranty validation.
