BLANCO DANA 6 Stainless Steel Kitchen Sink User Manual

1. Product Overview

The BLANCO DANA 6 is a high-quality stainless steel kitchen sink designed for top-mount installation. It features a durable, brushed stainless steel surface that is highly resistant to scratches, ensuring longevity and ease of maintenance. The sink offers a generous basin volume, making it practical for various kitchen tasks.

This manual provides essential information for the safe and correct installation, operation, and maintenance of your BLANCO DANA 6 sink.

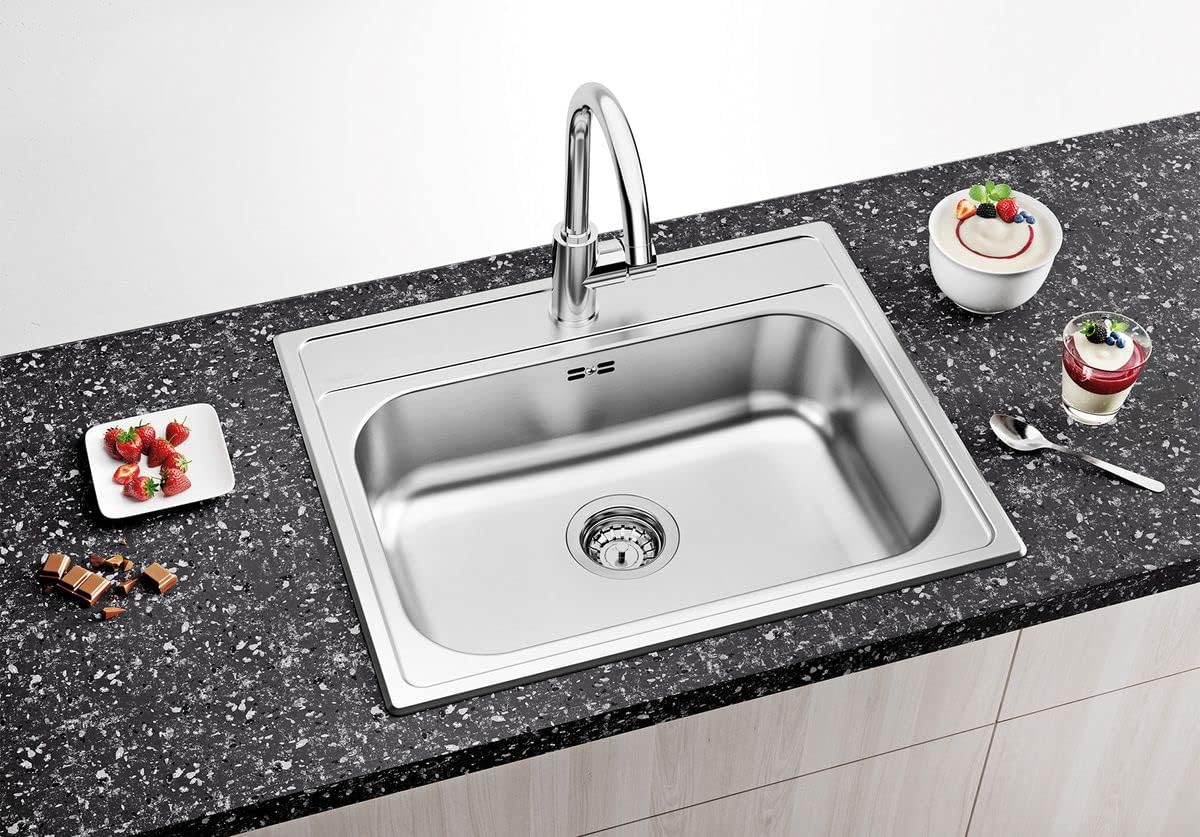

Figure 1.1: The BLANCO DANA 6 stainless steel sink seamlessly integrated into a kitchen countertop, showcasing its practical design and ample space for kitchen activities.

Figure 1.2: A clear top-down view of the BLANCO DANA 6 sink, highlighting its brushed stainless steel finish and single basin design.

2. Safety Information

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage or injury.

• Professional Installation: It is highly recommended that installation be performed by a qualified plumber or professional installer to ensure proper function and prevent leaks.
• Water Supply: Always turn off the main water supply before beginning any installation or maintenance work on the sink or plumbing.
• Heavy Object: The sink is a heavy item. Exercise caution and use appropriate lifting techniques or assistance during handling and installation to prevent injury.
• Sharp Edges: Be aware of potential sharp edges during unpacking and installation. Wear protective gloves.
• Chemicals: Avoid using harsh chemicals or abrasive cleaners on the sink surface, as this can damage the stainless steel finish. Refer to the Maintenance section for cleaning guidelines.

3. Setup and Installation

The BLANCO DANA 6 sink is designed for top-mount (drop-in) installation into a countertop. It requires a base cabinet of at least 60 cm width. Ensure you have all necessary tools and components before starting.

3.1 Included Components:

• BLANCO DANA 6 Kitchen Sink
• Waste kit with space-saving pipe
• 3 ½" basket strainer waste

3.2 Pre-Installation Steps:

1. Unpack the sink and inspect it for any damage.
2. Ensure the countertop opening is correctly sized according to the provided template (if included) or the dimensions below.
3. Turn off the main water supply to the kitchen area.

3.3 Dimensions and Cut-out:

Refer to the diagrams below for precise dimensions and recommended cut-out sizes for your countertop and plumbing connections.

Figure 3.1: Top view diagram showing the overall dimensions of the BLANCO DANA 6 sink (e.g., 605mm width, 500mm depth).

Figure 3.2: Cut-out diagram indicating the required opening in the countertop for the BLANCO DANA 6 sink (e.g., 587mm x 482mm with R15 corner radius).

Figure 3.3: Side view diagram illustrating the plumbing connections and required space beneath the sink (e.g., 283mm height from sink base to pipe outlet).

Figure 3.4: Side view diagram showing the sink's placement relative to a dishwasher, indicating necessary clearance (e.g., 158mm from countertop to sink base).

3.4 Installation Procedure (General Steps):

1. Apply a bead of silicone sealant around the edge of the countertop cut-out to create a watertight seal.
2. Carefully lower the sink into the opening, ensuring it is properly aligned.
3. Secure the sink to the countertop using the provided mounting clips (if applicable, typically included with top-mount sinks).
4. Install the basket strainer waste and connect the waste kit with the space-saving pipe to your household drainage system. Ensure all connections are tight to prevent leaks.
5. Connect the faucet (not included) according to its own installation instructions.
6. Once all connections are secure, slowly turn on the main water supply and check for any leaks.

4. Operating Instructions

The BLANCO DANA 6 sink is designed for straightforward use in your kitchen. Its large basin volume accommodates various washing and food preparation needs.

• Water Flow: Use your kitchen faucet to control water flow and temperature.
• Drainage: The sink is equipped with a 3 ½" basket strainer waste. To retain water in the basin, insert the basket strainer plug. To drain, remove the plug. This model does not feature an integrated drain control mechanism.
• Food Preparation: The spacious basin is suitable for washing fruits, vegetables, and dishes.

Figure 4.1: The BLANCO DANA 6 sink in a functional kitchen setting, demonstrating its utility with a cutting board and fresh produce.

5. Care and Maintenance

Proper care will help maintain the appearance and longevity of your BLANCO DANA 6 stainless steel sink. The brushed stainless steel surface is highly resistant to scratches, but regular cleaning is recommended.

5.1 Daily Cleaning:

• After each use, rinse the sink thoroughly with clean water to remove food particles and soap residue.
• Wipe the sink dry with a soft cloth to prevent water spots and mineral buildup, especially in hard water areas.

5.2 Deep Cleaning (Weekly/Bi-weekly):

• Use a mild dish soap or a specialized stainless steel cleaner with a soft sponge or cloth.
• Always rub in the direction of the grain of the stainless steel to avoid scratching.
• Rinse thoroughly and dry completely.

5.3 What to Avoid:

• Abrasive Cleaners: Do not use steel wool, abrasive pads, or harsh scouring powders, as these can scratch the surface.
• Chlorine Bleach: Avoid cleaners containing chlorine bleach, as it can cause pitting and corrosion on stainless steel.
• Acidic Foods/Liquids: Prolonged contact with highly acidic foods (e.g., citrus juices, vinegar) or liquids can stain the surface. Rinse immediately if contact occurs.
• Rubber Mats: Do not leave rubber mats or wet sponges in the sink for extended periods, as they can trap moisture and lead to discoloration.

6. Troubleshooting

This section addresses common issues you might encounter with your BLANCO DANA 6 sink.

• Slow Drainage:
  • Check the basket strainer for food debris or blockages.
  • Inspect the P-trap and drain pipes for clogs. You may need to clear them.
• Leaks Around Drain or Faucet:
  • Ensure all plumbing connections are tight. Do not overtighten.
  • Check the sealant around the drain assembly. Reapply if necessary.
  • If the leak is from the faucet, refer to the faucet's instruction manual.
• Water Spots/Stains:
  • These are often caused by mineral deposits from hard water. Use a stainless steel cleaner or a solution of vinegar and water, then rinse and dry thoroughly.
  • Always wipe the sink dry after use to prevent water spots.
• Scratches:
  • While the sink is scratch-resistant, deep scratches can occur from sharp objects. Minor scratches can sometimes be blended with a fine abrasive pad (e.g., Scotch-Brite) rubbed in the direction of the grain, but proceed with caution and test in an inconspicuous area first.

If you are unable to resolve an issue, contact a qualified plumber or BLANCO customer support.

7. Product Specifications

8. Warranty and Support

BLANCO provides a commitment to quality for its products.

• Spare Parts Availability: Spare parts for this product are available for a period of 2 years from the date of purchase.
• Customer Support: For further assistance, technical support, or warranty claims, please contact BLANCO customer service. Refer to the official BLANCO website for contact information in your region.

Please retain your proof of purchase for any warranty-related inquiries.
