1. Introduction
Thank you for choosing the Brightech Sky Dome Plus LED Floor Lamp. This versatile lighting solution provides both ambient room illumination and adjustable task lighting, making it ideal for living rooms, bedrooms, and offices. Featuring energy-efficient LED technology and a stable design, this lamp is built for long-lasting performance and safety.

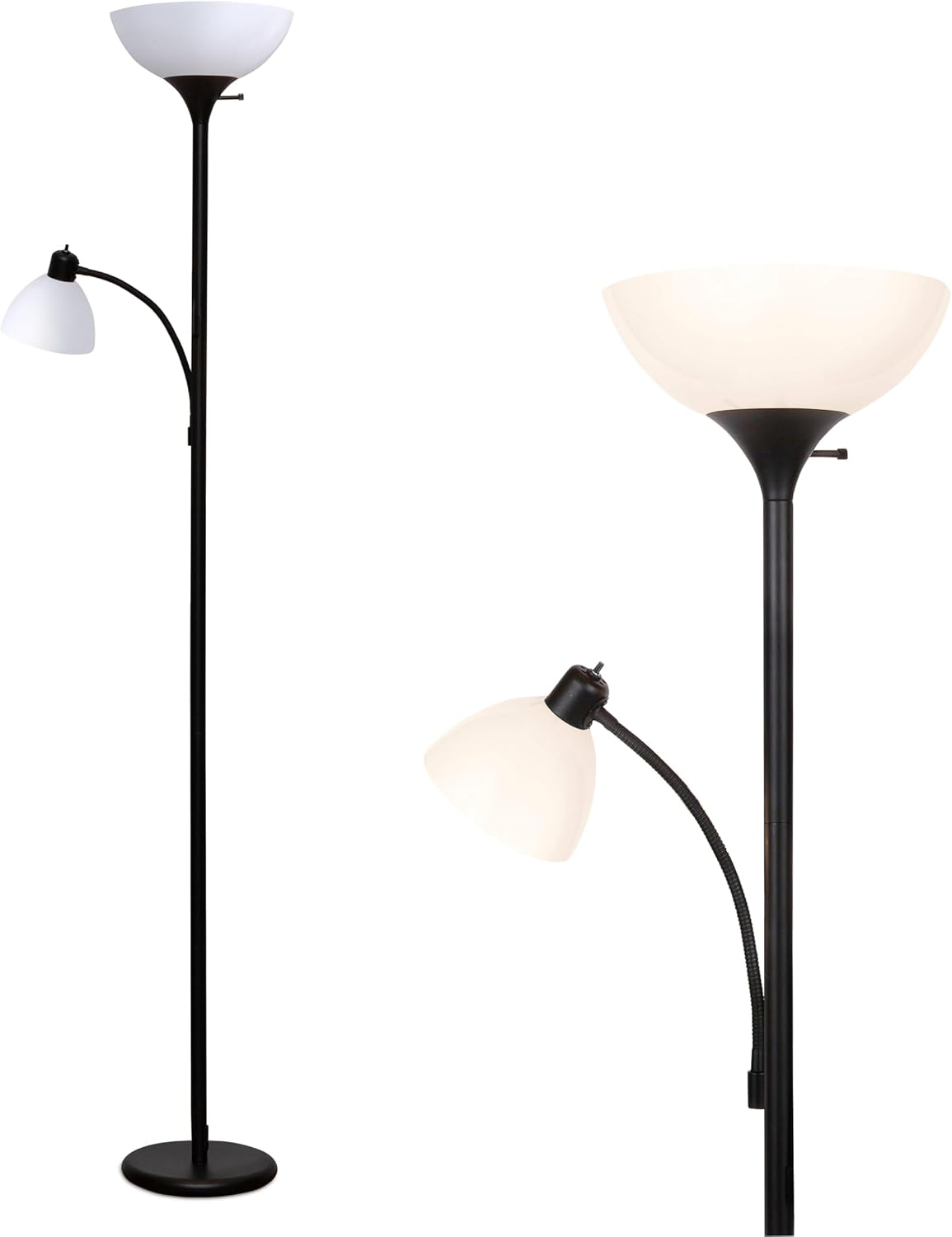

Image 1: The Brightech Sky Dome Plus LED Floor Lamp in Jet Black.
2. Safety Instructions
- Ensure the lamp is unplugged before assembly, cleaning, or changing bulbs.
- Do not operate the lamp with a damaged cord or plug.
- Place the lamp on a stable, level surface to prevent tipping. The weighted base enhances stability.
- Keep the lamp away from water or other liquids.
- Use only the specified bulb type and wattage to avoid overheating. This lamp uses standard E26 base LED bulbs.
- LED bulbs remain cool to the touch during operation, reducing burn risk.
- This product is intended for indoor use only.
3. Package Contents
Verify that all components are present before beginning assembly:
- Lamp Base
- Multiple Pole Sections (for main lamp body)
- Main Uplight Shade
- Adjustable Reading Lamp Arm with Shade
- 2 x Standard A19 LED Bulbs (16W for uplight, 9.5W for reading light)
- Power Cord with Dimmer Switch
Image 2: Diagram illustrating lamp dimensions and features.
4. Setup and Assembly
Assembly of the Brightech Sky Dome Plus LED Floor Lamp is straightforward and typically takes only a few minutes. No special tools are required.
- Carefully unpack all components from the box.
- Screw the pole sections together clockwise, ensuring each section is securely tightened.
- Attach the assembled pole to the lamp base by screwing it clockwise until firm.
- Attach the main uplight shade to the top of the pole.
- Attach the adjustable reading lamp arm to the designated slot on the main pole.
- Insert the appropriate LED bulbs into both the main uplight and the reading lamp sockets.
- Plug the power cord into a standard electrical outlet.
For a visual guide on assembly and features, please refer to the video below:
Video 1: Demonstrates the assembly and features of the Brightech Sky Dome LED Floor Lamp, including its weighted base and adjustable reading light.
5. Operating Instructions
The Brightech Sky Dome Plus LED Floor Lamp offers independent control for its two light sources:
- Main Uplight: The primary light source is controlled by a rotary dimmer switch located on the main pole. Turn the switch clockwise to turn on the light and adjust its brightness. The 3-way dimmer allows for multiple brightness settings.
- Adjustable Reading Lamp: The secondary light source, designed for task lighting, has its own rotary switch on its shade. Turn this switch to activate and control the reading light independently. The flexible gooseneck arm allows you to direct light precisely where needed.
You can operate both lights simultaneously or individually to create your desired ambiance and illumination.
Video 2: Provides a detailed demonstration of operating the Brightech Sky Dome Floor Lamp, including turning on/off both the main and reading lights and adjusting the flexible arm.
6. Maintenance
- Cleaning: Ensure the lamp is unplugged. Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Bulb Replacement: Always unplug the lamp before replacing bulbs. Allow bulbs to cool completely before handling. This lamp uses standard E26 base LED bulbs. Refer to the specifications for recommended wattage.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | Power cord not securely plugged in. Bulb is loose or burnt out. Power outlet is not functioning. | Ensure the power cord is fully inserted into the outlet. Tighten or replace the bulb. Test the outlet with another device. |
| Light flickers. | Loose bulb. Incompatible dimmer switch (if using a non-standard bulb). | Tighten the bulb. Ensure you are using dimmable LED bulbs if experiencing flickering with the dimmer function. |
| Reading lamp arm is loose. | Arm not fully secured during assembly. | Gently re-secure the arm into its slot on the main pole. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | FL-DMEPL-BLK |
| Dimensions (D x W x H) | 11"D x 1.97"W x 72"H |
| Item Weight | 10.16 pounds |
| Material | Metal, Plastic |
| Finish Type | Antique |
| Bulb Base | E26 |
| Light Source Type | LED |
| Number of Light Sources | 2 |
| Wattage | 25 watts (total) |
| Brightness | 2400 Lumen (total) |
| Light Color | Warm White (3000K) |
| Control Method | Touch, Dimmer |
| Special Features | 3-Way Dimmable, Energy Efficient |
| Indoor/Outdoor Usage | Indoor |
9. Warranty and Support
Brightech USA offers an industry-leading 3-year warranty covering defects, malfunctions, or sudden failures when purchased directly through Brightech. For support or warranty claims, please contact the USA-based support team.
For additional product information or to explore other Brightech products, visit the Brightech Store on Amazon.
