Introduction
Thank you for purchasing the Brightech Medusa Modern LED Floor Lamp. This manual provides essential information for the safe and efficient use of your new lamp. Please read these instructions carefully before assembly and operation, and retain them for future reference.

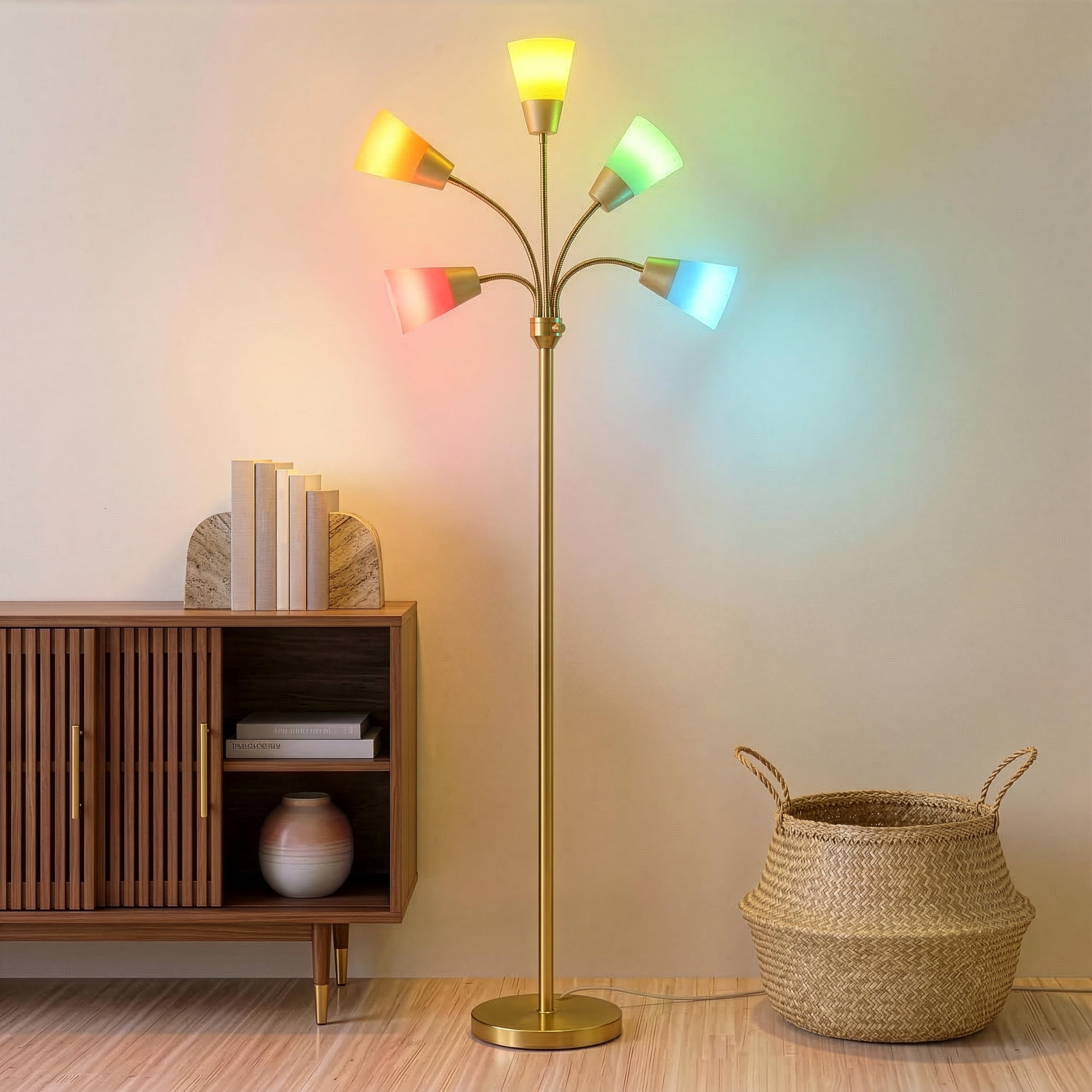

Image: The Brightech Medusa Modern LED Floor Lamp, showcasing its five adjustable heads and brass finish, positioned in a contemporary living space.
Setup and Assembly
Before beginning assembly, ensure all components are present and undamaged. Unpack all parts carefully and place them on a soft, clean surface to prevent scratches.
Package Contents:
- Lamp Base
- Lamp Pole Sections (typically 2-3 sections)
- Lamp Head Assembly with 5 Gooseneck Arms
- 5 LED Bulbs (pre-installed or separate)
- 5 Lamp Shades (white and/or multicolor options)
Assembly Steps:
- Attach Lamp Pole Sections: Carefully screw the lamp pole sections together, ensuring they are securely tightened. Route the power cord through the pole if it is not pre-installed.
- Connect Lamp Head to Pole: Screw the lamp head assembly onto the top pole section. Ensure the connection is firm.
- Attach Lamp Base: Secure the assembled pole and head to the heavy weighted lamp base. Tighten the retaining screw or nut from underneath the base if applicable.
- Install Bulbs (if not pre-installed): Gently screw the provided LED bulbs into each of the five sockets on the lamp head. Do not overtighten.
- Attach Lamp Shades: Place the desired lamp shades onto each bulb fixture. The shades are interchangeable, allowing for customization.
- Position the Lamp: Place the lamp on a flat, stable surface near a power outlet.
Image: A diagram illustrating the key dimensions of the Medusa floor lamp, including its overall height, base diameter, and individual shade measurements, which aids in understanding the components during assembly.
Operating Instructions
Powering On/Off and Dimming:
The Brightech Medusa lamp features a built-in rotary switch located on the lamp pole. This switch controls the power and dimming functions.
- First Turn: Activates two lamp heads.
- Second Turn: Activates three additional lamp heads (total of five).
- Third Turn: Activates all five lamp heads at full brightness.
- Fourth Turn: Turns the lamp off.
To dim the light, rotate the switch to cycle through the brightness levels. The lamp offers multiple brightness settings by activating different combinations of the five LED bulbs.
Image: A detailed view of the rotary switch and the lamp's flexible arms, highlighting the control mechanism for power and brightness adjustments.
Adjusting Lamp Heads:
Each of the five lamp heads is attached to a flexible gooseneck arm. These arms can be individually adjusted to direct light precisely where needed. Gently bend the gooseneck arms to position the light for reading, tasks, or ambient illumination.
Image: A close-up demonstrating the flexibility of the gooseneck arms, allowing users to customize the light direction from each of the five lamp heads.
Interchangeable Shades:
The lamp comes with interchangeable shades. To change a shade, ensure the lamp is unplugged and cool. Carefully remove the existing shade and replace it with your preferred color or style. Ensure the new shade is securely seated.
Maintenance
Cleaning:
- Always unplug the lamp before cleaning.
- Use a soft, dry cloth to wipe down the lamp pole, base, and lamp heads.
- For shades, use a slightly damp cloth if necessary, then dry immediately. Avoid abrasive cleaners or solvents.
Bulb Replacement:
The Brightech Medusa lamp uses long-lasting LED bulbs (3,000K warm white light, E26 base). These bulbs are designed to last for approximately 20,000 hours, making frequent replacement unnecessary. If a bulb does need replacement:
- Ensure the lamp is unplugged and the bulb is cool to the touch.
- Carefully unscrew the old bulb from its socket.
- Screw in a new E26 base LED bulb of appropriate wattage (maximum 8 watts per bulb, 45 watts total for the lamp).
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power, loose bulb, faulty switch. | Check if the lamp is plugged into a working outlet. Ensure bulbs are screwed in tightly. Rotate the switch fully through its cycles. |
| Lights are flickering. | Loose bulb, incompatible bulb, power fluctuation. | Tighten bulbs. Ensure bulbs are LED and compatible with dimming. Try plugging into a different outlet. |
| Lamp is unstable. | Improper assembly, uneven surface. | Ensure all pole sections and the base are securely tightened. Place the lamp on a flat, level surface. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | FL-MDSMDRN-BRS |
| Brand | Brightech |
| Product Dimensions | 1.18"D x 1.97"W x 1.97"H (Note: This appears to be bulb dimensions, overall height is 78") |
| Item Weight | 14.42 Pounds |
| Finish Type | Shiney |
| Base Material | Brass |
| Bulb Base | E26 |
| Light Source Type | LED |
| Number of Light Sources | 5 |
| Wattage | 45 watts (total), 8 watts per bulb |
| Voltage | 110 Volts |
| Switch Type | Rotary |
| Shade Color | Multicolor (interchangeable) |
| Indoor/Outdoor Usage | Indoor |
| UPC | 850012486022 |
Warranty Information
Brightech USA offers an industry-leading 3-year warranty covering defects, malfunctions, or sudden failures to your standing lamp when purchased through authorized channels. This warranty ensures peace of mind regarding the quality and durability of your product.
Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, concerns, or assistance with your Brightech Medusa Modern LED Floor Lamp, please contact Brightech USA customer support. Our friendly USA-based support team is available to help you.
Refer to the product packaging or the official Brightech website for the most current contact information.
