Introduction
The Ansmann Powerline 4 Ultra is a versatile battery charger and capacity tester designed for 1-4 AAA, AA, C, D NiMH batteries, and Li-Ion batteries ranging from size 10340 to 26650. It features four independent charging programs, a USB port for charging external devices, and a clear LCD display for monitoring battery status. This manual provides detailed instructions for safe and efficient use of your device.

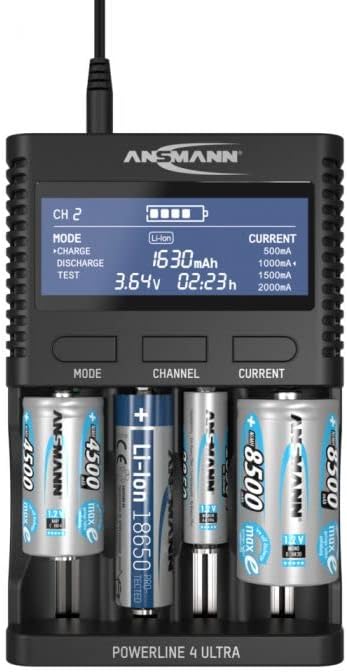

Image: Ansmann Powerline 4 Ultra Battery Charger, showing the display and four battery slots.
Safety Instructions
- Read all instructions before using the charger.
- Do not charge non-rechargeable batteries. This can lead to leakage, rupture, or explosion.
- Use only the provided power adapter.
- Do not expose the charger to rain or moisture.
- Do not disassemble or modify the charger.
- Keep the charger away from children and pets.
- Ensure proper ventilation during charging.
- If the charger is damaged, discontinue use immediately.
Package Contents
- Ansmann Powerline 4 Ultra Battery Charger
- AC Power Adapter
- User Manual (this document)

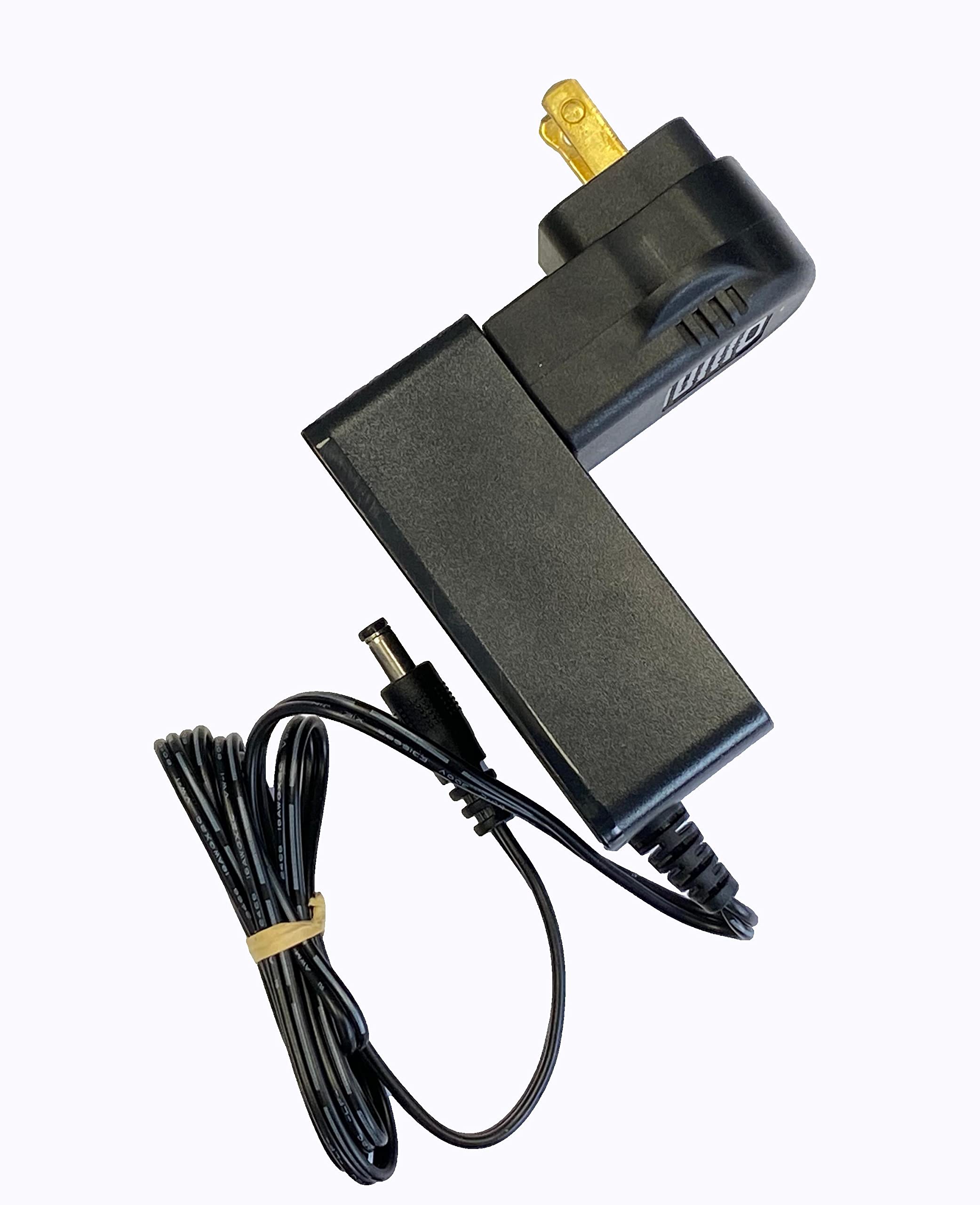

Image: The AC power adapter for the Ansmann Powerline 4 Ultra charger.
Setup
- Unpack the Ansmann Powerline 4 Ultra charger and its accessories.
- Connect the AC power adapter to the charger's power input port.
- Plug the AC power adapter into a standard wall outlet. The charger's LCD display will illuminate, indicating it is ready for use.
Operating Instructions
Inserting Batteries
The charger features four universal charge bays. Insert rechargeable batteries into the bays, ensuring correct polarity (+ and -). The charger can accommodate battery cells with a diameter up to 33mm and a length of 70mm, supporting NiMH batteries from AAA to D sizes, and Li-Ion batteries from 10400 to 32650. Up to four batteries can be charged simultaneously, though the number may be reduced for larger diameter batteries.
Image: Top view of the charger with various battery types inserted into the charging bays.
Charging Function
Upon insertion, the charger automatically initiates the charge mode, charging each battery individually. Batteries of different types, capacities, and charge conditions can be mixed. Once fully charged, the charger transitions to pulse maintenance charging to ensure the battery remains at 100%. Individual battery cells can be removed or inserted without affecting the charging process in other bays.
Adjustable Programming
The device allows for individual adjustment of the charge program and current for each bay. Use the "Mode" button to select the charge mode and the "Current" button to select the charge current. The default charging current is 500mA. For faster charging, three rechargeable batteries can be charged at 1500mA, or two rechargeable batteries at 2000mA.
Capacity Tester
The Powerline 4 Ultra can individually test the capacity of an inserted battery. The digital readout on the LCD display will show the remaining capacity, providing insight into the battery's health and performance.
LCD Display Information
The large LCD display provides clear information for each charge bay, including:
- Rechargeable battery voltage (V)
- Charge/discharge current (mA)
- Capacity (mAh)
- Charge duration (h)
Image: Front view of the charger with batteries, highlighting the detailed information on the LCD display.
USB Connection
The charger includes a USB port (5V/2A) for charging conventional USB devices such as power banks, cameras, smartphones, and tablets. This feature is convenient for travel, reducing the need for multiple chargers.
Maintenance
- Cleaning: Disconnect the charger from the power outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Storage: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
- Battery Contacts: Periodically check the battery contacts for any debris or corrosion. Clean gently with a cotton swab if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger display is off. | No power connection. | Ensure the power adapter is securely connected to the charger and the wall outlet. |
| Battery not charging. | Incorrect battery insertion or non-rechargeable battery. | Check battery polarity. Ensure the battery is rechargeable. Clean battery contacts if necessary. |
| USB device not charging. | USB cable issue or device incompatibility. | Try a different USB cable. Ensure the USB device is compatible with 5V/2A charging. |
| Display shows an error message. | Battery fault or incompatible battery. | Remove and reinsert the battery. If the error persists, the battery may be faulty or not supported. |
Specifications
- Model Number: 1001-0080
- Product Dimensions: 6.69 x 4.31 x 1.48 inches (17.0 x 10.9 x 3.7 cm)
- Item Weight: 1.28 pounds (580 grams)
- Compatible Battery Types: NiMH (AAA, AA, C, D), Li-Ion (10400 to 32650)
- Output Voltage: 3.7 Volts (DC) for Li-Ion (Charging voltage varies by battery type)
- USB Output: 5V/2A
- Manufacturer: Ansmann
Warranty Information
Ansmann products are typically covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Ansmann website for specific warranty terms and conditions applicable to your region. Keep your purchase receipt as proof of purchase for warranty claims.
Support
For further assistance, technical support, or to view other Ansmann products, please visit the official Ansmann store or contact their customer service department.
