kleankin 36" x 24" Triple Door LED Bathroom Mirror Medicine Cabinet Instruction Manual

Introduction

Thank you for choosing the kleankin 36" x 24" Triple Door LED Bathroom Mirror Medicine Cabinet. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new cabinet. Please read these instructions thoroughly before installation and retain them for future reference.

Safety Information

Always ensure the power is disconnected before installation or maintenance.
This product is heavy. Assembly and installation should be performed by two or more adults to prevent injury.
Ensure the mounting surface is structurally sound and capable of supporting the cabinet's weight (45 lbs) plus contents (up to 35 lbs).
Use appropriate wall anchors and screws for your wall type.
Keep all small parts and packaging materials away from children.
Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Product Features

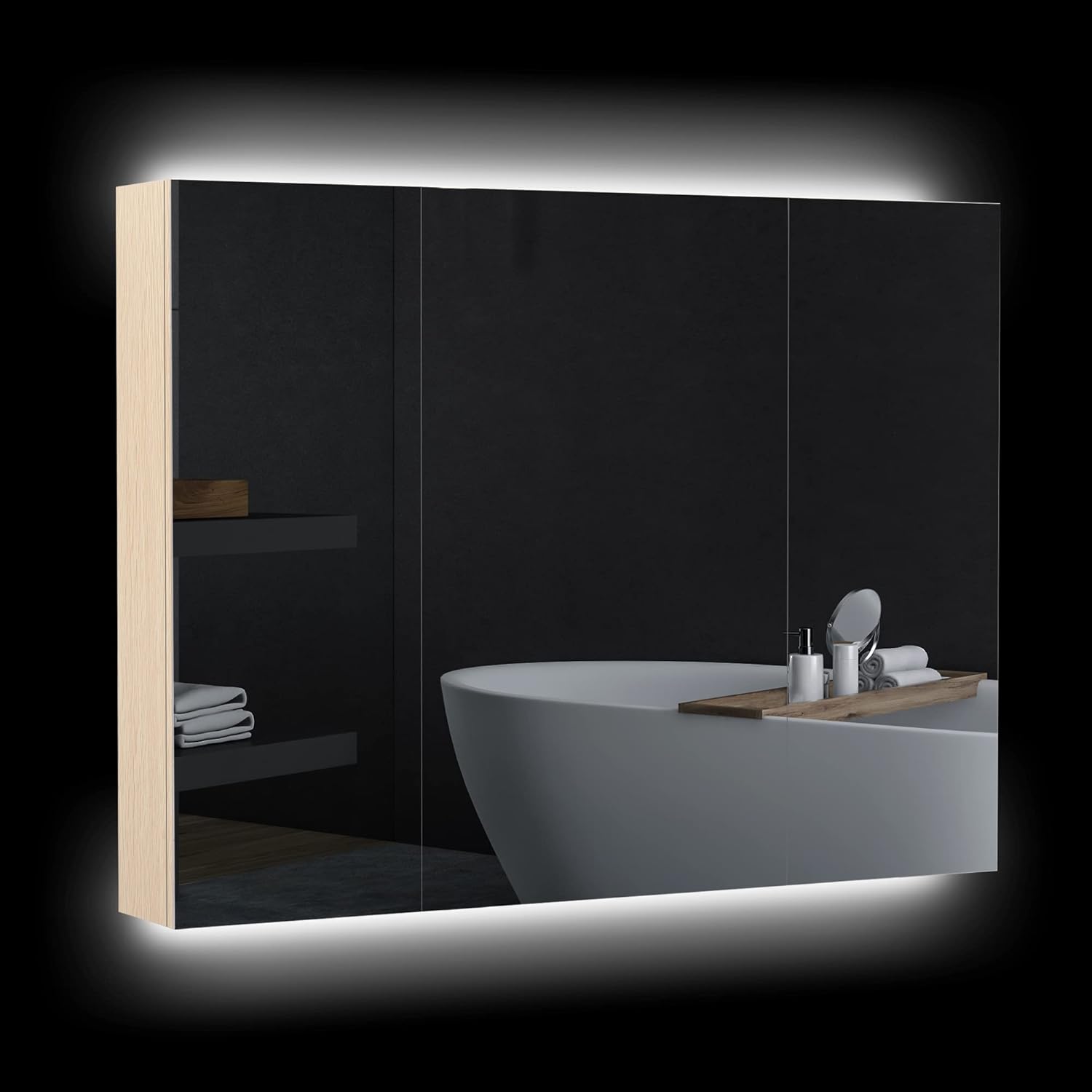

kleankin Triple Door LED Bathroom Mirror Medicine Cabinet with lights on.

This image displays the kleankin Triple Door LED Bathroom Mirror Medicine Cabinet with its integrated LED lights illuminated, showcasing its modern design and reflective surface.

Triple Door Design: Features three mirrored doors for a full-overlay aesthetic and convenient access.
Integrated LED Lighting: Upper and lower LED strips provide soft, clear illumination for enhanced visibility.
Ample Storage: Equipped with multiple interior shelves for organizing toiletries, makeup, and other bathroom essentials.
Adjustable Shelves: Interior shelves can be adjusted to accommodate items of various heights.
Durable Construction: Made from high-grade engineered wood with a glass mirror front for long-lasting use.
Soft-Close Hinges: Designed for gentle and quiet door closure.
USB Power: LED strips are powered via a 47.25-inch USB cable (5V/2A charger not included).

Parts List

Please verify that all components are present before beginning assembly. Refer to the included assembly diagram for specific part identification.

Cabinet Body (Engineered Wood)
Mirrored Doors (x3)
Adjustable Shelves (x5)
Shelf Pins/Supports
Hinges (Soft-Close)
LED Light Strips (Pre-installed)
On/Off Switch (Pre-installed)
USB Power Cable (47.25 inches)
Mounting Hardware (Screws, Wall Anchors)
Assembly Tools (e.g., Allen wrench, screwdriver - typically not included)

Setup and Installation

This cabinet is designed for wall-mounted installation. Due to its weight and size, two people are recommended for safe assembly and mounting.

Prepare the Area: Clear the installation area. Ensure the wall is clean and free of obstructions. Identify wall studs for secure mounting if possible.
Assemble the Cabinet Body: Follow the detailed diagrams provided in your packaging to assemble the main cabinet frame. Ensure all connections are secure.
Install Shelf Pins: Insert the shelf pins into the desired holes within the cabinet interior. The shelves are adjustable, allowing customization of storage space.
This image illustrates the adjustable shelf mechanism, showing how shelf pins are inserted into pre-drilled holes to customize shelf height.
Attach Doors: Secure the mirrored doors to the cabinet body using the provided hinges. Ensure the soft-close mechanism functions correctly. Adjust hinges as needed to align doors properly.
This image provides a close-up view of the cushioned hinge, designed to ensure the cabinet doors close softly and quietly.
Mark Mounting Holes: Hold the assembled cabinet against the wall at the desired height. Use a level to ensure it is straight. Mark the positions for the mounting screws.
Drill Pilot Holes: Drill pilot holes at the marked locations. If not drilling into studs, insert appropriate wall anchors.
Mount the Cabinet: With assistance, lift the cabinet and align the mounting holes with the pilot holes/anchors. Secure the cabinet to the wall using the provided screws. Ensure it is firmly attached and stable.
Connect Power: Plug the USB power cable into the cabinet's LED strip connection point and connect it to a standard 5V/2A USB charger (not included) or a compatible USB power source.

Detail of the LED light strip and power switch on the kleankin medicine cabinet.

This image highlights the integrated LED light strip and the discreet on/off button located on the side of the cabinet for easy control of the lighting.

Operating Instructions

LED Lights: Locate the on/off button on the side of the cabinet. Press the button to turn the LED lights on or off. Ensure the USB power cable is connected to a power source.
Adjusting Shelves: To adjust a shelf, carefully remove all items from it. Lift the shelf slightly and remove the shelf pins. Reinsert the pins into the desired holes at a new height, then place the shelf back onto the pins.
Door Operation: The doors are equipped with soft-close hinges. Gently push the door to close it, and the mechanism will ensure a quiet and smooth closure.

This video demonstrates the key features of the kleankin LED Bathroom Mirror Medicine Cabinet, including the LED lights, interior storage, and soft-close hinges. It shows a user interacting with the cabinet, highlighting its functionality and design.

Maintenance and Care

Cleaning: Use a soft, damp cloth to clean the mirror surfaces and cabinet exterior. Avoid abrasive cleaners or harsh chemicals that could damage the finish or mirror coating.
Dusting: Regularly dust the cabinet with a dry, soft cloth.
Hinge Care: Periodically check hinges for tightness. If doors become misaligned, adjust the hinges as necessary.
Electrical Components: Ensure the USB cable and power connection remain dry. Do not immerse any part of the electrical components in water.

Troubleshooting

Problem	Possible Cause	Solution
LED lights do not turn on.	USB cable not connected. Power source (charger) not working. On/off switch not activated.	Ensure the USB cable is securely plugged into both the cabinet and a 5V/2A USB charger. Test the charger with another device or try a different charger. Press the on/off switch firmly.
Doors are misaligned or do not close smoothly.	Hinges are loose or improperly adjusted. Cabinet not level during installation.	Adjust the screws on the hinges to align the doors. Refer to hinge adjustment guides if needed. Verify the cabinet is level on the wall. Re-level if necessary.
Cabinet feels unstable after mounting.	Mounting screws are not fully tightened. Incorrect wall anchors used or insufficient support.	Ensure all mounting screws are securely tightened. If not mounted into studs, verify that appropriate wall anchors for the wall type were used and installed correctly. Consult a professional if unsure.

Specifications

Dimensions of the kleankin medicine cabinet: 35.4 inches width, 26.8 inches height, 5.3 inches depth.

This image provides a visual representation of the cabinet's dimensions, indicating its width, height, and depth for planning installation space.

Brand: kleankin
Model: B07Y7RRRZV
Color: White Oak
Material: Engineered Wood, Mirror Glass, LED
Overall Dimensions (W x H x D): 35.5" x 26.8" x 5.25"
Left Cabinet Width: 9"
Left Cabinet Shelf Height: 11.75"
Right Cabinet Width: 24.75"
Right Cabinet Shelf Height: 7.5"
Number of Shelves: 5 (adjustable)
LED Power: 20W
Net Weight: 45 lbs.
Weight Capacity: 35 lbs.
Mounting Type: Wall Mount
Power Cable Length: 47.25" (USB, 5V/2A charger not included)

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact kleankin customer service directly. Keep your purchase receipt for warranty claims.

Contact Information: Please visit the official kleankin website or your retailer's support page for the most current contact details.
