1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Tamiya 15307 Mini 4WD Ultra-Dash Motor. Please read these instructions thoroughly before use to ensure optimal performance and safety.
The Tamiya Ultra-Dash Motor is designed as a high-performance upgrade for Mini 4WD vehicles, featuring a durable carbon brush for enhanced longevity and power.
2. Product Overview

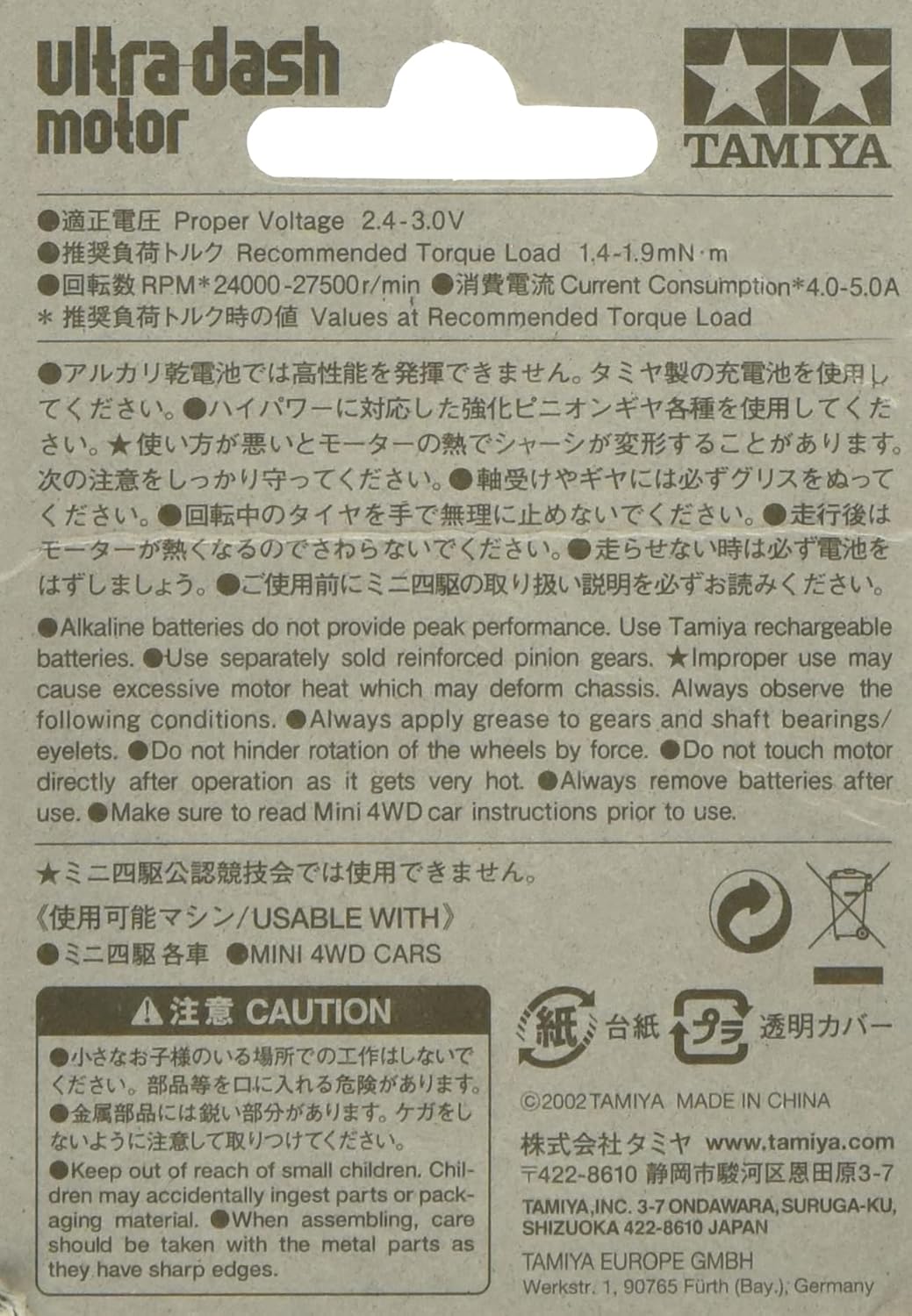

The Tamiya 15307 Ultra-Dash Motor is a specialized component for Mini 4WD models, offering significant performance enhancements. Key features include:
- High-performance motor with a durable carbon brush.
- Designed to provide outstanding top speed and sharp acceleration, even on tracks with continuous corners and steep climbs.
- Enhanced durability due to the carbon brush design.
- Suitable Voltage: 2.4 - 3.0 V.
- Rotations: 24000 - 27500 r/min (at recommended torque load).
- Current Consumption: 4.0 - 5.0 A (at recommended torque load).
Note: This motor cannot be used in official Tamiya licensed races.
3. Setup and Installation
Proper installation is crucial for the motor's performance and longevity. Always refer to your specific Mini 4WD car's instruction manual for detailed assembly steps before installing this motor.
- Preparation: Ensure your Mini 4WD chassis is clean and free of debris.
- Pinion Gear: It is highly recommended to use separately sold reinforced pinion gears with this high-performance motor to prevent damage and ensure efficient power transfer.
- Greasing: Before installation, always apply a suitable amount of grease to the gears and shaft bearings of your Mini 4WD vehicle. This reduces friction and wear.
- Motor Insertion: Carefully insert the Ultra-Dash Motor into the designated motor housing of your Mini 4WD chassis, ensuring it seats correctly and makes proper electrical contact.
- Battery Selection: For optimal performance, use Tamiya rechargeable batteries. Alkaline batteries may not provide peak performance with this motor.
4. Operating Instructions
Follow these guidelines for safe and effective operation of your Mini 4WD with the Ultra-Dash Motor:
- Battery Usage: Always use Tamiya rechargeable batteries for best performance. Ensure batteries are fully charged before operation.
- Avoid Obstruction: Do not hinder the rotation of the wheels by force while the motor is running. This can cause damage to the motor and gears.
- Heat Management: The motor can become very hot during operation. Excessive motor heat can deform the chassis. Do not touch the motor directly after use to avoid burns. Allow it to cool down.
- Battery Removal: Always remove batteries from the Mini 4WD vehicle after use to prevent accidental activation or battery drain.
- Track Compatibility: This motor is not permitted for use in official Tamiya licensed races.
5. Maintenance
Regular maintenance helps prolong the life and performance of your Ultra-Dash Motor and Mini 4WD vehicle:
- Grease Application: Periodically reapply grease to the gears and shaft bearings to ensure smooth operation and minimize wear.
- Cleaning: Keep the motor and surrounding chassis area clean from dust, dirt, and debris. Use a soft brush or compressed air for cleaning.
- Inspection: Regularly inspect the motor and pinion gear for any signs of wear or damage. Replace worn parts as necessary.
6. Safety Precautions
Adhere to the following safety precautions to prevent injury or damage:
- Heat Warning: The motor generates significant heat during operation. Excessive motor heat can deform the chassis. Avoid prolonged continuous use without cooling periods. Do not touch the motor directly after operation.
- Child Safety: Keep all parts, especially small components and packaging materials, out of reach of small children. There is a risk of accidental ingestion.
- Assembly: Exercise caution during assembly, particularly with metal parts, as they may have sharp edges.
- Proper Use: Improper use or installation can lead to motor damage or chassis deformation. Always follow instructions.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | 15307-000 |
| Brand | TAMIYA |
| Proper Voltage | 2.4 - 3.0 V |
| Recommended Torque Load | 1.4 - 1.9 mN·m |
| Rotations (at recommended torque load) | 24000 - 27500 r/min |
| Current Consumption (at recommended torque load) | 4.0 - 5.0 A |
| Material | Plastic |
| Product Dimensions | 1.57 x 1.18 x 1.18 inches (approximate motor size) |
| Item Weight | 0.02 Kilograms (0.704 ounces) |
8. Troubleshooting
If you encounter issues with your Ultra-Dash Motor, consider the following common troubleshooting steps:
- Motor Not Running: Check battery charge and ensure they are correctly inserted. Verify all electrical contacts are clean and secure.
- Reduced Performance: Ensure gears and bearings are properly greased. Check for any obstructions hindering wheel rotation. Verify the motor is securely installed and not loose.
- Excessive Heat: This motor is high-performance and generates heat. If heat is excessive and causing chassis deformation, reduce continuous run time or ensure proper ventilation. Confirm correct pinion gear usage.
- Unusual Noise: Inspect gears for damage or misalignment. Ensure no foreign objects are caught in the drivetrain.
