Orbegozo CR 4000 Mini Ceramic Plug-in Heater User Manual

1. Important Safety Instructions

Please read this manual carefully before using the Orbegozo CR 4000 Mini Ceramic Plug-in Heater. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always plug the heater directly into a wall outlet. Never use with an extension cord or relocatable power tap.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug the heater when not in use.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
• Do not use outdoors.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This heater has an overheating protection feature. If it overheats, it will automatically shut off. Unplug the unit and allow it to cool down before restarting.

2. Product Overview

The Orbegozo CR 4000 is a compact and efficient ceramic plug-in heater designed to provide comfortable warmth in small spaces. It features a powerful 600W heating element, two speed settings, an adjustable thermostat, and a convenient 12-hour programmable timer.

Angled view of the Orbegozo CR 4000 Mini Ceramic Plug-in Heater, showing its compact design and LED display.

Front view of the heater, highlighting the protective grille and the digital display.

Close-up of the control buttons: Minus (-), Plus (+), Speed, and Timer.

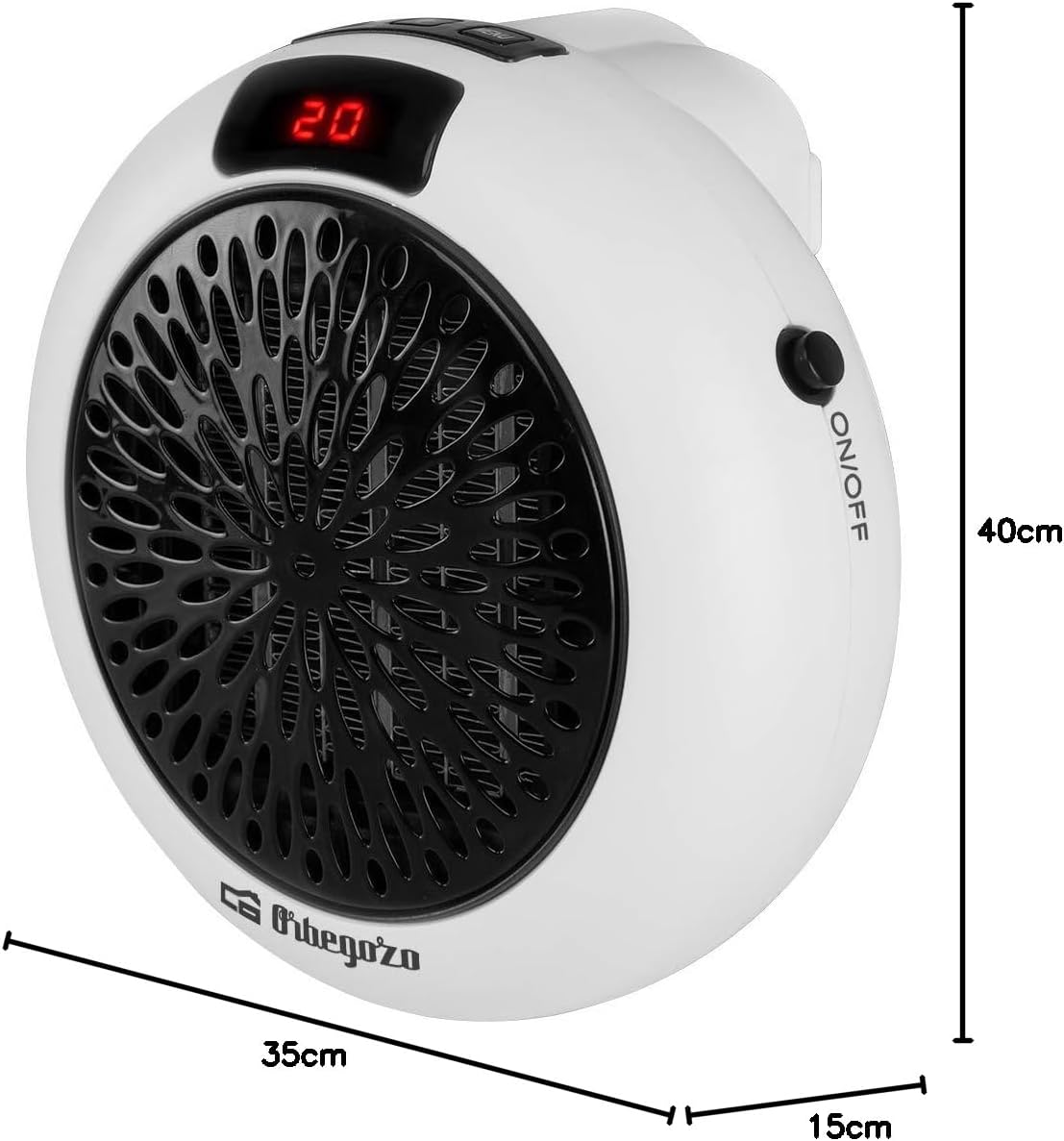

Diagram showing the approximate dimensions of the heater: 35cm width, 40cm height, and 15cm depth.

3. Setup

1. Unpacking: Carefully remove the heater from its packaging. Retain the packaging for future storage or transport.
2. Placement: Choose a suitable wall outlet for the heater. Ensure the area around the heater is clear of any obstructions, furniture, or combustible materials. The recommended area of use is up to 9 m².
3. Plug-in: Directly plug the heater into a standard electrical wall outlet. The heater is designed for cord-free operation.

4. Operating Instructions

The Orbegozo CR 4000 features an intuitive LED display and control buttons for easy operation.

1. Power On/Off: Locate the ON/OFF button on the side of the unit. Press it once to turn the heater on, and press it again to turn it off. The LED display will illuminate when the unit is on.
2. Adjusting Temperature: Use the '+' and '-' buttons to set your desired temperature. The LED display will show the selected temperature. The thermostat will maintain the room temperature at your chosen setting.
3. Changing Speed Settings: Press the 'Speed' button to cycle between the two available speed settings. The display may indicate the current speed or fan intensity.
4. Setting the Timer: Press the 'Timer' button to activate the programmable timer. Each press will increase the timer duration. You can set the timer for up to 12 hours, allowing the heater to automatically shut off after the set period.

5. Maintenance and Cleaning

Regular maintenance ensures optimal performance and longevity of your heater.

• Before Cleaning: Always unplug the heater from the electrical outlet and allow it to cool completely before cleaning.
• Exterior Cleaning: Use a soft, damp cloth to wipe the exterior surfaces of the heater. Do not use abrasive cleaners or solvents, as these may damage the surface.
• Internal Cleaning: Do not attempt to clean the interior of the heater.
• Storage: If storing the heater for an extended period, clean it thoroughly and store it in its original packaging in a cool, dry place.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For information regarding the product warranty, please refer to the warranty card included with your purchase or consult the official Orbegozo website. For technical support or service inquiries, please contact the retailer where the product was purchased or refer to the contact information provided in the product packaging.
