1. Product Overview
The Sonew A7-RK-EM is an advanced RFID access control keypad reader designed for secure entry management. It features a durable zinc alloy casing with an IP67 waterproof rating, making it suitable for both indoor and outdoor installations. This device supports EM ID cards (125 KHz) and keypad input, offering flexible access methods. With a user capacity of up to 2000, it is ideal for various applications including homes, offices, and residential areas. The unit operates on a wide DC10-24V power supply and includes a Wiegand 26/34-bit output interface for compatibility with existing security systems.
Figure 1: Front view of the Sonew A7-RK-EM RFID Access Control Keypad Reader.
2. Safety Information
- Read all instructions carefully before installation and operation.
- Ensure the power supply voltage matches the device's requirements (DC10-24V).
- Disconnect power before performing any wiring or maintenance.
- Avoid exposing the device to extreme physical shock or corrosive substances.
- Only qualified personnel should perform installation and wiring.
3. Package Contents
Verify that all items are present in the package:
- 1 x Sonew A7-RK-EM Access Controller Reader
- 1 x Screw Pack (mounting screws and wall anchors)
- 1 x User Manual
Figure 2: Package contents including the access controller and mounting hardware.
4. Specifications
| Feature | Specification |
|---|---|
| Model | A7-RK-EM |
| Material | Zinc Alloy Casing |
| Power Supply Voltage | DC 10-24V |
| Operating Current | ≤ 50mA |
| Card Reading Distance | 4-8 cm |
| Waterproof Rating | IP67 |
| User Capacity | 2000 |
| Card Reading Type | EM ID Card (125 KHz) |
| Wiegand Interface | 26-bit / 34-bit |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 0% - 98% (non-condensing) |
5. Setup and Installation
Proper installation is crucial for the optimal performance and security of the access control system. Follow these general steps:
- Choose a Location: Select a suitable mounting location, ensuring it is within reach of power and door lock wiring. The IP67 rating allows for outdoor placement.
- Mount the Device: Use the provided screw pack to securely mount the access controller to a wall or door frame. Ensure it is level and stable.
- Wiring: Connect the power supply (DC 10-24V) and the Wiegand output to your door lock system or access control panel. Refer to the wiring diagram for correct connections.
- Test Connections: Before final power-up, double-check all wiring to prevent short circuits or damage.

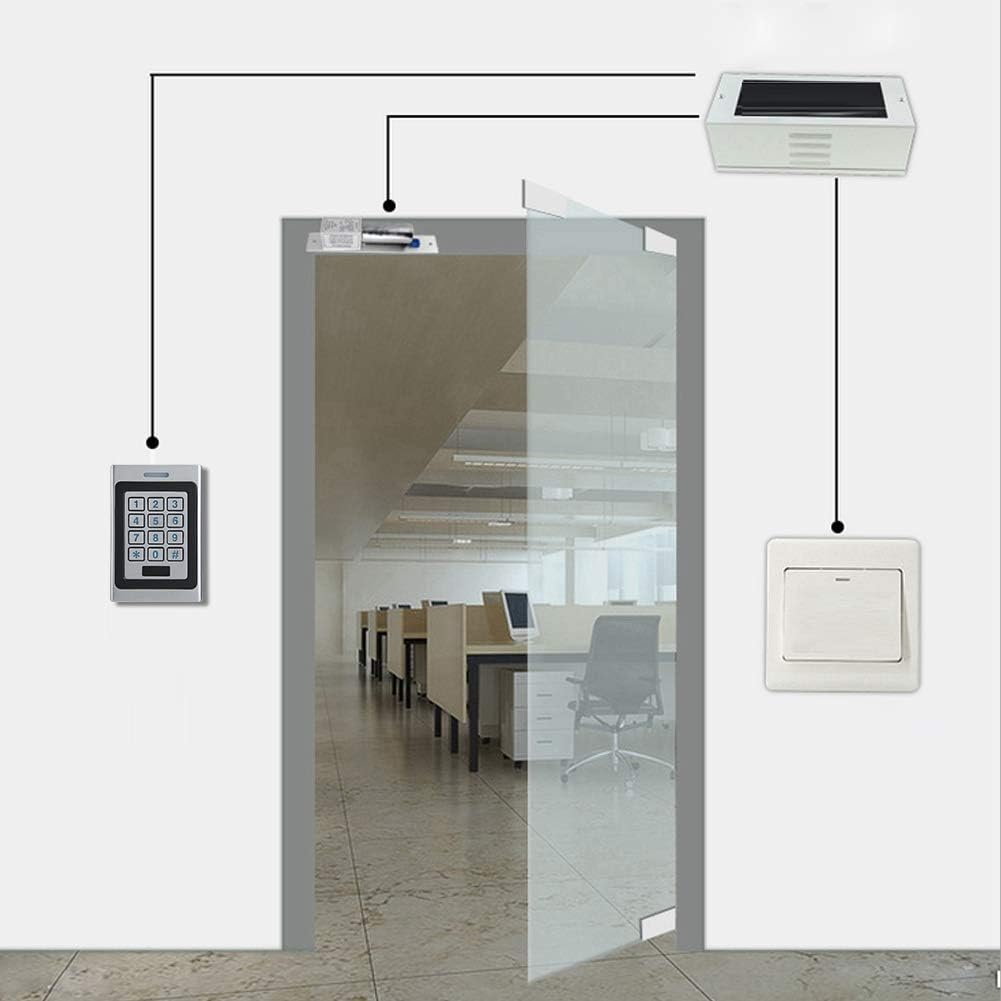

Figure 3: Example wiring diagram for connecting the access controller to a door lock system.
Figure 4: The access controller installed on a wall in an office environment.
6. Operating Instructions
The A7-RK-EM offers multiple ways to gain access:
- RFID Card Access: Present a registered EM ID card (125 KHz) to the reader area on the device. The LED indicator will confirm successful access.
- Keypad Access: Enter your registered PIN code using the numeric keypad. Press '#' to confirm the entry.
- Card + PIN Access: For enhanced security, combine both methods by presenting your card and then entering your PIN.
Refer to the full user manual for detailed instructions on programming user cards, PINs, and managing the 2000-user capacity.
Figure 5: Using an RFID card to gain access.
Figure 6: Operating the keypad for access.
7. Maintenance
To ensure the longevity and reliable operation of your Sonew A7-RK-EM access controller, follow these maintenance guidelines:
- Cleaning: Wipe the device periodically with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the casing or keypad.
- Environmental Protection: Although IP67 rated, extreme weather conditions (e.g., prolonged direct sunlight, heavy snow accumulation) should be considered for optimal performance.
- Firmware Updates: Check the manufacturer's website for any available firmware updates to ensure the device has the latest features and security enhancements.
Figure 7: The IP67 weatherproof design ensures durability in various outdoor conditions.
8. Troubleshooting
If you encounter issues with your access controller, refer to the following common problems and solutions:
- Device Not Powering On: Check the power supply connections and ensure the voltage is within the specified range (DC 10-24V). Verify the power source is active.
- Card Not Reading: Ensure the RFID card is of the correct type (EM ID 125 KHz) and is properly registered. Present the card within the specified reading distance (4-8 cm).
- Keypad Not Responding: Check for any physical damage to the keypad. Ensure the device is powered on.
- Door Not Unlocking: Verify the wiring to the door lock mechanism. Ensure the lock itself is functioning correctly and receiving the unlock signal from the access controller.
- Access Denied: Confirm that the card or PIN is correctly registered and has appropriate access permissions.
For persistent issues, consult the detailed troubleshooting section in the complete user manual or contact customer support.
9. Warranty and Support
Sonew products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or further assistance, please contact Sonew customer service through the retailer where the product was purchased or visit the official Sonew website for contact information.
