1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the YICBOR Industrial Sewing Machine DURKOPP KP768AO Pneumatic Center Guide Presser Foot (12mm). This specialized presser foot is designed for industrial sewing machines, particularly Durkopp Adler models, to facilitate precise seam sewing with its pneumatic adjustable center guide.

The pneumatic center guide ensures consistent seam allowances, improving efficiency and quality in various sewing applications. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

2. Safety Information

• Always disconnect the sewing machine from the power supply before installing, removing, or performing any maintenance on the presser foot.
• Ensure the pneumatic system is depressurized before connecting or disconnecting air lines to the presser foot.
• Handle the presser foot with care to avoid injury from sharp edges or moving parts.
• Keep fingers and loose clothing away from the needle and moving parts of the sewing machine during operation.
• Use only genuine replacement parts and accessories recommended by the manufacturer.
• If you are unsure about any procedure, consult a qualified technician or the manufacturer's support.

3. Parts Identification

Familiarize yourself with the components of the pneumatic center guide presser foot.

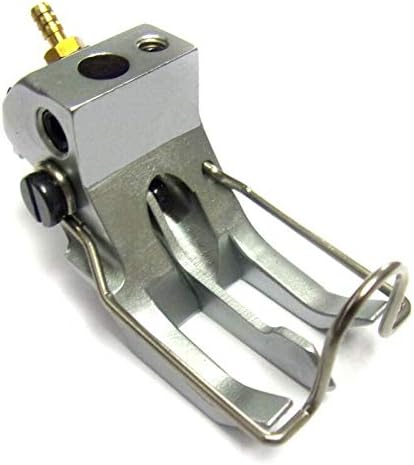

Figure 3.1: Front view of the YICBOR KP768AO Pneumatic Center Guide Presser Foot. This image shows the main body of the presser foot, the two primary foot sections, and the pneumatic inlet at the top for air connection.

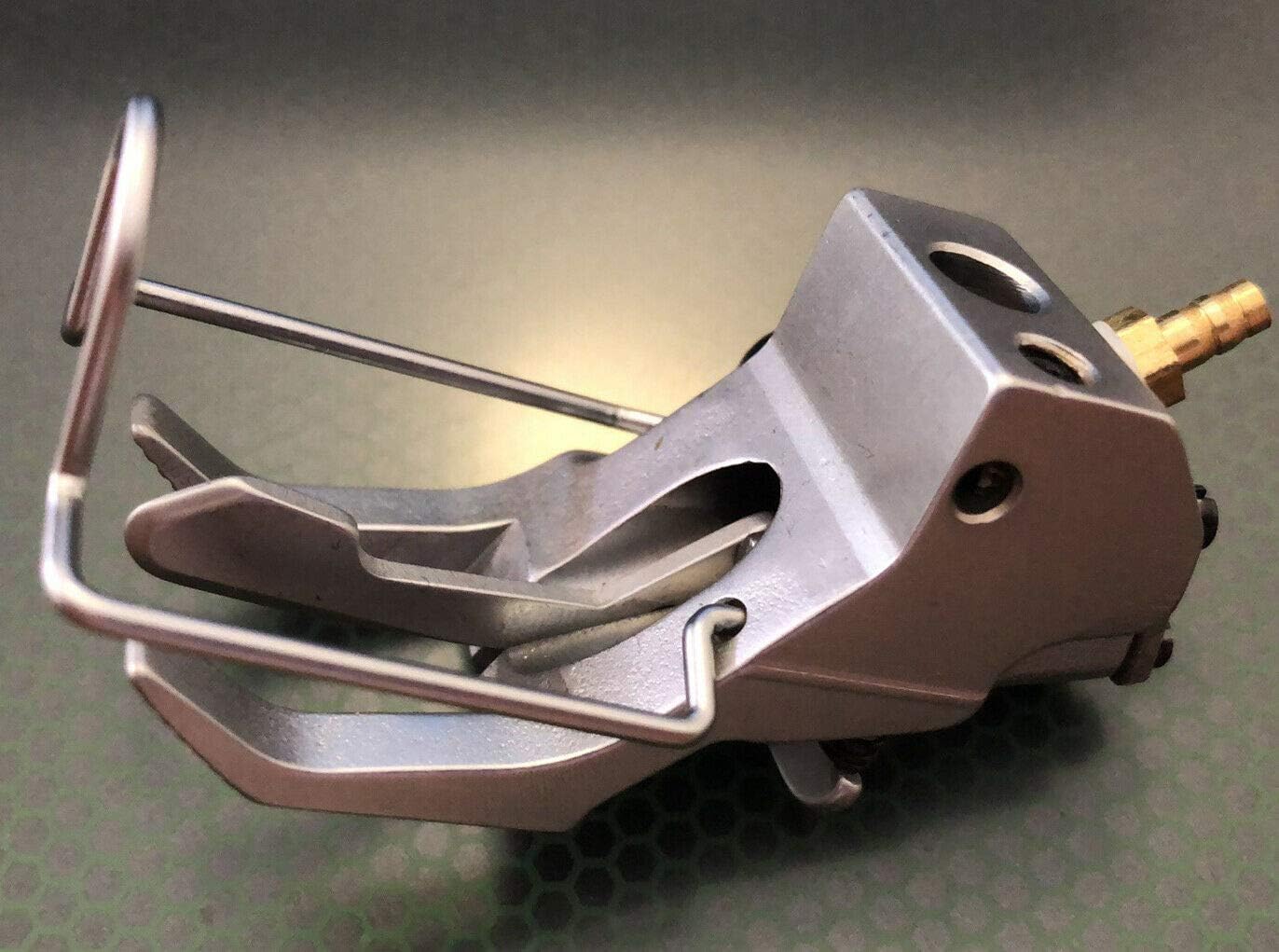

Figure 3.2: Side view of the presser foot, highlighting the adjustable center guide mechanism and the pneumatic connection point. The guide wire is visible, which helps in maintaining a straight seam.

Figure 3.3: Top view of the presser foot, showing the overall shape and the screw for attachment to the sewing machine's presser bar. The pneumatic inlet is clearly visible at the top right.

Figure 3.4: Bottom view of the presser foot, illustrating the textured surface of the foot sections for better fabric grip and the central guide mechanism that moves pneumatically.

• Presser Foot Body: The main metal structure that attaches to the sewing machine.
• Pneumatic Inlet: Brass fitting for connecting the air supply line.
• Adjustable Center Guide: The movable guide that helps maintain a consistent seam allowance, controlled by air pressure.
• Attachment Screw: Secures the presser foot to the presser bar.

4. Setup and Installation

1. Prepare the Sewing Machine:
   • Turn off and unplug the industrial sewing machine from the power outlet.
   • Raise the presser bar to its highest position.
   • If a presser foot is currently installed, loosen the attachment screw and carefully remove it.
2. Attach the Presser Foot:
   • Align the YICBOR KP768AO presser foot with the presser bar.
   • Insert the attachment screw through the hole in the presser foot and into the presser bar.
   • Tighten the screw securely, ensuring the presser foot is firmly attached and does not wobble.
3. Connect the Pneumatic Line:
   • Ensure your industrial sewing machine setup includes a compatible pneumatic air supply system.
   • Connect the air supply line from your machine's pneumatic system to the brass pneumatic inlet on the presser foot. Ensure a secure, airtight connection.
   • Verify that the air pressure is set according to your sewing machine's specifications for pneumatic accessories.
4. Initial Check:
   • Once installed, gently lower the presser foot to ensure it moves freely and aligns correctly with the needle plate.
   • With the air supply active, observe the movement of the center guide to confirm it responds to the pneumatic control.

5. Operating Instructions

The pneumatic center guide presser foot is designed to assist in creating precise and consistent seams, especially useful for edge stitching and topstitching.

1. Power On: Plug in and turn on your industrial sewing machine. Activate the pneumatic air supply.
2. Adjusting the Center Guide:
   • The pneumatic center guide's position is typically controlled by a foot pedal or a switch on your sewing machine, which regulates the air pressure.
   • Apply air pressure to extend the guide, or release pressure to retract it.
   • Position the guide to align with the desired seam allowance on your fabric. The 12mm size refers to the width of the foot, and the guide helps maintain a consistent distance from the fabric edge.
3. Fabric Placement:
   • Place your fabric under the presser foot, ensuring the edge of the fabric rests against the extended center guide.
   • The guide will help feed the fabric straight, maintaining the desired seam width.
4. Sewing:
   • Begin sewing as usual. The pneumatic guide will automatically adjust to keep the fabric edge aligned, reducing the need for manual guiding.
   • Monitor the seam quality and adjust the guide's position or air pressure as needed for different fabric types or desired seam allowances.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your presser foot.

• Cleaning:
  • Periodically clean the presser foot to remove lint, dust, and fabric debris.
  • Use a soft brush or compressed air to clear any obstructions, especially around the pneumatic guide mechanism.
  • Ensure the pneumatic inlet is free from blockages.
• Inspection:
  • Regularly inspect the presser foot for any signs of wear, damage, or loose components.
  • Check the pneumatic connection for leaks or damage to the air line.
• Lubrication:
  • Consult your sewing machine's manual or a qualified technician regarding any lubrication requirements for the presser foot's moving parts, particularly the pneumatic guide mechanism.
  • Use only recommended sewing machine oil if lubrication is necessary.
• Storage:
  • When not in use, store the presser foot in a clean, dry place to prevent corrosion and damage.

7. Troubleshooting

This section addresses common issues you might encounter with the pneumatic center guide presser foot.

If the problem persists after attempting these solutions, please contact YICBOR customer support or a qualified sewing machine technician.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, returns, or technical support for your YICBOR Industrial Sewing Machine DURKOPP KP768AO Pneumatic Center Guide Presser Foot, please refer to the seller's policies or contact YICBOR directly.

YICBOR Customer Support:

• Please visit the official YICBOR store page on Amazon for contact information or frequently asked questions: YICBOR Store
• For specific product inquiries, please reference the ASIN: B07Y1XHBH3.

Keep your purchase receipt or order details handy when contacting support.
