1. Introduction
This manual provides essential information for the safe and effective use of the John Deere Original Equipment Hand Operated Flow Control Valve, model AA38545. This component is designed to regulate fluid flow within compatible John Deere agricultural machinery systems. Please read this manual thoroughly before installation or operation to ensure proper function and safety.
2. Safety Information
Always observe standard safety precautions when working with agricultural machinery and hydraulic systems. Failure to do so may result in serious injury or equipment damage.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, gloves, and protective clothing, when handling hydraulic components.
- System Pressure: Ensure all hydraulic pressure is relieved from the system before attempting installation, removal, or maintenance of the valve. High-pressure fluid can cause severe injury.
- Fluid Handling: Use caution when handling hydraulic fluid. Refer to the fluid manufacturer's safety data sheet (SDS) for proper handling and disposal.
- Qualified Personnel: Installation and maintenance should be performed by trained and qualified personnel familiar with John Deere equipment and hydraulic systems.
- Original Parts: Use only genuine John Deere replacement parts to maintain equipment integrity and performance.
3. Product Overview
The John Deere AA38545 is a hand-operated flow control valve designed for precise adjustment of hydraulic fluid flow. It features a durable alloy steel construction and a machined exterior finish, ensuring longevity and reliable performance in demanding agricultural environments.

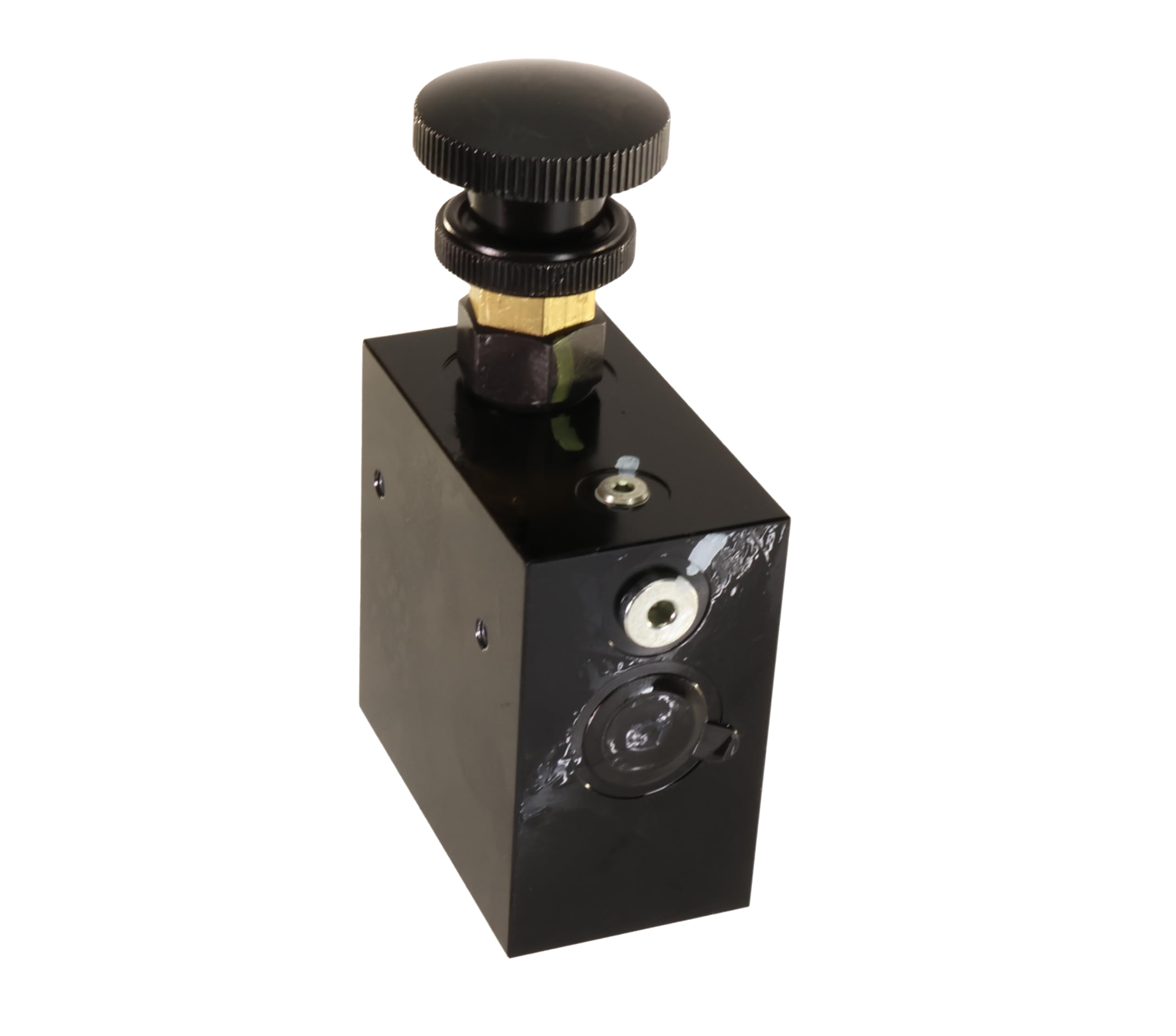

Figure 1: Top-down view of the John Deere AA38545 Hand Operated Flow Control Valve, showing the adjustment knob and main body.
Figure 2: Angled view of the valve, highlighting the input/output ports and mounting points.
4. Installation
Installation of the AA38545 flow control valve should be performed by a qualified technician. Refer to your specific John Deere equipment service manual for detailed hydraulic system diagrams and installation procedures relevant to your machine model.
4.1 Pre-Installation Checks
- Verify that the valve model AA38545 is compatible with your John Deere equipment.
- Inspect the valve for any signs of damage from shipping.
- Ensure all necessary tools and additional components (e.g., hydraulic hoses, fittings, seals) are available and in good condition.
4.2 Installation Steps (General)
- Depressurize System: Safely relieve all hydraulic pressure from the system where the valve will be installed.
- Mount Valve: Securely mount the valve in the designated location using appropriate fasteners. Ensure the valve is oriented correctly according to the hydraulic flow direction.
- Connect Hydraulic Lines: Connect the hydraulic input and output lines to the valve's ports. Use proper torque specifications for all fittings to prevent leaks.
- Inspect Connections: Double-check all connections for tightness and proper routing of hoses.
- Re-pressurize and Test: Slowly re-pressurize the hydraulic system and carefully check for leaks. Test the valve's function as described in the operating instructions.
5. Operating Instructions
The AA38545 is a hand-operated valve, meaning flow adjustment is done manually. The valve typically features a knob or lever for this purpose.
- Adjusting Flow: Rotate the adjustment knob (or move the lever) to increase or decrease the hydraulic fluid flow rate.
- Observe System Response: Monitor the equipment's response to flow adjustments. Make small, incremental changes until the desired flow rate is achieved.
- Locking Mechanism (if applicable): Some valves may include a locking mechanism to prevent accidental changes to the flow setting. Engage this mechanism if present and desired.
Always refer to your equipment's operational manual for specific flow rate requirements and recommended settings for various tasks.
6. Maintenance
Regular maintenance ensures the longevity and reliable performance of your flow control valve.
- Visual Inspection: Periodically inspect the valve for any signs of external leaks, corrosion, or physical damage.
- Cleanliness: Keep the valve and surrounding area clean to prevent dirt and debris from entering the hydraulic system.
- Fluid Quality: Ensure the hydraulic fluid in your system is clean and at the correct level. Contaminated fluid can damage hydraulic components, including the valve.
- Seal Replacement: If leaks are detected, the internal seals may need replacement. This should be done by a qualified technician using genuine John Deere seal kits.
7. Troubleshooting
This section outlines common issues and potential solutions for the flow control valve.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fluid leakage from valve | Loose fittings, damaged seals, cracked housing | Tighten fittings to specified torque. Replace damaged seals. Replace valve if housing is cracked. |
| Inconsistent flow control | Contaminated fluid, internal wear, debris in valve | Check and replace hydraulic fluid if contaminated. Inspect valve internals for wear or debris; clean or replace as necessary. |
| Valve difficult to adjust | Corrosion, internal debris, damaged adjustment mechanism | Clean valve exterior. Disassemble and clean internal components (if qualified). Replace valve if adjustment mechanism is damaged. |
If troubleshooting steps do not resolve the issue, contact an authorized John Deere service center.
8. Specifications
- Model Number: AA38545
- Brand: John Deere
- Material: Alloy Steel
- Exterior Finish: Machined
- Item Dimensions (L x W x H): 7 x 5 x 3 inches
- Item Weight: 3.3 Pounds
- Connector Type: Clamp
- UPC: 889818138880
9. Warranty Information
The manufacturer's warranty for John Deere Original Equipment parts varies. For specific details regarding the warranty coverage for your AA38545 Hand Operated Flow Control Valve, please refer to the warranty documentation provided with your purchase or contact an authorized John Deere dealer.
10. Customer Support
For technical assistance, parts inquiries, or service, please contact your local authorized John Deere dealer. You can find dealer information on the official John Deere website or through the contact information provided with your equipment.
John Deere Official Website: www.deere.com
