IK Multimedia iRig Keys 2 MIDI Controller User Manual

1. Introduction

The IK Multimedia iRig Keys 2 is a portable MIDI keyboard controller designed for musicians and producers on the go. Featuring 37 velocity-sensitive mini-keys, assignable controls, and versatile connectivity options, it allows for expressive music creation across various platforms including iPhone, iPad, Mac, PC, and Android devices. This manual provides essential information for setting up, operating, and maintaining your iRig Keys 2.

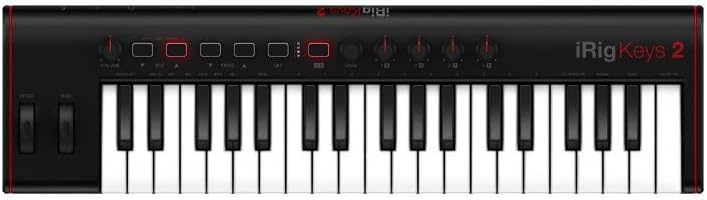

IK Multimedia iRig Keys 2 MIDI Controller, top view

Figure 1: Top view of the IK Multimedia iRig Keys 2 MIDI Controller, showcasing its 37 mini-keys and control panel.

2. Key Features

Superior Sound Quality: Supports 16 or 24-bit D/A conversion at sampling rates of 44.1kHz, 48kHz, 88.2kHz, and 96kHz for high-fidelity audio.
Enhanced Key Action: Equipped with 37 velocity-sensitive mini-keys, offering a responsive and expressive playing experience.
Versatile Connectivity: Includes Micro-USB for device connection, MIDI input/output (2.5mm TRS jack), and a 1/8" TRS headphone stereo output.
Expanded Control: Features assignable knobs, a push encoder, and dedicated octave and program up/down buttons for comprehensive real-time control.
Ultimate Portability: Lightweight at 30.7 oz (1.76 lbs) and compact (20.4" x 5.5" x 2.13"), USB bus-powered for convenient on-the-go music production.

3. Package Contents

Your IK Multimedia iRig Keys 2 package should contain the following items:

iRig Keys 2 MIDI Controller
USB to Micro-USB cable
Micro-USB to Lightning cable (for iOS devices)
Micro-USB to USB-C cable (for modern devices)
2.5mm TRS to MIDI DIN adapter cables (for MIDI In/Out)
Quick Start Guide and Registration Information
Access to included software bundle (details provided upon registration)

IK Multimedia iRig Keys 2 MIDI Controller in its retail box

Figure 2: The iRig Keys 2 MIDI Controller as packaged in its retail box.

4. Setup

4.1. Connecting to Your Device

The iRig Keys 2 is USB bus-powered, meaning it draws power directly from the connected device. No external power supply is typically needed.

Identify the correct cable for your device: Use the Micro-USB to Lightning cable for iOS devices, or the Micro-USB to USB-C/USB cable for Android, Mac, or PC.
Connect the Micro-USB end of the cable to the iRig Keys 2.
Connect the other end of the cable to your computer, tablet, or smartphone.
Your device should recognize the iRig Keys 2 automatically. Install any necessary drivers or software as prompted by your operating system or music application.

4.2. Audio Output

To monitor your audio, connect headphones to the 1/8" TRS headphone stereo output jack on the iRig Keys 2. This allows for direct monitoring of your sound without additional audio interfaces.

IK Multimedia iRig Keys 2 MIDI Controller connected to a laptop and headphones

Figure 3: The iRig Keys 2 connected to a laptop via USB and headphones for audio monitoring.

5. Operating the iRig Keys 2

5.1. Keyboard Controls

37 Velocity-Sensitive Mini-Keys: Play notes with varying dynamics based on how hard you press the keys.
Octave Up/Down Buttons: Shift the keyboard's octave range to access higher or lower notes.
Program Up/Down Buttons: Navigate through presets or programs in your connected software.
Pitch Bend and Modulation Wheels: Use these wheels for expressive control over pitch and other assignable parameters.

5.2. Assignable Knobs and Push Encoder

The iRig Keys 2 features several assignable knobs and a push encoder. These can be mapped to control various parameters within your music software, such as volume, filter cutoff, effects, and more. Refer to your software's documentation for specific MIDI mapping instructions.

Close-up of the assignable knobs and push encoder on the IK Multimedia iRig Keys 2

Figure 4: Detail of the assignable knobs and push encoder for real-time control.

Close-up of the pitch bend and modulation wheels on the IK Multimedia iRig Keys 2

Figure 5: The pitch bend and modulation wheels provide expressive control during performance.

6. Connectivity Overview

The iRig Keys 2 offers a comprehensive set of connections for integration into any music setup:

Micro-USB Port: Primary connection for power and MIDI data to your computer, tablet, or smartphone.
MIDI Input (2.5mm TRS Jack): Connect external MIDI devices using the included TRS to MIDI DIN adapter.
MIDI Output (2.5mm TRS Jack): Send MIDI data to external hardware synthesizers or sound modules using the included TRS to MIDI DIN adapter.
Headphone Stereo Output (1/8" TRS Jack): For direct audio monitoring with headphones.

Close-up of the rear panel connections on the IK Multimedia iRig Keys 2

Figure 6: Rear panel showing Micro-USB, MIDI In/Out, and Headphone Output ports.

6.1. Official Product Video

Video 1: An official product overview of the iRig Keys 2 by IK Multimedia, demonstrating its features and connectivity.

7. Specifications

Feature	Detail
Model Name	iRig Keys 2
Number of Keys	37
Key Type	Velocity-sensitive mini-keys, Synth-action
Connectivity Technology	USB
Hardware Interface	USB
Compatible Devices	Desktop, Laptop, Tablet (with USB connectivity)
Hardware Platform	PC/Mac, iPhone, iPad, Android
Audio Conversion	16 or 24-bit D/A at 44.1kHz, 48kHz, 88.2kHz, 96kHz
Special Feature	Equipped with an audio output terminal (Headphone Out)
Item Weight	1.76 pounds (30.7 oz)
Product Dimensions	20.39 x 5.47 x 1.57 inches
Color Name	Black
Supported Software	SampleTank 4 SE (included software bundle)

8. Maintenance

To ensure the longevity and optimal performance of your iRig Keys 2, follow these maintenance guidelines:

Cleaning: Use a soft, dry cloth to clean the surface of the device. Avoid abrasive cleaners, solvents, or waxes. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth.
Storage: Store the iRig Keys 2 in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. When transporting, use a protective case to prevent damage.
Handling: Avoid dropping the device or subjecting it to strong impacts. Do not place heavy objects on top of the keyboard.
Liquid Exposure: Keep the device away from liquids. Liquid damage can void your warranty.

9. Troubleshooting

9.1. No Sound Output

Ensure your headphones are properly connected to the iRig Keys 2 headphone output.
Check the volume level on the iRig Keys 2 and within your connected music application.
Verify that the correct audio output device is selected in your computer or mobile device's sound settings and within your music application.

9.2. Device Not Recognized

Ensure the USB cable is securely connected to both the iRig Keys 2 and your device.
Try using a different USB port on your computer or a different cable.
Restart your computer or mobile device.
Check the manufacturer's website for the latest drivers or firmware updates for the iRig Keys 2.

9.3. Keys or Controls Not Responding

Verify that the iRig Keys 2 is powered on and properly connected.
Ensure your music application is configured to receive MIDI input from the iRig Keys 2.
Check if any octave or program shift buttons are engaged, which might alter the expected output.

10. Warranty and Support

IK Multimedia products are covered by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official IK Multimedia website. For technical support, product registration, and additional resources, please visit the IK Multimedia support page online.

Keep your proof of purchase for warranty claims.
