CLY 60 LED Solar Flood Light User Manual

1. Product Overview

The CLY 60 LED Solar Flood Light is an outdoor security lighting solution designed for lawns, gardens, and other outdoor spaces. It features 60 high-brightness LEDs, providing 300 lumens of illumination. Powered by a separate solar panel, it charges during the day and automatically illuminates at night. Its robust IP66 waterproof rating ensures durability in various weather conditions.

Figure 1.1: The CLY 60 LED Solar Flood Light and its accompanying solar panel.

2. Package Contents

Please verify that all components are present and in good condition upon opening the package:

• 1 x CLY 60 LED Flood Light
• 1 x Solar Panel with connecting cable
• 1 x Ground Stake for solar panel
• Mounting Screws and Wall Plugs (for light and panel)
• 1 x User Manual

Figure 2.1: All components included in the product package.

3. Setup and Installation

Follow these steps to properly install your CLY Solar Flood Light:

1. Choose a Location: Select an outdoor location for the flood light that requires illumination. For the solar panel, choose a spot that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging.
2. Mount the Solar Panel:
   • Ground Installation: Attach the ground stake to the solar panel bracket. Insert the stake firmly into the ground in your chosen sunny location.
   • Wall Installation: Use the provided screws and wall plugs to securely mount the solar panel to a wall or fence. Adjust the angle of the panel to face the sun directly.


   Figure 3.1: The solar panel can be mounted using a ground stake or wall screws.

3. Mount the Flood Light: Secure the flood light to a desired surface (wall, eaves, etc.) using the provided screws and wall plugs. Ensure the light is positioned to cover the area you wish to illuminate.
4. Connect the Light to the Solar Panel: Carefully connect the cable from the flood light to the cable from the solar panel. Ensure the connection is secure and the waterproof ring is properly seated to prevent water ingress. The cable length is 5 meters, allowing flexible placement.
5. Initial Charge: Before first use, allow the solar panel to charge the light for at least 8-10 hours in direct sunlight. Ensure the waterproof switch on the solar panel is in the 'ON' position for charging and automatic operation.

Figure 3.2: Detail of the solar panel showing the waterproof switch and cable connection.

4. Operating Instructions

The CLY Solar Flood Light is designed for automatic operation:

• Automatic On/Off: Once fully charged and the switch is in the 'ON' position, the light will automatically turn on at dusk and turn off at dawn.
• Light Output: The 60 LED bulbs provide a bright, non-blinding 300 lumen output, suitable for illuminating pathways, gardens, and security areas.

Figure 4.1: The CLY 60 LED Solar Flood Light in operation, demonstrating its light output.

Figure 4.2: Various installation scenarios for the CLY solar flood light, showcasing its versatility.

5. Maintenance

To ensure the longevity and optimal performance of your solar flood light, follow these maintenance guidelines:

• Clean the Solar Panel: Regularly wipe the surface of the solar panel with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures maximum sunlight absorption and charging efficiency.
• Check Connections: Periodically inspect the cable connection between the light and the solar panel to ensure it remains secure and free from corrosion. The outdoor special connector is designed for stability and waterproofing.
• Clear Obstructions: Ensure no trees, bushes, or structures are blocking direct sunlight from reaching the solar panel throughout the day.
• Battery Care: The light uses a 18650/4000MAH battery. While designed for durability, extreme temperatures can affect battery life. If storing the light for extended periods, ensure it is fully charged before storage and recharge every few months.

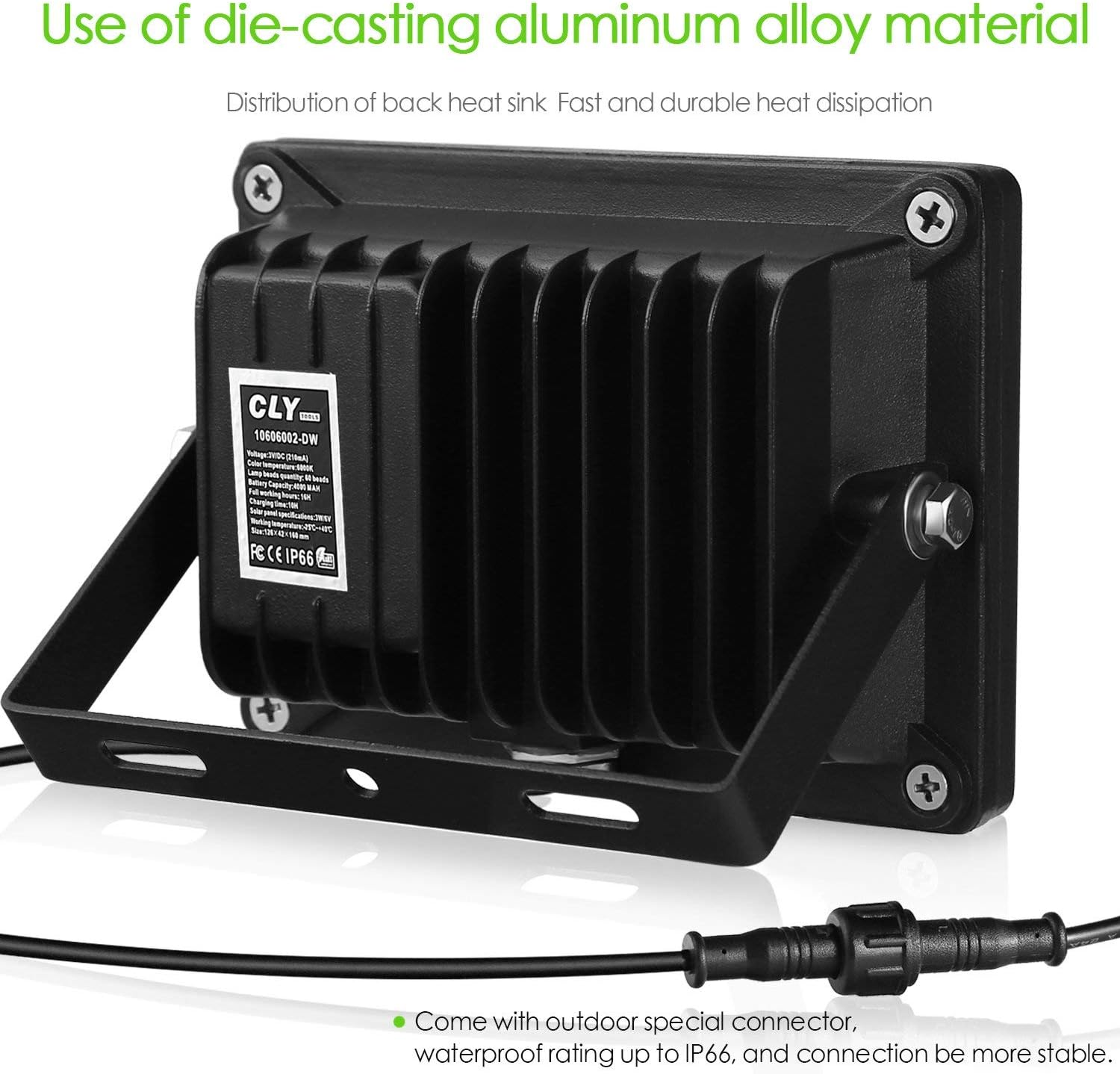

Figure 5.1: Rear view of the flood light, highlighting the heat sink and waterproof connector.

6. Troubleshooting

If your CLY Solar Flood Light is not functioning as expected, consider the following common issues and solutions:

• Light does not turn on at night:
  • Ensure the solar panel switch is in the 'ON' position.
  • Verify the solar panel is receiving sufficient direct sunlight (6-8 hours daily). Relocate if necessary.
  • Check for any obstructions (trees, buildings) blocking sunlight from the panel.
  • Ensure the light-to-panel cable connection is secure.
  • The battery may not be fully charged. Allow for a full day's charge before testing again.
• Light duration is short:
  • The solar panel may not be receiving enough direct sunlight. Clean the panel and ensure optimal positioning.
  • Cloudy weather or shorter winter days can reduce charging efficiency.
  • The battery may be nearing the end of its lifespan.
• Light flickers or is dim:
  • Check the cable connection for looseness or corrosion.
  • Ensure the solar panel is clean and receiving adequate sunlight.
  • Battery charge may be low.

7. Specifications

Figure 7.1: The CLY solar flood light demonstrating its IP66 waterproof capability.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
