Bingfu FM Antenna 75 Ohm for Stereo Receivers - Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Bingfu FM Antenna 75 Ohm. This antenna is designed to improve FM radio stereo reception for various audio systems, including home theater receivers, stereo receivers, and music systems. Please read this manual thoroughly before use to ensure proper setup and optimal performance.

2. Product Overview

The Bingfu FM Antenna is a 75 Ohm unbalanced (UNBAL) antenna designed for indoor use. It comes with a universal connector and several adapters to ensure compatibility with a wide range of audio equipment.

Key Features:

• 75 Ohm UNBAL FM Antenna for enhanced reception.
• Universal F-Type Plug Connector.
• Includes multiple connector adapters for broad compatibility.
• Designed for easy installation.
• Improves FM radio stereo reception for various indoor audio systems.

Package Contents:

• 1 x Bingfu FM Antenna
• 1 x TV Female Socket Connector Adapter
• 1 x 3.5mm Audio Plug Connector Adapter
• 1 x TV Male Plug Connector Adapter

Figure 2.1: The Bingfu FM Antenna and its three included connector adapters.

3. Compatibility

This antenna is compatible with a wide range of audio receivers and music systems that feature a 75 Ohm UNBAL FM antenna input. This includes, but is not limited to, models from:

• Yamaha: TSR-5830, TSR-7810, RX-V series (e.g., RX-V757, RX-V681, RX-V485), etc.
• Marantz: SR7011, SR6011, SR5011, NR1607, NR1506, etc.
• Denon: AVR-X1000, AVR-X2000, AVR-X3000, AVR-X4000, AVR-X5200W, etc.
• Onkyo: HT-RC160, HT-RC180, TX-NR series (e.g., TX-NR1007, TX-NR3007, TX-NR509), etc.
• Other Brands: JVC, Sherwood, Pioneer, Panasonic, Sony, and some Bose Wave Music Systems.

Please verify your receiver's FM antenna input type before connecting. The antenna's primary connector is an F-Type Plug, and adapters are provided for TV Female Socket, 3.5mm Audio Plug, and TV Male Plug connections.

4. Setup and Installation

Follow these steps to properly install your Bingfu FM Antenna:

1. Identify Your Receiver's FM Antenna Input: Locate the FM antenna input on the back of your stereo receiver or music system. This is typically labeled "FM ANTENNA," "FM 75Ω UNBAL," or similar.
2. Select the Correct Adapter:
   • If your receiver has a standard F-Type coaxial input (threaded connector), you may not need an adapter.
   • If your receiver has a push-on TV Female Socket, use the TV Female Socket Connector Adapter.
   • If your receiver has a 3.5mm audio jack for the antenna, use the 3.5mm Audio Plug Connector Adapter.
   • If your receiver has a TV Male Plug input, use the TV Male Plug Connector Adapter.
3. Connect the Antenna:

   Attach the main F-Type connector of the antenna directly to your receiver or to the selected adapter, then connect the adapter to your receiver's FM antenna input.



   Figure 4.1: Example of connecting the antenna to a 75 Ohm UNBAL F-Type input.


   Figure 4.2: Another example of connecting the antenna to a 75 Ohm UNBAL F-Type input.

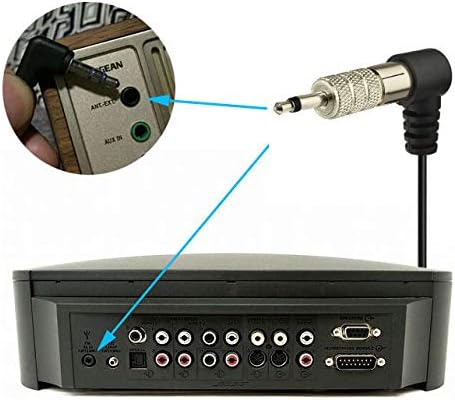

   Figure 4.3: Connecting the antenna to a 3.5mm FM antenna input using the appropriate adapter.



   Figure 4.4: Connecting the antenna to a push-on FM antenna input.
4. Position the Antenna: Extend the antenna wire fully. For optimal reception, try to position the antenna as high as possible and away from large metal objects or electronic devices that may cause interference. Experiment with different orientations and locations to find the best signal strength for your desired FM stations. The small loop at the end of the antenna cable can be used to hang it on a wall or other suitable surface.

5. Operating Instructions

Once the antenna is connected, operate your FM radio or receiver as usual. Tune to your desired FM stations. If reception is poor, adjust the antenna's position and orientation. The goal is to maximize signal strength and clarity for each station.

Tips for Optimal Reception:

• Experiment with Placement: FM signals can be affected by building materials, terrain, and other electronic devices. Try placing the antenna near a window or higher up in the room.
• Avoid Obstructions: Keep the antenna away from large metal objects, concrete walls, and other electronics that might block or interfere with the signal.
• Fine-tune Orientation: Slightly adjust the direction of the antenna wire while listening to a station to find the clearest signal.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Bingfu customer service directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Bingfu

Brand: BINGFU

ASIN: B07XH1BH42
