1. Introduction
Thank you for choosing the Lampaous 9W LED Recessed Downlight. This product is designed to provide versatile lighting with adjustable brightness and color temperature, controlled conveniently via a remote. This manual provides essential information for safe installation, operation, and maintenance of your downlights.

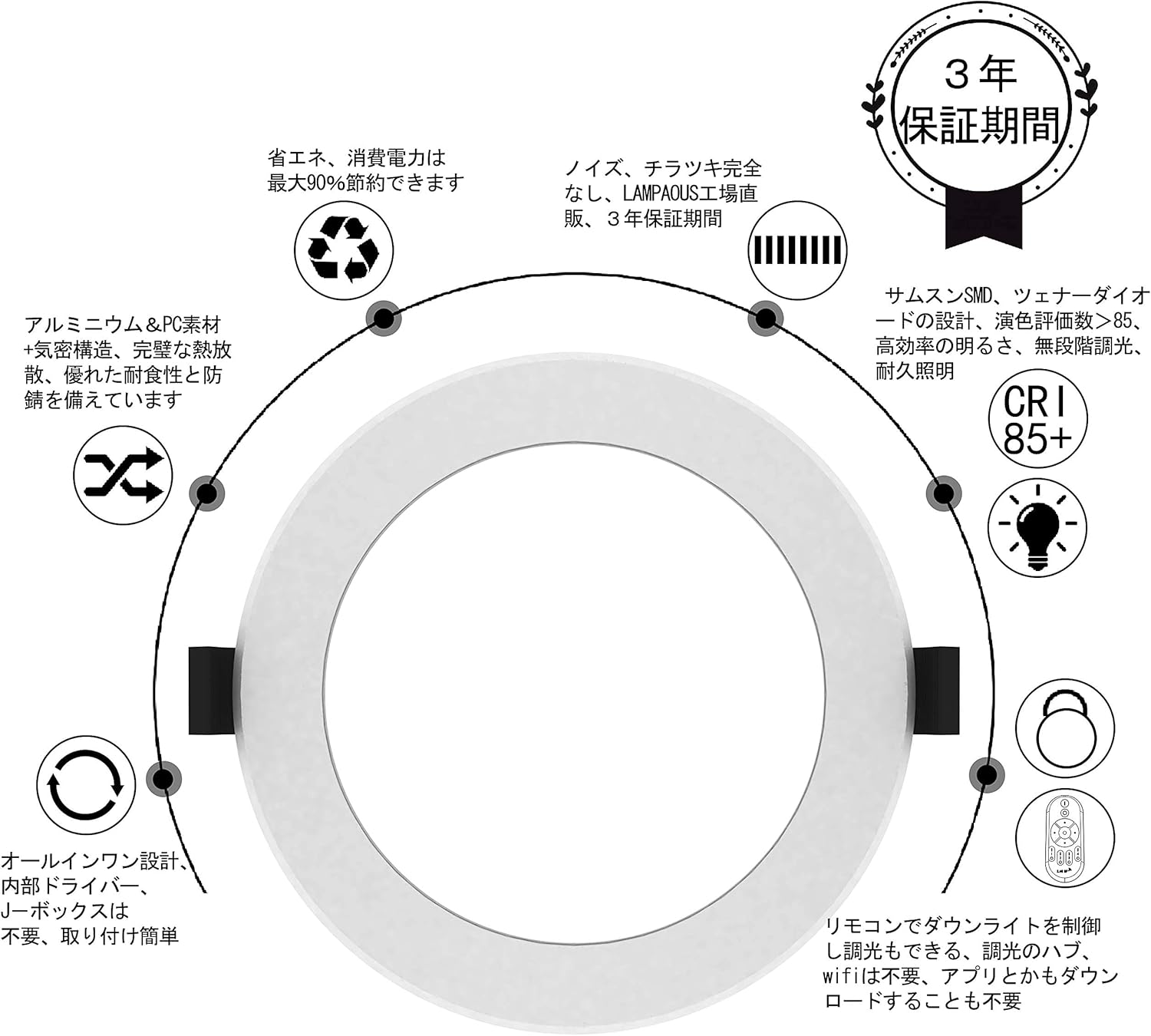

Image: Overview of Lampaous 9W LED Downlight features.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Professional Installation: Installation should be performed by a qualified electrician in accordance with local electrical codes.
- Power Disconnection: Always disconnect power at the circuit breaker before installing, servicing, or cleaning the fixture.
- Voltage Compatibility: Ensure the supply voltage (240V) matches the fixture's requirements.
- Indoor Use Only: This product is designed for indoor use.
- Water Resistance: While the product is waterproof, ensure proper sealing during installation in damp locations like bathrooms to prevent water ingress into electrical connections.
- Heat Dissipation: Do not cover the fixture with insulating materials that could impede heat dissipation.
3. Package Contents
Verify that all components are present before beginning installation:
- Lampaous 9W LED Recessed Downlights (Quantity as per package)
- Remote Control (1 unit)
- User Manual (This document)
4. Specifications
| Feature | Specification |
|---|---|
| Brand | LAMPAOUS |
| Model | 9W LED Recessed Downlight |
| Wattage | 9 W |
| Voltage | 240 V |
| Light Source Type | LED |
| Color Temperature | 3000K (Warm White), 4000K (Natural White), 6000K (Cool White) - Adjustable |
| Special Features | Dimmable, Color Adjustable, Energy Saving, Waterproof |
| Material | Aluminum, Plastic |
| Shade Material | Polycarbonate |
| Mounting Type | Ceiling Mount, Semi-flush mount |
| Fixture Type | Non-removable |
| Item Dimensions (L x W x H) | 11.5 cm x 11.5 cm x 6 cm |
| Cutout Hole Size | Approximately 90mm (3.54 inches) |
| Item Weight | 0.87 kg |
| Room Type | Kitchen, Bathroom, Indoor |
Image: Product dimensions and recommended cutout size.
5. Setup and Installation
Important: Ensure power is OFF at the circuit breaker before starting installation.
- Prepare the Ceiling: Cut a circular hole in the ceiling with a diameter of approximately 90mm (3.54 inches). Refer to the dimensions image in the Specifications section.
- Wiring: Connect the downlight's wires to your household electrical wiring. Ensure correct polarity (Live, Neutral, Earth) as per local electrical codes. Use appropriate wire connectors.
- Secure the Fixture: Push the spring clips on the sides of the downlight upwards and insert the fixture into the prepared ceiling hole. The clips will automatically secure the downlight in place.
- Restore Power: Once all fixtures are securely installed and wired, restore power at the circuit breaker.
6. Operating Instructions
The Lampaous LED Downlight is controlled using the included 2.4G RF remote control. Ensure the remote has batteries installed.
Remote Control Functions:
- Power On/Off: Press the Power button to turn the lights on or off.
- Brightness Adjustment: Use the Brightness Up (+) and Brightness Down (-) buttons to adjust the light intensity.
- Color Temperature Adjustment: Use the Color Temperature Up (Cooler) and Color Temperature Down (Warmer) buttons to cycle through 3000K (Warm White), 4000K (Natural White), and 6000K (Cool White).
- Night Light Mode: Press the Night Light button for a low-brightness, warm light setting.
- Scene Modes: The remote may include preset scene buttons for quick access to different lighting environments.
Image: Demonstrating adjustable color temperatures (3000K, 4000K, 6000K).
Image: Examples of different lighting moods achievable with the downlight.
Video: Remote Control Operation
Video: This video demonstrates how to use the remote control to adjust the brightness and color temperature of the Lampaous LED Downlights. It shows the lights changing from warm to cool white and dimming.
7. Maintenance
The Lampaous LED Downlight requires minimal maintenance.
- Cleaning: Ensure power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- LED Lifespan: The integrated LED light source is designed for long-term use and is not user-replaceable.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Incorrect wiring. Remote control battery low. | Check circuit breaker. Verify wiring connections (ensure power is off). Replace remote control batteries. |
| Remote control not working. | Remote control battery low. Remote not paired with lights. Obstruction between remote and lights. | Replace remote control batteries. Refer to remote pairing instructions (if applicable, usually involves turning lights on/off and pressing a button on the remote within a few seconds). Ensure clear line of sight. |
| Lights flicker or dim unexpectedly. | Unstable power supply. Loose wiring connection. Incompatible dimmer switch (if not using remote). | Consult an electrician to check power supply. Check and secure wiring connections (ensure power is off). Use only the provided remote control for dimming. |
9. Warranty and Support
The Lampaous 9W LED Recessed Downlight comes with a 3-year warranty from the date of purchase, covering defects in materials and workmanship.
For warranty claims, technical support, or any questions regarding your product, please contact Lampaous customer service through your purchase platform or the official Lampaous website.
Please retain your proof of purchase for warranty validation.
