SENIX X5 15-Inch Lawn Mower Instruction Manual

1. Product Overview

The SENIX X5 15-inch 58V Max* lawn mower is designed for efficient and eco-friendly lawn maintenance. It features a powerful brushless motor for consistent cutting performance without the noise and fumes associated with gas mowers. This model includes a 6-position height adjustment lever, a 12-gallon hard top grass bag with a full collection indicator, and durable wheels for easy maneuverability. Its design allows for vertical storage, saving up to 70% storage space.

Figure 1.1: The SENIX X5 15-Inch Lawn Mower, showcasing its compact design and primary components.

Figure 1.2: Key features of the SENIX X5 Lawn Mower, including the 12-gallon grass bag, single-lever height adjustment, brushless motor, 15-inch cutting width, and 8.5-inch rear wheels.

Product Features:

• Effortless Mowing: 15-inch cutting width with compact poly deck and rear bagging for small to medium-sized yards.
• Powerful and Quiet: 58 Volt brushless motor provides consistent cutting performance without gas fumes or excessive noise.
• Adjustable Height & Maneuverability: 6-position single lever height adjustment (1" to 3.25") and 6" front / 8.5" rear wheels for easy navigation.
• Space-Saving Storage: Quick-release handles enable horizontal and vertical storage, saving up to 70% space.
• Safety Features: Includes a safety key to prevent unintended startups.
• Battery Performance: 58V Max battery provides "fade free" and "memory free" power, charging in as little as 90 minutes.

Official Product Video:

2. Safety Information

Always read and understand all safety warnings and instructions before operating the lawn mower. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

General Safety Rules:

• Keep children and bystanders away while operating the lawn mower.
• Dress properly. Do not wear loose clothing or jewelry. Wear non-slip footwear and eye protection.
• Avoid dangerous environments. Do not use the mower in damp or wet locations.
• Maintain the mower with care. Keep cutting edges sharp and clean for best and safest performance.
• Remove the safety key when not in use or before performing any maintenance.

3. Components

Familiarize yourself with the main components of your SENIX X5 Lawn Mower:

• Motor Housing: Contains the brushless motor and battery compartment.
• Cutting Deck: The 15-inch poly deck housing the cutting blade.
• Handles: Ergonomic handles with quick-release levers for folding and storage.
• Control Bar: Located on the handle, used to engage the motor.
• Safety Key: Essential for operation, prevents accidental starts.
• Height Adjustment Lever: Allows selection of 6 cutting heights.
• Grass Bagger: 12-gallon capacity with a full indicator for collecting clippings.
• Wheels: 5.5-inch front wheels and 8-inch rear wheels for maneuverability.

Figure 3.1: Front view of the mower, showing the cutting deck and front wheels.

Figure 3.2: Side view of the mower, illustrating its profile and wheel sizes.

4. Setup

Handle Assembly:

1. Unfold the handles and align the holes.
2. Secure the handles using the provided quick-release levers or bolts. Ensure they are firmly locked in place.

Grass Bagger Installation:

1. Lift the rear discharge flap.
2. Hook the grass bagger onto the mower's frame under the flap. Ensure it is securely seated.

Figure 4.1: The 12-gallon hard top grass bag, ready for installation.

Battery Charging and Installation:

1. Charge the 58V Max lithium-ion battery fully before first use. Charging time is approximately 90 minutes.
2. Open the battery compartment cover on the mower.
3. Slide the charged battery into the compartment until it clicks into place.
4. Insert the safety key into its slot.

Figure 4.2: The battery compartment with the 58V Max battery inserted.

5. Operating Instructions

Starting the Mower:

1. Ensure the battery is installed and the safety key is fully inserted.
2. Press and hold the safety button on the handle.
3. While holding the safety button, pull the control bar towards the handle. The motor will start.
4. Release the safety button, but continue holding the control bar to keep the mower running.

Figure 5.1: Handle controls with safety button and control bar.

Adjusting Cutting Height:

The mower offers 6 cutting height positions, ranging from 1-inch to 3.25-inch.

1. Ensure the mower is turned off and the safety key is removed.
2. Locate the single height adjustment lever on the side of the mower.
3. Pull the lever outwards and move it to the desired height setting.
4. Release the lever to lock it into position.

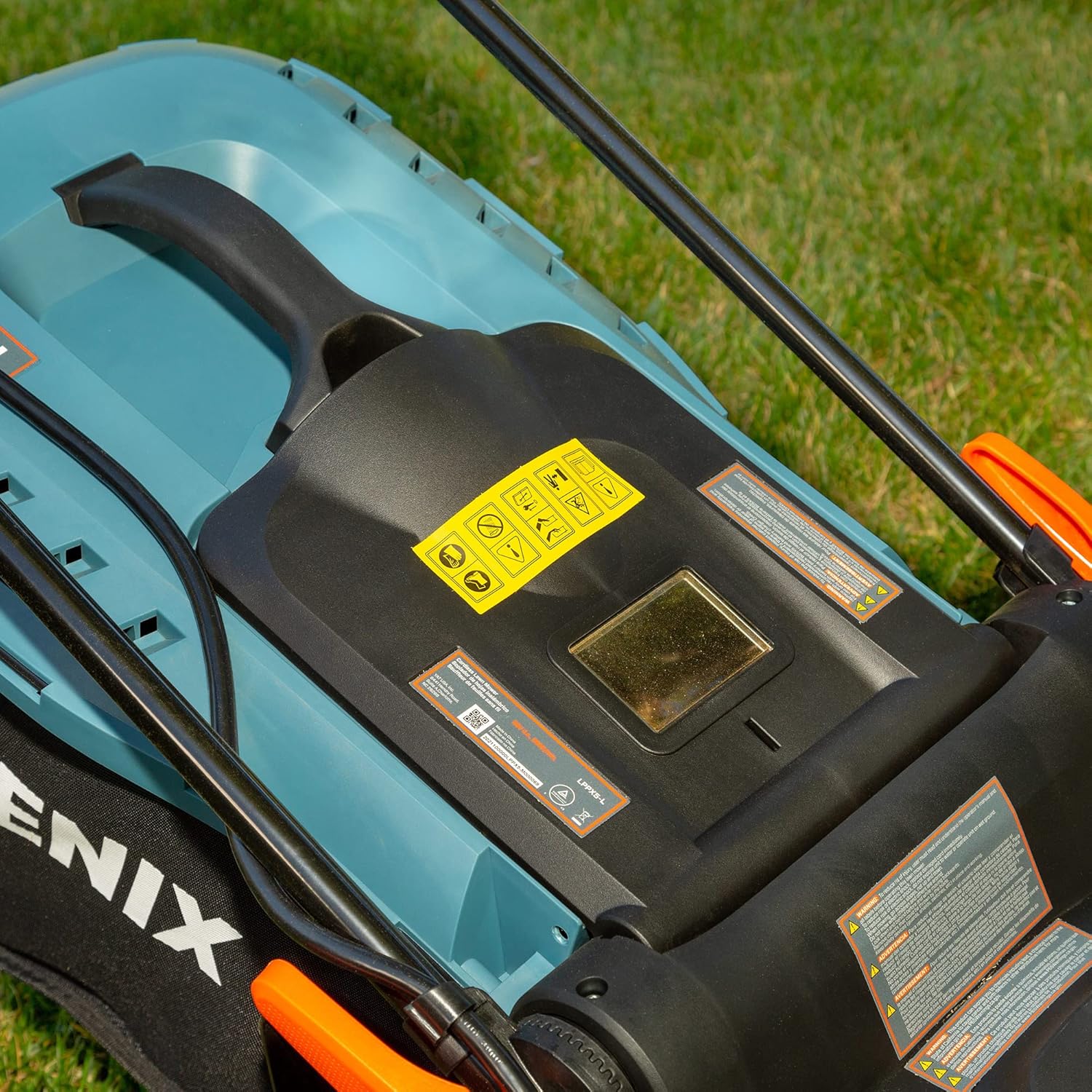

Figure 5.2: The 6-position single-lever height adjustment mechanism.

Mowing Tips:

• For best results, mow dry grass.
• Avoid cutting more than one-third of the grass blade length at a time.
• Overlap cutting paths slightly to ensure even coverage.
• Check the grass bag indicator regularly and empty the bag when full to maintain optimal performance.

Figure 5.3: The SENIX X5 Lawn Mower in operation, demonstrating its ease of use.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your lawn mower.

Cleaning:

• After each use, remove the battery and safety key.
• Clean the cutting deck and underside of the mower to remove grass clippings and debris. Use a damp cloth; do not use water jets or harsh chemicals.
• Ensure the grass bag is emptied and cleaned as needed.

Blade Care:

• Periodically inspect the blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn.
• If necessary, have the blade sharpened or replaced by a qualified service technician.

Storage:

• Remove the battery and safety key before storing.
• Clean the mower thoroughly.
• Utilize the vertical storage feature by folding the handles. This saves significant space.
• Store the mower in a dry, secure location, out of reach of children.

Figure 6.1: The SENIX X5 Lawn Mower in its vertical storage configuration.

Figure 6.2: Another view of the mower in vertical storage, highlighting its compact footprint.

7. Troubleshooting

This section addresses common issues you might encounter with your SENIX X5 Lawn Mower.

8. Specifications

9. Warranty and Support

All SENIX 58 Volt Max* products and all SENIX lithium-ion batteries and chargers are backed by a 3-year limited warranty for your peace of mind. For warranty claims, technical support, or replacement parts, please refer to the contact information provided on the SENIX official website or your purchase documentation.

Keep your proof of purchase for warranty validation.
