1. Introduction
Thank you for choosing the Greenworks 40V 14-inch Cordless Lawn Mower. This manual provides essential information for the safe assembly, operation, and maintenance of your new lawn mower. Please read this manual thoroughly before first use and keep it for future reference. This mower is designed for residential lawn care, offering a convenient, battery-powered solution for cutting grass.
2. Important Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.
- Read all instructions: Familiarize yourself with the controls and proper use of the equipment.
- Wear appropriate attire: Always wear safety glasses or side shields, long pants, and sturdy, non-slip footwear.
- Keep bystanders away: Ensure children and pets are at a safe distance from the mowing area.
- Inspect the area: Before mowing, clear the area of objects that could be thrown by the blade.
- Avoid wet grass: Do not operate the mower in wet conditions, as this can cause slipping and reduce cutting efficiency.
- Battery safety: Use only Greenworks 40V batteries and chargers. Do not expose batteries to water or extreme temperatures.
- Maintenance: Disconnect the battery before performing any maintenance or cleaning.
3. Package Contents
Verify that all items are present upon unpacking:
- Greenworks 40V 14-inch Cordless Lawn Mower
- 4.0 Ah Lithium-Ion Battery
- Battery Charger
- Grass Collection Bag
- Mulch Plug
- User Manual (this document)
4. Setup and Assembly
4.1 Handle Assembly
The mower handles come folded for shipping. To assemble, unfold the handles and secure them using the provided cam locks or knobs. Ensure the handles are firmly locked into place before operation.
4.2 Battery Charging and Installation
Before first use, fully charge the 40V lithium-ion battery. Connect the charger to a standard power outlet and insert the battery. The charger indicator light will show the charging status. Once fully charged, remove the battery from the charger.

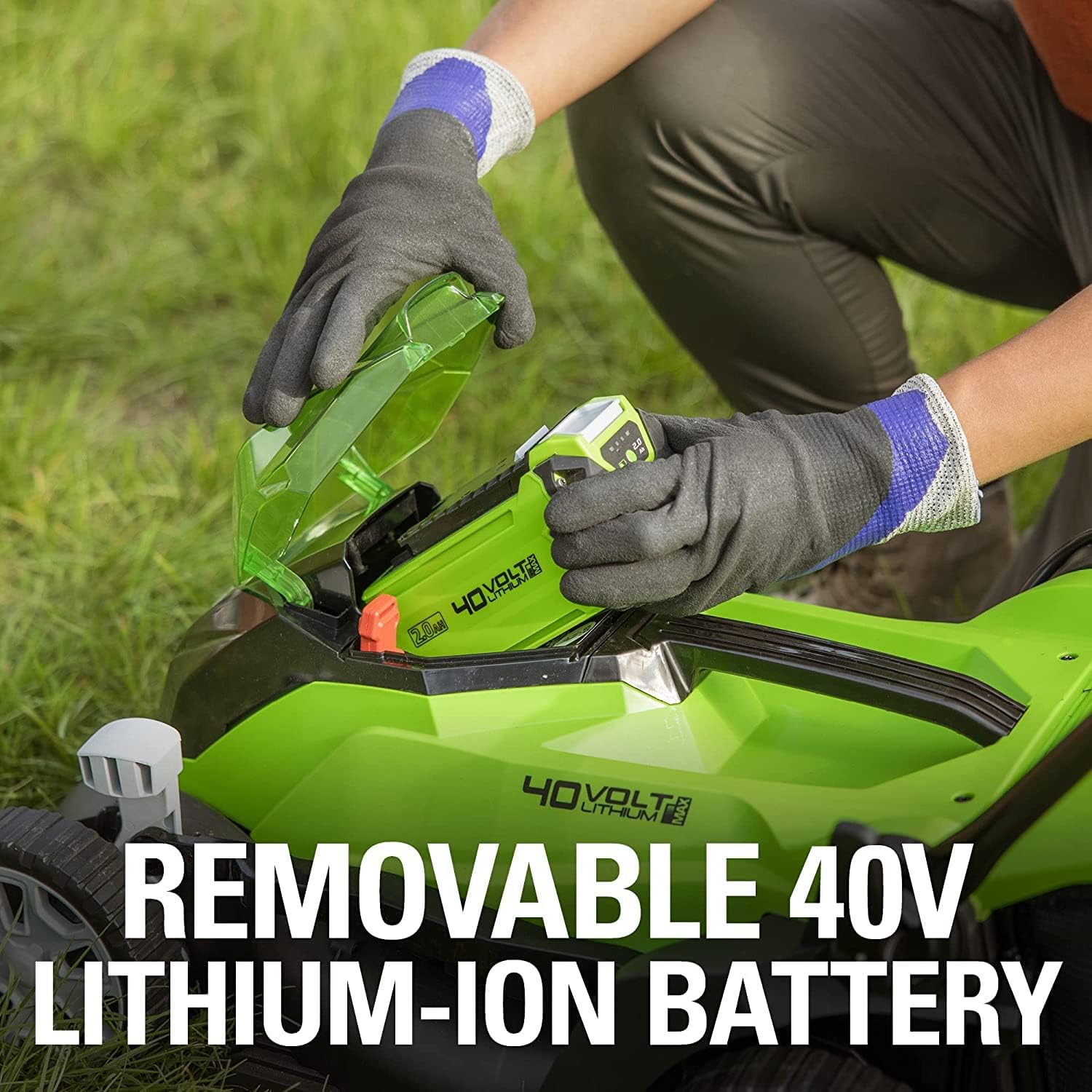

Image: A user inserting the removable 40V Lithium-Ion battery into the designated compartment on the Greenworks lawn mower. The battery compartment cover is open, revealing the battery slot.
To install the battery into the mower, open the battery compartment cover, align the battery with the slot, and push it in until it clicks securely into place. Close the battery compartment cover.
4.3 Cutting Height Adjustment
The mower features a 5-position single lever height adjustment. To adjust the cutting height, pull the lever outwards and move it to the desired position. Ensure all four wheels are at the same height setting for an even cut.
Image: A close-up of the Greenworks lawn mower showing the 5-position single lever height adjustment mechanism. A hand is shown adjusting the lever to change the cutting height.
4.4 Mulching and Bagging Setup
Your mower offers 2-in-1 mowing versatility: mulching or rear bagging.
- For Mulching: Ensure the mulch plug is securely inserted into the rear discharge opening. The grass will be finely cut and returned to the lawn as natural fertilizer.
- For Bagging: Remove the mulch plug. Lift the rear discharge door and hook the grass collection bag onto the mower. Ensure the bag is properly attached to collect clippings.
Image: A split image demonstrating the 2-in-1 mowing versatility. The top shows a hand inserting a mulch plug for mulching, and the bottom shows a user attaching the rear grass collection bag for bagging.
5. Operating Instructions
5.1 Starting the Mower
Ensure the battery is fully charged and correctly installed. To start the mower:
- Press and hold the safety button.
- While holding the safety button, pull the bail switch lever towards the handle.
- Release the safety button once the motor starts.
Image: A person's hands wearing gloves, demonstrating the easy push-button start mechanism on the Greenworks lawn mower handle. The text 'EASY TO START NO GAS, NO OIL, NO EMISSIONS' is overlaid.
5.2 Mowing Techniques
For best results, mow in straight, overlapping lines. Avoid cutting more than one-third of the grass blade length at a time. If the grass is very tall, raise the cutting height and make two passes. The mower provides up to 60 minutes of runtime with a 4.0 Ah battery, depending on grass conditions.
Image: A person operating the Greenworks 40V lawn mower on a grassy lawn, with text indicating 'UP TO 60 MINUTES OF RUNTIME WITH 4.0 AH BATTERY'.
5.3 Stopping the Mower
To stop the mower, release the bail switch lever. The blade will stop rotating. Always remove the battery when leaving the mower unattended or before performing any adjustments or maintenance.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your mower.
6.1 Cleaning
- After each use, disconnect the battery and clean the underside of the mower deck to remove grass clippings and debris.
- Use a damp cloth to wipe down the exterior. Do not use water jets or immerse the mower in water.
6.2 Blade Care
Periodically inspect the blade for sharpness and damage. A dull or damaged blade can lead to poor cutting performance and strain the motor. If necessary, have the blade sharpened or replaced by a qualified service technician. Always wear heavy gloves when handling the blade.
6.3 Storage
Store the mower in a dry, secure location away from children. The folding handles allow for compact storage, reducing the space required in your garage or shed.
Image: The Greenworks lawn mower with its handles folded down, illustrating its compact storage capability. The text 'FOLDING HANDLES FOR CONVENIENT STORAGE' is displayed.
6.4 Battery Care
- Store batteries in a cool, dry place, away from direct sunlight and moisture.
- For long-term storage, charge the battery to approximately 50% capacity.
- Do not store batteries in a discharged state.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower does not start | Battery not installed correctly or discharged; Safety button/bail switch not engaged. | Ensure battery is fully charged and properly seated. Engage safety button and bail switch simultaneously. |
| Poor cutting performance | Dull blade; Cutting height too low for grass conditions; Wet grass. | Sharpen or replace blade. Increase cutting height. Avoid mowing wet grass. |
| Excessive vibration | Damaged or unbalanced blade; Loose components. | Inspect blade for damage and replace if necessary. Check all fasteners for tightness. |
| Short runtime | Battery not fully charged; Old battery; Mowing thick/tall grass. | Fully charge battery. Consider replacing old batteries. Mow more frequently or raise cutting height. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 2506302 |
| Power Source | Battery Powered (40V Lithium-Ion) |
| Cutting Width | 14 Inches |
| Cutting Height Positions | 5 Positions |
| Maximum Adjustable Cutting Height | 8 Centimeters |
| Operation Mode | Manual Push |
| Battery Included | 1 Lithium Ion (4.0 Ah) |
| Product Dimensions (D x W x H) | 128.02 x 40.13 x 102.79 cm |
| Item Weight | 14.97 kg (33 Pounds) |
| Material | Metal, Plastic |
| Included Components | Lawn Mower, 4.0AH Battery, Charger, User Manual |
9. Warranty Information
The Greenworks 40V 14-inch Cordless Lawn Mower (Model 2506302) comes with a 3-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the official Greenworks website.
10. Customer Support
If you have any questions, require assistance, or need to order replacement parts, please contact Greenworks customer service. Contact information can typically be found on the Greenworks official website or on the product packaging. When contacting support, please have your model number (2506302) and serial number ready.
