ECOTRIC Universal Adjustable Roof Rack Cargo Carrier

Product Overview

The ECOTRIC Universal Adjustable Roof Rack Cargo Carrier is designed to provide additional storage space for your vehicle. Constructed from high-strength steel with a black powder coating, it offers durability and resistance to rust and corrosion. Its adjustable design allows for compatibility with a wide range of vehicles, including SUVs, cars, and UTVs.

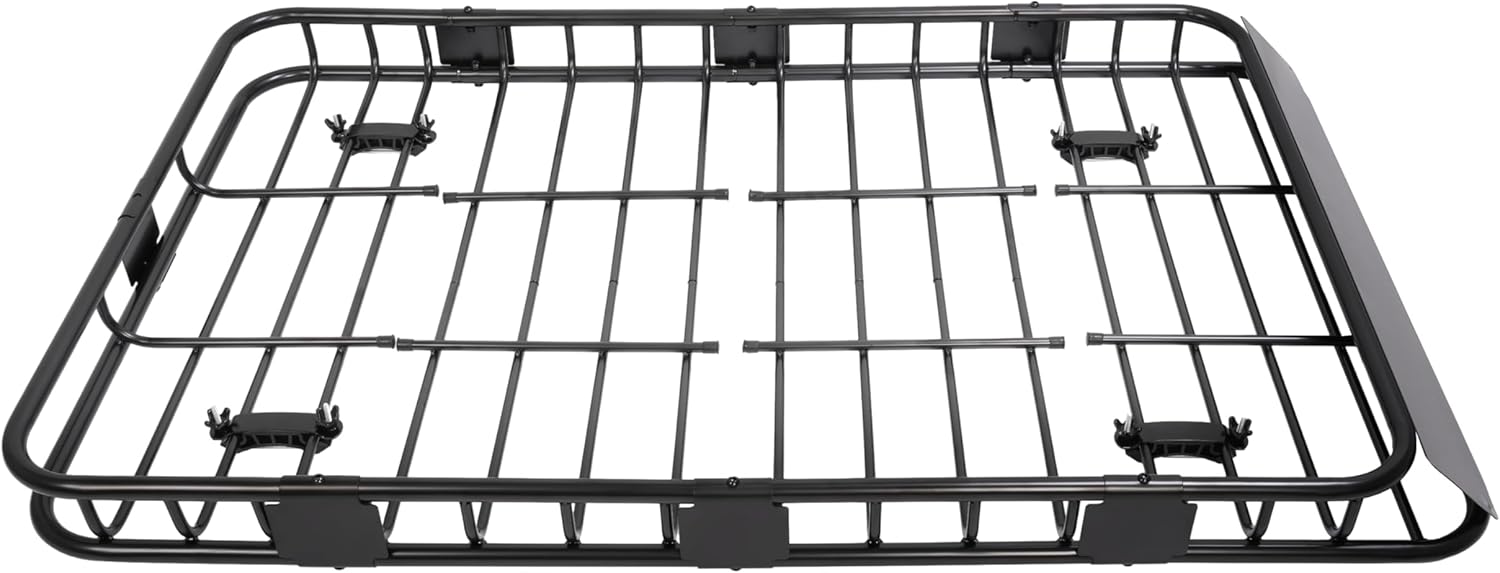

Image: The ECOTRIC roof rack cargo carrier installed on a vehicle, showcasing its design and placement.

Key Features:

• Adjustable Size: The roof rack can be extended to 59 inches or set to 25 inches, compatible with various vehicles.
• Practical Functions: Ideal for transporting extra luggage, camping equipment, cargo bags, and other items.
• Durable Design: Made of high-strength steel with a black powder coating for rust and corrosion prevention. Features an aerodynamic design to reduce wind resistance and noise.
• Easy Installation: Secures to vehicle crossbars using four universal U-bolts.
• Easy to Store: Segmented structure allows for easy assembly, disassembly, and compact storage.

Setup and Assembly

Follow these steps for proper assembly and installation of your ECOTRIC Roof Rack Cargo Carrier. It is recommended to have assistance during the installation process, especially when lifting the assembled rack onto the vehicle.

Included Components:

• 1 x Roof Rack Cargo Carrier Basket (multi-piece assembly)
• 4 x Universal U-bolts with mounting hardware
• 1 x Steel Fairing

Assembly Steps:

1. Unpack Components: Carefully unbox all parts and lay them out on a clean, flat surface to ensure all pieces are present.
2. Connect Basket Sections: Assemble the main basket sections by sliding the connecting bars into place. Ensure they are securely interlocked.
3. Attach Side Plates: Secure the decorative side plates to the basket frame using the provided bolts. Ensure the star emblem faces outwards.
4. Install Wind Fairing: Attach the steel wind fairing to the front section of the basket using the designated hardware. This helps reduce wind resistance and noise.
5. Prepare U-Bolts: Disassemble the universal U-bolts, separating the U-shaped bolt, the bottom plate, and the wing nuts.
6. Position on Vehicle: With assistance, carefully lift the assembled roof rack onto your vehicle's existing crossbars. Position it centrally and ensure even spacing.
7. Secure with U-Bolts: Place the bottom plate of each U-bolt assembly underneath the vehicle's crossbar. Insert the U-bolt over the crossbar and through the holes in the bottom plate and the roof rack's mounting points. Secure with the wing nuts, ensuring they are tightened evenly on all four corners.

Image: Close-up view of the universal U-bolts used to securely attach the cargo basket to the vehicle's crossbars.

Video: An unpacking and assembly demonstration of a similar roof rack, illustrating the process of connecting sections and securing mounting hardware.

Operating Instructions

The ECOTRIC Roof Rack Cargo Carrier is designed for versatile use. Follow these guidelines for optimal performance and safety.

Loading the Cargo Carrier:

• Weight Capacity: Do not exceed the maximum load capacity of 250 pounds. Distribute weight evenly across the basket.
• Secure Items: Always use cargo nets, bungee cords, or tie-down straps to secure all items within the basket. Ensure no items protrude excessively or obstruct your view.
• Aerodynamic Loading: Place heavier items at the bottom and center of the basket. For optimal aerodynamics and reduced wind noise, consider placing a cargo bag over your items.

Image: Examples of how to load the roof rack with various items such as luggage, camping equipment, and a spare tire, all secured with straps and nets.

Adjusting Size:

The roof rack features an extendable design. To adjust its length:

1. Loosen the bolts connecting the extension part of the basket.
2. Slide the sections to achieve the desired length (25 inches, 59 inches, or an intermediate size).
3. Retighten all bolts securely to ensure stability.

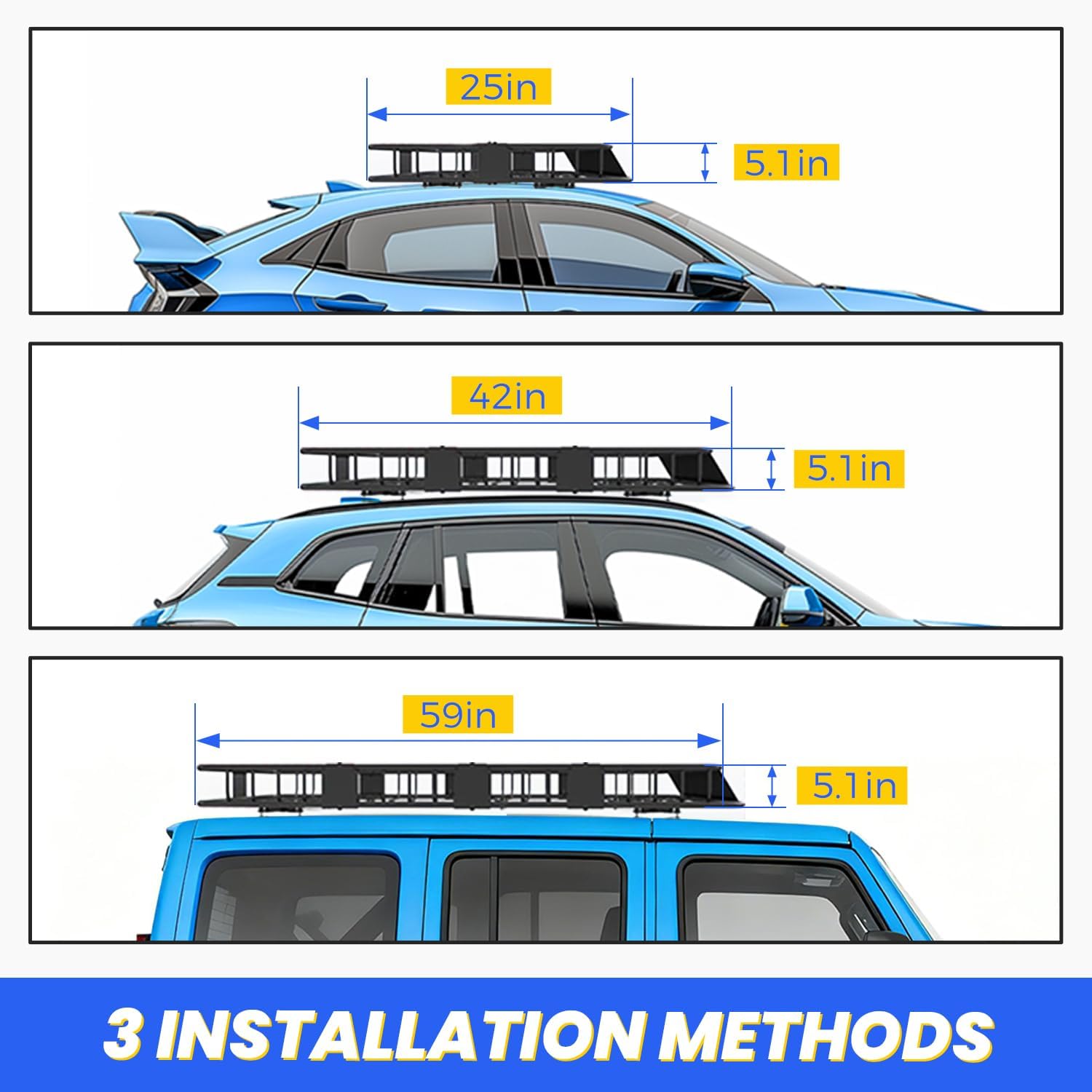

Image: Visual representation of the roof rack's adjustable lengths, demonstrating how it can be configured to 25, 42, or 59 inches.

Video: A demonstration of a 64-inch roof rack basket, showcasing its features and how it can be used to carry various items.

Maintenance

Proper maintenance will extend the lifespan of your roof rack cargo carrier.

• Regular Inspection: Periodically check all bolts, nuts, and connections to ensure they are tight and secure. Retighten as necessary.
• Rust Prevention: The rack is treated with a black powder coating. However, applying a truck bed paint rustproofing treatment to the entire rack, especially in areas prone to wear or moisture, can further enhance rust prevention.
• Cleaning: Clean the rack regularly with mild soap and water. Avoid harsh chemicals that could damage the coating.
• Automatic Car Washes: It is strongly recommended to remove the roof rack before using an automatic car wash to prevent damage to the rack or the vehicle.

Troubleshooting

Here are solutions to common issues you might encounter with your roof rack.

• Wind Noise: The aerodynamic design helps reduce noise. Ensure the wind fairing is correctly installed and positioned. Properly securing all cargo can also minimize noise.
• Rusting: While powder-coated, some users have reported rust, particularly at connection points or if the coating is scratched. Applying a rust-resistant paint or sealant to vulnerable areas, especially before initial use, can help. Regular inspection and touch-ups are advised.
• Loose Connections: If the rack feels unstable, check all U-bolts and assembly bolts. Tighten them firmly. Over time, vibrations can cause fasteners to loosen.
• Cargo Interference: Some mounting hardware may protrude into the cargo area. Consider using protective caps or adjusting the orientation of fasteners to prevent damage to cargo.

Specifications

What's in the Box

• 1 x Roof Rack Cargo Carrier Basket (multi-piece assembly)
