Introduction
Thank you for choosing the Arebos 40 cm Telescopic Cabinet Drawer. This product is designed to maximize storage space and improve accessibility within your cabinets. Made from durable stainless steel, it features a smooth-gliding telescopic mechanism for convenient use. Please read this manual carefully before installation and operation to ensure safe and efficient use of your new cabinet drawer.
Safety Instructions
- Always read and understand all instructions before installation and use.
- Ensure the cabinet structure is sturdy enough to support the drawer and its maximum load capacity of 20 kg.
- Use appropriate tools and wear protective gear during installation.
- Keep small parts and packaging materials away from children to prevent choking hazards.
- Do not overload the drawer beyond its specified weight capacity.
- Ensure the drawer is securely mounted to prevent accidents.
Package Contents
Please check that all components are present before beginning installation:
- 1 x Telescopic Drawer Basket (40 cm)
- 2 x Ball-bearing Telescopic Rails
- Mounting Hardware (screws, brackets)
Image: Telescopic drawer basket with included mounting hardware and slide rails.
Setup and Installation
Follow these steps for proper installation of your telescopic cabinet drawer:
- Measure and Mark: Carefully measure the interior width and depth of your cabinet to ensure the drawer fits. Mark the desired height for the drawer rails on the cabinet side walls. Ensure marks are level.
- Attach Rails to Cabinet: Separate the inner and outer parts of the telescopic rails. Attach the outer rails to the marked positions on the cabinet side walls using the provided screws. Ensure they are firmly secured and parallel.
- Attach Rails to Drawer: Attach the inner rails to the sides of the drawer basket using the smaller screws.
- Insert Drawer: Carefully slide the drawer with its attached inner rails into the outer rails mounted in the cabinet. Ensure the ball bearings engage smoothly.
- Test Functionality: Gently pull the drawer in and out several times to ensure smooth operation and proper alignment.

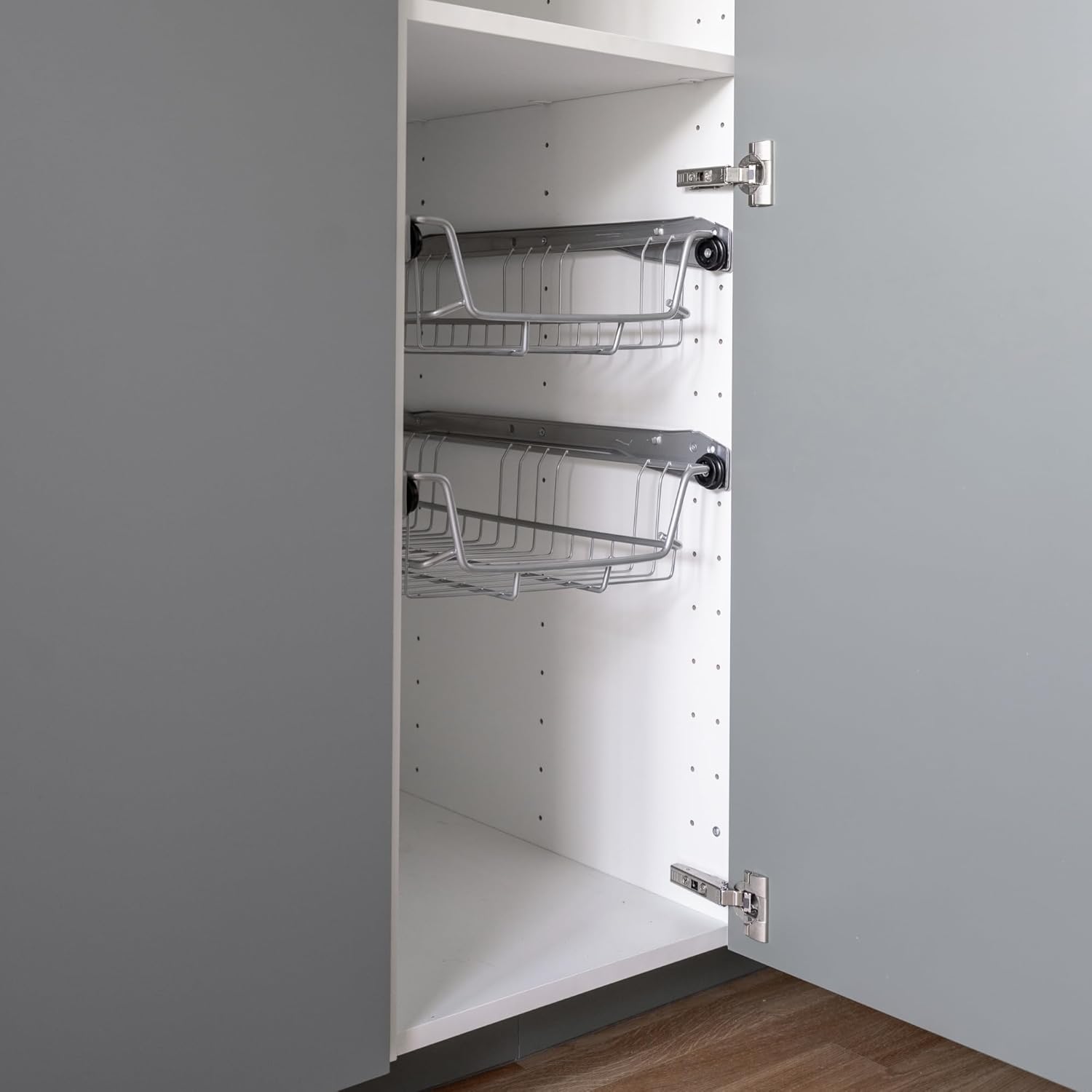

Image: Two telescopic drawers installed within a cabinet, demonstrating their placement and function.
Image: Detailed dimensions of the telescopic drawer, showing approximate measurements of 44 cm length, 37 cm width, and 14 cm height.
Operating Instructions
The Arebos telescopic drawer is designed for simple and efficient use:
- Pulling Out: Gently pull the drawer handle or front edge to extend it from the cabinet. The ball-bearing slides ensure a smooth, friction-free motion.
- Pushing In: Push the drawer back into the cabinet until it is fully closed. The damping rail feature provides a quiet and soft closing action, preventing abrupt impacts.
- Load Capacity: The drawer can hold a maximum weight of 20 kg. Distribute items evenly to maintain balance and prevent damage to the drawer or cabinet.

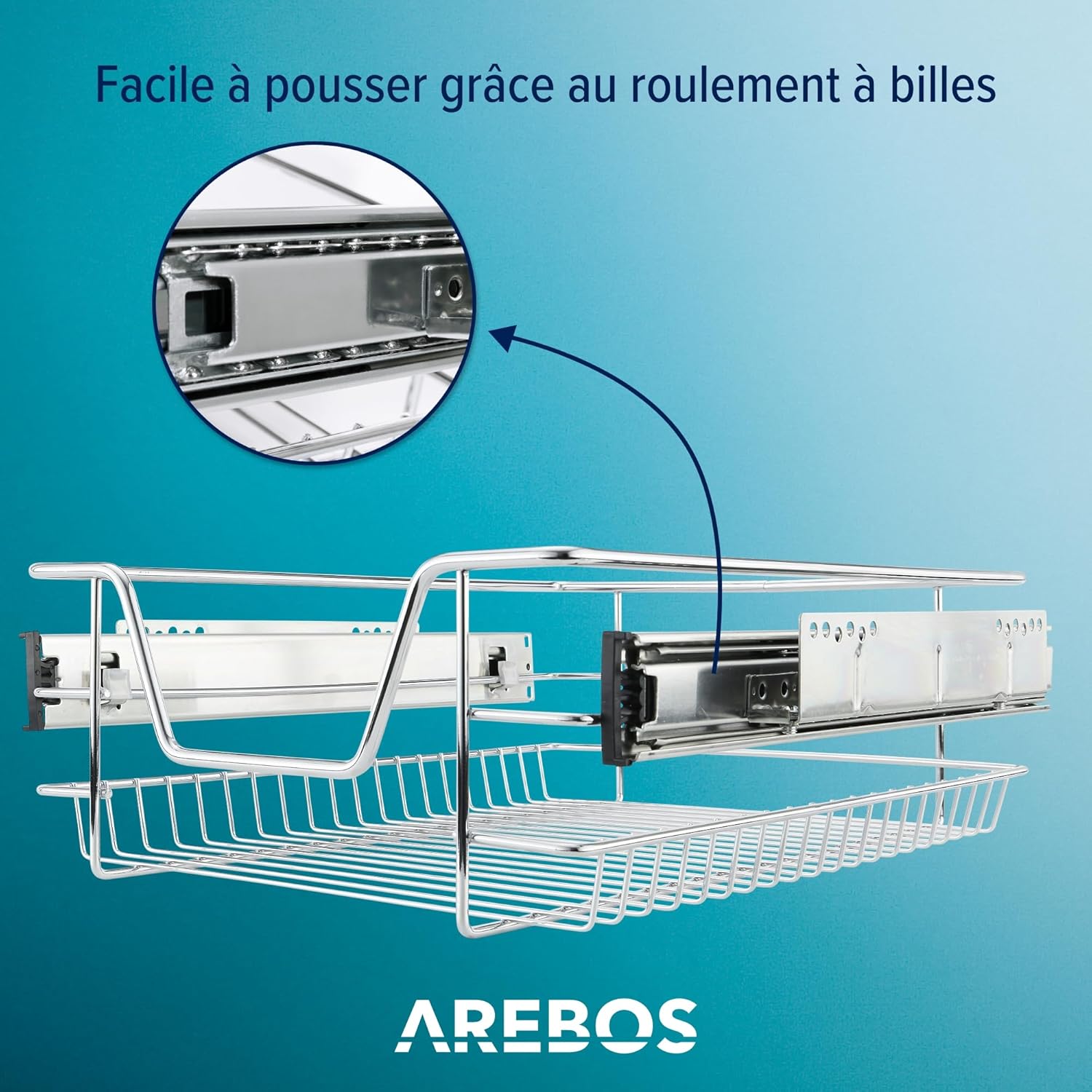

Image: A close-up view of the ball-bearing slide mechanism, highlighting its smooth operation.
Image: The telescopic drawer demonstrating its 20 kg load capacity by holding a kettlebell.
Maintenance
To ensure the longevity and smooth operation of your Arebos telescopic drawer, follow these maintenance tips:
- Cleaning: Wipe the stainless steel surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads, which can scratch the finish. Dry thoroughly.
- Lubrication: Periodically check the telescopic rails. If movement becomes stiff, apply a small amount of silicone-based lubricant to the ball bearings. Do not use oil-based lubricants, as they can attract dust.
- Fastener Check: Regularly inspect all mounting screws and brackets to ensure they remain tight. Retighten if necessary to prevent wobbling or detachment.
Troubleshooting
If you encounter any issues with your telescopic drawer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer does not slide smoothly. | Lack of lubrication, dirt in rails, misalignment. | Clean rails and apply silicone lubricant. Check if rails are parallel and level. |
| Drawer is wobbly or loose. | Loose mounting screws, damaged brackets. | Tighten all mounting screws. Inspect brackets for damage and replace if necessary. |
| Drawer does not close completely. | Obstruction, misalignment, damaged damping mechanism. | Check for items blocking the drawer. Verify rail alignment. If damping mechanism is damaged, contact support. |
| Drawer is difficult to pull out. | Overloaded, stiff rails. | Reduce load in the drawer. Lubricate the rails as described in Maintenance. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Arebos |
| Model Number | 4260627420360 |
| Material | Stainless Steel |
| Color | Silver |
| Dimensions (L x W x H) | Approx. 44 x 37 x 14 cm |
| Weight Capacity | 20 kg |
| Special Features | Damping rail, friction-free gliding, ball-bearing slides |
| Recommended Use | Kitchen, utility room, bathroom, laundry room, bedroom or workshop closets |
Warranty
Arebos products are manufactured with high-quality materials and undergo strict quality control. This product is covered by the manufacturer's standard warranty against defects in materials and workmanship. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the documentation provided at the time of purchase or visit the official Arebos website.
Support
If you have any questions, require assistance with installation, or need to report a problem that cannot be resolved using the troubleshooting guide, please contact Arebos customer support:
- Website: Visit the official Arebos website for FAQs and contact forms.
- Email: Refer to your purchase documentation for customer service email addresses.
- Phone: Refer to your purchase documentation for customer service phone numbers.
Please have your model number (4260627420360) and proof of purchase ready when contacting support.
