REMS MSG 63 FE 256213 Heating Element for Welding Machine User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the REMS MSG 63 FE 256213 Heating Element for Welding Machines. This powerful handheld device is designed for rational sleeve welding of plastic pipes and fittings made from PB, PE, PP, and PVDF. It can be used anywhere, either by hand or mounted on a workbench. The heating element operates at 230 V and features adjustable temperature control. Please read these instructions thoroughly before operation.

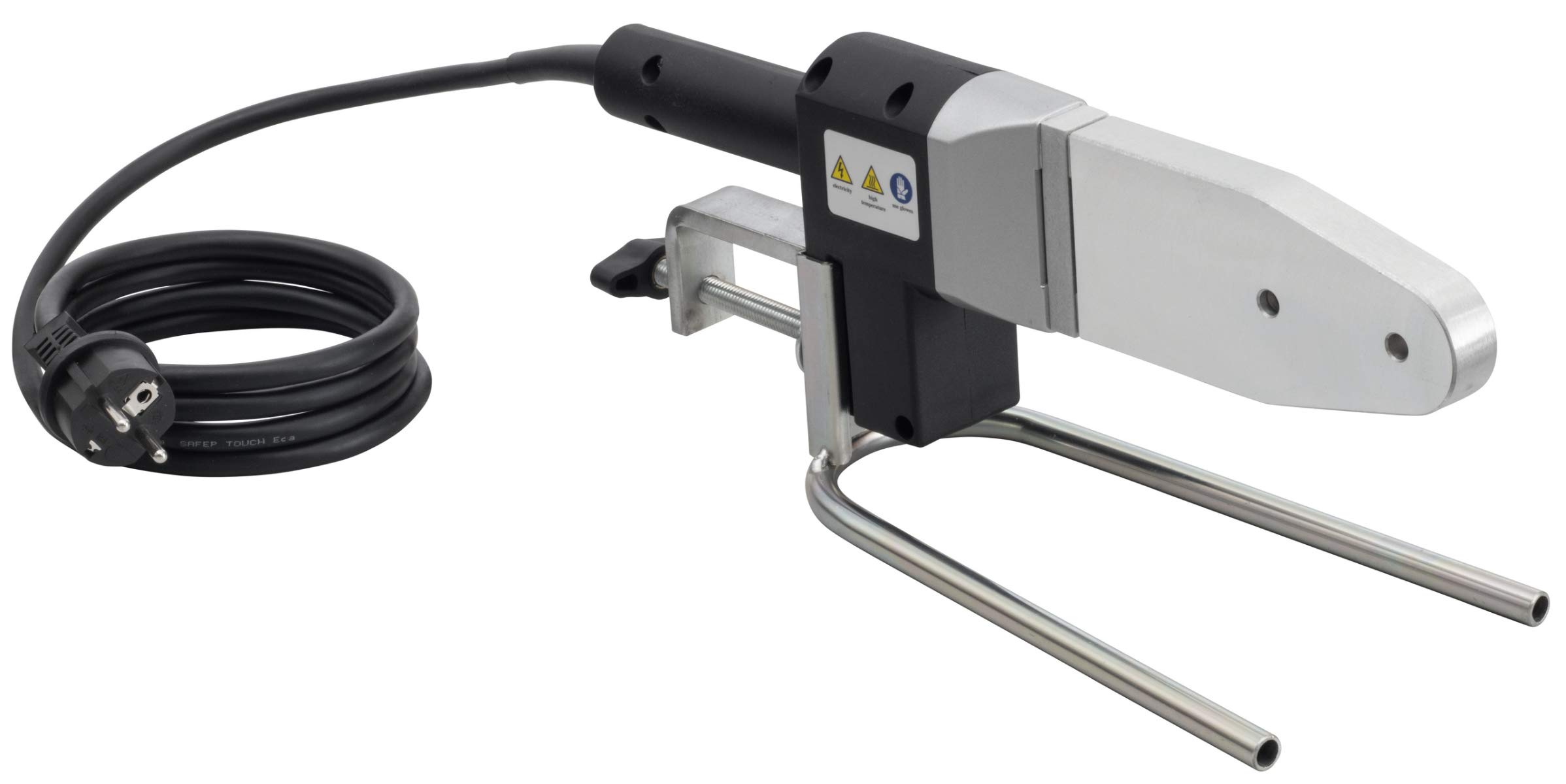

Image 1.1: The REMS MSG 63 FE 256213 Heating Element for Welding Machine. This image shows the compact design of the heating element, typically used for plastic pipe welding.

2. Safety Instructions

Always observe the following safety precautions to prevent injury and damage to the device:

• Electrical Safety: Ensure the power supply matches the device's voltage (230 V). Do not operate with damaged cables or plugs. Disconnect from power before cleaning or maintenance.
• Heat Hazard: The heating element reaches high temperatures. Avoid direct contact with hot surfaces. Use appropriate personal protective equipment (PPE), such as heat-resistant gloves.
• Work Environment: Operate in a well-ventilated area. Keep the work area clean and free of flammable materials. Do not expose the device to rain or damp conditions.
• Proper Use: Use the device only for its intended purpose: sleeve welding of specified plastic pipes and fittings. Do not modify the device.
• Children and Bystanders: Keep children and unauthorized persons away from the operating area.
• Storage: Store the device in a dry, secure place, out of reach of children, when not in use. Allow it to cool completely before storage.

3. Components

The REMS MSG 63 FE 256213 package typically includes:

• REMS MSG 63 FE Sleeve Welding Device with integrated heating element (230 V).
• Power cable.
• Note: Specific sleeve/pipe heating elements are sold separately and are not included with this heating element unit.

4. Setup

Follow these steps to prepare your REMS MSG 63 FE for operation:

1. Unpacking: Carefully remove the device from its packaging and inspect for any shipping damage.
2. Work Area Preparation: Set up a stable, clean, and well-ventilated work area. Ensure adequate lighting.
3. Mounting (Optional): The device can be used handheld or mounted on a workbench. If mounting, secure it firmly according to standard workshop practices.
4. Attach Heating Elements: Securely attach the appropriate sleeve and pipe heating elements (not included) to the device according to the manufacturer's instructions for the specific pipe diameter you intend to weld.
5. Power Connection: Plug the power cable into a suitable 230 V electrical outlet.

5. Operating Instructions

Operating the REMS MSG 63 FE requires precision and adherence to safety guidelines:

1. Power On and Temperature Setting: Switch on the device. Adjust the temperature control to the recommended setting for the specific plastic material (PB, PE, PP, PVDF) and pipe diameter you are working with. Refer to the pipe manufacturer's guidelines for optimal welding temperatures.
2. Heating Time: Allow the device to reach the set temperature. This is usually indicated by a pilot light or a temperature gauge, if present.
3. Pipe Preparation: Ensure the pipe ends and fittings are clean, dry, and cut squarely. Chamfering may be required depending on the pipe system.
4. Welding Process:
   • Simultaneously insert the pipe end into the sleeve heating element and the fitting onto the pipe heating element.
   • Hold them in place for the specified heating time, ensuring even heat distribution.
   • Once heated, quickly and smoothly remove both the pipe and fitting from the heating elements.
   • Immediately join the heated pipe and fitting together with firm, even pressure. Do not twist.
   • Hold the joint steady until the plastic cools and solidifies, forming a strong, homogeneous weld.
5. Cooling: Allow the welded joint to cool completely before handling or subjecting it to stress.
6. Power Off: After use, switch off the device and disconnect it from the power supply. Allow it to cool down before cleaning or storage.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your heating element:

• Cleaning: After each use, once the device has cooled, clean the heating elements and surfaces with a soft, dry cloth. Remove any plastic residue carefully. Do not use abrasive cleaners or solvents.
• Inspection: Periodically inspect the power cable, plug, and heating elements for any signs of wear, damage, or corrosion. Replace damaged parts immediately.
• Storage: Store the device in its original packaging or a protective case in a dry, dust-free environment.
• Professional Service: For any repairs or internal maintenance, contact authorized Rems service personnel.

7. Troubleshooting

Refer to the following table for common issues and their solutions:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Rems customer support.

8. Specifications

• Manufacturer: Rems
• Model Number: 256213 R220
• Product Dimensions (L x W x H): 30 x 15 x 30 cm
• Weight: 2 kg
• Voltage: 230 V
• Color: Black
• Included Components: Sleeve welding device (heating element unit)
• Batteries Required: No
• Temperature Control: Adjustable
• ASIN: B07WP15HKM

9. Warranty and Support

Specific warranty information for the REMS MSG 63 FE 256213 Heating Element is not provided within the product details. For warranty terms, service, or technical support, please refer to the documentation included with your purchase or contact Rems directly through their official website or authorized distributors.

Rems Official Website: www.rems.de (Note: This is a general link to the manufacturer's website and may not lead directly to support for this specific product.)
