Product Overview
This instruction manual provides detailed guidance for the installation and maintenance of the SuperDi Dryer Blower Fan Belt, designed specifically as a replacement part for the Panda PAN725SF 1.50 cubic feet compact dryer. This belt is crucial for the proper operation of your dryer's blower fan system.
Important Compatibility Note:
This belt is exclusively compatible with the Panda PAN725SF (1.50 cu.ft) dryer model. It is not suitable for 2.65 cu.ft or 3.65 cu.ft dryers.
Image: The SuperDi replacement belt shown with a compatible Panda PAN725SF compact dryer.
Product Specifications
- Brand: SuperDi
- Model Compatibility: Panda PAN725SF (1.50 Cu.ft)
- Material: Polyurethane (PU)
- Key Characteristics: Wear-resistant, high-temperature resistant, seamless construction, no cracks, long service life.
- Approximate Diameter: 9 inches
- Approximate Thickness: 0.25 inches

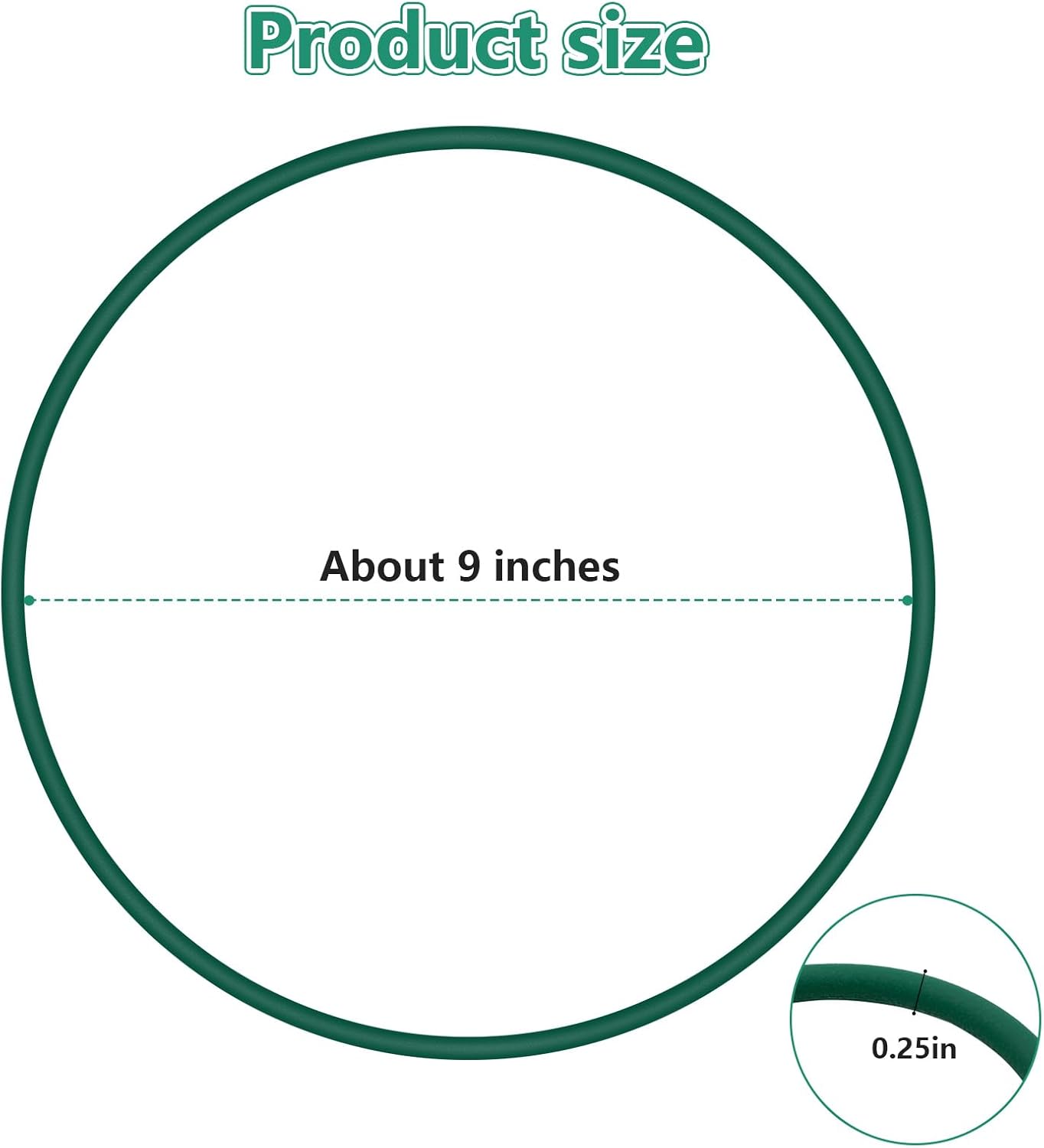

Image: Detailed dimensions of the replacement dryer belt, indicating a diameter of approximately 9 inches and a thickness of 0.25 inches.
Image: Visual representation of the belt's quality, showing its smooth surface, seamless design, and flexibility.
Installation Instructions
Follow these steps carefully to replace the dryer blower fan belt. It is recommended to disconnect the dryer from power before beginning any maintenance.
- Prepare the Dryer: Remove the back cover of the dryer. If present, remove any zip ties on the supporting bracket.
- Loosen Screws: Loosen (but do not fully remove) the top, upper-middle, lower-middle, and bottom screws on the supporting bracket.
- Remove Old Belt (if applicable): If an old belt is present, carefully remove it.
- Install New Belt (Upper Section): Remove the top and upper-middle screws completely. Insert one end of the new belt by gently pulling the supporting bracket and pressing down the blower fan housing.
- Install New Belt (Lower Section): Remove the bottom and lower-middle screws. Insert the other end of the belt by gently pulling the supporting bracket and pressing down the blower fan housing.
- Tighten Screws: Install and fully tighten all screws (top, upper-middle, lower-middle, and bottom) on the supporting bracket.
- Position Belt: Set the belt onto the blower fan pulley and the motor pulley by stretching the belt into place. Ensure it is seated correctly on both pulleys.
- Final Check: Rotate the drum manually to ensure the belt moves freely and is properly aligned. Reattach the back cover.

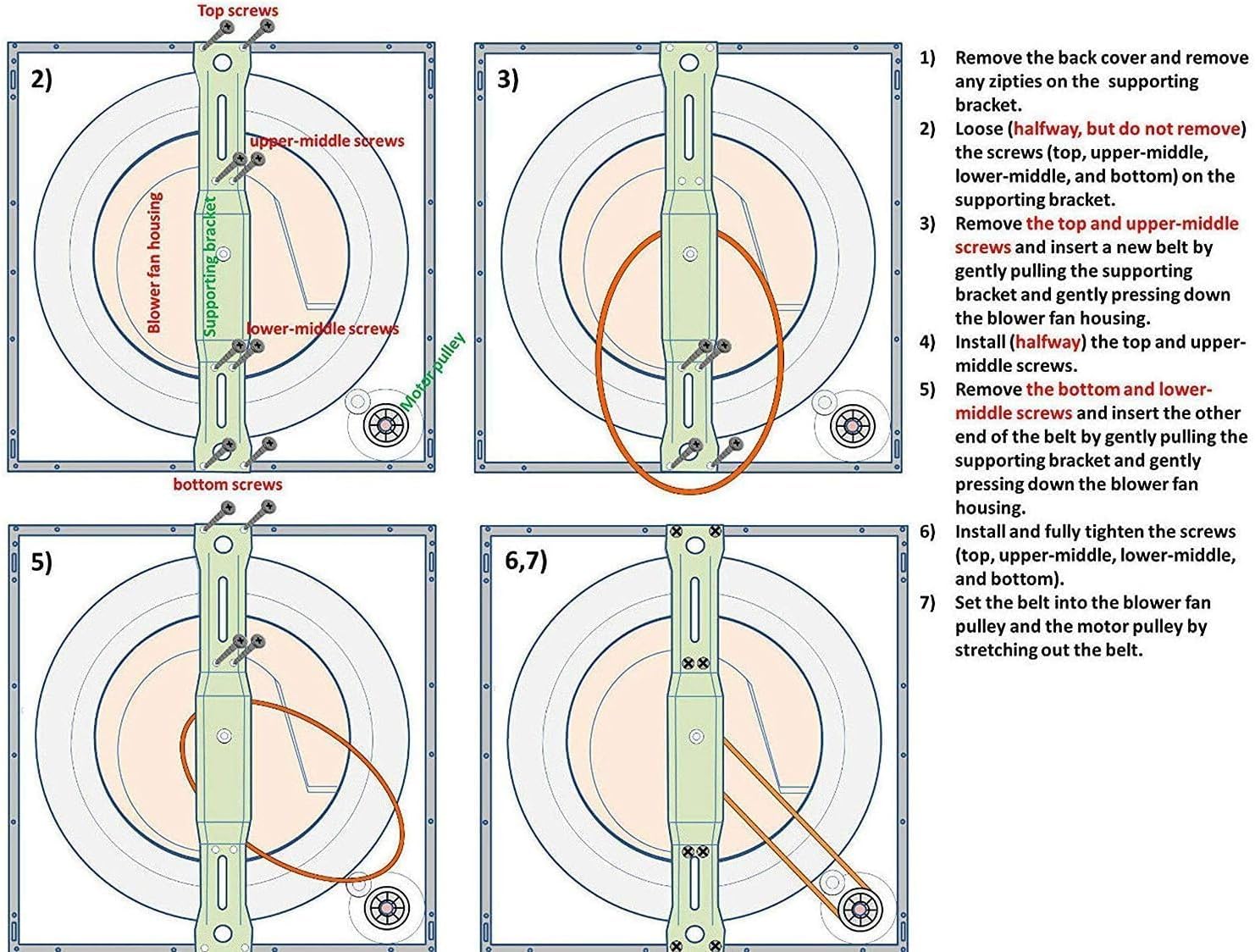

Image: Visual guide detailing the removal of the back panel, loosening of screws, and placement of the new belt onto the pulleys.
Image: A close-up view of the belt being installed around the dryer's internal components.
Troubleshooting
Replacing the blower fan belt can resolve several common dryer issues:
- Dryer Not Moving/Not Working: A broken or worn belt prevents the drum or blower fan from operating.
- Loud Noise During Operation: A damaged or improperly seated belt can cause unusual noises.
- Belt Broken: Direct replacement is necessary if the existing belt is visibly broken or snapped.
Note: The specific method for replacing the belt may vary slightly depending on your dryer's exact model and internal configuration. Always refer to your dryer's original service manual for additional guidance if needed.
Maintenance and Care
To ensure the longevity of your new SuperDi dryer blower fan belt:
- Periodically inspect the belt for signs of wear, cracking, or fraying.
- Ensure the dryer is not overloaded, as excessive weight can put undue stress on the belt and motor.
- Keep the dryer's internal components clean from lint and debris, which can interfere with belt operation.
Support Information
For further assistance or inquiries regarding the SuperDi Dryer Blower Fan Belt, please contact SuperDi customer support through their official channels. Always provide your product model number (PAN725SF) when seeking support.
