1. Safety Instructions
Please read all safety instructions carefully before operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the input voltage (DC 12V) is suitable for the pump. Using an incorrect voltage will cause the pump to malfunction or burn out.
- Do not operate the pump in corrosive liquids. This pump is designed for fresh water use only.
- Avoid long-term dry burning of the product. Always ensure the pump is fully submerged in water during operation.
- Keep the motor running within its rated power to ensure a long lifespan.
- Regularly clean the pump to prevent clogging and maintain optimal performance.
- Ensure all connections, especially water pipes to the nozzle, are securely and tightly sealed to prevent leaks.
2. Product Overview
2.1 Key Features
- Ultra Quiet Operation: The reliable and durable motor produces minimal noise, ensuring a quiet environment.
- Powerful Performance: Capable of elevating a column of water up to 4.9 feet (1.5 meters).
- Compact Design: Small size (1.53in x 1.41in x 1.11in) makes the pump easy to hide or disguise in water features.
- Easy Installation: Equipped with suction cups for secure mounting onto glass surfaces.
- Durable Construction: Made from PC+ABS material with an IP68 waterproof rating.
2.2 Package Contents
- 1x SENSTREE JYC-203H Submersible Water Pump

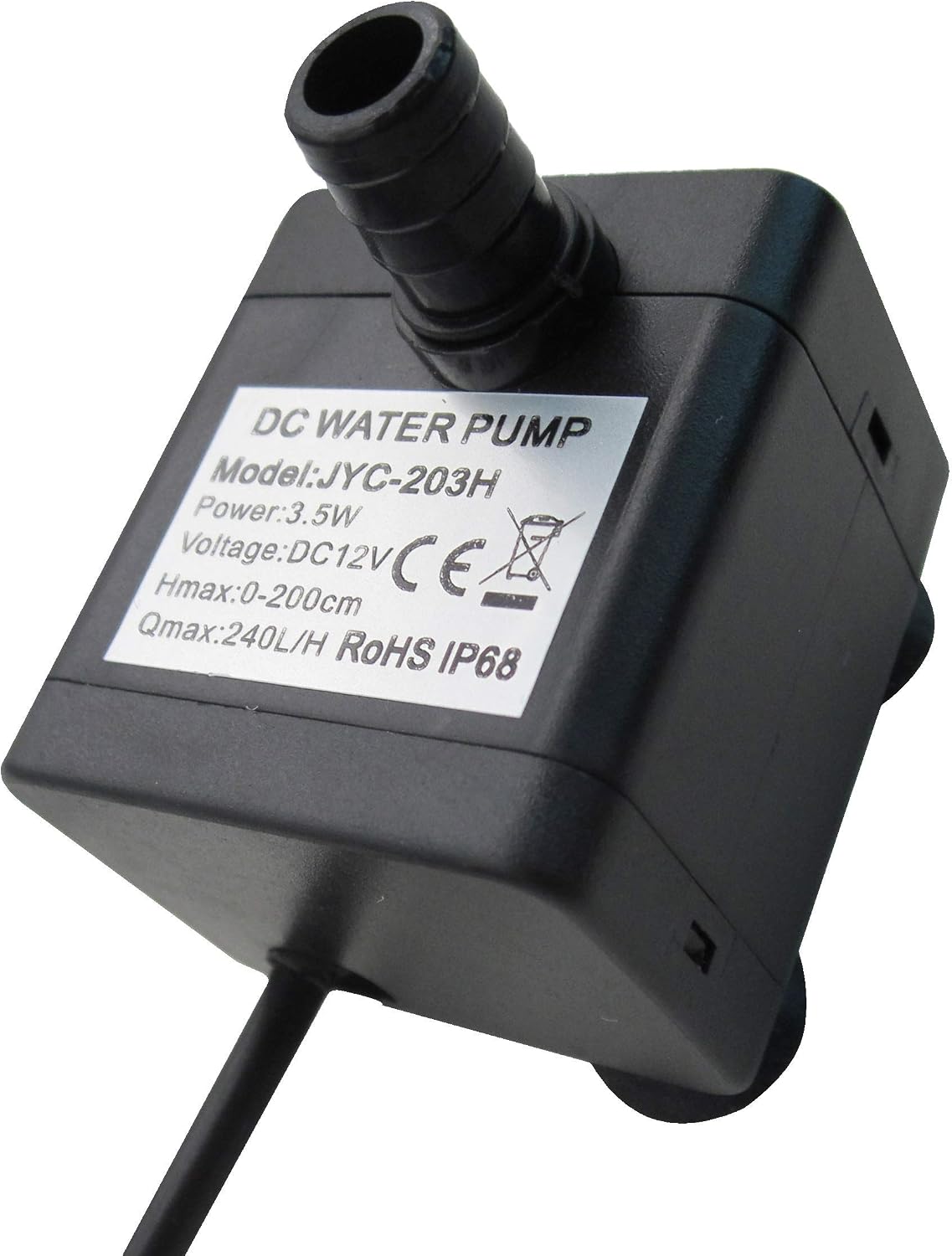

Image 2.1: The SENSTREE JYC-203H Submersible Water Pump, showcasing its compact design and outlet nozzle.
3. Specifications
| Model | JYC-203H |
| Brand | SENSTREE |
| Rated Voltage | DC 12V |
| Max Power | 3.5W |
| Rated Current | 0.5A |
| Max Flow Rate | 200 L/H (52 GPH) |
| Max Lift Height | 1.5m (4.9 ft) |
| Noise Level | <40db |
| Waterproof Grade | IP68 |
| Material | PC+ABS |
| Product Dimensions (L x W x H) | 1.53" x 1.41" x 1.11" (39mm x 36mm x 28mm) |
| DC Connector Jack | 5.5mm x 2.1mm female plug |
| Power Cord Length | 1.4m (4.59 ft) |
Image 3.1: The pump with its 1.4m (4.59 ft) power cord, showing the DC connector.
4. Setup
4.1 Before Installation
- Unpack the pump and inspect it for any damage.
- Verify that your power supply provides a stable DC 12V output. An incompatible power supply can damage the pump.
- Ensure the area where the pump will be placed is clean and free of debris.
4.2 Installation Steps
- Attach Suction Cups: If not already attached, place the suction cups onto the bottom of the pump for secure mounting.
- Position the Pump: Place the pump in the desired location, ensuring it is fully submerged in water. The suction cups can be used to secure it to a smooth surface like glass.
- Connect Water Pipe: Attach a water pipe or a fitted device to the pump's outlet nozzle. Ensure the connection is secure and watertight to prevent leaks and maximize lift height.
- Connect Power: Plug the pump's DC connector into a compatible DC 12V power supply.
- Test Operation: Once connected, the pump should begin operating. Observe for proper water flow and check for any leaks.
Image 4.1: Bottom view of the pump showing the suction cups for stable placement.
5. Operation
- The pump is designed for continuous operation when fully submerged in fresh water.
- Ensure the water level is always above the pump's intake to prevent dry running, which can damage the motor.
- Monitor the water flow to ensure it meets your requirements. The maximum lift height is achieved when the water pipe is securely connected to the nozzle.
- The pump operates quietly, but any unusual noises may indicate a blockage or malfunction.
6. Maintenance
Regular maintenance is crucial for the longevity and efficient operation of your pump.
- Regular Cleaning: Periodically remove the pump from the water and clean any accumulated debris from the intake screen and impeller area. This prevents clogging and maintains flow rate.
- Check for Blockages: Inspect the outlet nozzle and connected tubing for any blockages that might restrict water flow.
- Inspect Power Cord: Regularly check the power cord for any signs of damage or wear. Do not use the pump if the cord is damaged.
- Avoid Dry Running: Always ensure the pump is submerged in water during operation. Dry running can cause overheating and permanent damage.
- Storage: If storing the pump for an extended period, clean it thoroughly, dry it, and store it in a cool, dry place.
Image 6.1: Side view of the pump, highlighting the water intake area that should be kept clear of debris.
7. Troubleshooting
If you encounter issues with your pump, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start or operate. | No power; Incorrect voltage; Clogged impeller; Damaged motor. | Check power connection. Ensure DC 12V supply. Clean impeller. If motor is damaged, replacement may be necessary. |
| Low water flow. | Clogged intake/impeller; Kinked or blocked tubing; Insufficient water level. | Clean intake and impeller. Check and clear tubing. Ensure pump is fully submerged. |
| Pump is noisy. | Debris in impeller; Pump not stable; Dry running. | Clean impeller. Secure pump with suction cups. Ensure pump is fully submerged. |
| Water leakage. | Loose connection at nozzle; Damaged tubing. | Ensure water pipe is securely attached to the nozzle. Inspect tubing for cracks or damage and replace if necessary. |
8. Warranty and Support
SENSTREE products are manufactured to high-quality standards. For specific warranty information, please refer to the product packaging or contact your retailer.
If you require further assistance or have questions not covered in this manual, please contact SENSTREE customer support through the retailer where the product was purchased or visit the official SENSTREE store online.
