1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Yaheetech Lift-Top Coffee Table, Model YA-00094165. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: The Yaheetech Lift-Top Coffee Table with its top raised, providing a convenient surface for a laptop and a mug.

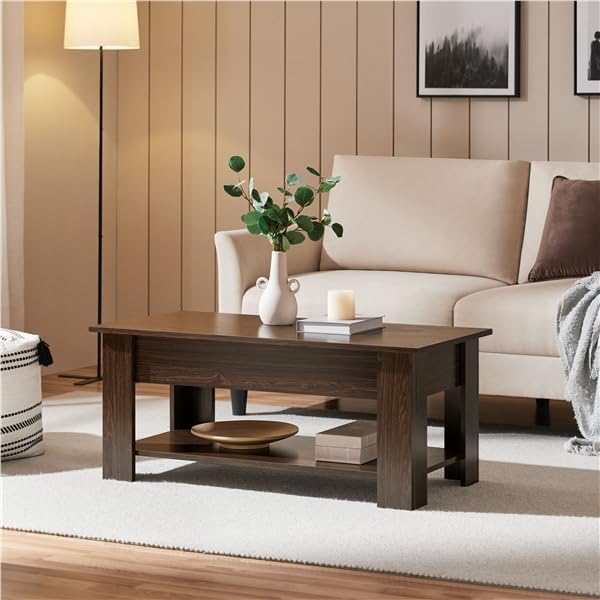

Image 1.2: The coffee table in a living room, showcasing its compact form when the lift-top is closed, adorned with decorative items.
2. Safety Information
WARNING:
- For your safety, do not engrave on the coffee table surface.
- Ensure all screws and fasteners are securely tightened before use.
- Do not exceed the maximum weight capacity of 35 kg (77 lbs) for the entire table.
- Keep small parts away from children during assembly to prevent choking hazards.
- Operate the lift-top mechanism carefully to avoid pinching fingers.
Image 2.1: Close-up view of the protective pads installed on the table legs, designed to prevent scratches and provide stability.
3. Package Contents
Before assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact Yaheetech customer support.
- Tabletop Panel
- Side Panels
- Bottom Shelf Panel
- Lift-Top Mechanism (Gas Struts and Hinges)
- Hardware Pack (Screws, Dowels, Connectors)
- Protective Pads
- Assembly Tool (e.g., Hex Key)
- Instruction Manual
4. Setup Instructions
Assembly typically requires two people. Please follow these general steps. Refer to the included diagram for specific part identification.
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface (e.g., a blanket or carpet) to prevent scratches. Identify each part using the provided parts list.
- Assemble the Base Structure: Attach the side panels to the bottom shelf using the designated screws and dowels. Ensure connections are firm.
- Install the Lift Mechanism: Secure the lift-top mechanism to the inner frame of the table base according to the diagrams. Pay close attention to the orientation of the gas struts.
- Attach the Tabletop: Carefully align the tabletop with the lift mechanism and secure it with the appropriate screws. Test the lift function gently to ensure smooth operation.
- Final Tightening and Inspection: Once fully assembled, double-check all screws and fasteners to ensure they are tight. Place the protective pads on the bottom of the table legs.
5. Operating Instructions
5.1. Using the Lift-Top Mechanism
The Yaheetech Lift-Top Coffee Table features a pneumatic lift mechanism for adjustable height. To raise the tabletop, gently pull it upwards. The gas struts will assist in lifting and holding the top in place. To lower, gently push the tabletop down until it rests in its original position. The mechanism is designed for smooth and silent operation.
Image 5.1: A visual comparison demonstrating the table in its standard closed position and with the lift-top fully extended.

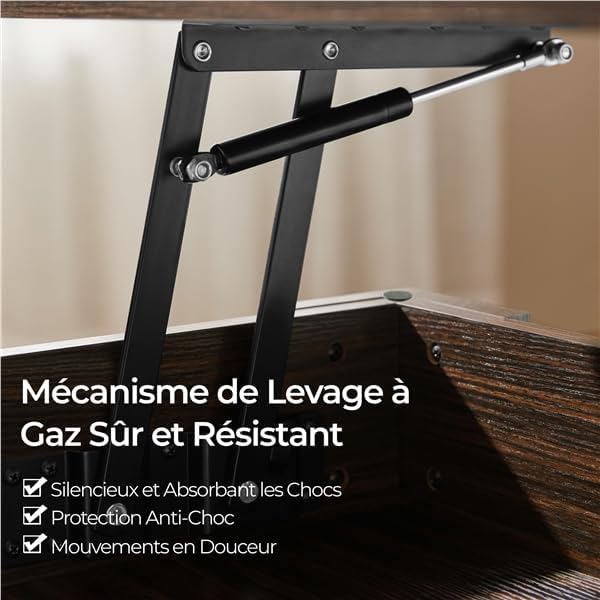

Image 5.2: Detailed view of the robust gas lift mechanism, highlighting its components for smooth and stable operation.
5.2. Utilizing Storage Compartments
The table includes a spacious hidden compartment beneath the lift-top and an open lower shelf for additional storage. The hidden compartment is ideal for keeping items like books, remote controls, or snacks out of sight, maintaining a tidy living space.

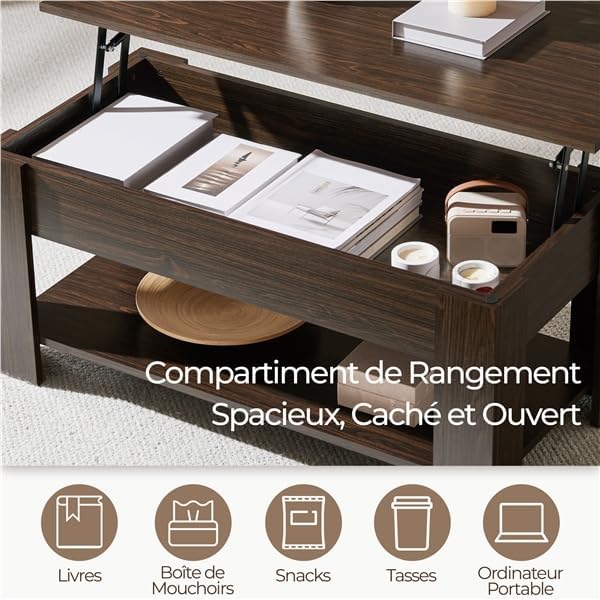

Image 5.3: The spacious hidden storage compartment, shown holding various items such as books, a tissue box, snacks, cups, and a portable computer.
6. Maintenance
To ensure the longevity and appearance of your coffee table, follow these maintenance guidelines:
- Cleaning: The table surface is water-resistant and easy to clean. Wipe with a soft, damp cloth and mild soap solution. Avoid harsh chemicals or abrasive cleaners.
- Protection: The surface is resistant to light scratches. However, using coasters for drinks and placemats for hot items is recommended to prevent damage.
- Inspection: Periodically check all fasteners and tighten them if necessary to maintain stability.

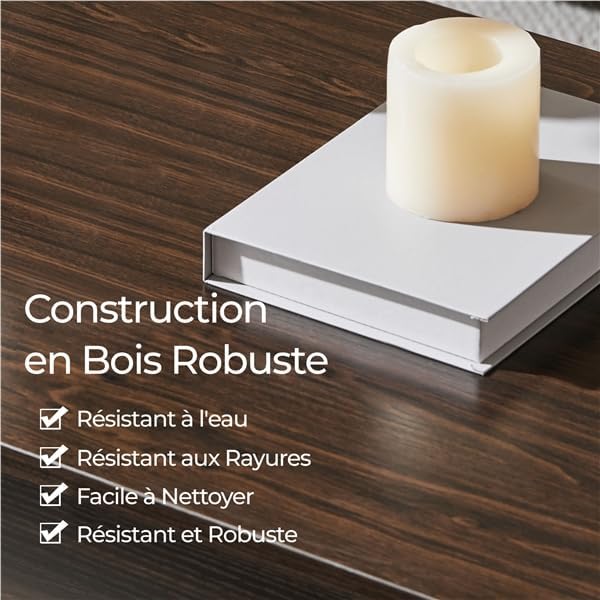

Image 6.1: A close-up of the table's durable wood construction, emphasizing its resistance to water and scratches, and ease of cleaning.
7. Troubleshooting
If you encounter any issues with your Yaheetech Lift-Top Coffee Table, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Table is wobbly | Loose fasteners; uneven floor | Tighten all screws. Adjust protective pads or use shims if the floor is uneven. |
| Lift-top mechanism is stiff or noisy | Mechanism needs lubrication; improper assembly | Apply a small amount of silicone-based lubricant to moving parts. Recheck assembly steps for correct installation of the mechanism. |
| Scratches or surface damage | Sharp objects; excessive force | For minor scratches, furniture repair pens or waxes may be used. Prevent future damage by using protective coverings. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Yaheetech |
| Model Number | YA-00094165 |
| Color | Marron (Brown) |
| Dimensions (L x W x H) | 98 x 50 x 42 cm (closed) / 98 x 50 x 56 cm (lifted) |
| Material | MDF, Metallic |
| Item Weight | 18 Kilograms |
| Maximum Weight Recommendation | 35 Kilograms |
| Features | Storage, Space-saving, Lift-top mechanism |
Image 8.1: Detailed diagram illustrating the dimensions of the coffee table in both closed and lifted positions, along with maximum load capacities for different sections.
9. Warranty and Support
For warranty information, replacement parts, or technical support, please contact Yaheetech customer service. Details can typically be found on the product packaging or the official Yaheetech website.
You can visit the Yaheetech store for more information: Yaheetech Store
