BaByliss AS952E Big Hair Dual Rotating Airstyler Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and effective use of your BaByliss AS952E Big Hair Dual Rotating Airstyler. Please read all instructions carefully before use and retain for future reference.

Important Safety Warnings

• Always ensure the voltage specified on the appliance corresponds to your mains voltage.
• Do not use this appliance near water, in a bathroom, or near a basin containing water.
• Do not immerse the appliance in water or other liquids.
• Keep the appliance away from children.
• Always unplug the appliance after use and before cleaning.
• Do not use if the cord is damaged. Contact customer support for repair.
• Allow the appliance to cool down completely before storing.
• Do not block the air inlets or outlets during use.
• The appliance may become hot during use. Avoid direct contact with skin.

Product Components

The BaByliss AS952E Big Hair Dual Rotating Airstyler includes the following components:

• Main Airstyler Unit: The primary device with a 650W motor, power/heat settings, and rotation controls.
• 50mm Ceramic Rotating Brush Attachment: For shaping and smoothing hair, suitable for longer hair.
• 40mm Ceramic Rotating Brush Attachment: For shorter hair, layers, and fringes, providing volume and shape.

Image: The BaByliss AS952E Big Hair Dual Airstyler main unit shown with both the 50mm and 40mm ceramic rotating brush attachments.

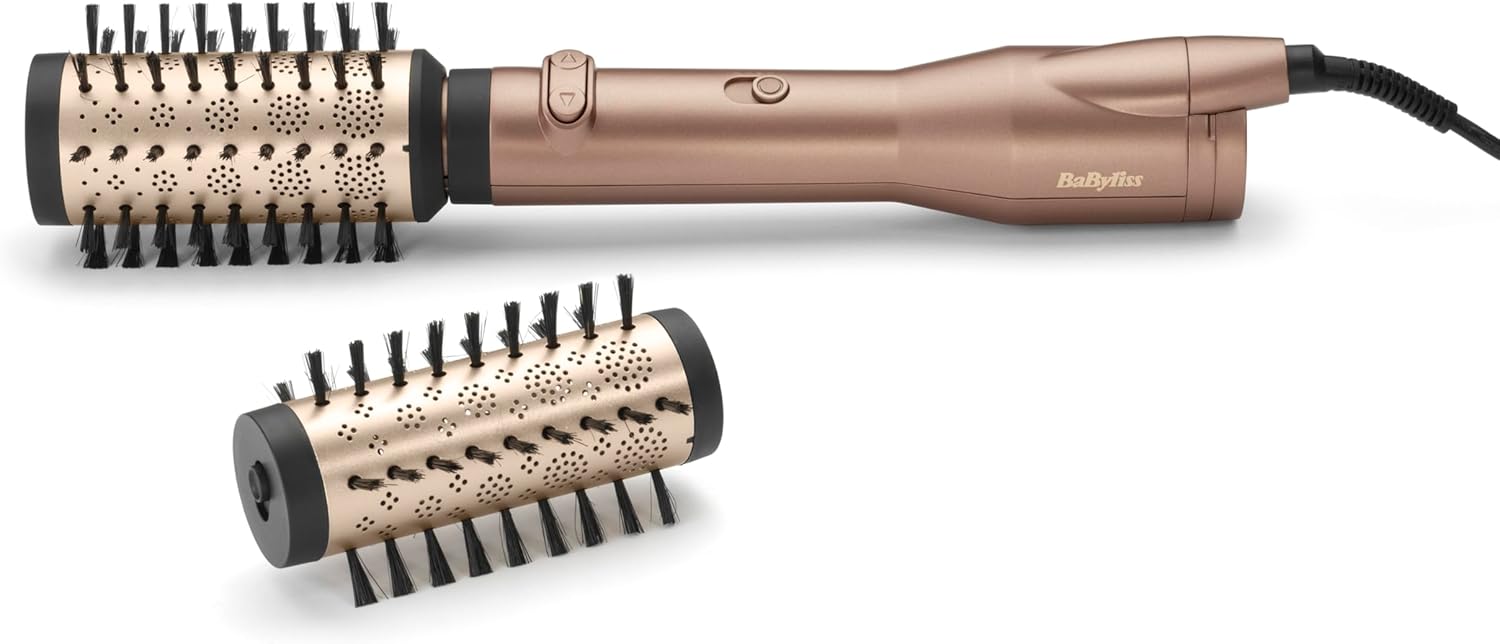

Image: The BaByliss AS952E Big Hair Dual Airstyler with the larger 50mm brush attached, and the smaller 40mm brush lying separately.

Setup

1. Select Brush Attachment: Choose either the 50mm or 40mm ceramic rotating brush attachment based on your hair length and desired style. The 50mm brush is generally for longer hair and larger volume, while the 40mm brush is for shorter hair, layers, or creating tighter curls/flips.
2. Attach Brush: Align the chosen brush attachment with the main airstyler unit. Push it firmly until it clicks into place. Ensure it is securely fastened before use.
3. Plug In: Insert the power cord into a suitable electrical outlet.

Image: A close-up view of the two ceramic rotating brush attachments, 50mm and 40mm, showing their bristles and attachment mechanism.

Operating Instructions

Follow these steps for optimal styling results:

1. Prepare Hair: Ensure your hair is approximately 80% dry. Comb through your hair to remove any tangles. Create your desired parting and divide your hair into manageable sections, ready for styling.
2. Power On and Select Heat: Slide the switch on the handle to position 'I' (low heat) or 'II' (high heat) to turn on the appliance and select a heat setting appropriate for your hair type.
3. Root Volume: For added volume at the roots, place the brush underneath a section of hair close to the scalp and hold it for a few seconds. Use the brush to lift the hair at the root while drying.
4. Rotating Brush Styling:
   • Move the brush down through the hair section.
   • Begin rotating the brush away from your head by pressing and holding the appropriate rotation button (up or down arrow).
   • As the brush rotates, gently resist its movement by pulling the brush downwards. This action creates tension in the hair section, which is crucial for effective styling.
   • Important: Mastering this technique may require several attempts. If the brush rotates too quickly or becomes tangled, simply release the rotation button and carefully remove the brush from your hair.
   • When you reach the ends of the hair section, continue the brush rotation to curl the ends inwards or outwards as desired.
5. Repeat: Repeat the styling process for all sections of your hair as needed.
6. Cool Shot: Use the cool shot button (indicated by a snowflake icon) to set your style with a burst of cool air, enhancing shine and hold.
7. Power Off and Unplug: After use, slide the switch to the '0' position to turn off the appliance and unplug it from the power outlet.
8. Cool Down: Allow the appliance to cool down completely before storing it.

Image: A detailed view of the rotation control buttons on the BaByliss AS952E airstyler handle, showing the up and down arrows for brush rotation.

Image: A close-up of the power switch and heat settings (0, I, II) along with the cool shot button on the BaByliss AS952E airstyler handle.

Maintenance

Proper maintenance ensures the longevity and performance of your airstyler.

• Cleaning the Brushes: Regularly remove any trapped hair from the brush bristles. You can use a fine-tooth comb or your fingers to gently pull out hair.
• Cleaning the Unit: Wipe the main unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
• Air Filter: Periodically check and clean the rear air filter to prevent dust and hair buildup, which can affect performance and lead to overheating. Gently remove any debris.
• Storage: Store the appliance in a cool, dry place, away from direct sunlight and moisture. Ensure the cord is not tightly wrapped around the appliance to prevent damage.

Troubleshooting

Specifications

• Model: AS952E
• Power: 650 Watts
• Heat Settings: 2 heat settings + Cool Shot button
• Brush Attachments: 50mm and 40mm ceramic rotating brushes
• Technology: Ionic technology for frizz-free results
• Material: Ceramic (brushes)
• Weight: Approximately 325 grams (11.46 ounces)
• Dimensions (L x W x H): 25.4 x 5.08 x 6.86 cm (main unit)
• Origin: China

Warranty Information

This BaByliss AS952E Big Hair Dual Rotating Airstyler comes with a 3-year manufacturer's warranty from the date of purchase. Please retain your proof of purchase for any warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, unauthorized service, or normal wear and tear.

Customer Support

For further assistance, product information, or warranty claims, please visit the official BaByliss website or contact their customer service department. You can also find more information on the BaByliss Brand Store.
