Introduction
This manual provides essential information for the Fagor Induction Coil, model C69E001A8. This component is designed as a replacement part for specific electric cooktops and ovens. It is crucial to understand its function and proper installation procedures to ensure safe and effective operation of your appliance.
The Fagor Induction Coil C69E001A8 is compatible with various brands, including Fagor, Edesa, Aspes, De Dietrich, Brandt, White Westinghouse, Thomson, and Asber. Always verify compatibility with your specific appliance model before installation.
Product Overview

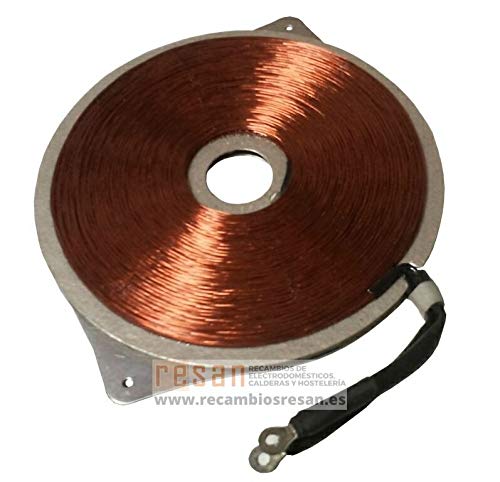

Image 1: Fagor Induction Coil C69E001A8. This image displays the circular copper coil with a central opening, mounted on a metal base, and connected to two electrical terminals via a black insulated wire.
The induction coil is a core component in induction cooktops, responsible for generating the electromagnetic field that heats compatible cookware directly. This specific coil is a replacement part, identified by the code C69E001A8.
Installation (Setup)
Warning: Installation of this component involves working with electrical appliances and high voltage. Improper installation can lead to electric shock, fire, or damage to the appliance. It is strongly recommended that installation be performed by a qualified and certified technician.
- Safety First: Disconnect the appliance from the main power supply before attempting any installation or repair.
- Access the Cooktop: Carefully disassemble the cooktop or oven to gain access to the existing induction coil. Refer to your appliance's specific service manual for detailed disassembly instructions.
- Remove Old Coil: Disconnect the wiring from the old induction coil and carefully remove it from its mounting. Note the orientation and connection points.
- Install New Coil: Position the new Fagor Induction Coil C69E001A8 in the same location and orientation as the old coil. Secure it using the original mounting hardware.
- Connect Wiring: Reconnect the electrical wiring to the terminals of the new coil. Ensure all connections are secure and correctly matched according to the appliance's wiring diagram.
- Reassemble Appliance: Carefully reassemble the cooktop or oven, ensuring all components are properly seated and secured.
- Test Functionality: Reconnect the appliance to the main power supply and perform a functional test to ensure the induction hob operates correctly.
Operating Principles
Once correctly installed, the Fagor Induction Coil C69E001A8 functions as part of your induction cooktop's heating system. When the cooktop is activated, the coil generates a high-frequency alternating electromagnetic field. This field induces eddy currents directly within the base of compatible ferromagnetic cookware (e.g., cast iron, stainless steel with a magnetic base), causing the cookware itself to heat up. The coil itself does not generate heat directly but transfers energy to the cookware.
Maintenance
The Fagor Induction Coil C69E001A8 is a sealed electronic component and generally requires no routine user maintenance. However, to ensure its longevity and proper function within the appliance:
- Keep Dry: Ensure the area around the coil within the appliance remains dry and free from liquid spills.
- Cleanliness: During any appliance servicing, ensure the coil and surrounding components are free from dust, grease, or debris that could impede airflow or cause overheating.
- Inspection: If the appliance is disassembled for other repairs, visually inspect the coil for any signs of physical damage, discoloration, or loose connections.
Any internal cleaning or inspection should only be performed by a qualified technician with the appliance disconnected from power.
Troubleshooting
If your induction cooktop does not function correctly after replacing the induction coil, consider the following troubleshooting steps:
- Power Supply: Ensure the appliance is properly connected to the main power supply and that the circuit breaker has not tripped.
- Wiring Connections: Double-check all electrical connections to the new coil. Ensure they are secure and correctly matched according to the appliance's wiring diagram. Loose or incorrect connections are a common cause of malfunction.
- Component Compatibility: Verify that the Fagor Induction Coil C69E001A8 is the correct replacement part for your specific appliance model.
- Other Components: The malfunction might not be due to the induction coil itself. Other components of the induction cooktop, such as the control board or power module, could be faulty.
- Professional Assistance: If the issue persists after checking these points, it is highly recommended to contact a qualified appliance repair technician for diagnosis and repair. Do not attempt complex electrical repairs yourself.
Specifications
| Manufacturer: | Fagor |
| Model Reference: | C69E001A8 |
| Application: | Electric Cooktops, Ovens (COCINAS-HORNOS-VITROCERAMICAS) |
| ASIN: | B07W9979RY |
| First Available: | 23 August 2020 |
| Compatible Brands: | Fagor, Edesa, Aspes, De Dietrich, Brandt, White Westinghouse, Thomson, Asber |
Warranty Information
Information regarding the availability of spare parts and specific warranty terms for the Fagor Induction Coil C69E001A8 is not provided in the product data. For warranty details, please refer to the purchase documentation or contact the seller directly. Standard consumer rights and guarantees may apply based on your region.
Support
For technical assistance, installation guidance, or further inquiries regarding the Fagor Induction Coil C69E001A8, please contact the retailer or the manufacturer. When contacting support, please have your appliance model number and the coil's reference number (C69E001A8) available.
Seller: RESAN Pièces de rechange pour appareils et chaudiè
For general information about Fagor products, you may visit the official Fagor Commercial website or their Amazon store page.
