Introduction
Thank you for purchasing the Amazon Basics Multi-Functional Air Fryer. This appliance is designed to provide a healthier alternative to traditional frying, allowing you to cook a variety of foods with little to no oil. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new air fryer. Please read it thoroughly before first use and keep it for future reference.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure adequate ventilation around the appliance during use.
Product Overview
Familiarize yourself with the components of your Amazon Basics Air Fryer.
Figure 1: Front view of the Amazon Basics Multi-Functional Air Fryer, showing the main unit, control panel, and handle.
Figure 2: The air fryer with its cooking basket pulled out, demonstrating the removable design for easy loading and unloading of food.
Figure 3: Close-up view of the control panel, featuring the timer dial (0-30 minutes) and temperature control dial (up to 200°C), along with Power and Ready indicator lights.
Components:
- Main Unit: Houses the heating element and fan.
- Cooking Basket: Removable, non-stick basket for holding food.
- Handle: For safely pulling out and inserting the cooking basket.
- Timer Dial: Used to set cooking time (0-30 minutes).
- Temperature Control Dial: Used to set cooking temperature (up to 200°C).
- Power Indicator Light: Illuminates when the unit is powered on.
- Ready Indicator Light: Illuminates when the set temperature is reached.
- Air Inlet/Outlet: For proper air circulation during operation.
Setup
- Unpack: Remove all packaging materials, stickers, and labels from the appliance.
- Clean: Wipe the exterior of the appliance with a damp cloth. Wash the cooking basket and any removable parts with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
- Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm (4 inches) of free space on the back and sides, and 10 cm (4 inches) above the appliance to allow for proper air circulation. Do not place it directly against a wall or under cabinets.
- Power Connection: Ensure the power cord is fully extended and plugged into a grounded wall outlet.
- Initial Run (Optional): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (350°F) to burn off any manufacturing residues. A slight odor may be present, which is normal and will dissipate.
Operating Instructions
General Operation:
- Prepare Food: Place the food you wish to cook into the cooking basket. Do not overfill the basket to ensure even cooking.
- Insert Basket: Slide the cooking basket back into the main unit until it clicks securely into place.
- Set Temperature: Turn the temperature control dial to your desired cooking temperature (e.g., 180°C for most foods). The Ready indicator light will illuminate.
- Set Timer: Turn the timer dial to your desired cooking time. The Power indicator light will illuminate, and the air fryer will begin heating.
- Preheating: For best results, preheat the air fryer for 3-5 minutes before adding food. Simply set the temperature and timer, let it run, then add food once the Ready light indicates the temperature is reached.
- Shaking/Flipping: For some foods, especially fries or chicken wings, it is recommended to shake or flip the food halfway through the cooking time to ensure even browning. To do this, carefully pull out the basket, shake or flip the food, and then reinsert the basket. The air fryer will resume cooking.
- Completion: When the timer reaches zero, the air fryer will automatically turn off and a bell will sound. Carefully pull out the basket and remove the cooked food.
- Cool Down: Allow the appliance to cool down completely before cleaning or storing.
Cooking Guidelines (Approximate):
The top panel of your air fryer provides quick reference cooking suggestions. These are general guidelines; actual cooking times and temperatures may vary based on food quantity, size, and desired crispness.

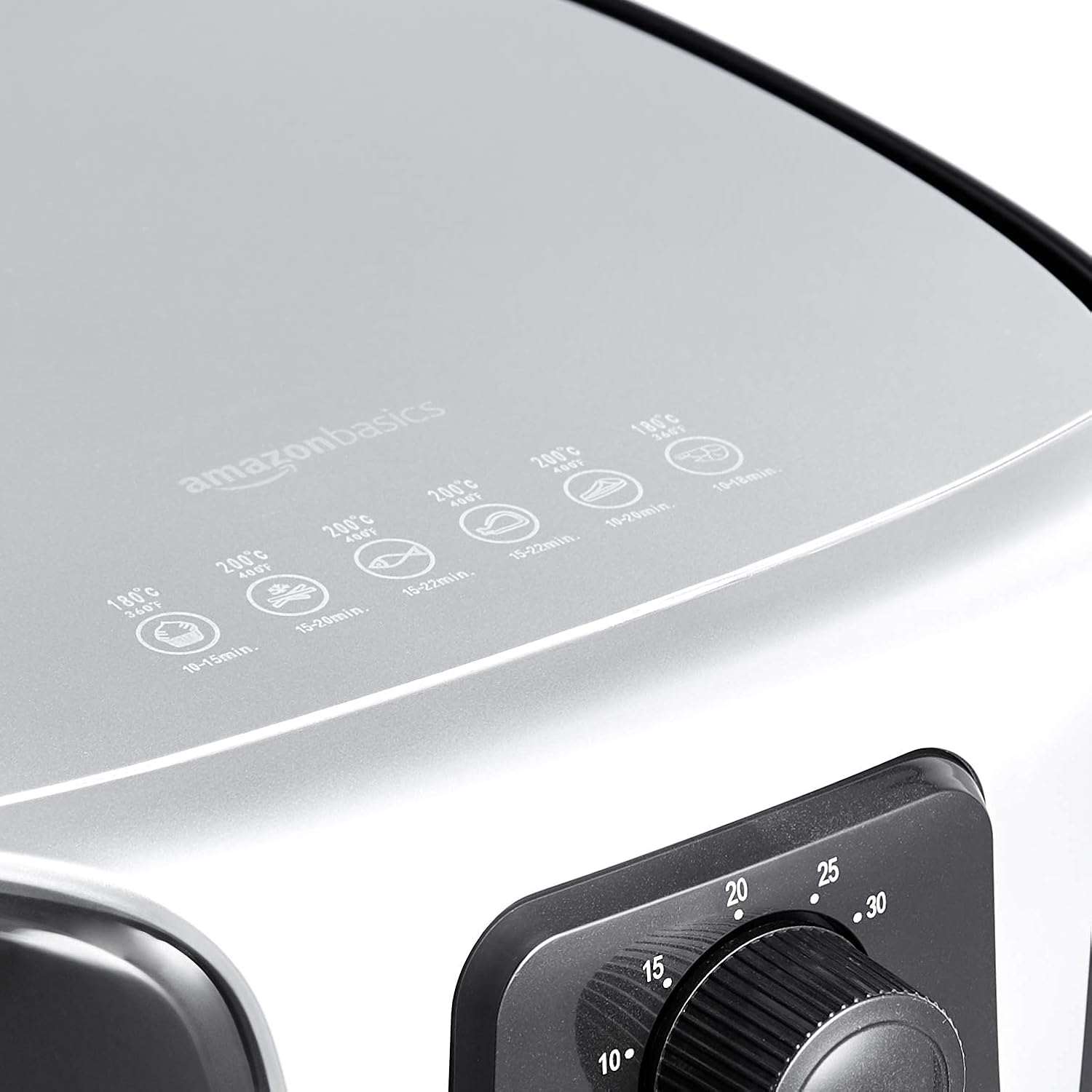

Figure 4: Top panel of the air fryer showing suggested cooking temperatures and times for various food types like fries, chicken, fish, and baked goods.
| Food Item | Temperature | Time (Approx.) | Notes |
|---|---|---|---|
| Frozen Fries (thin) | 180°C (350°F) | 15-20 min | Shake halfway |
| Chicken Drumsticks | 180°C (350°F) | 20-25 min | Flip halfway |
| Fish Fillet | 160°C (320°F) | 10-15 min | |
| Vegetables (mixed) | 180°C (350°F) | 10-18 min | Toss halfway |
Maintenance and Cleaning
Proper cleaning and maintenance will extend the life of your air fryer.
- Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool down completely before cleaning.
- Clean Basket: The cooking basket is NOT dishwasher safe. Wash the basket with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak the basket in hot soapy water for about 10 minutes before cleaning.
- Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the surface.
- Clean Interior: If necessary, wipe the interior of the appliance with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.
Troubleshooting
If you encounter issues with your air fryer, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Not plugged in; Timer not set; Power outage. | Ensure the plug is securely in the outlet. Set the timer. Check your home's power supply. |
| Food is not cooked evenly. | Basket is overfilled; Food not shaken/flipped. | Do not overfill the basket. Shake or flip food halfway through cooking. |
| White smoke coming from appliance. | Grease residue from previous use; High fat content food. | Clean the basket thoroughly after each use. For high-fat foods, drain excess fat during cooking. |
| Food is not crispy. | Not enough oil (for some foods); Temperature too low; Cooking time too short. | Lightly brush or spray food with oil. Increase temperature or cooking time as needed. |
Specifications
Detailed technical specifications for the Amazon Basics Multi-Functional Air Fryer.
| Feature | Detail |
|---|---|
| Brand | Amazon Basics |
| Model Number | DF7003AB-GS-BS |
| Capacity | 4 Liters |
| Wattage | 1300 watts (Output Wattage: 1500 Watts) |
| Voltage | 230 Volts |
| Control Method | Touch (Dials) |
| Max Temperature Setting | 209 Degrees Celsius |
| Material | Plastic (Inner Material: Plastic, Outer Material: Synthetic) |
| Nonstick Coating | Yes |
| Dishwasher Safe | No |
| Item Weight | 11.24 Pounds |
| Product Dimensions | 15.5 x 11 x 12.5 inches |
| Color | Black |
| Recommended Uses | Bake, Dehydrate, Reheat, Roast |
Figure 5: Diagram illustrating the approximate dimensions of the air fryer, showing a height of 13 inches (32 cm).
Warranty and Support
For warranty information and customer support, please refer to the resources below:
- Warranty Document: For detailed warranty terms and conditions, please refer to the official Warranty (PDF).
- Customer Support: For further assistance, troubleshooting not covered in this manual, or to inquire about parts, please contact Amazon Basics customer support through the Amazon website or your purchase platform.
