Introduction
The Nite Ize Radiant LED Headlamp is designed for hands-free illumination in various environments, including nighttime activities, outdoor adventures, and emergency situations. It features both white and red LEDs with multiple operating modes, a water-resistant and impact-resistant body, and an adjustable strap for comfortable wear.
What's in the Box
- One Nite Ize Radiant LED Headlamp
- One Adjustable Head Strap
- Three AAA Batteries (pre-installed or included separately)
Setup
1. Battery Installation
The headlamp requires three AAA batteries. Ensure correct polarity when inserting. If batteries are pre-installed, remove the protective tab if present.

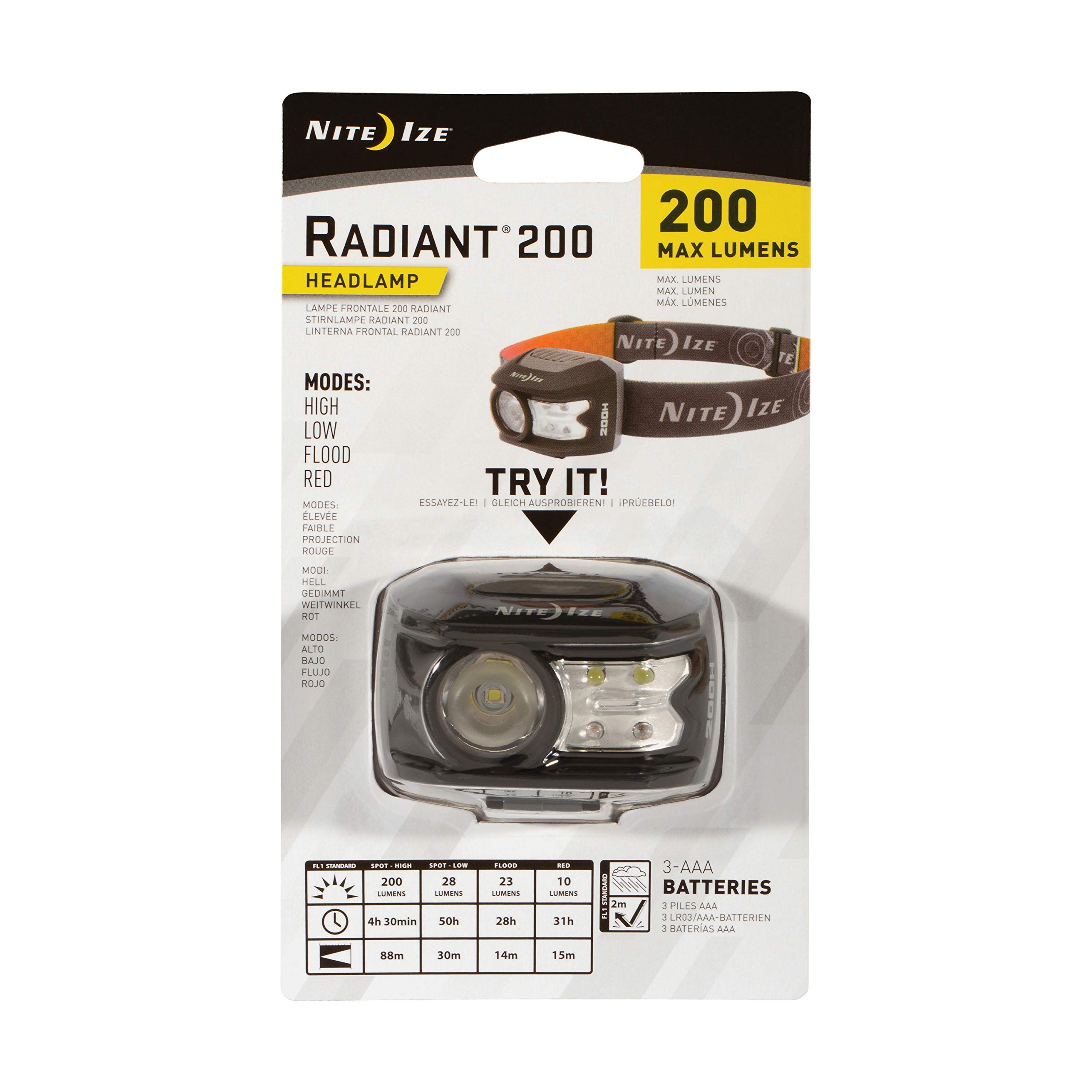

Image: The Nite Ize Radiant LED Headlamp, showing the main unit and the adjustable head strap. The battery compartment is located on the back of the main unit.
2. Adjusting the Head Strap
The headlamp features a comfortable, high-quality elastic strap. Adjust the strap to fit securely and comfortably around your head. The strap can be tightened or loosened using the buckles on either side.
Image: The Nite Ize Radiant LED Headlamp resting on a rock, illustrating its compact design and the adjustable strap.
Operating Instructions
1. Power On/Off and Mode Selection
The headlamp has a single central switch for operation. Press the switch to cycle through the white LED modes:
- High Spot: Provides maximum brightness for long-distance visibility.
- Low Spot: Offers reduced brightness for extended battery life.
- Flood: Illuminates a wider area for close-range tasks.
To activate the red LED mode, press and hold the central switch. The red light helps preserve night vision and is useful for discreet illumination. Press the switch again to turn off the headlamp from any mode.
Image: A close-up view of the headlamp's front, highlighting the main white LED, the flood LEDs, and the central control button.
2. Adjusting the Tilt Angle
The headlamp unit can be tilted up to 90 degrees downwards. This allows you to direct the light precisely where needed, whether for viewing distant objects or illuminating your immediate path.
Image: A person wearing the Nite Ize Radiant LED Headlamp, demonstrating the white light mode during an outdoor activity at night.
Image: A person wearing the Nite Ize Radiant LED Headlamp, demonstrating the red light mode for preserving night vision.
Maintenance
1. Cleaning
Wipe the headlamp body with a soft, damp cloth. Do not use abrasive cleaners or solvents. The head strap can be hand-washed with mild soap and water, then air-dried.
2. Battery Replacement
When the light output diminishes, replace all three AAA batteries simultaneously. Always use fresh, high-quality alkaline batteries. Remove batteries if the headlamp will not be used for an extended period to prevent leakage.
3. Storage
Store the headlamp in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
- Light does not turn on:
- Check if batteries are inserted correctly with the correct polarity.
- Replace old or depleted batteries with new ones.
- Ensure the battery compartment is securely closed.
- Light is dim or flickers:
- Batteries may be low; replace them.
- Ensure battery contacts are clean and free of corrosion.
- Headlamp drains batteries quickly:
- Ensure the headlamp is completely turned off when not in use.
- Avoid storing the headlamp with the button pressed, which could accidentally activate it.
- Use high-quality batteries from a reputable brand.
Specifications
| Model Number | R200H-09-R7 |
| Light Output (White) | 200 Lumens (High Spot) |
| Light Output (Red) | 10 Lumens (Red Flood) |
| Runtime (High Spot) | 4 hours 30 minutes |
| Runtime (Low Spot) | 50 hours |
| Runtime (Flood) | 28 hours |
| Runtime (Red) | 31 hours |
| Beam Distance (High Spot) | 88 meters |
| Beam Distance (Low Spot) | 30 meters |
| Beam Distance (Flood) | 14 meters |
| Beam Distance (Red) | 15 meters |
| Power Source | 3 x AAA Alkaline Batteries |
| Water Resistance | IPX4 (Water Resistant) |
| Impact Resistance | Drop-proof to 2 meters |
| Material | Polycarbonate (Plastic) |
| Weight | 4 ounces (approx. 113g) |
| Dimensions (D x W x H) | 2.36" x 1.54" x 1.78" |
Image: A detailed table showing the FL1 Standard specifications for the headlamp, including lumens, runtime, and beam distance for Spot-High, Spot-Low, Flood, and Red modes, along with water and impact resistance ratings.
Warranty and Support
Warranty Information
All Nite Ize products purchased from authorized resellers are backed by our Worry-Free Guarantee. For specific details regarding warranty coverage and claims, please refer to the official Nite Ize website or contact customer support.
Image: The Nite Ize "Worry Free Guarantee" logo, indicating product support and assurance.
Customer Support
For further assistance, technical support, or warranty inquiries, please visit the official Nite Ize website or contact their customer service department. Contact information can typically be found on the product packaging or the manufacturer's website.
Safety Information
- Do not look directly into the LED light, as it can cause temporary vision impairment.
- Keep out of reach of children.
- Dispose of batteries according to local regulations.
- Do not mix old and new batteries, or different types of batteries.
- Do not attempt to disassemble or modify the headlamp, as this will void the warranty and could cause damage or injury.
