Byox Jockey Tricycle Model 107020 User Manual

1. Introduction

Thank you for choosing the Byox Jockey Tricycle Model 107020. This versatile tricycle is designed for children aged 12 to 72 months, offering a safe and enjoyable riding experience. It features durable rubber tires, a rotating seat with a music function, and an adjustable push bar for parental control. This manual provides essential information for the correct assembly, safe operation, and proper maintenance of your tricycle.

Image 1.1: The Byox Jockey Tricycle in its full configuration with canopy and parental push bar.

2. Safety Instructions

Please read and understand all safety instructions before assembling and using the tricycle. Failure to follow these instructions may result in serious injury.

• Age Recommendation: Suitable for children aged 12 months to 72 months.
• Maximum Load: Do not exceed a maximum weight of 30 kg.
• Adult Supervision: Always use the tricycle under direct adult supervision.
• Safety Harness: Ensure the 5-point safety harness is securely fastened at all times when the child is seated.
• Brakes: Always engage the two rear brakes when parking the tricycle or when stationary.
• Terrain: Use on flat, even surfaces. Avoid slopes, stairs, and uneven terrain.
• Protective Gear: Always ensure the child wears appropriate protective gear, such as a helmet, when riding.
• Battery Safety: The music function requires 2 x AA 1.5-volt batteries (not included). Ensure batteries are inserted correctly and keep them out of reach of children.

3. Parts List

Before assembly, ensure all parts are present and undamaged. Refer to the diagram below for identification.

• Tricycle Frame (main body)
• Front Wheel (12-inch rubber tire)
• Rear Wheels (two 10-inch rubber tires)
• Child Seat (with 5-point harness)
• Adjustable Push Bar
• Handlebar with Music Function
• Front Safety Bar (removable)
• Footrests (for older children)
• Additional Footrests (for smaller children)
• Adjustable Sun Canopy
• Luggage Basket
• Bottle Holder (for push bar)

Image 3.1: Overview of the tricycle in different configurations, illustrating removable components.

4. Setup and Assembly

The Byox Jockey Tricycle is designed for easy assembly and transformation. Follow these general steps:

1. Frame Assembly: Connect the main frame components as per the included diagram (not provided in this manual).
2. Wheel Installation: Attach the 12-inch front wheel and two 10-inch rear wheels securely. Ensure the free-wheel function is correctly engaged on the front wheel if desired.
3. Seat Installation: Mount the child seat. It can be rotated 360 degrees and installed facing forward or backward, providing an ideal alternative to a stroller for younger children.
4. Handlebar and Push Bar: Install the handlebar. Insert 2 x AA 1.5-volt batteries (not included) for the music function. Attach the adjustable push bar to the rear of the tricycle. The push bar's height is adjustable.
5. Safety Features: Install the front safety bar and ensure the 5-point safety harness is functional.
6. Accessories: Attach the sun canopy (adjustable in 2 positions), luggage basket, and bottle holder.
7. Footrests: Depending on the child's age, attach the appropriate footrests. There are options for older children and additional footrests for smaller children.

All safety devices and the backrest are removable, allowing the tricycle to transform as your child grows.

5. Operating Instructions

The Byox Jockey Tricycle offers multiple modes of use to adapt to your child's development.

5.1. Parental Push Mode (12+ months)

For younger children, use the adjustable push bar to control the tricycle's direction and speed. The seat can be rotated to face the parent or forward. Engage the free-wheel function on the front wheel so the child's pedaling does not affect the tricycle's movement. Ensure the 5-point harness and front safety bar are in place.

5.2. Assisted Tricycle Mode

As your child grows, they can begin to pedal while you still guide them with the push bar. The footrests can be folded or removed when the child is ready to pedal independently.

5.3. Independent Tricycle Mode

Once your child is confident in pedaling and steering, the push bar, sun canopy, and front safety bar can be removed. The tricycle then functions as a traditional independent tricycle.

Image 5.1: The Byox Jockey Tricycle configured for independent riding.

5.4. Features Overview

• Rotating Seat: Press the release button (if applicable) and rotate the seat 360 degrees.
• Music Function: Press the button on the handlebar to activate the music. Requires 2 x AA 1.5-volt batteries.
• Brakes: Push down the levers on the rear wheels to engage the brakes. Lift to release.
• Free Wheel Function: This allows the pedals to remain stationary while the tricycle is pushed. Consult the specific mechanism on the front wheel for engagement/disengagement.

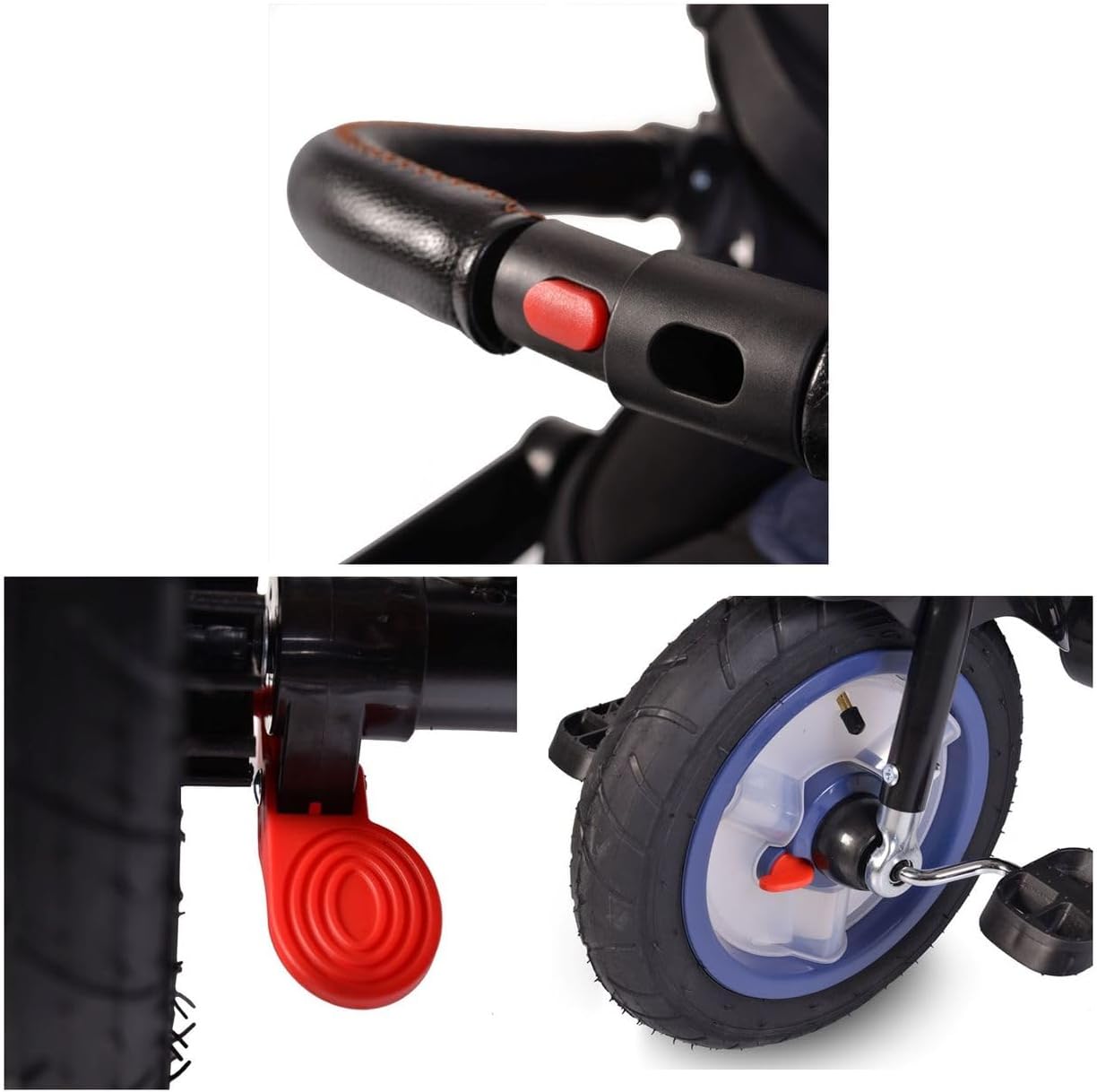

Image 5.2: Detail of the handlebar with music function and the rear wheel brake.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Byox Jockey Tricycle.

• Cleaning: Wipe down the tricycle regularly with a damp cloth. Avoid harsh chemicals.
• Tires: Check rubber tires periodically for wear and proper inflation (if applicable).
• Fasteners: Ensure all screws, bolts, and fasteners are tight. Do not overtighten.
• Moving Parts: Lubricate moving parts (e.g., wheel axles, pedal mechanism) with a suitable lubricant if they become stiff.
• Battery Replacement: Replace the 2 x AA 1.5-volt batteries for the music function when the sound becomes weak or stops working.
• Storage: Store the tricycle in a dry, cool place away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your tricycle, refer to the following common problems and solutions:

• Tricycle is difficult to steer: Check that the handlebar is securely attached and not loose. Ensure the front wheel is properly aligned.
• Pedals are not turning the wheel: Verify that the free-wheel function is disengaged if you intend for the child's pedaling to propel the tricycle. Check for any obstructions in the pedal mechanism.
• Music function not working: Ensure 2 x AA 1.5-volt batteries are correctly inserted and not depleted. Replace batteries if necessary. Check for any loose connections.
• Brakes are not effective: Inspect the brake pads and mechanisms on the rear wheels for wear or damage. Ensure they are properly adjusted.
• Seat rotation is stiff: Check for any debris obstructing the rotation mechanism. Clean and apply a small amount of lubricant if needed.

For issues not covered here, please contact Byox customer support.

8. Specifications

9. Warranty and Support

Information regarding product warranty and customer support is not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for details on warranty coverage and how to contact customer service for assistance.
