1. Introduction
The Apex Customs Big Boi BlowR Mini Dryer is a powerful, touchless drying solution designed to safely and efficiently dry vehicles, motorcycles, and other surfaces. Its non-contact method significantly reduces the risk of scratches and swirls often associated with traditional drying cloths. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your BlowR Mini Dryer.
2. Safety Information
Always read and understand all safety warnings and instructions before using this product.
- Ensure the power outlet matches the voltage requirements (230 volt AU plug).
- Do not operate the dryer with a damaged cord or plug.
- Keep hands, hair, and loose clothing away from air inlets and outlets during operation.
- Do not block air vents. Ensure proper ventilation during use.
- Do not use in wet conditions or immerse the unit in water.
- Unplug the unit from the power source before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Use only manufacturer-recommended attachments and accessories.
3. Package Contents
Verify that all items are present in your package:
- Big Boi BlowR Mini Dryer Unit
- 3.5m Commercial Grade Hose
- 3 Interchangeable Nozzles (various shapes for different applications)
- Foam Air Filter (washable & reusable)
- Power Cord (2m mains lead with AU plug)

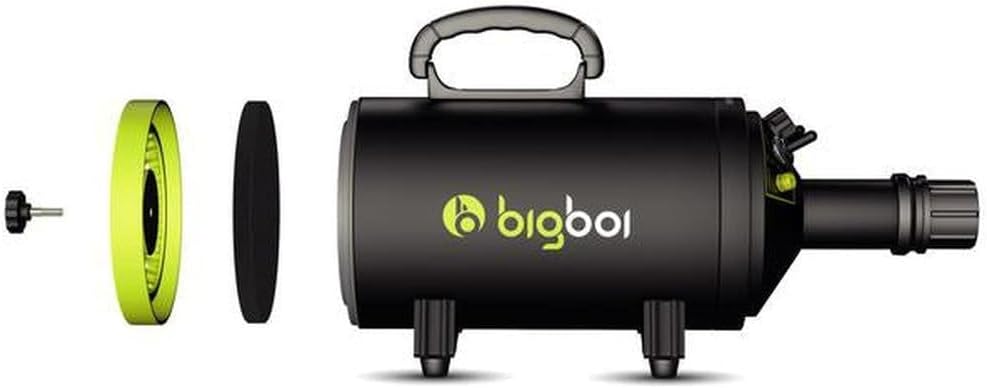

Image: Exploded view showing the main unit, hose connection, filter, and nozzle components.
4. Setup
Follow these steps for initial setup:
- Attach the Hose: Securely connect the 3.5m commercial grade hose to the air outlet on the front of the dryer unit. Ensure it clicks or twists into place firmly to prevent air leaks during operation.
- Select and Attach Nozzle: Choose one of the three interchangeable nozzles based on your drying needs. Push the desired nozzle onto the end of the hose until it is securely fitted.
- Insert Foam Air Filter: Locate the filter compartment, typically at the rear or side of the unit. Insert the washable and reusable foam air filter. Ensure it is clean and properly seated before use.
- Position the Dryer: Place the dryer on a stable, flat surface. Ensure there is adequate space around the unit for proper airflow and ventilation.
- Connect to Power: Plug the 2m mains lead into a suitable 230 volt AU power outlet.

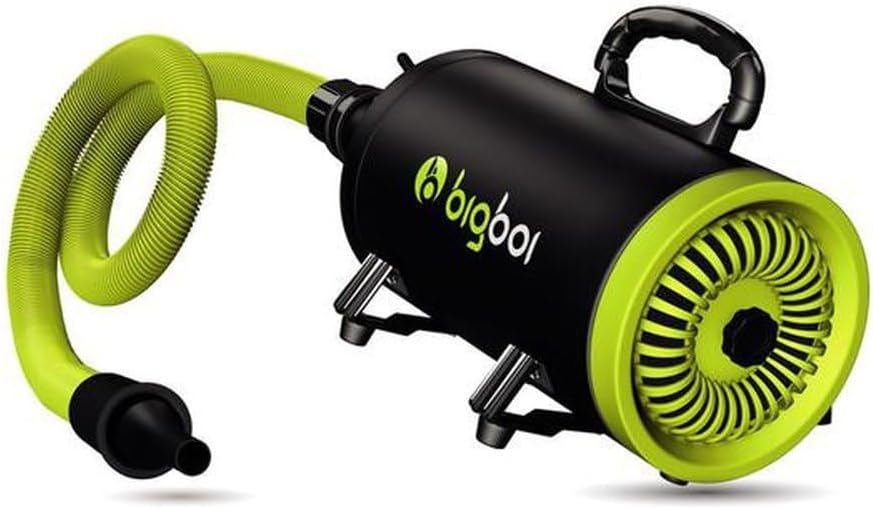

Image: The Big Boi BlowR Mini Dryer with its flexible hose attached, ready for use.
5. Operating Instructions
Operating your Big Boi BlowR Mini Dryer is straightforward:
- Power On: Locate the power switch, usually on the top or side of the unit. Turn the switch to the 'ON' position. The dryer will begin to operate.
- Adjust Wind Control: The dryer features a 2-stage adjustable wind control. Use the control knob or switch to select your desired airflow intensity, ranging from 72km/h up to 220km/h (45mph - 137mph).
- Set Temperature: Utilize the Apex Customs Temperature Technology (BTT) to select one of three temperature settings: 15°C, 25°C, or 45°C. This allows for optimal drying based on ambient conditions and surface type.
- Drying Technique: Hold the nozzle a few inches from the surface. Use a sweeping motion to push water off the surface. Start from the top and work your way down. Pay attention to crevices, mirrors, grilles, and wheel spokes where water tends to collect.
- Power Off: Once drying is complete, turn the power switch to the 'OFF' position and unplug the unit from the power outlet.

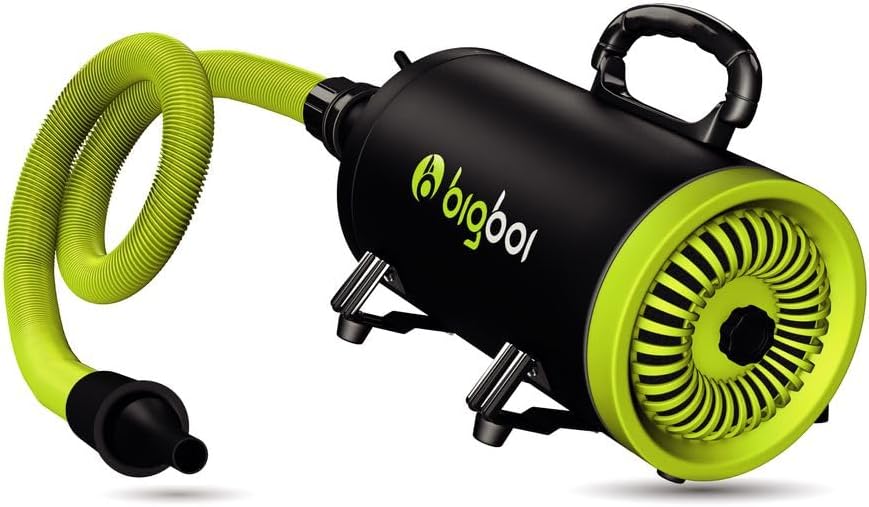

Image: The Big Boi BlowR Mini Dryer, a compact and powerful unit designed for efficient drying.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your dryer:
- Clean Foam Air Filter: The foam air filter is washable and reusable. Periodically remove the filter and clean it with mild soap and water. Allow it to dry completely before reinserting. A clogged filter can reduce airflow and efficiency.
- Clean Exterior: Wipe down the exterior of the dryer unit and hose with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Inspect Hose and Nozzles: Regularly check the hose and nozzles for any signs of wear, cracks, or damage. Replace if necessary to maintain performance and safety.
- Storage: Store the dryer in a cool, dry place, away from direct sunlight and extreme temperatures. Coil the hose neatly to prevent kinks or damage.
7. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not turn on. | No power to the unit. | Check if the power cord is securely plugged into a working outlet. Test the outlet with another device. |
| Low airflow or weak performance. | Clogged air filter; hose kinked or not properly attached; incorrect speed setting. | Clean or replace the foam air filter. Ensure the hose is not kinked and is securely attached to the unit and nozzle. Adjust the wind control to a higher setting. |
| Unit overheats or shuts off. | Blocked air vents; prolonged use; internal issue. | Ensure air inlets and outlets are clear of obstructions. Allow the unit to cool down. If the problem persists, contact customer support. |
| Hose or nozzle is damaged. | Wear and tear; accidental damage. | Discontinue use and contact Apex Customs for replacement parts or warranty service. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | BBMINI |
| Motor Power | 3000-watt (up to 4HP) |
| Voltage | 230 volt AU plug |
| Wind Control | 2-stage adjustable (72km/h - 220km/h) |
| Temperature Settings | 15°C, 25°C, 45°C (Apex Customs Temperature Technology) |
| Hose Length | 3.5m commercial grade |
| Power Cord Length | 2m |
| Nozzles | 3 interchangeable nozzles (Neoprene rubber hose nozzle) |
| Filter System | Low noise reduction twin filter system, EZ Change foam filter (washable & reusable) |
| Dimensions | 35 x 40 x 20 cm |
| Weight | 2.5 kgs (unit only), 5.97 kg (package) |
| Material | Neoprene, Rubber |
| Color | Lime Green |
9. Warranty and Support
The Big Boi BlowR Mini Dryer comes with a 12-month manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or to purchase replacement parts, please contact Apex Customs customer service. Keep your proof of purchase for warranty validation.
Contact Information: Please refer to the Apex Customs official website or your retailer's contact details for the most up-to-date support information.
